PKRNVWMC679Cellular/ PCS WCDMA/ GSM/ EDGE and AWS/ 700 MHz LTE USB Modem

Getting started guide Turbo Stick LTE ® Novatel Wireless™ U679 Clé Turbo Guide de démarrage U679 LTE~ de Novatel Wireless` Novatel Wireless / Anette Farrel 9645 Scranton Road, Ste 205 San Diego, CA 92121 Phone: 619-993-3058 TITLE: QRG U679 Bell P/N: 90026502ECO: 11405 FONTS: BellSli Family LINKS: Embeded *See also Links Folder COLORS: CMYK 4/4 SIZE: Bleed 246.35 mm x 126.35 mm (9.7” x 4.97”) Trim 240 mm x 120 mm (9.45” x 4.73”) Finished 120 mm x 120 mm (4.73” x 4.73”) MATERIAL/FINISH: 70# Book or 105 gsm throughout Binding: Staple Finish: Gloss Oil Varnish Assemble as shown, French pages ‘upside down’ so booklet can be read correctly from both covers FILES 90026502 R1 MASTER QRG U679 Bell.indd 90026502 R1 PRINT QRG U679 Bell.pdf 90026502 R1 VIEW QRG U679 Bell.pdf VERSION TRACKING Rev 1 - 7/15/11 - Lynn Ford - INITIAL RELEASE Welcome Thank you for purchasing a Turbo Stick from Bell. This guide provides an overview of your new Turbo Stick and details on how to configure your computer for use with this Turbo Stick. Account Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Inserting your Bell SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Preparing your computer for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 • Installing Mobile Connect for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 • Installing Mobile Connect for Macintosh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Starting Mobile Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Using your Turbo Stick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 How much data do I need? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Hardware overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Inserting and removing your Turbo Stick from your computer . . . . . . . . . . . 16 Unblocking a SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Bienvenue Merci d’avoir acheté une clé Turbo de Bell. Ce guide vous donne un aperçu de votre nouvelle clé Turbo ainsi que des détails sur la façon de configurer votre ordinateur pour pouvoir utiliser votre clé Turbo. Exigences au niveau de votre compte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Configuration requise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Insertion de votre carte SIM de Bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Préparer votre ordinateur pour l’installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 • Installation du logiciel Connexion mobile pour Windows . . . . . . . . . . . . . . . . 6 • Installation du logiciel Connexion mobile pour Macintosh . . . . . . . . . . . . . . . 8 Démarrage de Connexion mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Utilisation de votre clé Turbo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Quels sont mes besoins en données?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Présentation du matériel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Insertion et retrait de votre clé Turbo de votre ordinateur . . . . . . . . . . . . . . 16 Déverrouiller la carte SIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 2 Account Requirements Before installing your Turbo Stick, please ensure you have the following: • A Bell wireless account with a Mobile Internet plan. (If you don’t have an account or a Mobile Internet plan, speak with a Bell account representative to get set up.) • An active Bell SIM card. • Your Mobile Directory Number (MDN), or phone number __________________________________ . Exigences au niveau de votre compte Avant d’installer votre clé Turbo, assurez-vous d’avoir les éléments suivants : • Un compte sans fil de Bell avec un forfait Connectivité mobile (si vous n’avez pas de compte ni de forfait Connectivité mobile, communiquez avec un chargé de comptes de Bell afin d’en établir un). • Une carte SIM de Bell active. • Votre numéro de répertoire mobile (NRM) ou numéro de téléphone __________________________________ . 2 3 System Requirements To install and operate your Turbo Stick, ensure your computer has the following minimum system resources: For more information visit www.bell.ca/mobileconnect 3 WINDOWS Operating System Windows ® XP (32-Bit); Windows® Vista (32/64-Bit); Windows ® 7 (32/64-Bit) USB PortType A, v1.1 supported; v2.0 high speed recommended COM Ports4 free COM ports I/O Resources1 IRQ, 4096 bytes of I/O space RAM Memory128 MB Disk Space100 MB MACINTOSH Operating SystemMac OS ® X 10.4.11, 10.5, 10.6 USB PortType A, v1.1 supported; v2.0 high speed recommended RAM Memory128 MB Disk Space100 MB Confi guration requise Pour installer et utiliser votre clé Turbo, assurez-vous que votre ordinateur est muni des ressources suivantes : Pour plus d'information, visitez bell.ca/connexionmobile WINDOWS Système d’exploitation Windows~ XP, édition familiale, professionnelle ou tablette (32-bits); Windows~ Vista (32/64-bits); Windows~ 7 (32/64-bits) Port USBType A, version 1.1 ou haute vitesse version 2.0 (recommandé) Ports de communicationQuatr…

Text truncated - open the document above for the full version.

PN 14316186_R1 CAUTION CAUTION: This USB modem is approved for use in normal-size laptop computers only. To comply with FCC RF exposure requirements, this modem should not be used in configurations that cannot maintain at least 5 mm from users and bystanders. For example, this modem should not be used in certain laptop and tablet computers and configurations where the USB con- nectors are unable to provide or ensure the necessary separa- tion is available between the modem and its users to satisfy compliance. See detailed operating requirements in User Manual. 145 mm 101.6 mm NovatelWir elessTechnologies Ltd. Suite 200, 6715 - 8th St NE Calgary, ABCanadaT2E 7H7 Phone: 403 295 4800 TITLE: FCC RF Insert, MC551 Generic P/N: 14316186 NOTES: 10/28/10 - Rev.1 - Anette Farrell - INITIAL RELEASE ECO 70# uncoated paper 3 color: CMYK Text is 100% K CAUTION is red : 0/100/100/0 Magenta does not print

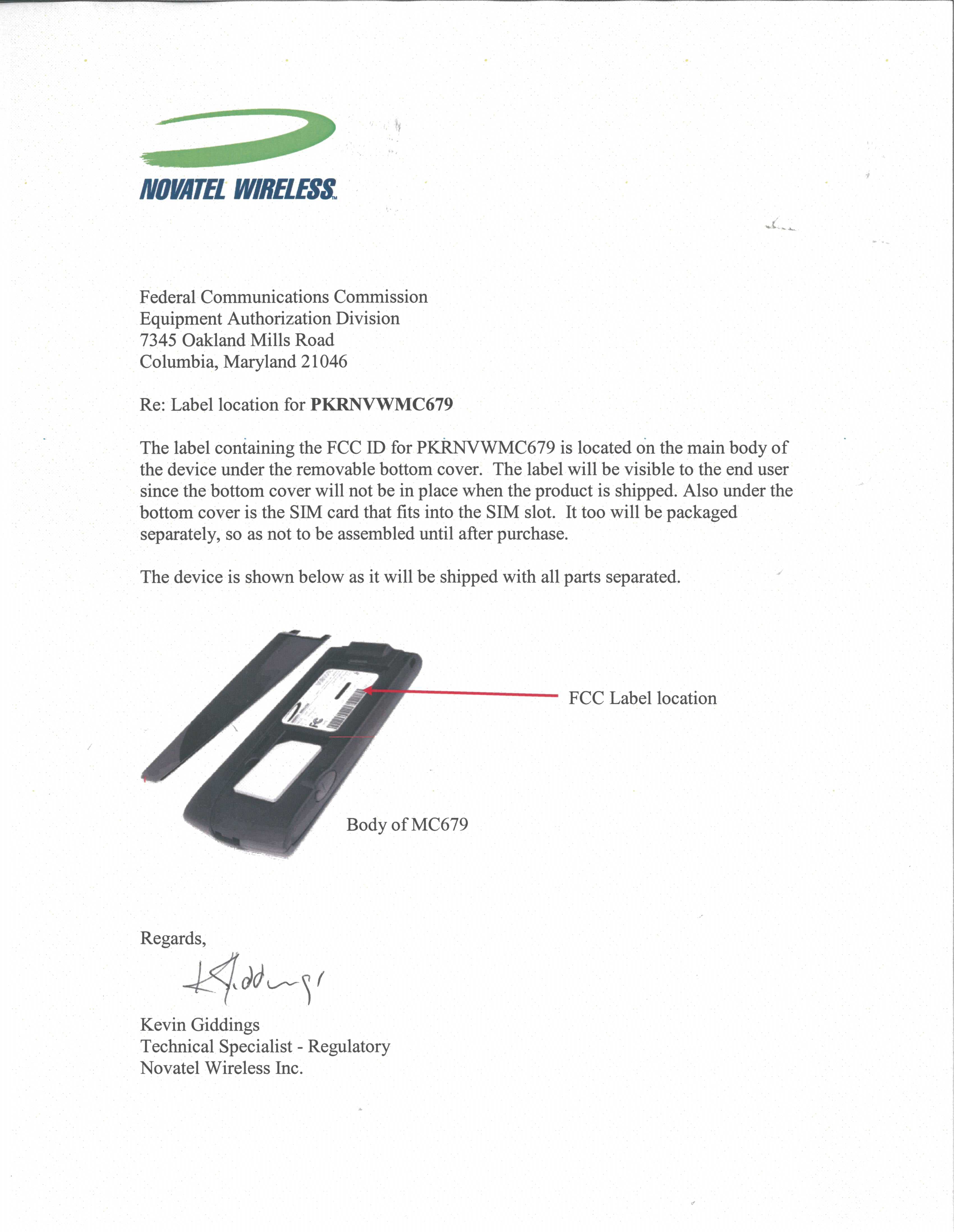

Top side

MODEL: MC679 FCC ID: PKRNVWMC679 IC: 3229A - MC679 Designed in North America Manufactured in South Korea QUALCOMM 3G/4G MMDDYY IMEI: XXXXXXXX - XXXXXX - X DATE OF MANUFACTURE - Verdana 4 pt Bold TEXT: MM = Year - Verdana 4 pt Bold TEXT: DD= Month - Verdana 4 pt Bold TEXT: YY = Day - Verdana 4 pt Bold MEID Readable TEXT: “XXXXXXXX-XXXXXX-X” SW030RSN MEID Barcode Code 128 - 3mm Data: “NNNNNNNNNNNNNN” MC679 Patents: www.nvtl.com/patents P/N: 25018849 R.2 28.35 19.34 PROCESS BLACK (0/0/0/100) OPAQUE WHITE TITLE: LABEL REGULATORY MC679 P/N: 25018849 Rev.1 04/18/11 - LZalasky - INITIAL RELEASE Rev.2 06/02/11 - LZalasky - ADDED ‘DESIGNED IN NORTH AMERICA’ ECO: 11286 Novatel Wir eless Technologies Ltd. Suite 200, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 FONTS MYRIAD PRO CONDENSED FILES 25018849 Rev 2 Master Label Regulatory MC679.AI (AI CS5) 25018849 Rev 2 EPS Outline Label Regulatory MC679.EPS (CS EPS) 25018849 Rev 2 View Only Label Regulatory MC679.PDF (DO NOT PRINT Reference PDF) MATERIALS DIMENSIONS SHOWN FOR REFERENCE ONLY, REFER TO DM-25016910 FOR PART MATERIAL, PROPERTIES AND DIE LINE GEOMETRY MAGENTA DOES NOT PRINT WHITE LABEL COLOR: 1C BACKGROUND IS OPAQUE WHITE TEXT IS BLACK NOTES

Main Tx/Rx (non removeable) Top cover (non-removable) Inside top cover Back cover (removable) Inside back cover Internal - top cover removed Internal backside Internal topside Internal body Diversity antenna side 1 Diversity antenna side 2 Internal topside shields removed Internal topside shields removed Internal backside – shields removed Internal backside – shields removed

Reviewed by: FCC ID: PKRNVWMC679 IC Cert No.: 3229A-MC679 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Quality Manager Filename: Test Dates: EUT Type: 0Y1106221046.PKR 07/29/11 - 08/09/11 USB Dongle Page 1 of 41 © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 Applicant Name: Date of Testing: Novatel Wireless Inc. 07/29/11 - 08/09/11 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1106221046.PKR FCC ID: IC CERTIFICATION NO.: PKRNVWMC679 3229A-MC679 APPLICANT: NOVATEL WIRELESS INC. EUT Type: USB Dongle Application Type: Certification FCC Rule Part(s): IC Specification(s): Radio Equipment Type: Model(s): IC Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] RSS-102 Issue 4; Health Canada Safety Code 6, IEC 62209-1, IEC 62209-2, IEEE 1528 Cellular Communications Apparatus MC679 MC679 Test Device Serial No.: Pre-Production [S/N: 485] SAR 1 gm Body (W/kg) GPRS/EDGE 850824.20 - 848.80 MHz32.58 1.00 GPRS/EDGE 19001850.20 - 1909.80 MHz30.04 0.57 WCDMA/HSPA 850826.40 - 846.60 MHz23.03 0.78 WCDMA/HSPA 19001852.4 - 1907.6 MHz22.32 1.13 LTE Band 17706.5 - 713.5 MHz 22.78 0.53 LTE AWS1710 - 1754 MHz 22.90 1.13 Band & ModeTx Frequency Conducted Power [dBm] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: FCC ID: PKRNVWMC679 IC Cert No.: 3229A-MC679 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Quality Manager Filename: Test Dates: EUT Type: 0Y1106221046.PKR 07/29/11 - 08/09/11 USB Dongle Page 2 of 41 © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 TABLE OF CONTENTS 1 LTE INFORMATION PER FCC KDB 941225 D05.......................................................................... 3 2 INTRODUCTION ............................................................................................................................. 4 3 TEST SITE LOCATION ................................................................................................................... 5 4 SAR MEASUREMENT SETUP ....................................................................................................... 6 5 DASY E-FIELD PROBE SYSTEM .................................................................................................. 8 6 PROBE CALIBRATION PROCESS ................................................................................................ 9 7 PHANTOM AND EQUIVALENT TISSUES.................................................................................... 10 8 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 12 9 FCC AND HEALTH CANADA SAFETY CODE 6 RF EXPOSURE LIMITS .................................. 13 10 SAR TEST CONFIGURATIONS ................................................................................................... 14 11 POWER MEASUREMENT PROCEDURES ................................................................................. 19 12 SYSTEM VERIFICATION.............................................................................................................. 27 13 SAR DATA SUMMARY ................................................................................................................. 29 14 EQUIPMENT LIST......................................................................................................................... 37 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 38 16 CONCLUSION............................................................................................................................... 39 17 REFERENCES .............................................................................................................................. 40 Reviewed by: FCC ID: PKRNVWMC679 IC Cert No.: 3229A-MC679 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Quality Manager Filename: Test Dates: EUT Type: 0Y1106221046.PKR 07/29/11 - 08/09/11 USB Dongle Page 3 of 41 © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 1 LTE INFORMATION PER FCC KDB 941225 D05 PKRNVWMC679 Info Band17: 5 and 10 MHz BW; Band4: 1.4, 3, 5, 10, and 20 MHz BW BAND17(704-716 MHz), BAND4(1710-1755 MHz) USB Dongle Per KDB 941224 D05 Channel numbers and frequencies QPSK, 16QAM Category 3 Modulations Supported in UL FCC ID Form Factor Frequency Range of each LTE transmission band Channel Bandwidths Data only 1Tx/Rx, 1Rx One Transmitter Path for GSM/WCDMA/LTE LTE Voice available ? LTE Transmitter and Antenna Implementation Description of LTE Tx and Ant. Implementation UE Category Uplink: Channel # / Frequency (MHz) Low Mid High LTE Band Class B/W (MHz) Channel Freq. Cha…

Text truncated - open the document above for the full version.

© 2011 PCTEST Engineering Laboratory, Inc. APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: PKRNVWMC679; Type: USB Dongle; Serial: 485 Co mmunication System: GSM850 GPRS; 1 Tx slots; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 835 Body Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.946 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ph antom section: Flat Section; Space: 0.5 cm Test Date: 08-0 8-2011; Ambient Temp: 24.3 ° C ; Tissue Temp: 22.7 ° C Pr obe: EX3DV4 - SN3550; ConvF(8.11, 8.11, 8.11); Calibrated: 2/14/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 4/20/2011 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPRS 850, Body SAR, Horizontal Down, Low.ch, 1 Tx Slo ts Area Scan (8x13x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.9 V/m Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 0.998 mW/g; SAR(10 g) = 0.613 mW/g 0 dB = 1.10mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PKRNVWMC679; Type: USB Dongle; Serial: 485 Co mmunication System: GSM850 GPRS; 1 Tx slots; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 835 Body Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.946 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ph antom section: Flat Section; Space: 0.5 cm Test Date: 08-0 8-2011; Ambient Temp: 24.3 ° C ; Tissue Temp: 22.7 ° C Pr obe: EX3DV4 - SN3550; ConvF(8.11, 8.11, 8.11); Calibrated: 2/14/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 4/20/2011 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPRS 850, Body SAR, Horizontal Down, Low.ch, 1 Tx Slots A rea Scan (8x13x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.9 V/m Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 0.998 mW/g; SAR(10 g) = 0.613 mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PKRNVWMC679; Type: USB Dongle; Serial: 485 Co mmunication System: GSM850 GPRS; 1 Tx slots; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Body Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.982 mho/m; ε r = 54.19; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.5 cm Test Date: 08-02-2011; Ambient Temp: 22.8 ° C ; Tissue Temp: 21.7 ° C Probe: ES3DV3 - SN3258; ConvF(6.1 2, 6.12, 6.12); Calibrated: 4/8/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPRS 850, Body SAR, Vertical Back, Mid.ch, 1 Tx Slots Area Scan (4x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Re ference Value = 20.5 V/m Peak SAR (extrapolated) = 0.699 W/kg SAR(1 g) = 0.422 mW/g; SAR(10 g) = 0.264 mW/g 0 dB = 0.457mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PKRNVWMC679; Type: USB Dongle; Serial: 485 Communication System: GSM850 GPRS; 1 Tx slots; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 835 Body Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.98 mho/m; ε r = 54; ρ = 1000 kg/m 3 Ph antom section: Flat Section; Space: 0.5 cm Test Date: 08-02-2011; Ambient Temp: 22.8 ° C ; Tissue Temp: 21.7 ° C Probe: ES3DV3 - SN3258; ConvF(6.12, 6.12, 6.12); Calibrated: 4/8/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPRS 850, Body SAR, Vertical Front, Low.ch, 1 Tx Slots Area Scan (4x8x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Re ference Value = 32.5 V/m Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 0.948 mW/g; SAR(10 g) = 0.600 mW/g 0 dB = 1.03mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PKRNVWMC679; Type: USB Dongle; Serial: 485 Co mmunication System: GSM850 GPRS; 1 Tx slots; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Body Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.952 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ph antom section: Flat Section; Space: 0.5 cm Test Date: 08-0 8-2011; Ambient Temp: 24.3 ° C ; Tissue Temp: 22.7 ° C Pr obe: EX3DV4 - SN3550; ConvF(8.11, 8.11, 8.11); Calibrated: 2/14/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 4/20/2011 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPRS 850, Body SAR, Tip, Mid.ch, 1 Tx Slo ts Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.9 V/m Peak SAR (extrapolated) = 0.279 W/kg SAR(1 g) = 0.124 mW/g; SAR(10 g) = 0.063 mW/g 0 dB = 0.140mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PKRNVWMC679; Type: USB Dongle; Serial: 485 Communication System: GSM1900 GPRS; 1 Tx slots; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 Body Medium parameters used (interpolated): f = 1910 MHz; σ = 1.475 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Pha ntom section: Flat Section; Space: 0.5 cm Test Date: 08-04-2011; Ambient Temp: 24.7 ° C ; Tissue Temp: 23.1 ° C Probe: ES3DV2 - SN3022; ConvF(4.34, 4.34, 4.34); Calibrated: 9/21/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 3/17/2011 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPRS 1900, Body SAR, Horizontal Down, High ch, 1 Tx Slots Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PKRNVWMC679 FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1106221043.PKR June - July 28, 2011 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA and Band 4/17 LTE USB Modem Page 1 of 57 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3GWCFI 10/26/2010 Applicant Name: Date of Testing: Novatel Wireless Inc. June - July 28, 2011 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1106221043.PKR FCC ID: PKRNVWMC679 APPLICANT: NOVATEL WIRELESS INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA and Band 4/17 LTE USB Modem Model(s): MC679 Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) / 1852.4 - 1907.6MHz (PCS WCDMA) Max. RF Output Power: 0.849 W ERP Cell. GSM (29.29 dBm) / 1.028 W EIRP PCS GSM (30.12 dBm) 0.226 W ERP EDGE850 (23.55 dBm) / 0.411 W EIRP EDGE1900 (26.14 dBm) 0.114 W ERP Cell. WCDMA (20.56 dBm) / 0.176 W EIRP PCS WCDMA (22.46 dBm) Emission Designator(s): 242KGXW (Cellular GSM), 244KGXW (PCS GSM) 247KG7W (EDGE850), 248KG7W (EDGE1900) 4M16F9W (Cellular WCDMA), 4M16F9W (PCS WCDMA) Test Device Serial No.: identical prototype [S/N: LN010611600421, LN010611600444] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: PKRNVWMC679 FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1106221043.PKR June - July 28, 2011 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA and Band 4/17 LTE USB Modem Page 2 of 57 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3GWCFI 10/26/2010 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED PO…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PKRNVWMC679 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1106221044.PKR June 27 - July 29, 2011 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA and Band 4/17 LTE USB Modem Page 1 of 83 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 Applicant Name: Date of Testing: Novatel Wireless Inc. June 27 - July 29, 2011 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1106221044.PKR FCC ID: PKRNVWMC679 APPLICANT: NOVATEL WIRELESS INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §27 EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA and Band 4/17 LTE USB Modem Model(s): MC679 Tx Frequency Range: 1710.7 - 1754.3MHz (1.4MHz BW AWS), 1711.5 - 1753.5MHz (3MHz BW AWS), 1712.5 - 1752.5MHz (5MHz BW AWS), 1715 - 1750MHz (10MHz BW AWS), 1717.5 - 1747.5MHz (15MHz BW AWS), 1720 - 1745MHz (20MHz BW AWS), 706.5 - 713.5MHz (5MHz BW Band 17), 709 - 711MHz (10MHz BW Band 17) Max. RF Output Power: 0.094 W EIRP (1.4MHz BW, QPSK, AWS Band) (19.71 dBm) 0.067 W EIRP (1.4MHz BW, 16-QAM, AWS Band) (18.28 dBm) 0.091 W EIRP (3MHz BW, QPSK, AWS Band) (19.58 dBm) 0.071 W EIRP (3MHz BW, 16-QAM, AWS Band) (18.53 dBm) 0.085 W EIRP (5MHz BW, QPSK, AWS Band) (19.28 dBm) 0.068 W EIRP (5MHz BW, 16-QAM, AWS Band) (18.34 dBm) 0.084 W EIRP (10MHz BW, QPSK, AWS Band) (19.26 dBm) 0.064 W EIRP (10MHz BW, 16-QAM, AWS Band) (18.06 dBm) 0.087 W EIRP (15MHz BW, QPSK, AWS Band) (19.38 dBm) 0.073 W EIRP (15MHz BW, 16-QAM, AWS Band) (18.66 dBm) 0.097 W EIRP (20MHz BW, QPSK, AWS Band) (19.88 dBm) 0.08 W EIRP (20MHz BW, 16-QAM, AWS Band) (19.02 dBm) 0.159 W EIRP (5MHz BW, QPSK, Band 17) (22.02 dBm) 0.132 W EIRP (5MHz BW, 16-QAM, Band 17) (21.21 dBm) 0.149 W EIRP (10MHz BW, QPSK, Band 17) (21.73 dBm) 0.116 W EIRP (10MHz BW, 16-QAM, Band 17) (20.65 dBm) Emission Designator(s): 1M09G7D (1.4MHz BW, QPSK, AWS), 1M08W7D (1.4MHz BW, 16-QAM, AWS), 2M69G7D (3MHz BW, QPSK, AWS), 2M68W7D (3MHz BW, 16-QAM, AWS), 4M48G7D (5MHz BW, QPSK, AWS), 4M48W7D (5MHz BW, 16-QAM, AWS), 8M93G7D (10MHz BW, QPSK, AWS), 8M95W7D (10MHz BW, 16-QAM, AWS), 13M40G7D (15MHz BW, QPSK, AWS), 13M41W7D (15MHz BW, 16-QAM, AWS), 17M87G7D (20MHz BW, QPSK, AWS), 17M88W7D (20MHz BW, 16-QAM, AWS) 4M48G7D (5MHz BW, QPSK, Band 17), 4M48W7D (5MHz BW, 16-QAM, Band 17), 8M91G7D (10MHz BW, QPSK, Band 17), 8M91W7D (10MHz BW, 16-QAM, Band 17) Test Device Serial No.: identical prototype [S/N: LN010611600421, LN010611600444] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 66…

Text truncated - open the document above for the full version.
