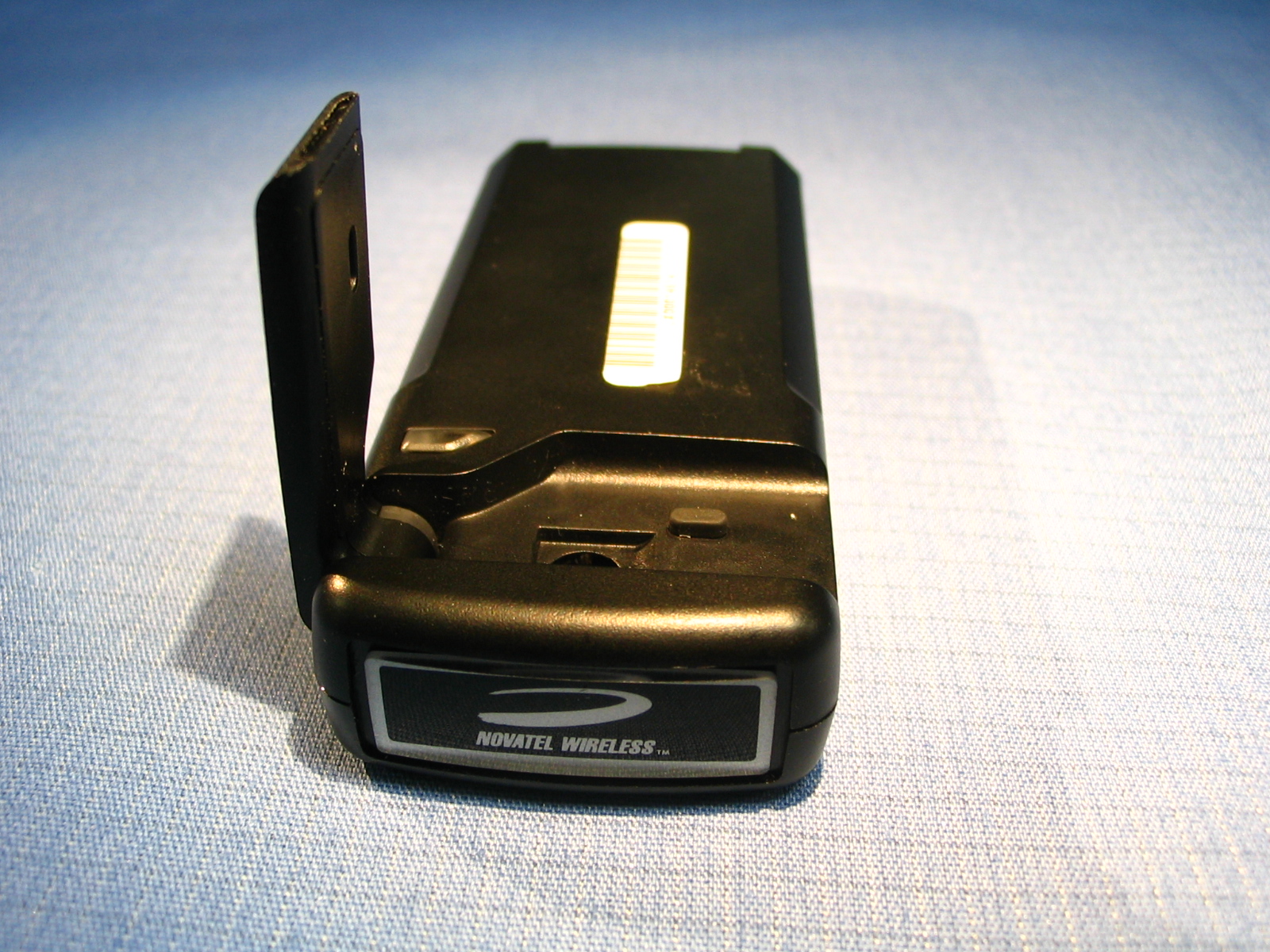

MCD3000 - External Product Photographs: Figure 1: MCD3000 with Protective Cap Installed Figure 2: MCD3000 with Protective Cap Removed Figure 3: MCD3000 with Antenna at 90° - Side View 1 Figure 4: MCD3000 with Antenna at 90° - Side View 2 Figure 5: MCD3000 with Antenna at 90° - End View 1 Figure 6: MCD3000 with Antenna at 90° - End View 2 Figure 7: MCD3000 – Underside

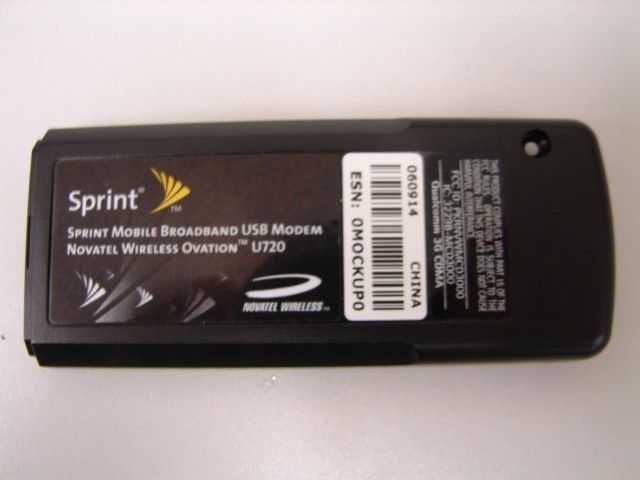

Qualcomm 3G CDMA FCC ID: PKRNVWMCD3000 IC: 3229B-MCD3000 THIS PRODUCT COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERANCE. Novatel Wireless Technologies Ltd. Suite 325, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: BOTTOM LABEL FCC MCD3000 NVTL P/N: 25015962 >Rev.1 08/23/06 - Lawrence Zalasky - INITIAL RELEASE ECO: NOTES: 1. MECHANICAL DRAWING ON HIDDEN LAYER CONTAINS MATERIAL AND DIE CUT INFORMATION. 2. MAGENTA OUTLINE DOES NOT PRINT. FOR CUT REFERENCE ONLY. Material: Base Layer: .025mm 3M 7830 GLOSS WHITE POLYESTER Adhesive: .020mm ACRYLIC Laminate: .025mm CLEAR GLOSS POLYESTER 11.5 24.0

MCD3000 - Internal Product Photographs: Figure 1: MCD3000 with Top Cover Removed Figure 2: MCD3000 – Inside of Top Cover Figure 3: MCD3000 – Top of Entire Board Assembly, Removed Figure 4: MCD3000 – Bottom of Entire Board Assembly, Removed Figure 5: MCD3000 – Top of Entire Board Assembly, with ES720 Radio Removed Figure 6: MCD3000 – Top of ES720 Radio Figure 7: MCD3000 – Top of ES720 Radio with Cover Removed (Photo provided by Novatel) Figure 8: MCD3000 – Bottom of ES720 Radio Figure 9: MCD3000 – Bottom of ES720 Radio with Cover Removed (Photo provided by Novatel) Figure 10: MCD3000 – Flip-Up Antenna, Side 1 Figure 11: MCD3000 – Flip-Up Antenna, Side 2

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. 9/22/2006 9/22/2006 SPECIFIC ABSORPTION RATE (SAR) TEST REPORT Novatel Wireless 9645 Scranton Rd, Suite 205 San Diego, CA, 92121 Product: USB connected 1xEVDO Data Modem Model Number: MCD3000 / U720 / USB720 Product FCCID:PKRNVWMCD3000 Tested to the SAR Criteria in FCC OET Bulletin 65, Supplement C (Edition 01-01) Date: 9/22/2006 Project Number: 3103199 Report Number: 3103199LEX-001 Prepared By:_______________________________Date:__________________ Vinay Kutty, Senior Project Engineer Approved By:______________________________Date:___________________ Bryan C. Taylor, Team Leader – Engineering Intertek Testing Services NA, Inc. 731 Enterprise Drive, Lexington, KY 40510 Telephone: 859-226-1000 Fax: 859-226-1040 Web: www.etlsemko.com 731 Enterprise Drive, Lexington KY 40510 Evaluation For: Novatel Wireless FCC ID: PKRNVWMCD3000 Model: MCD3000 / U720 / USB720 Report Number: 3103199LEX-001 Page 2 of 32 FCC SAR Evaluation TABLE OF CONTENTS 1.0 Document History .......................................................................................................................... 3 2.0 References....................................................................................................................................... 3 3.0 Introduction.................................................................................................................................... 4 Modifications made to test sample .................................................................................................. 4 4.0 Test Site Description ...................................................................................................................... 5 Measurement Equipment ................................................................................................................. 6 Measurement Uncertainty ................................................................................................................ 7 Measurement Traceability ............................................................................................................... 8 5.0 Job Description .............................................................................................................................. 9 Test Sample Description ................................................................................................................ 10 6.0 System Verification ...................................................................................................................... 12 Dipole System Validation .............................................................................................................. 12 Tissue Simulating Liquid Description and Validation................................................................... 14 7.0 Evaluation Procedures................................................................................................................. 16 Test Positions:................................................................................................................................ 16 Reference Power Measurement: ....................................................................................................16 Coarse Scan: .................................................................................................................................. 16 Zoom Scan: .................................................................................................................................... 16 Data Extrapolation: ........................................................................................................................ 17 Reference Power Measurement: ....................................................................................................17 RF Ambient Activity: .................................................................................................................... 17 8.0 Test Configuration / Test Photographs ...................................................................................... 18 9.0 Criteria.......................................................................................................................................... 28 10.0 Engineering Judgments ............................................................................................................... 28 11.0 Tabular Test Results.................................................................................................................... 29 Conducted Power Measurements...................................................................................................29 Body Mode Tabular Test Results ..................................................................................................30 12.0 Graphical SAR Scan Results....................................................................................................... 32 731 Enterprise Drive, Lexington KY 40510 Evaluation For: Novatel Wireless FCC ID: PKRNVWMCD3000 Model: MCD3000 / U720 / USB720 Report Number: 3103199LEX-001 Page 3 of 32 FCC SAR Evaluation 1.0 Document History …

Text truncated - open the document above for the full version.

ACER Laptop, Body Mode, CDMA 1X EV-DO Cell Ch 384 (Mid), Antenna at 0 Degrees Date/Time: 9/12/2006 9:18:20 AM Test Laboratory: Intertek ETL Semko DUT: Novatel MCD3000; Type: USB/CDMA 1X EV-DO Adapter ; Serial: None Communication System: CDMA 1X EV-DO Cell; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.96 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3516; ConvF(10.31, 10.31, 10.31); Probe Calibration Due: 10/20/2006 - Sensor-Surface: 2mm (Mechanical Surface Detection)Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) - Electronics: DAE4 Sn358; Calibrated: 3/23/2006 - Phantom: SAM with CRP; Type: SAM; - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Body Mode; ACER Laptop; Antenna at 0 Degrees; Ch384/Area Scan (9x16x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.639 mW/g Body Mode; ACER Laptop; Antenna at 0 Degrees; Ch384/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.7 V/m; Power Drift = -0.107 dB Peak SAR (extrapolated) = 0.738 W/kg SAR(1 g) = 0.508 mW/g; SAR(10 g) = 0.341 mW/g Maximum value of SAR (measured) = 0.538 mW/g Body Mode; ACER Laptop; Antenna at 0 Degrees; Ch384/Z Scan (1x1x6): Measurement grid: dx=20mm, dy=20mm, dz=20mm Maximum value of SAR (measured) = 0.151 mW/g ACER Laptop, Body Mode, CDMA 1X EV-DO Cell Ch 384 (Mid), Antenna at 45 Degrees Date/Time: 9/12/2006 10:15:34 AM Test Laboratory: Intertek ETL Semko DUT: Novatel MCD3000; Type: USB/CDMA 1X EV-DO Adapter ; Serial: None Communication System: CDMA 1X EV-DO Cell; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.96 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3516; ConvF(10.31, 10.31, 10.31); Probe Calibration Due: 10/20/2006 - Sensor-Surface: 2mm (Mechanical Surface Detection)Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) - Electronics: DAE4 Sn358; Calibrated: 3/23/2006 - Phantom: SAM with CRP; Type: SAM; - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Body Mode; ACER Laptop; Antenna at 45 Degrees; Ch384/Area Scan (9x16x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.454 mW/g Body Mode; ACER Laptop; Antenna at 45 Degrees; Ch384/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.5 V/m; Power Drift = -0.193 dB Peak SAR (extrapolated) = 0.563 W/kg SAR(1 g) = 0.385 mW/g; SAR(10 g) = 0.260 mW/g Maximum value of SAR (measured) = 0.418 mW/g Body Mode; ACER Laptop; Antenna at 45 Degrees; Ch384/Z Scan (1x1x6): Measurement grid: dx=20mm, dy=20mm, dz=20mm Maximum value of SAR (measured) = 0.120 mW/g ACER Laptop, Body Mode, CDMA 1X EV-DO Cell Ch 384 (Mid), Antenna at 90 Degrees Date/Time: 9/12/2006 10:43:54 AM Test Laboratory: Intertek ETL Semko DUT: Novatel MCD3000; Type: USB/CDMA 1X EV-DO Adapter ; Serial: None Communication System: CDMA 1X EV-DO Cell; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.96 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3516; ConvF(10.31, 10.31, 10.31); Probe Calibration Due: 10/20/2006 - Sensor-Surface: 2mm (Mechanical Surface Detection)Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) - Electronics: DAE4 Sn358; Calibrated: 3/23/2006 - Phantom: SAM with CRP; Type: SAM; - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Body Mode; ACER Laptop; Antenna at 90 Degrees; Ch384/Area Scan (9x16x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.418 mW/g Body Mode; ACER Laptop; Antenna at 90 Degrees; Ch384/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.7 V/m; Power Drift = -0.550 dB Peak SAR (extrapolated) = 0.511 W/kg SAR(1 g) = 0.348 mW/g; SAR(10 g) = 0.240 mW/g Maximum value of SAR (measured) = 0.377 mW/g Body Mode; ACER Laptop; Antenna at 90 Degrees; Ch384/Z Scan (1x1x6): Measurement grid: dx=20mm, dy=20mm, dz=20mm Maximum value of SAR (measured) = 0.118 mW/g COMPAQ Laptop, Body Mode, CDMA 1X EV-DO Cell Ch 384 (Mid), Antenna at 0 Degrees Date/Time: 9/12/2006 2:19:51 PM Test Laboratory: Intertek ETL Semko DUT: Novatel MCD3000; Type: USB/CDMA 1X EV-DO Adapter ; Serial: None Communication System: CDMA 1X EV-DO Cell; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.96 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3516; ConvF(10.31, 10.31, 10.31); Probe Calibration Due: 10/20/2006 - Sensor-Surface: 2mm (Mechanical Surface Detection)Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) - Electronics: DAE4 Sn358; Calibrated: 3/23/2006 - Phantom: SAM with CRP; Type: SAM; - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Body Mode; COMPAQ Laptop; Antenna at 0 Degrees; Ch384/Area Scan (9x16x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.542 mW/g Body Mode; COMPAQ Laptop; Antenna at 0 Degrees; Ch384/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = -0.243 dB Peak SAR (extrapolated) = 0.660 W/kg SAR(1 g) = 0.436 mW/g; SAR(10 g) = 0.296 mW/g Maximum value of SAR (measured) = 0.471 mW/g Body Mode; COMPAQ Laptop; Antenna at 0 Degrees; Ch384/Z Scan (1x1x6): Measurement grid: dx=20mm, dy=20mm, dz=20mm Maximum value of SAR (measured) = 0.108 mW/g COMPAQ Laptop, Body Mode, CDMA 1X EV-DO Cell Ch 384 (Mid), Antenna at 45 Degrees Date/Time: 9/12/2006 3:31:40 PM Test Laboratory: Intertek ETL Semko DUT: Novatel MCD3000; Type: USB/CDMA 1X EV-DO Adapter ; S…

Text truncated - open the document above for the full version.

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. 9/22/2006 9/22/2006 EMC TEST REPORT Novatel Wireless 9645 Scranton Rd, Suite 205 San Diego, CA, 92121 Product: USB connected 1xEVDO Data Modem Model Number: MCD3000/ U720 / USB720 Product FCCID: PKRNVWMCD3000 Tested to the Criteria in FCC Part 15, Subpart B, FCC Part 22 Subpart H, and FCC Part 24 Subpart E Date: 9/22/2006 Project Number: 3103199 Report Number: 3103199LEX-002 Prepared By:_______________________________Date:__________________ Vinay Kutty, Senior Project Engineer Approved By:______________________________Date:___________________ Bryan C. Taylor, Team Leader – Engineering Intertek Testing Services NA, Inc. 731 Enterprise Drive, Lexington, KY 40510 Telephone: 859-226-1000 Fax: 859-226-1040 Web: www.etlsemko.com 731 Enterprise Drive, Lexington KY 40510 Evaluation For:Novatel Wireless FCC ID: PKRNVWMCD3000 Model No: MCD3000 / U720 / USB720 Report Number: 3103199LEX-002 Page 2 of 18 FCC Part 15, 22H and 24E Evaluation TABLE OF CONTENTS 1 JOB DESCRIPTION .......................................................................................................................... 3 1.1 TEST SAMPLE DESCRIPTION........................................................................................................ 4 1.2 SYSTEM SUPPORT EQUIPMENT.................................................................................................... 5 1.3 CABLES USED DURING TESTING................................................................................................. 5 1.4 SYSTEM BLOCK DIAGRAM(S) ...................................................................................................... 6 1.5 MODE(S) OF OPERATION / ENGINEERING JUDGMENTS................................................................ 6 2 EXECUTIVE SUMMARY................................................................................................................. 7 2.1 MODIFICATIONS REQUIRED FOR COMPLIANCE............................................................................ 7 2.2 TEST SITE..................................................................................................................................... 8 2.3 TEST EQUIPMENT......................................................................................................................... 8 3 CONDUCTED RF POWER ..............................................................................................................9 3.1 TEST PROCEDURE........................................................................................................................ 9 3.2 TEST RESULTS............................................................................................................................. 9 4 RADIATED RF POWER ................................................................................................................. 10 4.1 TEST PROCEDURE...................................................................................................................... 10 4.2 TEST RESULTS........................................................................................................................... 11 5 OUT OF BAND EMISSION AT ANTENNA TERMINALS........................................................ 12 5.1 TEST PROCEDURE...................................................................................................................... 12 5.2 TEST RESULTS........................................................................................................................... 13 6 POWER LINE CONDUCTED EMISSIONS ................................................................................. 15 6.1 TEST PROCEDURE...................................................................................................................... 15 6.2 TEST RESULTS........................................................................................................................... 16 7 RECEIVER SPURIOUS EMISSIONS ........................................................................................... 17 7.1 TEST LIMITS...............................................................................................................................17 7.2 TEST PROCEDURE...................................................................................................................... 17 7.3 TEST RESULTS........................................................................................................................... 18 731 Enterprise Drive, Lexington KY 40510 Evaluation For:Novatel Wireless FCC ID: PKRNVWMCD3000 Model No: MCD3000 / U720 / USB720 Report Number: 3103199LEX-002 Page 3 of 18 FCC Part 15, 22H and 24E Evaluation 1 JOB DESCRIPTION The MCD3000 has been tested at the request of: Manufacturer of the device: Novatel Wireless 9645 Scranton Rd, Suite 205 San Diego, CA, 92121 Model number of the device: MCD3000 / U720 / USB720 Name of contact: John Spall Telephone: (858) 812-3477 E-mail: [email protected] Manufacturer of the radio: Novatel Wireless Model Number of the radio: ES720 Serial Number of the radio: LI270706200012 EUT receive date: 8/…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: PKRNVWES720 FCC Pt. 22/24 CDMA MEASUREMENT REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0609140804 September 20 - 21, 2006Dual-Band CDMA/EvDO Module Page 1 of 21 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.73 Applicant Name: Date of Testing: Novatel Wireless Inc. September 20 - 21, 2006 9645 Scranton Road, Suite 205 Test Site/Location: San Diego, CA 92121-3030 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0609140804 FCC ID: PKRNVWES720 APPLICANT: NOVATEL WIRELESS INC. Application Type: Class II Permissive Change FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Dual-Band CDMA/EvDO Module Model(s): ES720 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 - 893.31MHz (Cell. CDMA) / 1931.25 - 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.275W Conducted (24.40dBm) Cell. CDMA / 0.263W Conducted (24.20dBm) PCS CDMA Emission Designator(s): 1M28F9W (CDMA/EvDO) Test Device Serial No.: identical prototype [S/N: N/A] Class II Permissive Change: Please See Attached Documents Original Grant Date: 08/07/2006 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted for Part 22 and Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Class II Permissive Change Reviewed by: FCC ID: PKRNVWES720 FCC Pt. 22/24 CDMA MEASUREMENT REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0609140804 September 20 - 21, 2006Dual-Band CDMA/EvDO Module Page 2 of 21 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.73 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 MEASUREMENT PROCEDURE .............................................................................................................................. 4 1.2 SCOPE ...................................................................................................................................................................... 4 1.3 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ................................................................................................ 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 OCCUPIED BANDWIDTH EMISSION LIMITS ......................................................................................................... 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ............................................................................................................ 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ........................................................................................................ 6 3.4 PCS - BASE FREQUENCY BLOCKS ...........................…
