PKRNVWMIFI5792MiFi 5792 Personal Wireless Router

IMPORTANT INFORMATION: REGULATORY STATEMENTS FEDERAL COMMUNICATIONS COMMISSION NOTICE (FCC - UNITED STATES) Electronic devices, including computers and wireless modems, generate RF energy incidental to their intended function and are therefore subject to FCC rules and regulations. This equipment has been tested to, and found to be within the acceptable limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates radio frequency energy and is designed for use in accordance with the manufacturer’s user manual. However, there is no guarantee that interference will not occur in any particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. This device complies with Part 15 of the Federal Communications Commission (FCC) Rules and Industry Canada ICES-003 for EMI compliance. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. WARNING: DO NOT ATTEMPT TO SERVICE THE WIRELESS COMMUNICATION DEVICE YOURSELF. SUCH ACTION MAY VOID THE WARRANTY. THE MiFi 5792 MODEM IS FACTORY TUNED. NO CUSTOMER CALIBRATION OR TUNING IS REQUIRED. CONTACT NOVATEL WIRELESS, INC. TECHNICAL SUPPORT FOR INFORMATION ABOUT SERVICING YOUR WIRELESS COMMUNICATION DEVICE. FCC CAUTION: Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. MODIFICATIONS: The FCC requires that you be notified that any changes or modifications made to this device that are not expressly approved by Novatel Wireless may void your authority to operate the equipment. NOTE: The Radio Frequency (RF) emitter installed in your modem must not be located or operated in conjunction with any other antenna or transmitter, unless specifically authorized by Novatel Wireless Technologies. RF EXPOSURE CONTENT FCC EQUIPMENT AUTHORIZATION ID: PKRNVWMIFI5792 This device is authorized for use in mobile and portable applications. At least 10 mm (0.4 inches)* of separation between the MiFi device and the user’s body must be maintained at all times. This product has been evaluated for SAR and meets the FCC Guidelines for exposure to radio waves. * NOTE: This item will be clarified once the FCC review is complete. ©2012 Novatel Wireless, Inc. All rights reserved. Novatel Wireless is a trademark of Novatel Wireless, Inc., and the other trademarks, logos, and service marks used in this document are the property of Novatel Wireless or their respective owners. PN 90026675 R1

Date: July 16, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the UL CCS and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Todd Gallagher Manager – Regulatory Engineering Novatel Wireless Inc.

Date: July 16, 2012 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Subject: Request for Confidentiality FCC ID: PKRNVWMIFI5792 To Whom It May Concern: In accordance with 47CFR0.459, Novatel Wireless Inc. requests long term confidentiality for the following items 1. MiFi5792 BOM (Bill of Material) 2. MiFi5792 Tuning Procedure 3. MiFi5792 Schematics Diagrams 4. MiFi5792 Theory of Operation 5. MiFi5792 Block Diagram In accordance with 47CFR0.457 and 0.459, Novatel Wireless Inc. requests short-term confidentiality for the following items 1. MiFi5792 External and Internal Photos 2. MiFi5792 Test photos 3. MiFi5792 QuickStart Guide and Regulatory Statement These items contain detailed system and equipment description and related information about the product which Novatel Wireless Inc. considers to be proprietary, confidential, and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Novatel Wireless Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We would like to request this to be 180 days. Sincerely, Todd Gallagher Manager – Regulatory Engineering Novatel Wireless

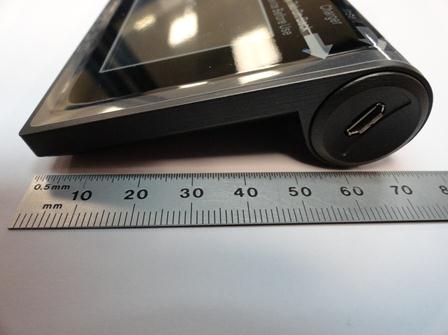

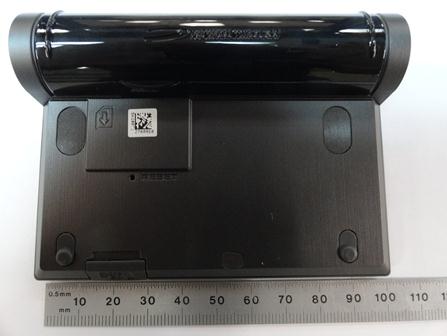

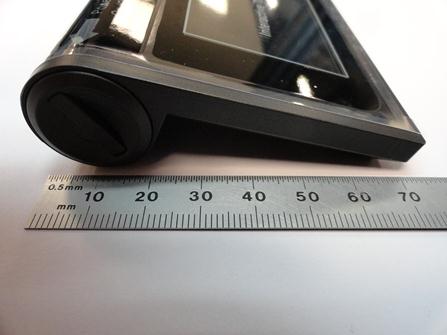

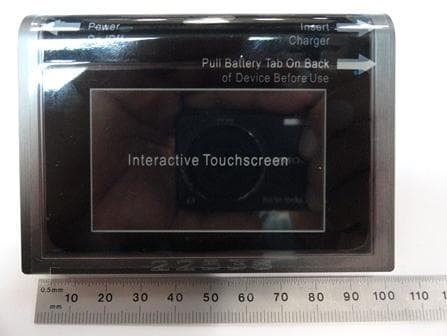

Proprietary and Confidential NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, CA 92121 Toll Free: 888.888.9231 Main: 858.812.3400  Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 III. External EUT Photos Top View Bottom View Left Side View Right Side View Micro USB Power Button

Proprietary and Confidential NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, CA 92121 Toll Free: 888.888.9231 Main: 858.812.3400  Fax: 858.812.3402 Internet: www.novatelwireless.com PKRNVWMIFI5792 Label Location I. FCC Label Placement: II. FCC Label:

Proprietary and Confidential NOVATEL WIRELESS, INC. 9645 Scranton Road, Suite 205, San Diego, CA 92121 Toll Free: 888.888.9231 Main: 858.812.3400  Fax: 858.812.3402 Internet: www.novatelwireless.com ISO 9001: 2000 Novatel Wireless PKRNVWMIFI5792 EUT Internal & External Photos I. Internal EUT PCB Photos a. Bottom Side (w/Shields) (without Shields) b. Top/LCD Display Side SD Card Slot

© 2012 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Novatel Wireless Dates of Test: Jun 20 – Jul 5 & 18-19, Aug 24-25, 2012 9645 Scranton Road, Suite 205 Test Report Number: SAR.20120702 San Diego, CA 92121 Revision I This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: PKRNVWMIFI5792 IC Certificate: 3229A-MIFI5792 Model(s): MiFi5792 Test Sample: Engineering Unit Same as Production FID Number: SA310512700011 Equipment Type: Wireless Hotspot Modem Classification: Portable Transmitter Next to Body TX Frequency Range: 824 – 848 MHz; 1850 – 1909 MHz; 704 – 716 MHz, 1710 – 1755 MHz, 2412 – 2462 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 850 MHz (GSM) – 33.8 dBm, 850 MHz (WCDMA) – 23.9 dBm, 850 MHz (LTE) – 24.0 dBm, 1900 MHz (GSM) – 30.9 dBm, 1900 MHz (WCDMA) – 23.9 dBm, 1900 MHz (LTE) – 24.0 dBm, 710 MHz (LTE) – 24.0 dBm, 1735 MHz (LTE) – 24.0 dBm; 2450 MHz – 17.5 dBm Conducted Signal Modulation: WCDMA, GMSK, 8-PSK, QPSK, 16QAM, DSSS, OFDM Antenna Type: WWAN – Pulse, P/N 01019674 (Main), PIFA Antenna; WLAN – Novatel Wireless, PCB Printed, IFA Antenna Application Type: Certification FCC Rule Parts: Part 2, 15C, 22, 24, 27 KDB Test Methodology: KDB 447498, KDB 248227, KDB 941225 D01, D02, D03, D05 & D06 KDB Issued for Test: KDB990635 (See Appendix G) Industry Canada: RSS-102, Safety Code 6 Max. Stand Alone SAR Value: 1.395 W/kg Max. Simultaneous SAR Value: 1.59 W/kg Separation Distance: 10 mm (Except Side C with Battery 5 mm) FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 2 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ........................................................................................................................................................... 3 SAR Definition [5] ...................................................................................................................................................... 4 2. SAR Measurement Setup ..................................................................................................................................... 5 Robotic System ......................................................................................................................................................... 5 System Hardware ...................................................................................................................................................... 5 System Description ................................................................................................................................................... 5 E-Field Probe ............................................................................................................................................................ 6 3. Robot Specifications ............................................................................................................................................. 8 4. Probe and Dipole Calibration ................................................................................................................................ 9 5. Phantom & Simulating Tissue Specifications ...................................................................................................... 10 SAM Phantom ......................................................................................................................................................... 10 Head & Body Simulating Mix ture Characterization .................................................................................................. 10 Device Holder .......................................................................................................................................................... 10 6. ANSI/IEEE C95.1 – 1992 RF Ex posure Limits [2] .............................................................................................. 11 Uncontrolled Environment ....................................................................................................................................... 11 Controlled Environment ........................................................................................................................................... 11 7. Measurement Uncertaint y................................................................................................................................... 12 8. System Validation ............................................................................................................................................... 13 Tissue Verification ................................................................................................................................................... 13 Test System Verification .................................................…

Text truncated - open the document above for the full version.

FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 67 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Appendix A – System Validation Plots and Data ************************************************************ Test Result for UIM Dielectric Parameter Sun 01/Jul/2012 10:39:02 Freq Frequency(GHz) FCC_eH FCC Bulletin 65 Supplement C ( June 2001) Limits for Head Epsilon FCC_sH FCC Bulletin 65 Supplement C (June 2001) Limits for Head Sigma FCC_eB FCC Limits for Body Epsilon FCC_sB FCC Limits for Body Sigma Test_e Epsilon of UIM Test_s Sigma of UIM ************************************************************ Freq FCC_eB FCC_sB Test_e Test_s 0.7000 55.73 0.96 55.45 0.93 0.7090 55.69 0.96 55.39 0.95* 0.7100 55.69 0.96 55.39 0.95 0.7110 55.69 0.96 55.39 0.95* 0.7200 55.65 0.96 55.35 0.96 0.7300 55.61 0.96 55.30 0.98 0.7400 55.57 0.96 55.26 0.98 0.7500 55.53 0.96 55.21 0.99 0.7600 55.49 0.96 55.16 1.00 * value interpolated ************************************************************ Test Result for UIM Dielectric Parameter Thu 21/Jun/2012 01:55:49 Freq Frequency(GHz) FCC_eH FCC Bulletin 65 Supplement C ( June 2001) Limits for Head Epsilon FCC_sH FCC Bulletin 65 Supplement C (June 2001) Limits for Head Sigma FCC_eB FCC Limits for Body Epsilon FCC_sB FCC Limits for Body Sigma Test_e Epsilon of UIM Test_s Sigma of UIM ************************************************************ Freq FCC_eB FCC_sB Test_e Test_s 0.8050 55.32 0.97 55.13 0.94 0.8150 55.28 0.97 55.07 0.95 0.8242 55.24 0.97 55.02 0.96* 0.8250 55.24 0.97 55.02 0.96 0.8264 55.23 0.97 55.01 0.96* 0.8350 55.20 0.97 54.98 0.98 0.8366 55.20 0.97 54.97 0.98* 0.8450 55.17 0.98 54.93 0.99 0.8466 55.17 0.98 54.92 0.99* 0.8488 55.16 0.98 54.91 1.00* 0.8550 55.14 0.99 54.88 1.02 0.8650 55.11 1.01 54.84 1.04 * value interpolated FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 68 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. ************************************************************ Test Result for UIM Dielectric Parameter Sat 30/Jun/2012 07:31:22 Freq Frequency(GHz) FCC_eH FCC Bulletin 65 Supplement C ( June 2001) Limits for Head Epsilon FCC_sH FCC Bulletin 65 Supplement C (June 2001) Limits for Head Sigma FCC_eB FCC Limits for Body Epsilon FCC_sB FCC Limits for Body Sigma Test_e Epsilon of UIM Test_s Sigma of UIM ************************************************************ Freq FCC_eB FCC_sB Test_e Test_s 0.8050 55.32 0.97 54.49 0.95 0.8150 55.28 0.97 54.42 0.96 0.8250 55.24 0.97 54.37 0.98 0.8290 55.23 0.97 54.35 0.98* 0.8350 55.20 0.97 54.32 0.99 0.8365 55.20 0.97 54.32 0.99* 0.8440 55.17 0.98 54.28 1.00* 0.8450 55.17 0.98 54.28 1.00 0.8550 55.14 0.99 54.23 1.02 0.8650 55.11 1.01 54.18 1.03 * value interpolated ************************************************************ Test Result for UIM Dielectric Parameter Sun 01/Jul/2012 06:47:36 Freq Frequency(GHz) FCC_eH FCC Bulletin 65 Supplement C ( June 2001) Limits for Head Epsilon FCC_sH FCC Bulletin 65 Supplement C (June 2001) Limits for Head Sigma FCC_eB FCC Limits for Body Epsilon FCC_sB FCC Limits for Body Sigma Test_e Epsilon of UIM Test_s Sigma of UIM ************************************************************ Freq FCC_eB FCC_sB Test_e Test_s 0.8050 55.32 0.97 54.12 0.94 0.8150 55.28 0.97 54.06 0.95 0.8250 55.24 0.97 54.01 0.97 0.8290 55.23 0.97 54.00 0.97* 0.8350 55.20 0.97 53.97 0.98 0.8365 55.20 0.97 53.32 0.98* 0.8440 55.17 0.98 53.92 0.99* 0.8450 55.17 0.98 53.92 0.99 0.8550 55.14 0.99 53.88 1.00 0.8650 55.11 1.01 53.83 1.02 * value interpolated FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 69 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. ************************************************************ Test Result for UIM Dielectric Parameter Mon 02/Jul/2012 06:21:51 Freq Frequency(GHz) FCC_eH FCC Bulletin 65 Supplement C ( June 2001) Limits for Head Epsilon FCC_sH FCC Bulletin 65 Supplement C (June 2001) Limits for Head Sigma FCC_eB FCC Limits for Body Epsilon FCC_sB FCC Limits for Body Sigma Test_e Epsilon of UIM Test_s Sigma of UIM ************************************************************ Freq FCC_eB FCC_sB Test_e Test_s 0.8050 55.32 0.97 54.93 0.93 0.8150 55.28 0.97 54.87 0.95 0.8250 55.24 0.97 54.82 0.96 0.8290 55.23 0.97 54.79 0.97* 0.8350 55.20 0.97 54.76 0.97 0.8365 55.20 0.97 54.76 0.97* 0.8440 55.17 0.98 54.72 0.98* 0.8450 55.17 0.98 54.72 0.98 0.8550 55.14 0.99 54.67 0.99 0.8650 55.11 1.01 54.64 1.01 * value interpolated ************************************************************ Test Result for UIM Dielectric Parameter Sat 23/Jun/2012 06:08:23 Freq Frequency(GHz) FCC_eH FCC Bulletin 65 Supplement C ( June 2001) Limits for Head Epsilon FCC_sH FCC Bulletin 65 Supplement C (June 2001) Limits for Head Sigma FCC_eB FCC Limits for Body Epsilon FCC_sB FCC Limits for Body Sigma Test_e Epsilon of UIM Test_s Sigma of UIM ************************************************************ Freq FCC_eB FCC_sB Test_e Test_s 1.7200 53.51 1.47 53.65 1.49 1.7300 53.48 1.48 53.62 1.50 1.7325 53.48 1.48 53.62 1.50* 1.7400 53.46 1.48 53.59 1.50 1.7450 53.45 1.49 53.58 1.51* 1.7500 53.43 1.49 53.56 1.51 1.7600 53.41 1.49 53.53 1.51 1.7700 53.38 1.50 53.49 1.52 1.7800 53.35 1.51 53.45 1.52 * value interpolated FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 70 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. ************************************************************ Test Result for UIM Dielectric Parameter Sun 24/Jun/2012 05:28:23 Freq Frequency(GHz) FCC_eH FCC Bulletin 65 Supplement C ( June 2001) Limits for Head Epsilon FCC_sH FCC Bulletin 65 Supplement C (June 2001) Limits for Head Sigma FCC_eB FCC Limits for Body Epsilon FCC_sB FCC Limits for Body Sigma Test_e Epsilon of UIM Test_s Sigma of UIM **********************…

Text truncated - open the document above for the full version.

Report No. SC1206183D-1 July 2012 America Report On Application for Grant of Equipment Authorization of the Novatel Wireless Inc. MiFi 5792 Personal Wireless Router FCC Part 15 Subpart C §15.247 IC RSS-Gen and RSS-210 Issue 8 December 2010 FCC ID PKRNVWMIFI5792 IC: 3229A-MIFI5792 Report No. SC1206183D-1 Page 2 of 86 REPORT ON TEST REPORT NUMBER PREPARED FOR Radio Testing of the Novatel Wireless Inc. Personal Wireless Router SC1206183D-1 Novatel Wireless Inc. 9645 Scranton Road, Suite 205 San Diego, CA 92121-3030 USA CONTACT PERSON Todd Gallagher Regulatory Engineering Manager (403) 295-4891 [email protected] PREPARED BY Ferdinand S. Custodio Name Authorized Signatory Title: EMC/Wireless Test Engineer APPROVED BY Chip R. Fleury Name Authorized Signatory DATED July 12, 2012 FCC ID PKRNVWMIFI5792 IC: 3229A-MIFI5792 Report No. SC1206183D-1 Page 3 of 86 Revision History SC1206183D-1 Novatel Wireless Inc. MiFi 5792 Personal Wireless Router DATE OLD REVISION NEW REVISION REASON PAGES AFFECTED APPROVED BY 07/09/12 Initial Release Ferdinand Custodio 07/20/12 1 Several pages with minor edits Section 1, Section 2, page 9 Chip Fleury FCC ID PKRNVWMIFI5792 IC: 3229A-MIFI5792 Report No. SC1206183D-1 Page 4 of 86 CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 5 1.1 Introduction ................................................................................................................................... 6 1.2 Brief Summary of Results ............................................................................................................. 7 1.3 Product Information ...................................................................................................................... 8 1.4 EUT Test configuration ............................................................................................................... 10 1.5 Deviations from the Standard ..................................................................................................... 12 1.6 Modification Record .................................................................................................................... 12 1.7 Test methodology ....................................................................................................................... 12 1.8 Test facility .................................................................................................................................. 12 2 TEST DETAILS .......................................................................................................................... 13 2.1 Peak output power ...................................................................................................................... 14 2.2 Conducted emissions ................................................................................................................. 16 2.3 99% EMISSION bandwidth ........................................................................................................ 24 2.4 Minimum 6 dB RF bandwidth ..................................................................................................... 30 2.5 Out-of-band emissions - Conducted ........................................................................................... 36 2.6 Band-edge Compliance of RF Conducted Emissions ................................................................ 46 2.7 Spurious radiated emissions ....................................................................................................... 50 2.8 Radiated restricted band edge measurements .......................................................................... 64 2.9 Power spectral density................................................................................................................ 72 3 TEST EQUIPMENT USED ......................................................................................................... 78 3.1 Test Equipment Used ................................................................................................................. 79 3.2 Measurement Uncertainty .......................................................................................................... 80 4 Diagram of test setup ............................................................................................................... 81 4.1 Test setup diagram ..................................................................................................................... 82 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 85 5.1 Accreditation, Disclaimers and Copyright ................................................................................... 86 FCC ID PKRNVWMIFI5792 IC: 3229A-MIFI5792 Report No. SC1206183D-1 Page 5 of 86 SECTION 1 REPORT SUMMARY Radio Testing of the Novatel Wireless Inc. Personal Wireless Router FCC ID PKRNVWMIFI5792 IC: 3229A-MIFI5792 Report No. SC1206183D-1 Page 6 of 86 1.1 INTRODUCTION The information contained in this report is intended to show verification of the Novatel Wireless Inc. MiFi 5792 Personal Wireless Router to the requirements of the following: • FCC Part 15 Subpart C §15.247 • IC RSS-Gen and RSS-210 Issue 8 December 2010. Objective To perform Radio Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Novatel Wireless Inc. Model Number(s) MiFi 5792 FCC ID Number PKRNVWMIFI5792 IC Number 3229A-MIFI5792 Serial Number(s) SA020612700007 Number of Samples Tested 1 Test Specification/Issue/Date • FCC Part 15 Subpart C §15.247 (October 1, 2011). • RSS-210 - Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment (Issue 8, December 2010). • RSS-Gen - General Requirements and Information for the Certification of Radio Apparatus (Issue 3, December 2010). Start of Tes…

Text truncated - open the document above for the full version.

FCC ID PKRNVWMIFI5792 IC: 3229A‐MIFI5792 Conducted Port Measurement using power meter (WiFi) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Conducted Port Measurement using spectrum analyzer (WiFi) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Conducted Port Measurement (GSM,WCDMA and LTE) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Conducted Emission Test Setup (WiFi) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Conducted Emission Test Setup (WiFi) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Conducted Emission Test Setup (GSM,WCDMA and LTE) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Conducted Emission Test Setup (GSM,WCDMA and LTE) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (X Configuration) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (Y Configuration) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (Z Configuration) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (below 1GHz FCC Part 15 Subpart B) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (below 1GHz FCC Part 15 Subpart B) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (above 1GHz FCC Part 15 Subpart B) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (above 1GHz FCC Part 15 Subpart B) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (below 1GHz FCC Part 15 Subpart C) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (below 1GHz FCC Part 15 Subpart C) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (above 1GHz FCC Part 15 Subpart C) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (above 1GHz FCC Part 15 Subpart C) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (below 1GHz FCC Part 22,24 and 27) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (below 1GHz FCC Part 22,24 and 27) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (above 1GHz FCC Part 22,24 and 27) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Radiated Emission Test Setup (above 1GHz FCC Part 22,24 and 27) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Frequency Stability (FCC Part 22,24 and 27) FCC ID: PKRNVWMIFI5792 IC: 3229A-MIFI5792 Frequency Stability (FCC Part 22,24 and 27)

FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 123 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Appendix C – SAR Test Setup Photos System Body Configuration Body Tissue Depth FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 124 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Test Position Side A 10 mm Gap Test Position Side B 10 mm Gap FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 125 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Test Position Side C 10 mm Gap at Edge B and 5 mm Gap at Battery Test Position Side D 10 mm Gap FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 126 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Test Position Side E 10 mm Gap Antenna Location FCC ID: PKRNVWMIFI5792 © 2012 RF Exposure Lab, LLC Page 127 of 242 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Front of Device Back of Device
