PKRNVWV720Dual-Band CDMA Modem Card

Sprint Mobile Broadband Card by Novatel Wireless Merlin™ S720 www.sprint.com © 2006 Sprint Nextel. All rights reserved. No reproduction in whole or in part without prior written approval. Sprint, the “Going Forward” logo, and other trademarks are trademarks of Sprint Nextel. Table of Contents Welcome to Sprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Section 1: Sprint Mobile Broadband Card Basics . . . . . . 1 1A. Introducing the Sprint Mobile Broadband Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Your Sprint Mobile Broadband Card . . . . . . . . . . . . . . . . . . . . . . . . . . 4 CDMA Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1B. Getting Started With Your SprintMobile Broadband Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 The Sprint Mobile Broadband Card Software . . . . . . . . . . . . . . . . . . 8 Activating and Using Sprint PCS Service . . . . . . . . . . . . . . . . . . . . . . . 9 Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Section 2: Installing the Sprint Mobile Broadband Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2A. Installing the Sprint Mobile Broadband Card . . . . . . . 13 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Installing the Sprint PCS Connection Manager Software . . . . . 16 Inserting and Removing the Sprint Mobile Broadband Card . . 20 Activating Your Sprint Mobile Broadband Card . . . . . . . . . . . . . . 23 2B. Sprint PCS Connection Manager Software . . . . . . . . . 27 The Sprint PCS Connection Manager Software . . . . . . . . . . . . . . 28 The Sprint PCS Connection Manager Software Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 System Tray Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Establishing and Terminating Connections . . . . . . . . . . . . . . . . . 39 Sprint PCS Connection Manager Software Menu Options and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 2C. Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Overview of Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Menu Item Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 2D. Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Problem Causes and Suggestions . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Reinstalling the Sprint Mobile Broadband Card Driver . . . . . . . 62 Resolving Resource Conflicts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Additional Troubleshooting Tools . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Section 3: Sprint Power Vision . . . . . . . . . . . . . . . . . . . . . 73 3A. Sprint Power Vision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 Sprint Power Vision FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 Section 4: Technical Specifications and Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 4A. Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 81 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Software Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 Transmitter Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 Receiver Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Hardware Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 4B. Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . 87 Regulatory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Section 5: Safety and Terms & Conditions . . . . . . . . . . 91 5A. Safety and Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Important Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Safety and Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 5B. Terms and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Terms and Conditions of Services . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111 i Welcome to Sprint We are committed to bringing you the best wireless technology available, and we built our network right from the start, so no matter where you are on the Nationwide Sprint PCS® Network, all your services will work the same. When it comes to mobile connectivity, the Sprint Mobile Broadband Card offers more freedom than ever before. No wires, no cables, just access to…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization & Evaluation Division Equipment Authorization Branch 7345 Oakland Mills Road Columbia, Maryland 21046 ATTN: Authorization & Evaluation Division PER: 47 CFR 0.457 and 0.459 RE: PKRNVWV720 (V720 PC Card) Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application as listed below, i.e. Schematic Block Diagrams Theory of Operation List of Active Devices Parts Lists Alignment/Tune-Up Procedures Internal Photographs These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, John Jiang Senior RF Manager Novatel Wireless, Inc. 5/15/06

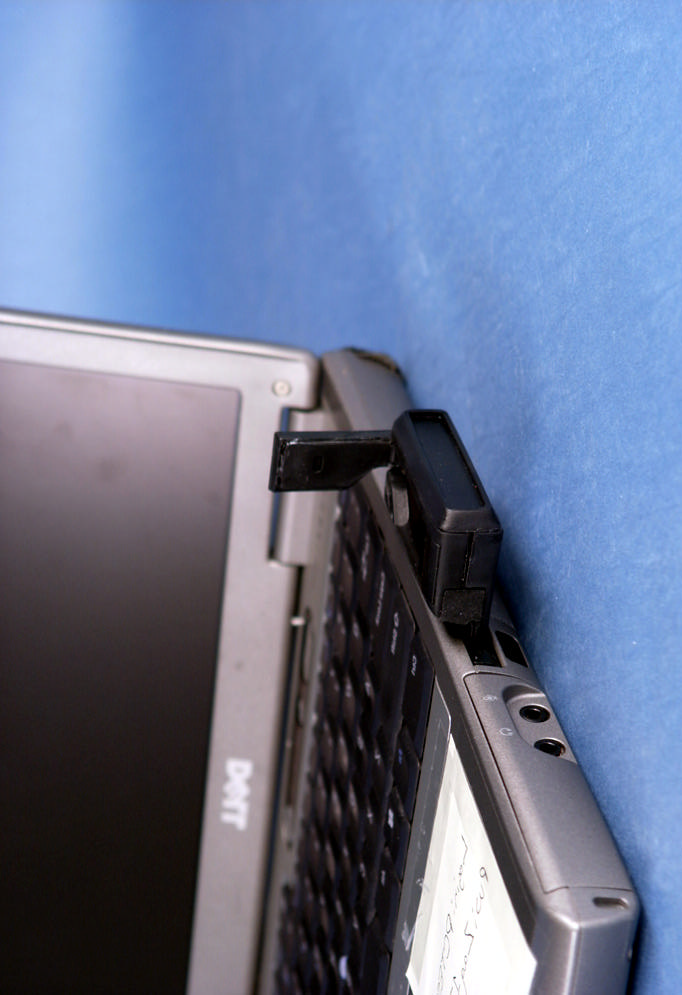

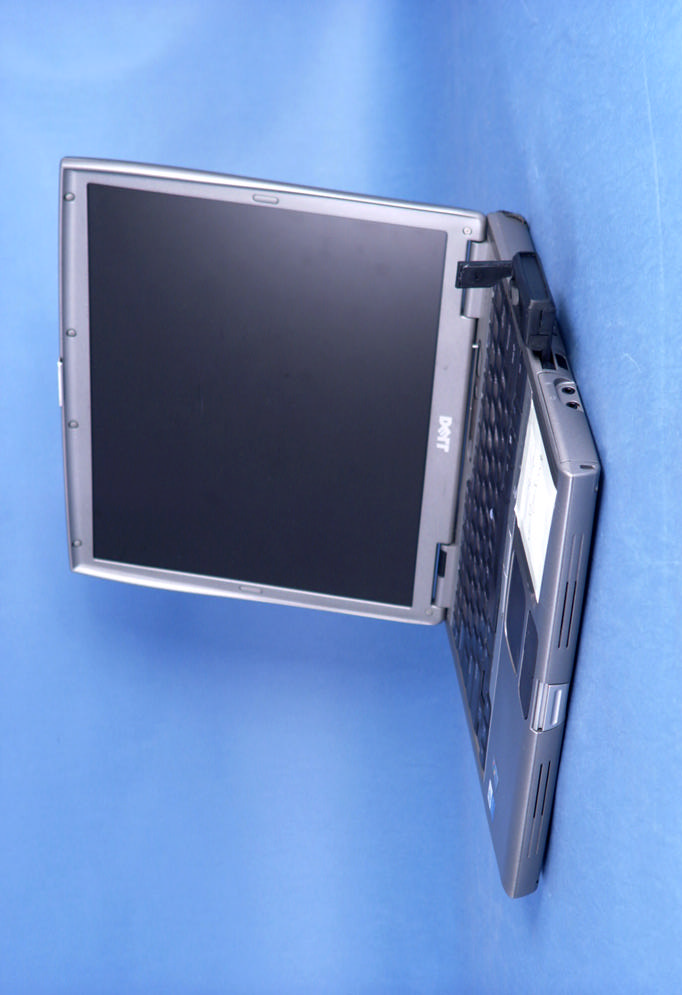

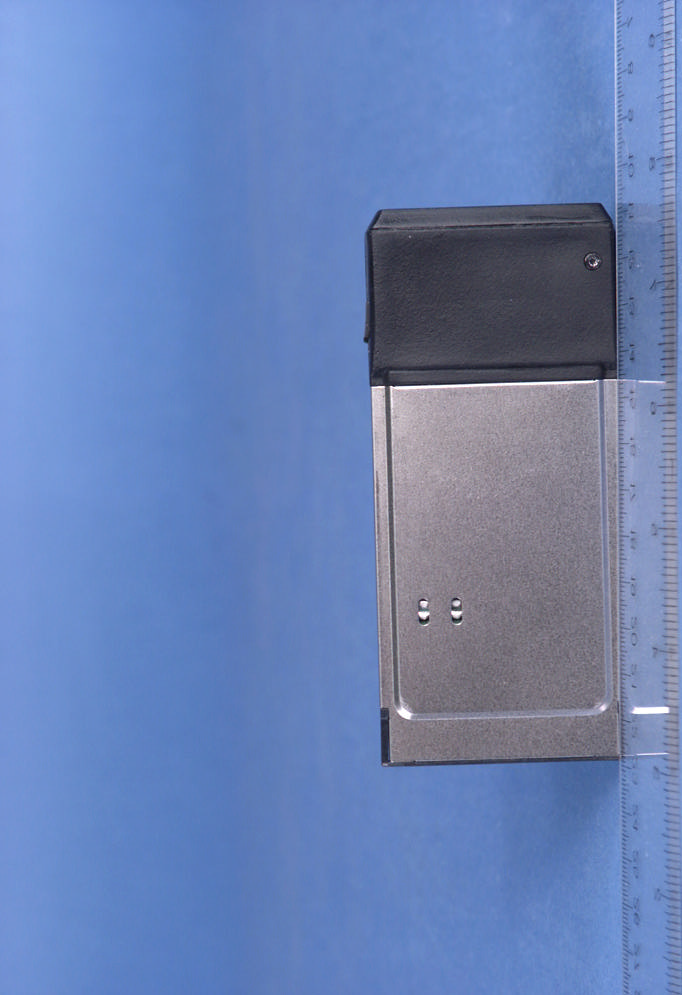

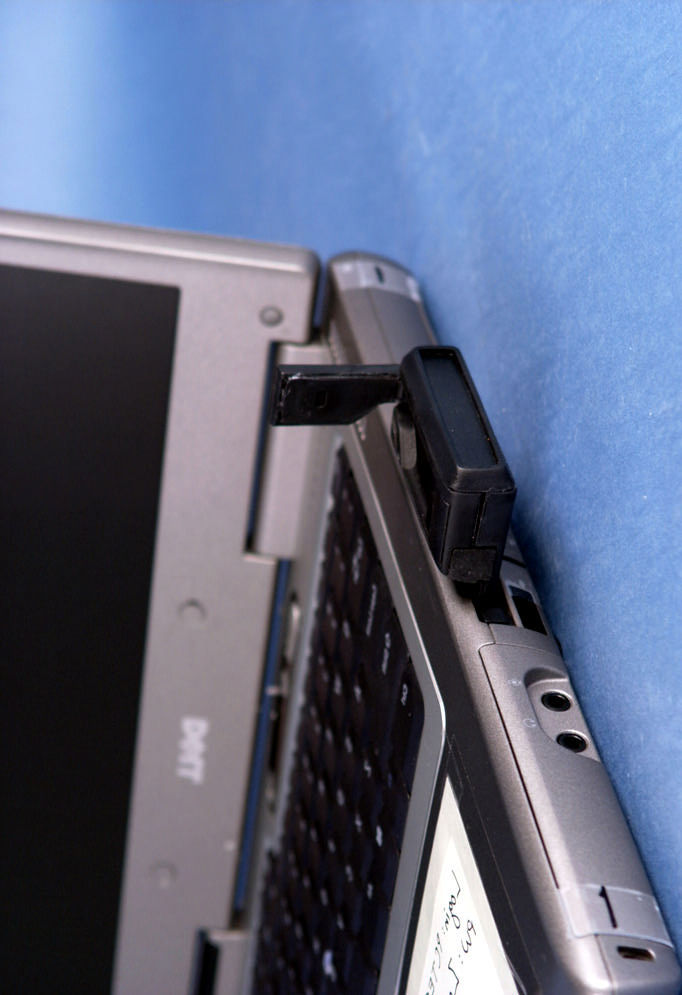

NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0

Qualcomm 3G CDMA FCC ID: PKRNVWV720 MODEL: NVW-S720 MERLIN TM S720 THIS PRODUCT COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERANCE. Novatel Wireless Technologies Ltd. Suite 325, 6715 - 8th St NE Calgary, AB Canada T2E 7H7 Phone: 403 295 4800 TITLE: BOTTOM LABEL FCC SPRINT S720 P/N: >Rev.A 05/16/06 - Lawrence Zalasky - INITIAL DRAFT HISTORY: (indicate: REV / DATE / ARTIST / REV. CHANGES) ECO: NOTES: 1. MECHANICAL DRAWING ON HIDDEN LAYER CONTAINS MATERIAL AND DIE CUT INFORMATION. 2. MAGENTA OUTLINE DOES NOT PRINT. FOR CUT REFERENCE ONLY. MAGENTA LINE DOES NOT PRINT

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0605230405 Test Dates: May 24-29, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWV720 Page 1 of 31 © 2006 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Novatel Wireless, Inc. Dates of Tests: May 24-29, 2006 9645 Scranton Road, Suite 205 Test Report S/N: 0605230405 San Diego, CA 92121 Test Site: PCTEST Lab, Columbia MD FCC ID: PKRNVWV720 APPLICANT: Novatel Wireless, Inc. EUT Type: Dual-Band CDMA Modem Card Tx/Rx Frequency: 824.70 – 848.31 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.300 W ERP CDMA (24.773 dBm) / 24.3 dBm Conducted 0.284 W EIRP PCS CDMA (24.521 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.44 W/kg CDMA Laptop Body SAR (w/ Toshiba PSAA2U-04P018); 0.869 W/kg PCS CDMA Laptop Body SAR (w/ Toshiba PSAA2U-04P018); 0.098 W/kg CDMA Bystander Body SAR (w/ Toshiba PSAA2U-04P018); 0.298 W/kg PCS CDMA Bystander Body SAR (w/ Toshiba PSAA2U-04P018) Trade Name/Model(s): NVW-S720 FCC Classification(s): Licensed Portable Transmitter (PCB) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #5B100449] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant c onditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance has been established in the host product(s) with slot configurations as tested in this filing, and can be used in host product(s) with substantially similar physical dimensions, construction, and electrical and RF characteristics. This transmitter is restricted for use with the specific antenna(s) tested for this filing. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0605230405 Test Dates: May 24-29, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWV720 Page 2 of 31 © 2006 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION......................................................................................3 2. SAR MEASUREMENT SETUP.................................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.............................................................................................5 4. Probe Calibration Process........................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES......................................................................................7 6. TEST SYSTEM SPECIFICATIONS.............................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.......................................................................9 8. DEFINITION OF REFERENCE POINTS...................................................................................10 9. TEST CONFIGURATION POSITIONS.....................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.......................................................................12 11. MEASUREMENT UNCERTAINTIES.......................................................................................13 12. SYSTEM VERIFICATION.................................................................................................14-16 13. FCC 3G MEASUREMENT PROCEDURES............................................................................15-16 14. SAR DATA SUMMARY...................................................................................................17-28 15. SAR TEST EQUIPMENT......................................................................................................29 16. CONCLUSION.................................................................................................................30 17. REFERENCES...................................................................................................................31 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0605230405 Test Dates: May 24-29, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWV720 Page 3 of 31 © 2006 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements …

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0605230404 Test Dates: May 30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWV720 Page 1 of 24 © 2006 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification Novatel Wireless, Inc. Dates of Tests: May 30, 2006 9645 Scranton Road, Suite 205 Test Report S/N: 0605230404 San Diego, CA 92121 Test Site: PCTEST Lab, Columbia MD FCC ID PKRNVWV720 APPLICANT NOVATEL WIRELESS, INC. Classification: Licensed Portable Transmitter (PCB) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Dual-Band CDMA Modem Card Model: NVW-S720 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.300 W ERP CDMA (24.773 dBm); 0.284 W EIRP PCS CDMA (24.521 dBm) Max. SAR Measurement: 1.44 W/kg CDMA Laptop Body SAR (w/ Toshiba PSAA2U-04P018); 0.869 W/kg PCS CDMA Laptop Body SAR (w/ Toshiba PSAA2U-04P018); 0.098 W/kg CDMA Bystander Body SAR (w/ Toshiba PSAA2U-04P018); 0.298 W/kg PCS CDMA Bystander Body SAR (w/ Toshiba PSAA2U-04P018) Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: #5B100449] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance has been established in the host product(s) with slot configurations as tested in this filing, and can be used in host product(s) with substantially similar physical dimensions, construction, and electrical and RF characteristics. This transmitter is restricted for use with the specific antenna(s) tested for this filing. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0605230404 Test Dates: May 30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWV720 Page 2 of 24 © 2006 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9-10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-18 8.1 FREQUENCY STABILITY 19-20 9.1 PLOTS OF EMISSIONS 21 10.1 LIST OF TEST EQUIPMENT 22 11.1 SAMPLE CALCULATIONS 23 12.1 CONCLUSION 24 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0605230404 Test Dates: May 30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWV720 Page 3 of 24 © 2006 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: Novatel Wireless, Inc. Address: 9645 Scranton Road, Suite 205 San Diego, CA 92121 • FCC ID: PKRNVWV720 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.300 W ERP CDMA (24.521 dBm) 0.284 W EIRP PCS CDMA (24.773 dBm) • FCC Classification(s): Licensed Portable Transmitter (PCB) • Equipment (EUT) Type: Dual-Band CDMA Modem Card • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: May 30, 2006 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0605230404 • Deviation from measurement procedure - None PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0605230404 Test Dates: May 30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWV720 Page 4 of 24 © 2006 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitu…

Text truncated - open the document above for the full version.

NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 NOVATEL FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0

Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720

Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720 Novatel FCC ID: PKRNVWV720 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: NVW-S720
