Date: April 19, 2006 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Subject: Request for Confidentiality FCC ID: PKRNVWXV620 To Whom It May Concern: In accordance with 47CFR0.459, Novatel Wireless Inc. requests confidentiality for the following items 1. Block Diagram 2. Bill of Material (BOM) 3. RF Adjustment Procedure 4. Schematics Diagrams These items contain detailed system and equipment description and related information about the product which Novatel Wireless Inc. considers to be proprietary, confidential, and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Novatel Wireless Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Sincerely, Kwun Ho Project Manager Novatel Wireless Inc. (P) 858-812-0653

Date: April 19, 2006 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Subject: Request for Short-Term Confidentiality FCC ID: PKRNVWXV620 To Whom It May Concern: In accordance with 47CFR0.457 and 0.459, Novatel Wireless Inc. requests short-term confidentiality for the following items 1. External and Internal Photos 2. Test Setup Procedure 3. User’s Manual These items contain detailed system and equipment description and related information about the product which Novatel Wireless Inc. considers to be proprietary, confidential, and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Novatel Wireless Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Sincerely, Kwun Ho Project Manager Novatel Wireless Inc. (P) 858-812-0653

PCTEST Engineering Laboratory, Inc. 6660 Dobbin Road Suite A-E Columbia, Maryland 21045-4844 Tel.: 410-290-6652 / Fax: 410-290-6654 July 26, 2006 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Tim Harrington SUBJECT: Novatel Wireless Inc. FCC ID: PKRNVWXV620 731 Confirmation No.: TC780764 Correspondence Reference No.: 29723 Request for Tech. Info.: 06/29/2006 Dear Tim: Transmitted herewith, on behalf of Motorola Inc is an amendment provided in response to the request for technical information dated June 29, 2006. 1. Please note that EUT is a standard PCMCIA Card. No adaptation is required for installation in a notebook PC. 2. Please find uploaded a revised Operational Description exhibit in accordance with 2.1033 requirements. 3. The Confidentiality Request letters have been uploaded. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Motorola Inc.

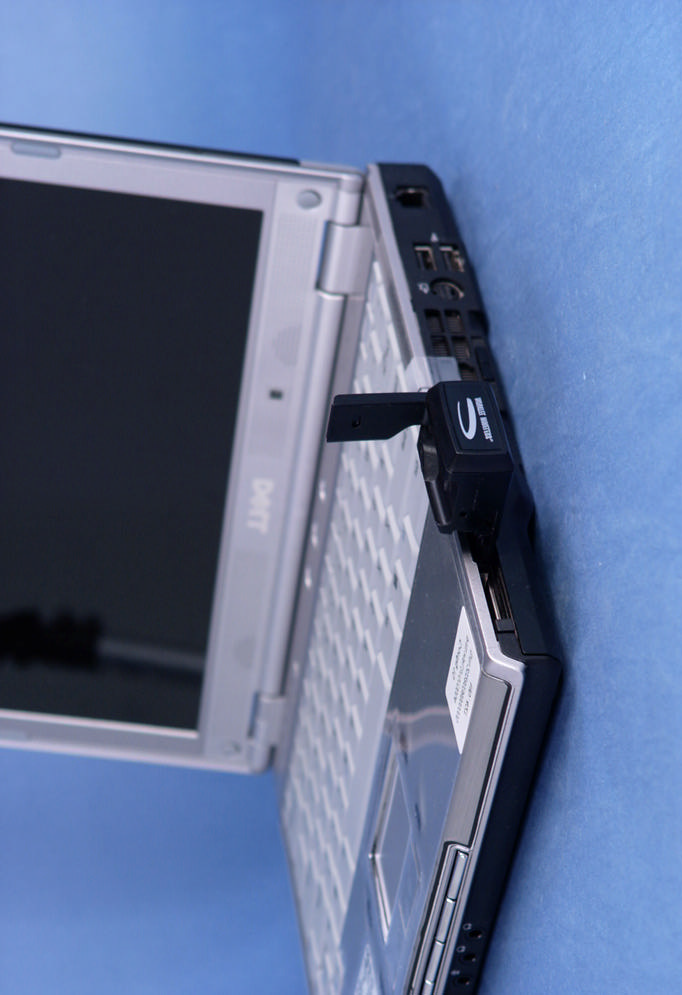

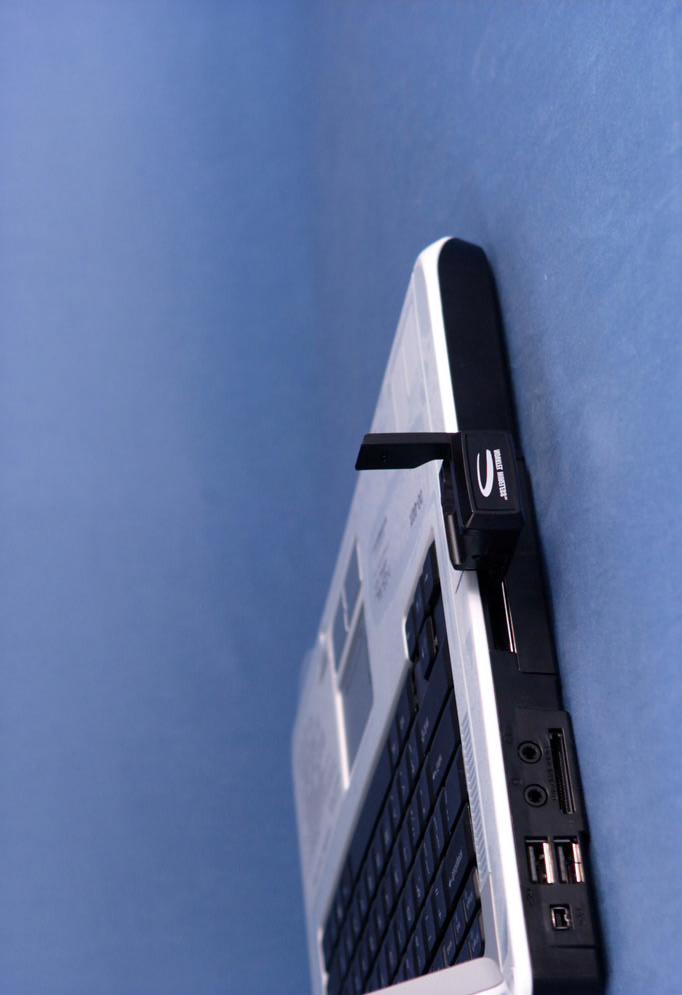

Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0

© 2006 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

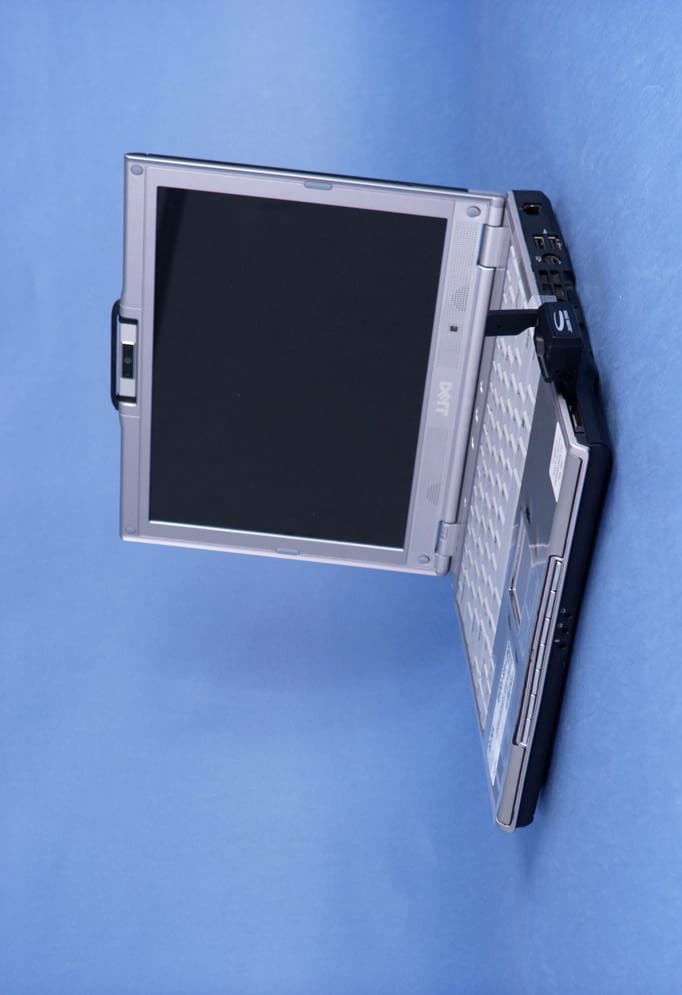

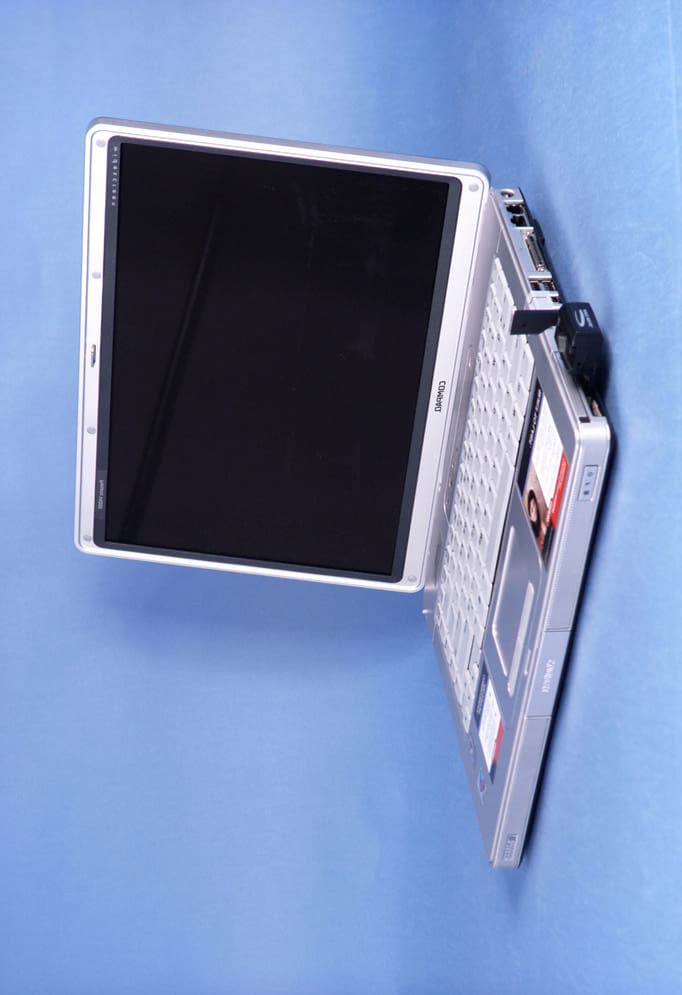

Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603280209 Test Dates: March 28-30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWXV620 Page 1 of 31 © 2006 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Novatel Wireless, Inc. Dates of Tests: March 28-30, 2006 9645 Scranton Road, Suite 205 Test Report S/N: 0603280209 San Diego, CA 92121 Test Site: PCTEST Lab, Columbia MD FCC ID: PKRNVWXV620 APPLICANT: Novatel Wireless, Inc. EUT Type: Dual-Band CDMA Modem Card Tx/Rx Frequency: 824.70 – 848.31 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.284 W ERP CDMA (24.533 dBm) / 24.0 dBm Conducted 0.253 W EIRP PCS CDMA (24.021 dBm) / 24.0 dBm Conducted Max. SAR Measurement: 0.996 W/kg CDMA Laptop Body SAR (w/ COMPAQ V4332US); 1.14 W/kg PCS CDMA Laptop Body SAR (w/ COMPAQ V4332US); 0.036 W/kg CDMA Bystander Body SAR (w/ Dell FM1B); 0.163 W/kg PCS CDMA Bystander Body SAR (w/ Dell M1210) Trade Name/Model(s): XV620, V640 FCC Classification(s): Licensed Portable Transmitter (PCB) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #112] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant c onditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance has been established in the host product(s) with slot configurations as tested in this filing, and can be used in host product(s) with substantially similar physical dimensions, construction, and electrical and RF characteristics. This transmitter is restricted for use with the specific antenna(s) tested for this filing. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603280209 Test Dates: March 28-30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWXV620 Page 2 of 31 © 2006 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION......................................................................................3 2. SAR MEASUREMENT SETUP.................................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.............................................................................................5 4. Probe Calibration Process........................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES......................................................................................7 6. TEST SYSTEM SPECIFICATIONS.............................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.......................................................................9 8. DEFINITION OF REFERENCE POINTS...................................................................................10 9. TEST CONFIGURATION POSITIONS.....................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.......................................................................12 11. MEASUREMENT UNCERTAINTIES.......................................................................................13 12. SYSTEM VERIFICATION.................................................................................................14-16 13. FCC 3G MEASUREMENT PROCEDURES............................................................................15-16 14. SAR DATA SUMMARY...................................................................................................17-28 15. SAR TEST EQUIPMENT......................................................................................................29 16. CONCLUSION.................................................................................................................30 17. REFERENCES...................................................................................................................31 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603280209 Test Dates: March 28-30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWXV620 Page 3 of 31 © 2006 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria p…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: XV620 with COMPAQ V4332US; Type: Dual Band CDMA Modem Card; Serial: 112 Communication System: Cellular CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: 835 Muscle ( σ = 0.99 mho/m, ε r = 56.89, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 0.9 cm Test Date: 03-28-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.9, 7.9, 7.9); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: CDMA, Laptop position, High.ch, Ant.close Area Scan (7x21x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 31.7 V/m Peak SAR (extrapolated) = 1.75 W/kg SAR(1 g) = 0.996 mW/g; SAR(10 g) = 0.565 mW/g 0 dB = 1.23mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: XV620 with COMPAQ V4332US; Type: Dual Band CDMA Modem Card; Serial: 112 Communication System: PCS CDMA; Frequency: 1851.25 MHz;Duty Cycle: 1:1 Medium: 1900 Muscle ( σ = 1.57 mho/m, ε r = 52.64, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 0.9 cm Test Date: 03-28-2006; Ambient Temp: 23.0°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(6.48, 6.48, 6.48); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: PCS, Laptop position, Low.ch, Ant.open Area Scan (9x21x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.45 V/m Peak SAR (extrapolated) = 1.84 W/kg SAR(1 g) = 1.14 mW/g; SAR(10 g) = 0.639 mW/g 0 dB = 1.40mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: XV620 with COMPAQ V4332US; Type: Dual Band CDMA Modem Card; Serial: 112 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Muscle ( σ = 0.99 mho/m, ε r = 56.89, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 2.5 cm Test Date: 03 -29-2006; Ambient Temp: 23.3° C; Tissue Temp: 21.3 °C Probe: EX3DV4 - SN3561; ConvF(7.9, 7.9, 7.9); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: CDMA, Bystander position, Mid.ch, Ant.open Area Scan (9x21x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.39 V/m Peak SAR (extrapolated) = 0.037 W/kg SAR(1 g) = 0.028 mW/g; SAR(10 g) = 0.022 mW/g 0 dB = 0.031mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: XV620 with COMPAQ V4332US; Type: Dual Band CDMA Modem Card; Serial: 112 Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Muscle ( σ = 1.57 mho/m, ε r = 52.64, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 2.5 cm Test Date: 03-28-2006; Ambient Temp: 23.0°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(6.48, 6.48, 6.48); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: PCS, Bystander position, Mid.ch, Ant.open Area Scan (9x21x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.2 V/m Peak SAR (extrapolated) = 0.219 W/kg SAR(1 g) = 0.144 mW/g; SAR(10 g) = 0.090 mW/g 0 dB = 0.169mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: XV620 with DELL M1210; Type: Dual Band CDMA Modem Card; Serial: 112 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Muscle ( σ = 0.99 mho/m, ε r = 56.89, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 2.0 cm Test Date: 03-29-2006; Ambient Temp: 23.3 ° C ; Tissue Temp: 21.3 ° C Probe: EX3DV4 - SN3561; ConvF(7.9, 7.9, 7.9); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: CDMA, Laptop position, Mid.ch, Ant.close Area Scan (8x18x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.2 V/m Peak SAR (extrapolated) = 0.771 W/kg SAR(1 g) = 0.516 mW/g; SAR(10 g) = 0.335 mW/g 0 dB = 0.604mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: XV620 with DELL M1210; Type: Dual Band CDMA Modem Card; Serial: 112 Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Muscle ( σ = 1.57 mho/m, ε r = 52.64, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 2.0 cm Test Date: 03-29-2006; Ambient Temp: 23.6 ° C ; Tissue Temp: 21.7 ° C Probe: EX3DV4 - SN3561; ConvF(6.48, 6.48, 6.48); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: PCS, Laptop position, Mid.ch, Ant.open Area Scan (8x18x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.0 V/m Peak SAR (extrapolated) = 0.656 W/kg SAR(1 g) = 0.416 mW/g; SAR(10 g) = 0.242 mW/g 0 dB = 0.496mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: XV620 with DELL M1210; Type: Dual Band CDMA Modem Card; Serial: 112 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Muscle ( σ = 0.99 mho/m, ε r = 56.89, ρ…

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603280208 Test Dates: March 28-30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWXV620 Page 1 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification Novatel Wireless, Inc. Dates of Tests: March 28-30, 2006 9645 Scranton Road, Suite 205 Test Report S/N: 0603280208 San Diego, CA 92121 Test Site: PCTEST Lab, Columbia MD FCC ID PKRNVWXV620 APPLICANT NOVATEL WIRELESS, INC. Classification: Licensed Portable Transmitter (PCB) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Dual-Band CDMA Modem Card Model: XV620, V640 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.284 W ERP CDMA (24.533 dBm); 0.253 W EIRP PCS CDMA (24.021 dBm) Max. SAR Measurement: 0.996 W/kg CDMA Laptop Body SAR (w/ COMPAQ V4332US); 1.14 W/kg PCS CDMA Laptop Body SAR (w/ COMPAQ V4332US); 0.036 W/kg CDMA Bystander Body SAR (w/ Dell FM1B); 0.163 W/kg PCS CDMA Bystander Body SAR (w/ Dell M1210) Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: #112] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance has been established in the host product(s) with slot configurations as tested in this filing, and can be used in host product(s) with substantially similar physical dimensions, construction, and electrical and RF characteristics. This transmitter is restricted for use with the specific antenna(s) tested for this filing. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603280208 Test Dates: March 28-30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWXV620 Page 2 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9-10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603280208 Test Dates: March 28-30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWXV620 Page 3 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: Novatel Wireless, Inc. Address: 9645 Scranton Road, Suite 205 San Diego, CA 92121 • FCC ID: PKRNVWXV620 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.284 W ERP CDMA (24.533 dBm) 0.253 W EIRP PCS CDMA (24.021 dBm) • FCC Classification(s): Licensed Portable Transmitter (PCB) • Equipment (EUT) Type: Dual-Band CDMA Modem Card • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: March 28-30, 2006 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0603280208 • Deviation from measurement procedure - None PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603280208 Test Dates: March 28-30, 2006 Phone Type: Dual-Band CDMA Modem Card FCC ID: PKRNVWXV620 Page 4 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude …

Text truncated - open the document above for the full version.

Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0 Novatel Wireless FCC ID: PKRNVWXV620 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Modem Card NVLAP Lab Code: 100431-0
