PL4CT1810LCD Monitor

TABLE OF CONTENTS ADJUSTING YOUR LCD MONITOR -------------- 2 • General safety precautions ..................................... 2 • Unpacking your monitor ....................................... 5 • Viewing angle ...................................................... 6 • How to open the back cover .................................... 6 • Connecting your monitor ....................................... 7 • User controls ...................................................... 8 • OSD (On-screen display settings) .............................. 9 • Menu adjustments ................................................ 10 • Refining the picture ............................................. 12 APPENDIX ----------------------------------- - 13 • Power management function ................................... 13 • Video input terminal .............................................. 13 • Display modes .................................................... 15 • Troubleshooting ................................................... 16 • Specifications ...................................................... 18 Adjusting your lcd monitor 2 General safety precautions This Monitor has been engineered and manufactured to assure your safety. Please read this manual and comply with the warnings and the procedures to avoid any serious electrical shock and other serious damage. 1. 2. 3. 4. Do not place anything heavy, wet or magnetic on the monitor or power cord. Do not cover the ventilation openings nor touch them with metallic or flammable material. High temperature can cause troubles. Avoid operating the monitor in extreme heat, humidity or dusty areas. Extreme temperature may cause discoloration or damages. Ambient Temperature : 0°C ~ 40°C Do not use a solvent, such as benzene, to clean the monitor to prevent any damages to the LCD surface. Do not use fine tools such as a pin or a pencil near the monitor to prevent any scratch to the LCD surface. Adjusting your lcd monitor 3 5. 6. 7. 8. Place the monitor on a flat surface to prevent it from falling. Do not apply any mechanical shocks to the machine. Install it in a well-ventilated area or secure enough space for ventilation. Turn the monitor off before connecting it to the power outlet. Adjusting your lcd monitor 4 CAUTION : RISK OF ELECTRIC SHOCK, DO NOT OPEN 9. 10. 11. Make sure that the power cord and the other cords are properly connected. Overloaded AC outlets and extension cords are dangerous. Also, the frayed power cords and the broken plugs may cause electric shock or fire. Do not open the monitor. There are no user-serviceable components inside. There is a risk of exposure to high- voltage electricity inside, even when power is turned off. If the display monitor does not operate properly, unplug the power cord and contact your dealer. Handling the electrical equipment carelessly will cause a serious electrical shock and other hazards. Adjusting your lcd monitor 5 Unpacking your monitor Please make sure the following items are included with your monitor. If you find that any of these items are missing or appear damaged, contact your dealer immediately. The power cord can be different depending upon different voltage areas. Adjusting your lcd monitor 6 Viewing angle Your monitor was designed to allow you to adjust it to a comfortable viewing angle. The viewing angle can be adjusted 5° to 30° forward and backward respectively as indicated by the arrow marks below. 5° 30° How to open the back cover DVI, Power, VGA, Video, S-Video, Audio in, Audio out Adjusting your lcd monitor 7 Connecting your monitor Be sure to turn the computer off before connecting the monitor Cable connections g Connect the Video cable or S-Video cable to your DVD,VCR or camcorder. g Connect the video signal cable (15Pin connector) to the system’s VGA connector which is located on the back panel of the computer. g Connect the power adaptor cord to the monitor and then to the power supply. g Insert the audio out jack to the ear phone jack and insert the audio in jack to the sound card port at the back of the computer, DVD or VCR. g After powering on the computer, DVD or VCR, adjust the display using the various controls provided. For further information on the installation procedure, please refer to the operating guide of the computer being used. Adjusting your lcd monitor 8 User controls Front control buttons AUTO MENU SELECT DOWN UP POWER/ LED No. Key name Description 1 AUTO Activates the auto adjustment function. 2 MENU Opens the OSD menu. 3 SELECT Selects the main menu items and sub-menu items. 4 ◀ Moves to the lower menu item or sub-menu item. Decreases the value of the parameter. 5 ▶ Moves to the upper menu item or sub-menu item. Increases the value of the parameter. 6 POWER Turns on/off the monitor. 7 LED Indicates the status of the monitor. • Green : Normal operation. • Amber : Power saving mode or disconnected signal cable. Adjusting your lcd monitor 9 OSD (On-screen display settings) OSD Operation 1. Press the menu button to open the menu system and display the main function menu. 2. Push the “ ◀”and “▶” buttons to move between the function icons. As you move from one icon to the other, the function name changes to reflect the function or group of functions represented by that icon. See the menu adjustments table to view a complete list of all the functions available for the monitor. 3. Push the select button once to activate the highlighted function. Use the “ ◀”and “▶” buttons according to the indicators on the menu to make your changes. 4. To exit from the OSD menu at any time during the operation, press the auto button. If no keys are pressed for a short period of time, the OSD menu will automatically disappear. Adjusting your lcd monitor 10 Menu adjustments Icon Setting menu Sub-menus Description Auto Adjust. • Adjusts the Auto Config. (position & phase brief) Brightness • Adjusts the screen intensity. Contrast • Adjusts the contrast of the screen image. H-Position • Adjusts th…

Text truncated - open the document above for the full version.

REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT C. - BLOCK DIAGRAM REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Mute/Volume Control MCU (MTV412) Audio Power Amplifier (TDA7496L) EEPROM (24LC16) Audio In/Out Inverter Unit Digital DDC (24LC02) Video Decorder (SAA7114H) Video S-Video CVBS SC/SY YUV 8Bits OSD Key Unit Scaler (gm5020) LCD Panel Unit LVDS Transmitter (CS5828N) Analog Input Digital Input Analog DDC

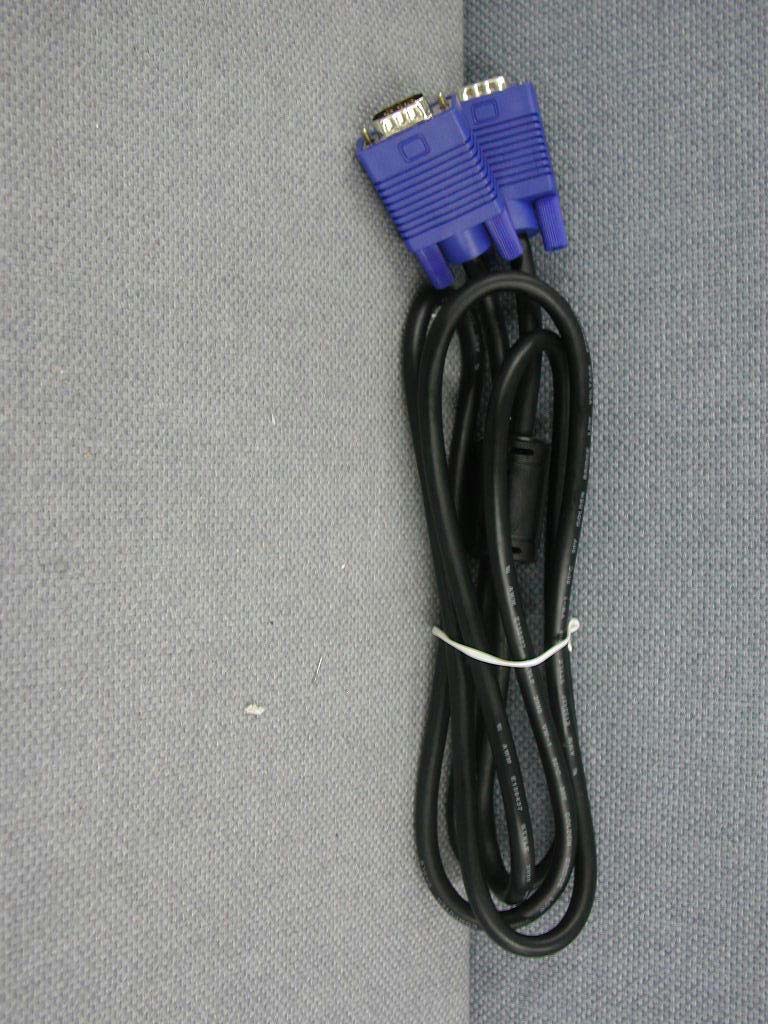

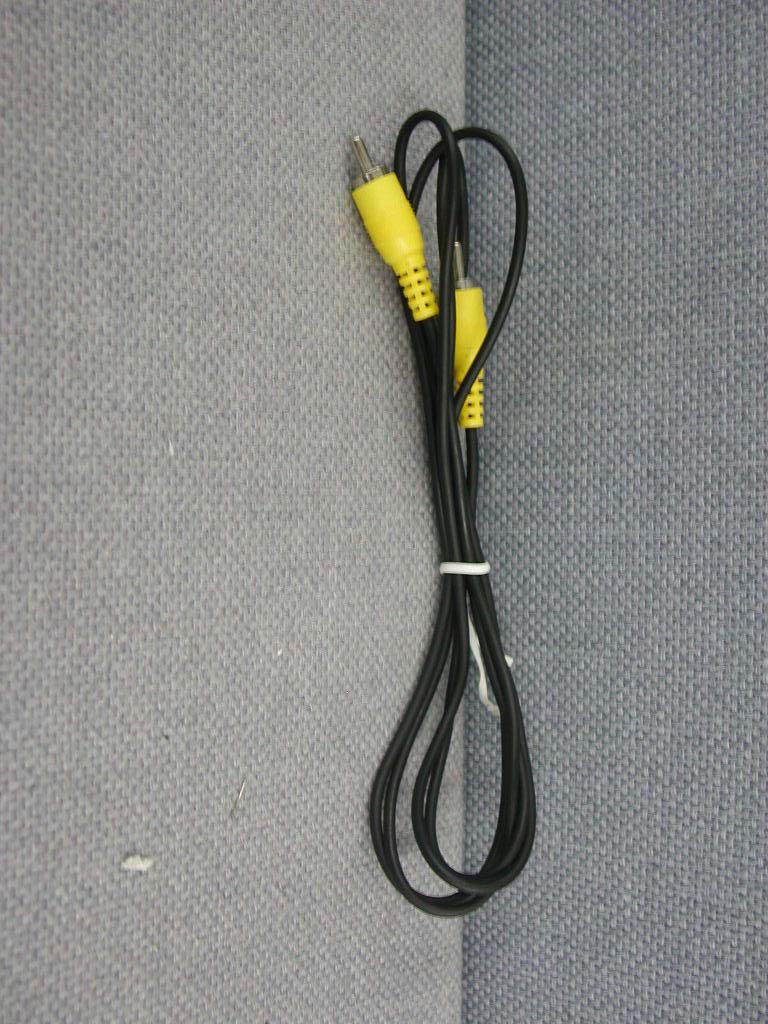

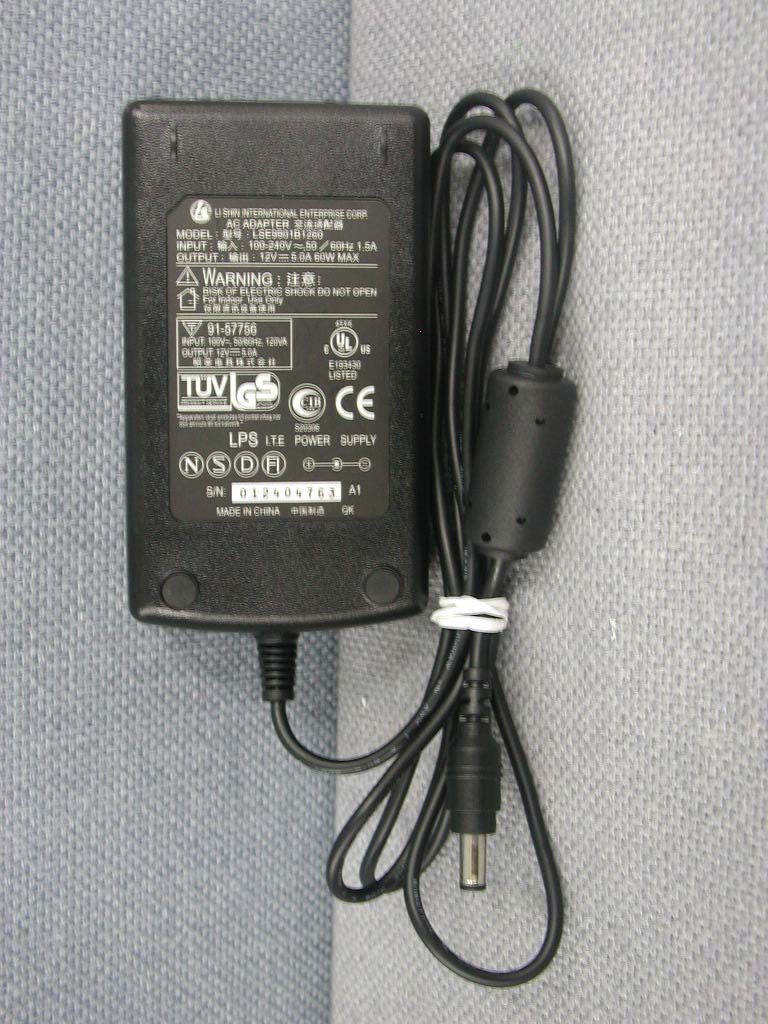

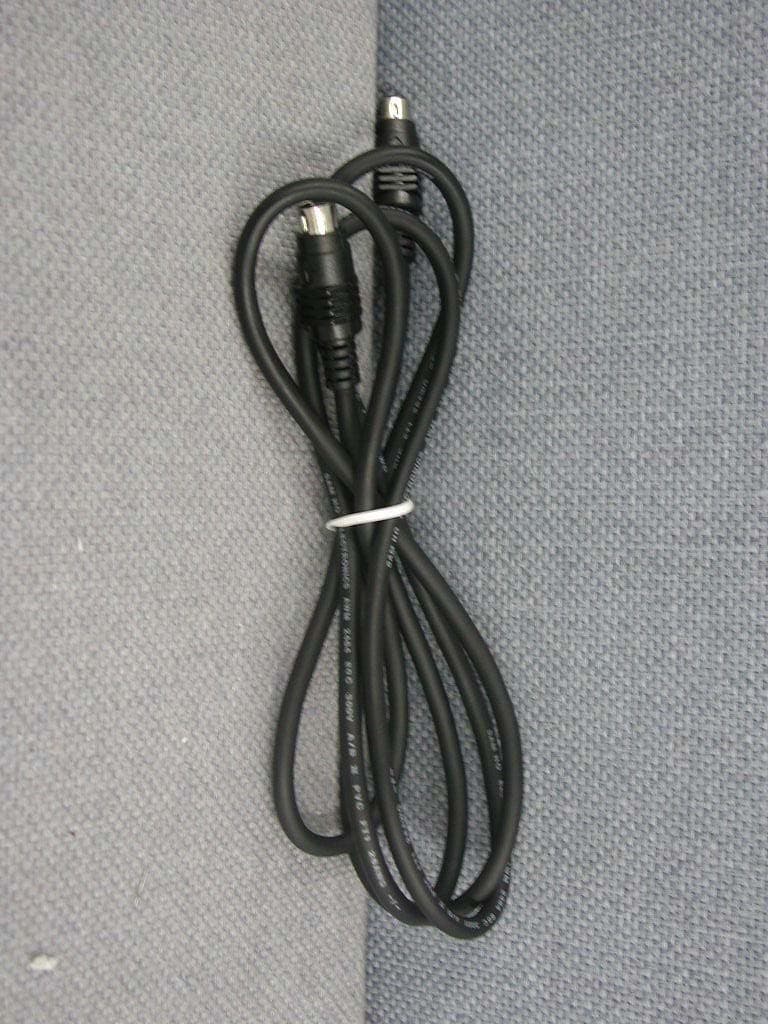

REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 AT TA CH MEN T B. - EXTERNAL PHOTOS REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525

REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925)

REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 . ATTACHMENT F. - INTERNAL PHOTOS REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525

REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 . ATTACHMENT F. - INTERNAL PHOTOS REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE TEAM SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 CERTIFICATION FCC Rule Part(s): Part 15 & 2; ET Docket 95-19 Classification: FCC Class B Peripheral Device (JBP) Standard(s): FCC Class B: 2001 Equipment(EUT) Type: 18” LCD Monitor Max Resolution: 1280 X 1024 Non-interlaced (@80KHz/ 75Hz) Port/ Connector(s) 15-pin D-sub VGA connector, 20-pin DVI-D (Digital RGB) S-VIDEO, COMPOSITE-VIDEO, AUDIO IN OUT The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992.(See Test Report if any modifications were made for compliance) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HYUNDAI C-Tech. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse of 1988,21 U.S.C.853(a). Report prepared by : Ki-Soo Kim Manager of EMC Tech. Part  HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. EMC LAB.  PL4CT1810 CT1810 Manufacture; CORNEA TECHNOLOGY CO ., Ltd. Rm#402, Burim Bldg, 1602-9 Kwanyang-dong Dongan-gu, Anyang-shi, Kyunggi-do, KOREA CORNEA FRN : 0006-5809-55 Date of Issue: SEPTEMBER 26, 2002 Test Report No.: HCT-F02-0916 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. HCT FRN : 0005-8664-21 FCC ID : MODEL / TYPE : REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNGKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION........................................................................................ 1.1 Product Description........................................................................................... 1.2 Related submittal(s)/Grant(s).......................................................................... . 1.3 Tested System Details........................................................................................ 1.4 Test Methodology.............................................................................................. 1.5 Test Facility..................................................................................................... 2. SYSTEM TEST CONFIGURATION............................................................................. 2.1 Justification...................................................................................................... 2.2 EUT Exercise Software..................................................................................... 2.3 Cable Description............................................................................................. 2.4 Noise Suppression Parts on Cable..................................................................... 2.5 Equipment Modifications................................................................................. 2.6 Configuration of Tested System......................................................................... 3. PRELIMINARY TESTS.............................................................................................. 3.1 Power line Conducted Emissions Tests............................................................. 3.2 Radiated Emissions Tests................................................................................. 4. FINAL CONDUCTED AND RADIATED EMISSION TESTS SUMMARY....................... 4.1 Conducted Emission Tests............................................................................... 4.2 Conducted Emission Tests............................................................................... 4.2 Radiated Emission Tests.................................................................................. 5. FIELD STRENGTH CALCULATION........................................................................... 6. LIST OF TEST EQUIPMENT ..................................................................................... ATTACHMENT A ......................................................ID Label / Location Info. ATTACHMENT B.......................................................External Photos. ATTACHMENT C ......................................................Block Diagram.. ATTACHMENT D ......................................................Test Setup Photos. ATTACHMENT E ......................................................User’s Manual. ATTACHMENT F ......................................................Internal Photos. 2 3 3 3 4 4 4 5 5 5 6 6 7 8 9 9 9 10 11 12 13 14 REPORT NO : HCT-F02-0916 FCC ID :PL4CT1810 DATE : SEPTEMBER 26, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNGKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 1. GENERAL INFORMATION 1.1 Product Description The CORNEA TECHNOLOGY CO., LTD. Model CT1810 (referred to as the EUT in this report) is a 18"LCD Monitor with HOR. Freq. 80KHz (Max) and Resolution of 1280 X 1024 (Non-Interlaced). Product specification information described herein was obtained from product data sheet or user's manual. CHASSIS TYPE PLASTIC LIST OF EACH OSC. OR XTAL. FREQ.(FREQ.≥ 1MHz) 12MHz, 14.32MHz , 24.576MHz , POWER REQUIREMENT 100-240V ~ 50/60 Hz 1.5A MAX. RESOLUTION 1280 X 1024 NON-INTERLACED (@80KHz/ 75Hz) H-SYNC FREQUENCY RANGE 31.5KHz  80KHz V-SYNC FREQUENCY RANGE 56Hz  75Hz LCD TYPE 18" ( LCD Type :LM181E04 ) 1.2 Related Submittal(s) / Grant(s) ORIGINAL SUBMITTAL ONLY 3 REPORT NO : HCT-F…

Text truncated - open the document above for the full version.
