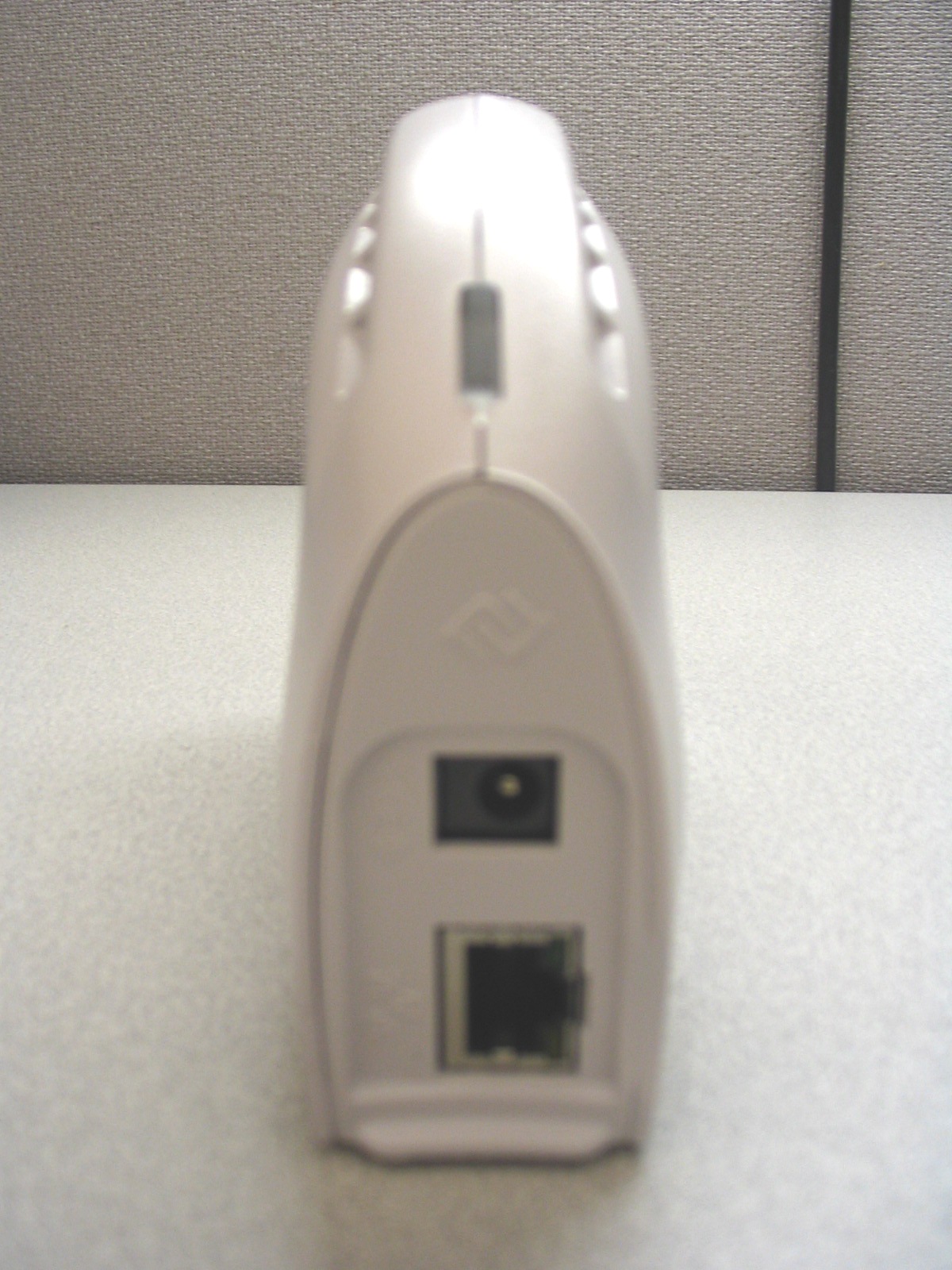

Page 1 Proprietary Information: The information contained in this docum ent is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. © 2006 Navini Networks Description: Label, Regulatory, ID, Packout Surf er 1343 (3400-3700 MHz) Modem Document No.: 67-01000-01R Surfer 1252 (2496-2690 MHz) Modem Rev: C Surfer 1239 (2300-2390 MHz) Modem Date: May 7, 2007 070507a_Navini_Surfer_REGULATORY_ID_Labels_67-01000-01C.ppt Navini Networks, Inc.2240 Campbell Creek Blvd. #110Richardson, Texas 75082 Regulatory & ID Labels’ Plac e m ent Note: Place ID & REGULAT O RY label s w i thin t h eir re spec tiv e indentations on the Surfer base. Regulatory Label BACK FRONT I.D. Label T h e R M A s t icker ( p a r t o f t h e R M A p r ocess ) w ill u s e t h is s p ace be t w een the l a b e l s an d the r e a r ru bbe r fe et. Na v i n i Ne t w o r k s ® R i p w a v e M X S u r f e r 1343 m o d e m 3400- 3 700 M H z 40-01001-00R ! I n t e nd ed on l y f o r u s e w i th l i s t ed c l a s s 2 o r I . T . E . L. P . S . po w e r u n i t s M ade i n C h i n a I n p u t: 5 V D C /2 A E 1 1252 4 E 1 1252 4 Na v i n i Ne t w o r k s ® R i p w a v e M X S u r f e r 1343 m o d e m 3400- 3 700 M H z 40-01001-00R ! ! ! I n t e nd ed on l y f o r u s e w i th l i s t ed c l a s s 2 o r I . T . E . L. P . S . po w e r u n i t s M ade i n C h i n a I n p u t: 5 V D C /2 A E 1 1252 4 E 1 1252 4 N a v i n i N e tw o r k s ® I n c . M ode l : S u r f e r 134 3 M A C: 00- 04- 6 A - M M - M M - M M 9 2 - 3 42 1 0 - z z - g - Y Y W W - 00 0 46A M M M M M M 40-01001-01R N a v i n i N e tw o r k s ® I n c . M ode l : S u r f e r 134 3 M A C: 00- 04- 6 A - M M - M M - M M 9 2 - 3 42 1 0 - z z - g - Y Y W W - 00 0 46A M M M M M M 40-01001-01R FRONT BACK Page 2 Proprietary Information: The information contained in this docum ent is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. © 2006 Navini Networks Description: Label, Regulatory, ID, Packout Surf er 1343 (3400-3700 MHz) Modem Document No.: 67-01000-01R Surfer 1252 (2496-2690 MHz) Modem Rev: C Surfer 1239 (2300-2390 MHz) Modem Date: May 7, 2007 070507a_Navini_Surfer_REGULATORY_ID_Labels_67-01000-01C.ppt Navini Networks, Inc.2240 Campbell Creek Blvd. #110Richardson, Texas 75082 2300-2390 MHz S urfer 1239 REGULATORY Label Use the part number and model n u mber in the corresponding BOM to complete the label. Label Type / Materi al : 2 See Co ve r page fo r Ma te r i al de fin i tion Nav i ni Net w orks ® R i p w a v e MX Su r f e r 1239 mo dem 2300 -239 0 MHz 40-01001-04R FCC ID: PL6-2300-MDM90-S1 In tended on ly fo r u s e w i t h list e d cla ss 2 o r I. T . E . L . P . S . pow e r un it s. M u st keep m i n i m u m 20 cm f r o m use r ( C F R 47 1 . 1307 R F expo su re li m i t s ) . M a de in C h ina Input: 5VD C / 2A E11 2524 E11 2524 0 . 65” R= 0.10” 2 . 30” Par t No . 40- 0 1001-04R

Tune-Up Procedure The CPE transmitter (TX) has a power control range of 60dB or more. To ensure accuracy of the CPE TX output power, the TX output power levels are calibrated over the 60dB dynamic range during the factory tune-up process for the CPE. The TX tune-up procedure involves TX calibration using the calibrated power meter and spectrum analyzer. The CPE TX output power levels can be control by setting the TX power control variables by software. During the TX calibration, the CPE Test Software will vary the TX power control variables until the desired TX output power levels are measured on the power meter or spectrum analyzer. The TX power control variables are then stored in the Flash Memory to be used as a look-up table. In the TX Calibration Look-Up Table, each TX power control variable corresponds to a desired TX output power level.

Voltage and Current in final rf stage Voltage: 5 Vdc Current: 1 Amp

Prediction of Maximum Permissible Exposure Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = directional power gain of the antenna relative to an isotropic radiator R = distance to the center of radiation of the antenna Max. output power at antenna terminal(dBm):25.50 Max. output power at antenna terminal(mW):354.813 Antenna gain for prediction(dBi):9 Maximum antenna gain(numeric):7.9432823 Duty Cycle(%):50 Prediction distance(cm):20 Prediction frequency(MHz):2300 Limit for uncontrolled exposure(mw/cm²): 1.000 S(mw/cm²) = :0.280 NOTE: 50% duty cycle is based on Time Division Duplex (TDD) which is the normal operating mode of the device. In this mode the transmitter is active 50% of the time and the Receiver is active 50% of the time. The power used in the above calculations was measured with the transmitter in a continuous transmit mode. The measurement was made with an average detector. 2 4 PG S RΠ =

This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 1 of 63 1701 E. Plano Parkway, Suite 150 Plano, Texas 75074 Phone: (972) 509-2566 Fax: (972) 509-0073 Certification Test Report CFR 47 FCC Part 2 and Part 27, Subpart C Model: Surfer 1239 FCC ID No.: PL6-2300-MDM90-S1 Project Code: W7245-2 Revision: 2 Prepared for: Navini Networks 2240 Campbell Creek Blvd. Suite 110 Richardson, TX 75082 Author: Tom Tidwell, Manager of Wireless Services Issued: 25 July, 2007 Model: Surfer 1239 Compliance Test Report FCC ID.: PL6-2300-MDM90-S1 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 2 of 63 Report Summary NTS Plano Accreditation Numbers: FCC: 101741 IC: 46405-4319 File # IC-4319A-1 Applicant: Navini Networks, Inc. 2240 Campbell Creek Blvd. Suite 110 Richardson, TX 75082 Customer Representative: Larry Zhou EUT Description: EUT Description Manufacturer Model Revision Serial Number The equipment tested is a point-to-multipoint customer premise transceiver for broadband data transmission. Navini Networks Surfer 1239 - - Model: Surfer 1239 Compliance Test Report FCC ID.: PL6-2300-MDM90-S1 Test Summary Deviations from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable Rule Parts A RF Power Output No No No PASS CFR 47, Part 2, Para. 2.1046 CFR 47, Part 27, Para. 27.50(a) B Modulation Characteristics No No No PASS CFR 47, Part 2, Para. 2.1047 C Occupied Bandwidth No No No PASS CFR 47, Part 2, Para. 2.1049 CFR 47, Part 27, Para. 27.53(a) D Spurious Emissions at Antenna Terminals No No No PASS CFR 47, Part 2, Para. 2.1051 CFR 47, Part 27, Para. 27.53(a) E Field Strength of Spurious Radiation No No No PASS CFR 47, Part 2, Para. 2.1053 CFR 47, Part 27, Para. 27.53(a) F Frequency Stability No No No PASS CFR 47, Part 2, Para. 2.1055 CFR 47, Part 27, Para. 27.54 Test Result: The product presented for testing complied with test requirements as shown above. This is to certify that the preceding report is true and correct to the best of my knowledge. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 3 of 63 Robert Stevens, Tom Tidwell, Quality Assurance Manager Wireless Test Engineer Model: Surfer 1239 Compliance Test Report FCC ID.: PL6-2300-MDM90-S1 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 4 of 63 Table of Contents REPORT SUMMARY........................................................................................................................................................2 TEST SUMMARY..............................................................................................................................................................3 REGISTER OF REVISIONS.......................................................................................…

Text truncated - open the document above for the full version.

Model: Surfer 1239 Compliance Test Report FCC ID.: PL6-2300-MDM90-S1 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 53 of 63 E.8. Test Photo E.9. Tested By Name: Tom Tidwell, Function: Manager of Wireless Services
