PL6-2305-BTS2-R1Base Station Transmitter

Ripwave ™ Base Station Installation & Commissioning Guide Part Number 40-00047-00 Revision H, Version 1.0 February 4, 2005 Proprietary All information disclosed by this document is the proprietary property of Navini Networks, Inc. and is protected by copyright, trademark, and/or trade secret laws. All rights therein are expressly reserved. Navini Networks, Inc. Ripwave Base Station I&C Guide 2 About This Document Purpose This document provides a Navini-certified Installation & Commissioning Technician or Field Engineer with instructions to properly install the Base Transceiver Station (BTS), Radio Frequency Subsystem (RFS), and cabling; and to test and commission the Base Station after installation. Revision History Date Revision/ Version Authors Editors Comments 1.31.05 H/1.0 L. Font S. Redfoot Commercial Release 4.1.6 2.4.05 H/1.0 L. Font S. Redfoot Custom Version for Testing Contacts Contact Navini Networks Technical Support during normal business hours: Monday through Friday 8:30 a.m. to 5:30 p.m. Central Time. You can also submit questions or comments by web or email at any time. Corporate Headquarters: (972) 852-4200. Technical Support: 1-866-RIPWAVE Offshore Number: 001 (972) 852-4389 Local Dallas Number: (972) 852-4389 Web Address: www.navini.com / select “Support” E-mail: [email protected] Navini Networks, Inc. 2240 Campbell Creek Blvd. Suite 110 Richardson, Texas 75082 USA Navini Networks, Inc. Ripwave Base Station I&C Guide 3 Permissions, Trademarks & Distribution Copyright © 2005, Navini Networks, Inc. All information contained herein and disclosed by this document is the proprietary property of Navini Networks, Inc. and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of Navini Networks, Inc. Navini Networks, Internet at the Speed of Thought, zero-install, unwired by Navini, the Navini Networks logo, and Ripwave are trademarks of Navini Networks, Inc. Other product and company names mentioned herein may be trademarks and/or service marks of their respective owners. Nothing herein constitutes any representation, warranty, assurance, or guaranty of any kind. Because of continuing developments and improvements in design, manufacturing, and deployment, material in this document is subject to change without notification and does not represent any commitment or obligation on the part of Navini Networks, Inc. Navini Networks, Inc. shall have no liability for any error or damages resulting from the use of this document. Any unauthorized usage is strictly prohibited without the express written permission of Navini Networks, Inc. Copyright © 2005 Navini Networks, Inc. All Rights Reserved. Navini Networks, Inc. 2240 Campbell Creek Boulevard Suite 110 Richardson, Texas 75082 USA Navini Networks, Inc. Ripwave Base Station I&C Guide 4 Table of Contents CHAPTER 1: OVERVIEW......................................................................ERROR! BOOKMARK NOT DEFINED. R IPWAVE DESCRIPTION.....................................................................................ERROR! BOOKMARK NOT DEFINED. P ROCEDURAL DOCUMENTS & FORMS...............................................................ERROR! BOOKMARK NOT DEFINED. H IGH-LEVEL I&C PROCESS...............................................................................ERROR! BOOKMARK NOT DEFINED. B ASE STATION COMPONENTS............................................................................ERROR! BOOKMARK NOT DEFINED. T ECHNICAL SPECIFICATIONS.............................................................................ERROR! BOOKMARK NOT DEFINED. BTS I NPUT/OUTPUT SPECIFICATIONS................................................................ERROR! BOOKMARK NOT DEFINED. CHAPTER 2: INSTALLATION ..............................................................ERROR! BOOKMARK NOT DEFINED. P RE-INSTALLATION............................................................................................ERROR! BOOKMARK NOT DEFINED. I NSTALL POWER & GROUNDING........................................................................ERROR! BOOKMARK NOT DEFINED. I NSTALL CABLES...............................................................................................ERROR! BOOKMARK NOT DEFINED. I NSTALL THE BTS..............................................................................................ERROR! BOOKMARK NOT DEFINED. I NSTALL GPS ANTENNAS..................................................................................ERROR! BOOKMARK NOT DEFINED. I NSTALL THE RFS ..............................................................................................ERROR! BOOKMARK NOT DEFINED. V ERIFY INSTALLED CIRCUIT CARDS..................................................................ERROR! BOOKMARK NOT DEFINED. B ASE STATION INSTALLATION CERTIFICATION.................................................ERROR! BOOKMARK NOT DEFINED. CHAPTER 3: COMMISSIONING ..........................................................ERROR! BOOKMARK NOT DEFINED. R EVIEW CUSTOMER NETWORK PLANS..............................................................ERROR! BOOKMARK NOT DEFINED. I NSTALL EMS SERVER......................................................................................ERROR! BOOKMARK NOT DEFINED. V ERIFY CABLE CONNECTIONS...........................................................................ERROR! BOOKMARK NOT DEFINED. C ONFIGURE & POWER UP THE BTS.................................................…

Text truncated - open the document above for the full version.

Navini Networks, Inc. Ripwave Base Station I&C Guide 12 Glossary of Terms & Abbreviations Term Stands For.... Meaning 802.11 802.11 Standard An IEEE LAN standard for wireless Ethernet replacement technology in the ISM band. Runs at up to 10 Mbps. ACC Access Channel or Access Code Channel AKA, Paging Channel. The signal path that tells a mobile to prepare for an incoming call. ACK Acknowledge Positive message sent by a protocol to acknowledge reception of a transmitted packet AP Access Point Wireless LAN transceiver that acts as a center point of an all- wireless network or as a connection point between wireless and wired networks. AMI Alternate Mark Inversion Old method for encoding data on a 64 kbps channel, which requires 8 kbps to maintain synchronization, leaving only 56 kbps available to transmit data ARP Address Resolution Protocol The function of the ARP is to match higher-level network IP addresses with the physical hardware address of a piece of equipment. ARQ Automatic Repeat reQuest A protocol for error control in data transmission that automatically requests the transmitter to resend a packet when the receiver detects an error in the packet. ASYNCH Asynchronous Not occurring at regular intervals, as in data piped over a network AWG American Wire Gauge A measure of thickness of copper, aluminum or other wiring in the U.S. ATM Asynchronous Transfer Mode Transporting a broad range of user data at irregular intervals over network facilities B8ZS Biploar 8-Zero Substitution An encoding method used on T1 circuits that inserts two successive ones of the same voltage - referred to as a bipolar violation - into a signal whenever eight consecutive zeros are transmitted. BB Broadband RF system with constant data rate of 1.5 Mbps or higher. BBU Battery Backup Unit Equipment used to keep a BTS operating in the event of a power outage BCC Broadcast Code (or Control) Channel A channel of data transmitted by one entity and received by many devices. BoM Bill of Materials List of the actual equipment to be manufactured and shipped to the installation site. BS Base Station Network Access equipment and software that transmits and receives, as well as processes, voice or data calls from mobile units to network connections. A Ripwave Base Station consists of the Base Transceiver Station (BTS) and the Radio Frequency Subsystem (RFS), or antenna, plus a Global Positioning System (GPS) antenna for timing. BTS Base Transceiver Station The Ripwave BTS is a two-shelf rack that holds the RF modules and digital circuit cards that interpret radio signals into computer language and sends messages to and from the local or wide area network. It functions between the RFS and the EMS to handle the signaling. BW Bandwidth Frequency spectrum usable for data transfers. It describes the maximum data rate that a signal can attain on the medium without encountering significant loss of power. Usually expressed in bits per second (digital) or Hertz (analog). BYTE Byte 8 bits Navini Networks, Inc. Ripwave Base Station I&C Guide 13 Term Stands For.... Meaning CAM 1 Configuration & Alarm Manager or 2 Content Addressable Memory 1 An EMS functionality that is handled through a Graphical User Interface for purposes of configuring elements in the system and handling other OAM requirements. 2 Module of the BTS software used to provide mappings of users to channels. CBR Constant Bit Rate One of the two service categories available for the Management PVC in the ATM/T1 BTS configuration (the other one is UBR) CC 1 Communications Controller or 2 Cross-check 1 A type of circuit card that resides in the Digital shelf of the Ripwave BTS. It handles all interfaces between BTS and network. 2 An EMS functionality that allows the system to perform an automated sanity check of the datafill. CD 1 Compact Disk or 2 Change Directory 1 An optical disk capable of storing large amounts of data (700x floppy disk). It can be inserted into most PCs and “read” to load files onto a computer 2 A software programming term in “C” language that tells the computer to go to a different location in the computer’s memory. CDMA Code Division Multiple Access Digital cellular technology that uses a spread-spectrum technique where individual conversations are encoded with a random digital sequence. Increases capacity and speed of communications messages between mobile units over other types of wireless networks. CD-ROM Compact Disk - Read Only Memory See “CD.” If a CD is not Read Only, computers can write data to it with that capability. CDVT Cell Delay Variation Tolerance Delay variation parameter required by UBR and CBR. CHP Channel Processor Card A card in the digital shelf of the BTS that performs the first stage of signal processing for up to 4 antennae. One Navini 2.4 GHz BTS has 8 antennae. The card performs digital-to-analog conversion (DAC) and analog-to-digital conversion (ADC) for up to 10 carriers. CLEC Competitive Local Exchange Carrier A telephone company that competes with an incumbent Local Exchange Carrier (LEC). CLI Command Line Interface A text-based programming language through which a user communicates with an operating system or an application. CORBA Common Object Request Broker Agent A standard for Network Management Systems that allows integration with NMS regardless of programming language or Operating System. CPE Customer Premise Equipment Communications equipment (Modem) that resides at the customer’s location. D4 D4 A framing standard for traditional time-division multiplexing, which standard describes user channels multiplexed onto a trunk that has been segmented (framed) into 24 bytes of 8 bits each. (See also ESF.) dB Decibel A logarithmic expression of the ratio between two signal power, voltage, or current levels. A decibel is one-tenth of a Bel, a seldom-used unit named for Alexander Graham Bell, inventor of the telephone. dBd Decibel/Dipole A ratio, measured in decibels, of the effective gain of an antenna compared to a dipole…

Text truncated - open the document above for the full version.

Navini Networks, Inc. Ripwave Base Station I&C Guide 21 Chapter 1: Overview Ripwave Description A Ripwave system has three main components: the Base Station, the Modems, and the Element Management System (EMS). The Base Station performs the Modem registration and call processing, and provides the interface between the backhaul network and the EMS. It is made up of the Base Transceiver Station (BTS) and the Radio Frequency Subsystem (RFS) (Figures 1, 2 & 3). This manual provides the guidelines and instructions for installing and commissioning (I&C) the Base Station. Figure 1 shows the system with both Secondary (built-in) and Primary (optional) Lightning Protection. Lightning Protection helps to protect the RFS, the BTS, and the RF lines against “tower lightning” events occurring at the Base Station. The customer must exercise judgment when balancing risk against cost to decide whether to install the primary protection kit at an extra cost or to rely on the secondary protection only. NOTE: Navini does not warranty equipment against lightning strikes. In addition to tower lightning events occurring at the base station, lightning events that occur miles away from the BTS could generate intense electrical currents traveling over the power and/or backhaul lines and into the BTS equipment, damaging it. For this reason, Navini recommends adding surge protection devices at the power and backhaul demarcation points. Figure 1: TTA Configuration with Primary and Secondary Surge Protection CAL Digital Shelf Rectifiers (24 VDC, 60 A) Frame GPS GPS Antenna Secondary (Built-in) Surge Protectors RF Ethernet 110/220 VAC 60/50 Hz Demarc. Points Omni or Panel Antenna Power Amplifiers Secondary (Built-in) Surge Protectors Lightning Ground Antenna Bracket Primary Surge Protectors (Use Polyphasorsurge protectors with the CAL Cable and Huber+Suhner surge protectors everywhere else) Additional grounding block needed if main cable run exceeds 250 ft (75 m) These are not Surge Protectors but N-type/Female to N-type/Female bulhhead connectors for grounding 5 Ohm maximum Use "Smart Jack" for surge protection!!! Rectifier Surge Protection Device CAL Digital Shelf Rectifiers (24 VDC, 60 A) Frame GPS GPS Antenna Secondary (Built-in) Surge Protectors RF Ethernet 110/220 VAC 60/50 Hz Demarc. Points Omni or Panel Antenna Power Amplifiers Secondary (Built-in) Surge Protectors Lightning Ground Antenna Bracket Primary Surge Protectors (Use Polyphasorsurge protectors with the CAL Cable and Huber+Suhner surge protectors everywhere else) Additional grounding block needed if main cable run exceeds 250 ft (75 m) These are not Surge Protectors but N-type/Female to N-type/Female bulhhead connectors for grounding 5 Ohm maximum Use "Smart Jack" for surge protection!!! Rectifier Surge Protection Device Surge Protection Device Navini Networks, Inc. Ripwave Base Station I&C Guide 22 Figure 2: TTA Configuration with Secondary Surge Protection Only CAUTION! Although Secondary surge protection is built into the TTA that ships from the factory, Navini recommends that the Primary surge protection kit be purchased and installed, in particular if the equipment is installed in an area where electrical storms are common. Surge protection devices should be added in front of the rectifier. Lightning striking miles away from the BTS may cause an intense electric current traveling on the power and/or backhaul lines and into the BTS, damaging the equipment. Power Amplifiers Secondary (Built-in) Surge Protectors Omni or Panel Antenna Lightning Ground Secondary (Built-in) Surge Protectors GPS Antenna Digital Shelf Rectifiers (24 VDC, 60 A) Frame CAL Antenna Bracket 14 dB max GPS 5 Ohm maximum Demarc. Points Ethernet 110/220 VAC 60/50 Hz Use "Smart Jack" for surge protection!!! Rectifier Surge Protection Device RF MAY BE NEEDED DEPENDING ON THE COUNTRY OR CITY BUILDING CODES These are not Surge Protectors but N- type/Female to N-type/Female bulhhead connectors for grounding Power Amplifiers Secondary (Built-in) Surge Protectors Omni or Panel Antenna Lightning Ground Secondary (Built-in) Surge Protectors GPS Antenna Digital Shelf Rectifiers (24 VDC, 60 A) Frame CAL Antenna Bracket 14 dB max GPS 5 Ohm maximum Demarc. Points Ethernet 110/220 VAC 60/50 Hz Use "Smart Jack" for surge protection!!! Rectifier Surge Protection Device Surge Protection Device RF MAY BE NEEDED DEPENDING ON THE COUNTRY OR CITY BUILDING CODES These are not Surge Protectors but N- type/Female to N-type/Female bulhhead connectors for grounding Navini Networks, Inc. Ripwave Base Station I&C Guide 23 Procedural Documents & Forms You will refer to other Ripwave documents, procedures, and forms in the process of installing and commissioning the Base Station. The product documentation is provided on the Ripwave Standard Documentation CD (Table 1). As well, the EMS manuals can be viewed on-line through the EMS Server and Client applications. Table 1: Ripwave Standard Documentation CD Order Number 95-00116-00 Part Number EMS Overview Manual 40-00016-03 EMS Software Installation Guide 40-00017-00 EMS-OSS Integration Guide 40-00147-00 EMS Administration Guide 40-00031-00 Ripwave Configuration Guide 40-00016-01 Excel Configuration Form 44-00032-01 EMS CLI Reference Manual 40-00016-02 Ripwave Alarm Resolution Reference Manual 40-00033-00 System Operations, Maintenance & Troubleshooting Guide* 00-00046-00 EMS Diagnostic Tools Guide 40-00032-00 Ripwave Modem Quick Installation Guide 40-00112-00 English 40-00098-00 Spanish 40-00096-00 Ripwave Modem User Guide 40-00111-00 English 40-00097-00 Spanish 40-00099-00 Ripwave Modem Software Update Tool Quick Guide 40-00066-00 Customer Release Notes Varies w/each release *Available 2Q04 A number of other forms are used in the installation and commissioning process. This I&C Guide references those throughout, and provides copies in the appendices. High-level I&C Process To put the I&C activities in the context of overall system deployment, Figure 4 provides …

Text truncated - open the document above for the full version.

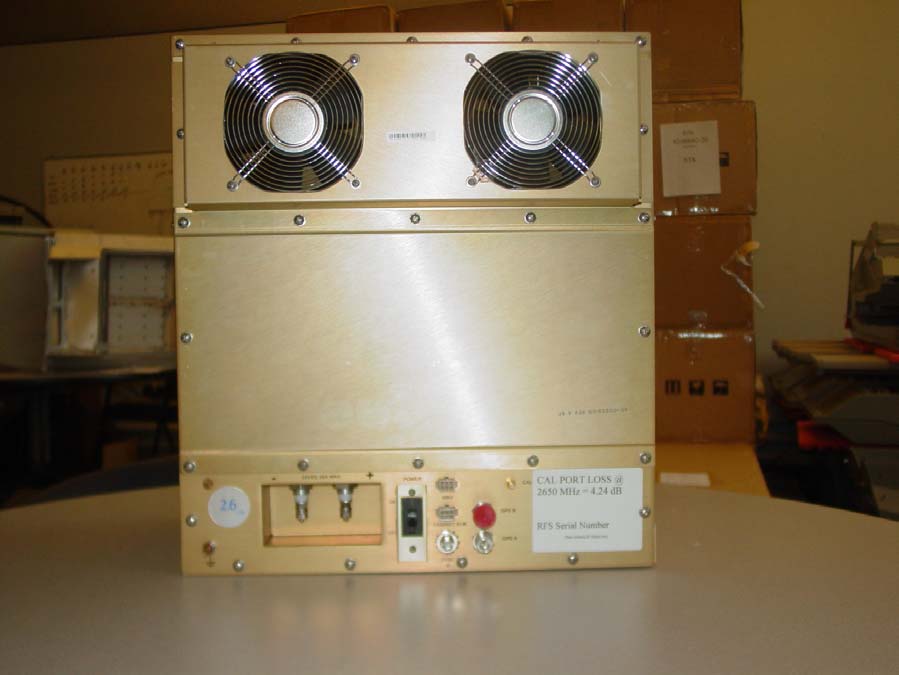

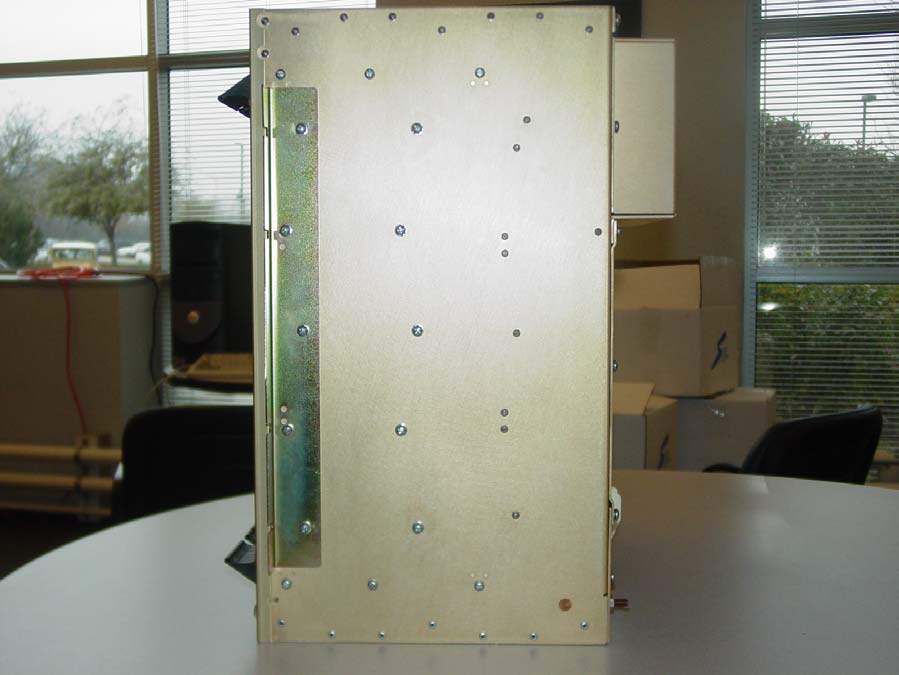

Navini Networks, Inc. Ripwave Base Station I&C Guide 35 Base Station Components Base Transceiver Station (BTS) The BTS consists of the RF Power Amplifiers (PAs), the digital circuit cards, the backplane, and the mechanical enclosure or housing. It performs the signal processing and RF transmission for the system. There are three types of chassis: Combo, Split, and Tower Top Amplifier (TTA). The Combo Chassis is used primarily with 2.4 GHz systems. The Split Chasses is used for all other (2.3, 2.5, 2.6 GHz) systems (Figure 5). The TTA is the latest chassis design, and is available at this time for 2.4 and 3.5 GHz systems. The chassis is compartmentalized into two sections - the RF shelf and the Digital shelf. The BTS connects to the network using a 10/100 Base-T Ethernet connection or up to 8 T1 interfaces. Up to three BTS assemblies can be installed per system, depending on the configuration. The BTS specifications are provided in Appendix C . Figure 5: BTS Chassis TTA ChassisTTA ChassisTTA ChassisTTA Chassis Navini Networks, Inc. Ripwave Base Station I&C Guide 36 Radio Frequency Subsystem (RFS) The Radio Frequency Subsystem (RFS) is mounted on a transmission tower or building rooftop. It transmits and receives data to and from the Ripwave Modem using a digital beam forming transmission technique. The RFS may be either a panel antenna or an omni antenna (Figure 6). The RFS data sheets are provided in Appendix E . An RFS panel transmits in a directional mode, covering a transmit angle of 120 degrees. The antenna can be used as a single mode antenna, or it can be used in a group of two or three sectored antennas, covering 240 and 360 degrees respectively. Each panel requires a BTS to operate. For example, in a tri-sectored cell with 3 panels, you would need 3 BTSs. The omni antenna provides omni-directional coverage of 360 degrees. An RFS panel or omni contains eight (8) antenna elements, cavity filters, and, optionally, low noise amplifiers (LNA). In the TTA configurations, the PAs also are located in the RFS (antenna) by the LNAs and cavity filters. Navini Networks, Inc. Ripwave Base Station I&C Guide 37 Global Positioning System (GPS) One Global Positioning System (GPS) antenna is used with each Base Station to provide a timing signal for synchronizaton. A second GPS antenna can be provided for redundancy. The Ripwave Base Station uses the VIC 100 GPS Antenna (Figure 7). Figure7: VIC 100 GPS Antenna CAUTION! GPS synchronization is essential for the BTSs in a network not to interfere with one another Mounting Racks & Enclosures The BTS can be installed indoors or outdoors in industry standard 19- or 23-inch racks. Rack adapters are needed to mount the equipment in a standard 23-inch rack. For outdoor BTSs, the customer can supply any standard enclosure from a multitude of vendors. Appendix E offers suggestions for outdoor BTS enclosures. Figure 8 shows 3 BTSs installed indoors. Accessibility Ripwave BTS equipment is required to be installed in a restricted access location, in accordance with NEC/CEC standards. Only authorized personnel should have access to this equipment. Navini Networks, Inc. Ripwave Base Station I&C Guide 38 Technical Specifications Table 2: Technical Specifications COMBO (no longer in production) SPLIT TTA Frequency Band (GHz) 2.4 2.6 2.3 2.5 2.6 2.4 2.6 3.5 Frequency Band (Name) ISM MMDS WCS/ ITFS/ MMDS ISM MMDS BWA/FWA– Frequency Range (GHz) 2.400–2.4732.602–2.638 2.305–2.385 2.500–2.596 2.596–2.686 2.400–2.483 2.596–2.6863.410–3.600 Watt 725 1150 1150 435 390 380 Maximum Power Dissipation (Thermal Load) BTU per hour 2475 3925 3925 1485 1331 1297 Rectifier Rating (Watt)* 975 1500 1500 504 724 614 Circuit Breaker Rating (Amp) 60 RF Shelf: 50 Dig. Shelf: 20 40 Duty Cycle 75% Input Voltage +21 to 27 VDC Relative Humidity of BTS Operating Environment 0% to 95% relative humidity, non-condensing Operating Temperature (°Celsius) 0 to 50 Storage Temperature (°Celsius) –40 to +70 Air Flow (on each shelf) Fresh air intake along the lower front vertical panel, air exhaust out of the upper rear of the chassis Downlink DQPSK, 8PSK & QAM16 Modulation Uplink DQPSK Multiple Access Scheme Multi-Carrier Synchronous Beam-forming (MCBS) CDMA Power Control Forward & reverse, open & closed loop *The BTS must be connected to a power supply/rectifier that is UL listed (continued on the next page) Navini Networks, Inc. Ripwave Base Station I&C Guide 39 COMBO (no longer in production) SPLIT TTA Frequency Band (GHz) 2.4 2.6 2.3 2.5 2.6 2.4 2.6 3.5 Omni 2° electrical downtilt – Antenna Downtilt 120° panel 6° electrical downtilt (fixed) plus 0°to 10° mechanical uptilt (adjustable) 6° electrical downtilt (fixed) plus –4° to +8° mechanical uptilt (adjustable) Omni 8 dBi Antenna Gain per antenna element (Approximate) 120° panel 15 dBi Backhaul Interfaces 10/100 BaseT Ethernet or ATM over T1/E1; up to 8 T1s/E1s with or without IMA, long haul support Bandwidth Allocation Dynamic Duplex Format Time Division Duplex RF: 14x19x15.2 Chassis Mechanical Dimensions (inches H x W x D) 30 x 19 x 14 Digital: 19.2x19x12.9 19.2 x 19 x 12.9 RF: 82 Chassis Weight (lb) 60 Digital: 33 36 Omni Antenna Mechanical Dimensions (inches H x Diameter) 60 x 15 56.6 x 13.2 „ Omni Antenna Weight (lb) 65 52 Panel Antenna Mechanical Dimensions (inches H x W x D) 48 x 23 x 10 54 x 23 x 7.5 38 x 19 x 20 Panel Antenna Weight (lb) 64 81* 50 Polarization Vertical Downlink 18 Beam Forming Gain (dB) Uplink 9 * including the bracket mount Navini Networks, Inc. Ripwave Base Station I&C Guide 40 BTS Input/Output Specifications Table 3: BTS Input/Output Specifications Item Description Termination Protection specified in Manual +24 VDC Power +21 to +27 VDC input, –/+ terminals Power Supply/Rectifier customer equipment Rectifier must be UL- listed, comply with UL60950 or UL60950-1 and have earthed SELV output GND Chassis Ground Connection Earth Ground GND required T1/E1 T1/E1 communication lines off CC card T1s/E1s interface switch customer…

Text truncated - open the document above for the full version.

Navini Networks, Inc. Ripwave Base Station I&C Guide 51 Bundle Cables for the TTA Configuration The bundle cables are manufactured by CommScope in 5 m increments. On the end that attaches to the antenna, the RG-6 or RG-11 bundle cables come with a weatherized “boot” and nine the N-type Male connectors in place. At the other end, the connectors can be N-type, if the cables in the will be connected to surge protectors in a buss bar (Primary Protection); or QMA, if the cables are to be connected directly to the BTS (Secondary Protection only). In the first case, N- type to QMA jumper cables are needed to connect the surge protectors in the buss bar to the BTS. You can optionally cut the bundle cable to the proper length, attach the connectors, and install the boot on site by yourself. Use a torch to heat-shrink the boot, being careful not to burn it. Figure 18 Bundle Cable, Weatherized “Boot” and End Connectors Cal Port (BTS back plane) RFCs (BTS front) N-type QMA Cal Port (BTS back plane) RFCs (BTS front) N-type QMA Navini Networks, Inc. Ripwave Base Station I&C Guide 52 Install Connectors on Cables Install connectors on both ends of each cable. For LMR 600 cables, install EZ-600 N-type male connectors. For LMR 400 cables, install EZ-400 N-type male connectors. Steps for installing both types of connectors can be found in Appendix J . For reference, Appendix H also provides a list of vendors who can make cables. The Cal and RF cables in the Combo and Split Chassis configuration have N-type male connectors at both ends. The Bundle Cable used with the TTA configuration has N-type male connectors at the antenna end, but the connectors used at the other end depend on the degree of lightning protection desired. Is only the built-in protection is used, the connectors at the BTS end are QMA male, but if the Ancillary surge protectors are used, the connectors at the BTS end of this cable are N-type male. Figure 19: Connectors. N-Type FM QMA M BNC FM RG6 Front Back RG11 BNCRJ45/RJ48 N-Type FM QMA M BNC FM RG6 Front Back RG11 BNCRJ45/RJ48 Navini Networks, Inc. Ripwave Base Station I&C Guide 53 Sweep RF Cables Sweep each individual cable, the RFS (8) and CAL main feeder and jumper cables, to check for line loss. Follow the instructions for sweeping the cables provided in Appendix K entering the results in the RFS System Test Form. Check continuity of the data/power cable. When finished, cover the cable connectors for protection until they are connected to the RFS or GPS. Connectorize & Run Cables Connect all of the RF cables to the surge protectors in the system ground buss bar. An example of a buss bar connection is shown in Figure 14. Ensure that the proper cable is connected to the proper surge protector. Connect the power/data cable to its surge protector. Also connect all the jumper cables to the surge protectors that will attach to the BTS. Do not connect these cables to the BTS at this time. Torque all the cable connectors to the surge protectors on the system ground buss bar to 20-24 inch-pounds. Figure 20: Buss Bar Connections Route all of the cables – RFS (8), CAL, DATA/POWER and GPS (1 or 2) - between the system ground buss bar and the RFS, and GPS mounting sites. If running the cables up a tower, use a hoisting grip to lift the cables. GPS 1 GPS2 RF 1-4RF 5-8 CAL GPS 1 GPS2 RF 1-4RF 5-8 CAL Navini Networks, Inc. Ripwave Base Station I&C Guide 54 Install the BTS Check all regulatory standards (refer to Chapter 1, Page 8 “Regulatory Information”) prior to installation. Install Mounting Rack or Enclosure The BTS mounting rack (Figure 22) or enclosure is to be installed in compliance with applicable portions of the National Electrical Code (NEC), articles 800 and 810. You will need to adhere to local installation standards, as well as Navini Networks standards and procedures. Refer to Appendix E for manufacturers of outdoor BTS enclosures. Figure 22: BTS Mounting Racks TTA ChassisTTA ChassisTTA ChassisTTA Chassis Navini Networks, Inc. Ripwave Base Station I&C Guide 55 Install Chassis There are three types of BTS chassis: Combo, Split and TTA (Figure 23). Prior to Ripwave Release 1.19 (2.4 GHz systems), only the Combo Chassis was used, but with the licensed bands (2.3, 2.5, and 2.6 GHz systems) it is allowed to transmit at higher levels of power, which required better air circulation. This resulted in the introduction of the Split Chassis. The recently introduced Tower Top Antenna (TTA) chassis, consists only of a digital shelf because the PAs are incorporated into the base of the RFS. Notice that the TTA digital shelf includes 8 new additional cards called RF Converters or RFC. CAUTION! - Please contact Navini Technical support before attempting to exchange cards between chassis of different type and frequency to verify compatibility. CAUTION! – In the TTA configurations, the RFCs output a +24 VDC current, which is carried to the RFS through the RF Cables. This DC current may damage test equipment connected directly to the RFC cards or to the end of the RF cables at the RFS. When connecting test equipment to the output of the RFC card, an external DC block may be required. Most signal generators and spectrum analyzers cannot handle DC voltage on the I/O ports. Please, read the caution stickers on the equipment and provide a DC block if the equipment cannot handle over "0"V DC. Figure 23: BTS Chassis TTA ChassisTTA ChassisTTA ChassisTTA Chassis Navini Networks, Inc. Ripwave Base Station I&C Guide 56 Connect Input Power Next, connect the power supply to the BTS card cage (Figure 24). The gauge of the wire is determined by the length of the run and by NEC/CEC standards (refer to Chapter 1, Page 8 “Regulatory Information”). Use a 60-amp circuit breaker when running the line. Terminate both of the input power wires and the ground wire with a ¼- inch terminal lug. Assuming a +24 VDC power supply, connect the +24 VDC input power connections and the +24 VDC return wires to the BTS card cage. WARNING!…

Text truncated - open the document above for the full version.
