  1. Home/
  2. Cisco Systems, Inc/
  3. PL6-2305-MDM06-C2

PL6-2305-MDM06-C2Broadband Data Modem

Cisco Systems, Inc
Broadband Data Modem - FCC ID PL6-2305-MDM06-C2 - Cisco Systems, Inc
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Jan 11, 2006
Application Purpose
Original Equipment
Date of Application
Jan 11, 2006
Equipment Note
Broadband Data Modem
Frequency Range
2350.00000000 - 2360.00000000
Company
Cisco Systems, Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

R R i i p p w w a a v v e e ™ ™ - - M M X X M M o o d d e e m m U U s s e e r r G G u u i i d d e e For use with all Ripwave-MX Modem models Part Number 40-00382-00 Revision B, Version 1.0, PV1.5 November 23, 2005 Proprietary All information disclosed by this document is the proprietary property of Navini Networks, Inc. and is protected by copyright, trademark, and/or trade secret laws. All rights therein are expressly reserved. Navini Networks, Inc. Ripwave-MX Modem User Guide TABLE OF CONTENTS PERMISSIONS, TRADEMARKS & DISTRIBUTION.............................................................................3 SAFETY.......................................................................................................................................................4 REGULATORY INFORMATION..............................................................................................................6 INTRODUCTION.......................................................................................................................................7 PACKAGE INVENTORY.........................................................................................................................7 LMX MODELS...........................................................................................................................................7 OPERATING FREQUENCIES.........................................................................................................................8 MINIMUM COMPUTING REQUIREMENTS......................................................................................8 PHYSICAL CHARACTERISTICS ..........................................................................................................9 INSTALLING THE LMX MODEM......................................................................................................10 ACCESSING THE INTERNET..............................................................................................................12 TROUBLESHOOTING...........................................................................................................................12 LCD DISPLAY..........................................................................................................................................12 INSTALLING NAVINI DIAGNOSTICS (NAVDIAG)........................................................................14 TROUBLESHOOTING USING NAVINI DIAGNOSTICS (NAVDIAG)..........................................17 UNINSTALLING NAVINI DIAGNOSTICS (NAVDIAG)..................................................................23 OPTIONAL BATTERIES.......................................................................................................................24 OPTIONAL EXTERNAL BATTERY PACKS...................................................................................................24 CONNECTING THE STANDARD EXTERNAL BATTERY PACK (S-EBP)........................................................25 THE INDICATOR LIGHT ON THE STANDARD EXTERNAL BATTERY PACK (S-EBP)....................................26 CHARGING THE STANDARD EXTERNAL BATTERY PACK (S-EBP)............................................................26 CONNECTING AND DISCONNECTING THE HEAVY DUTY EXTERNAL BATTERY PACK (HD-EBP).............27 THE INDICATOR LIGHT ON THE HEAVY DUTY EXTERNAL BATTERY PACK (HD-EBP)............................28 CHARGING THE HEAVY DUTY EXTERNAL BATTERY PACK (HD-EBP)....................................................29 CARE & MAINTENANCE.....................................................................................................................29 UPGRADING THE MODEM.................................................................................................................30 ADDENDUM 1: RIPWAVE ™ -MX MODEM - PC TROUBLESHOOTING....................................32 ADDENDUM 2: END USER SOFTWARE LICENSE AGREEMENT.............................................37 2 051123_pv1.5_Ripwave-MX Modem User Guide_40-00382-00b(prelim4.4.2) Navini Networks, Inc. Ripwave-MX Modem User Guide Permissions, Trademarks & Distribution Na ma co Copyright © 2001 - 2005, Navini Networks, Inc. All information contained herein and disclosed by this document is confidential and the proprietary property of Navini Networks, Inc. and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of Navini Networks, Inc. vini Networks is a registered trademark. The Navini Networks logo, Zero-Install, Ripwave, and Unwired by Navini are trademarks of Navini Networks, Inc. Other product and company names mentioned herein may be trademarks and/or service marks of their respective owners. Except for the hardware warranty, nothing herein constitutes any representation, warranty, assurance, or guaranty of any kind. Because of continuing developments and improvements in design, manufacturing, and deployment, terial in this document is subject to change without notification and does not represent any mmitment or obligation on the part of Navini Networks, Inc. Navini Networks, Inc. shall have no liability for any error or damages resulting from the use of this document. All Navini Networks logos and trademarks are the property of Navini Networks, Inc. Unauthorized usage is strictly prohibited without the express written permission of Navini Networks, Inc. © 2001 - 2005 Navini Networks, Inc. All rights reserved. 3 051123_pv1.5_Ripwave-MX Modem User…

Text truncated - open the document above for the full version.

Cover Letter(s)

FCC ID#: PL6-2305-MDM06-C2 REQUEST FOR CONFIDENTIALITY Navini Networks requests confidentiality per 47 CFR 0.459 with regards to the following documents in the filing for equipment approval identified by FCC ID. #: PL6-2305-MDM06-C2 1. Schematic diagrams contained in electronic file(s) identified as LMX E_Schematic.pdf 2. Block diagrams contained in electronic file(s) identified as LMX E block Diagram 3. Technical Description contained in the electronic file(s) identified as Technical description.pdf 4. PA information contained in electronic file(s) identified as RF Voltage and current for LMX E.pdf 5. Tune-up procedures contained in electronic file(s) identified as LMX E Tune-up.pdf We ask that this information be kept confidential. Navini Networks feels that the disclosure of this information would result in significant loss of revenue. Best Regards, Vinod Ramachandran Director QRA and Test Engineering Navini Networks 2240 Campbell Creek Blvd. Suite 110 Richardson, TX 75080 972-852-4332

External Photos

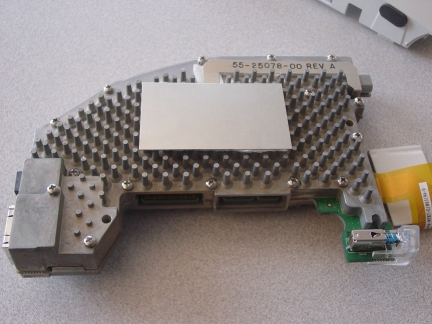

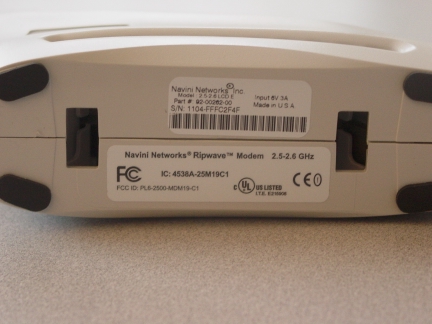

LCD Modem External Photos LCD Modem front LCD Modem rear LCD Modem Bottom LCD w/o plastics A LCD w/o plastics B

ID Label/Location Info

Page 1 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2305-2360 MHz LMX Modem Document No.: 67-00308-00 Rev: B Date: August 20, 2005 050820a_Navini_2305-2360_MHz_LMX_Modem_Label_67-00308-00B.ppt Note:1. This docum e nt, along w i th the separate bill of m a teri al s (BOM ), compri se all inform at ion required to m a ke the d esire d la be l. See t h e se p a ra te BO M f o r o t h e r ass o c ia ted f i les a n d ma ter i als . 2 . T h i s d o cu me n t describes mu lt ip le la b e ls. 3 . Ma te r i al f o r R E G U L A TOR Y N o n - Bar - C o d e la be ls s h all be F L EXc o n T H ERML f ilm Se lect 2194 0 4 . M a te r i al f o r ID E N T I F I C A T I O N Bar - C o de la be ls s h all be 3 M ma ter i a l 7816 5. Font t y pe and size, line w i dths, and scal e should a pprox im ate the illustrations contai ned in this document. Lab e l si ze s h al l b e a s sp e c i fi ed. 6 . U n less o t herw i s e s p ecif i ed , a ll c h arac ters s h all be b l ack. 7. Ba r Cod e L a bel s : Wher e “S/N” (s e r i a l num be r) i s c a l l e d out, the con s tru c tion of the s e r i a l nu mbe r sh a ll b e : MMYY - xxxx xxxx MM = n u m e r ical mo n t h o f assembly ( 0 1 = Ja n . , 02 = F e b., e t c . ) YY = las t 2 dig i t s o f t h e y ear o f assemb l y xx = u n i q u e h exadecima l I.D . o f t h e C PE 8 . O n t h e Bar - C o d e la be l, re presen t t h e ser ial n u m ber as a bar co d e , as illus t ra te d . 9 . A ll c o r n ers to h a v e 0.100 ” ra dius . Page 2 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2305-2360 MHz LMX Modem Document No.: 67-00308-00 Rev: B Date: August 20, 2005 050820a_Navini_2305-2360_MHz_LMX_Modem_Label_67-00308-00B.ppt REGULATORY Label F CC ID: PL6-2305-MDM 06-C 2 I.T .E. E21 590 8 N avini Netw orks ® Ripw ave-MX modem 2305-2360 MHz 40-00356-00 In tended on ly fo r u s e w i t h list e d cla ss 2 o r I. T . E . L . P . S . pow e r un it s 0. 6 5 ” R= 0.10” 2 . 30” Par t No . 40- 0 0356-00 Page 3 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2305-2360 MHz LMX Modem Document No.: 67-00308-00 Rev: B Date: August 20, 2005 050820a_Navini_2305-2360_MHz_LMX_Modem_Label_67-00308-00B.ppt IDENTIFICATION (I.D.) L a b e l (Ethernet) Navini Netw orks ® Inc. Model:2305-2360 L MX E I nput:6VDC/3A Part #: 92-00232-30 R m ade i n China S/N: MMYY - xxxxxxxx 0. 6 5 ” R= 0.10” 1. 6 ” Par t No . 40- 0 0358-00 Note: Pa r t n u mbe r is ca lled out in fo r m a t (92 - 12345-67 R ) , where “ R ” is the Re vis i on Letter . Look a t the BO M to find out wha t the la tes t “ R ” v a l u e is. Page 4 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2305-2360 MHz LMX Modem Document No.: 67-00308-00 Rev: B Date: August 20, 2005 050820a_Navini_2305-2360_MHz_LMX_Modem_Label_67-00308-00B.ppt IDENTIFICATION (I.D.) L a b e l (USB) Navini Netw orks ® Inc. Model:2305-2360 LMX U Input:6VDC/3A Part #: 92-00231-30 R m ade i n China S/N: MMYY - xxxxxxxx 0. 6 5 ” R= 0.10” 1. 6 ” Par t No . 40- 0 0357-00 Note: Pa r t n u mbe r is ca lled out in fo r m a t (92 - 12345-67 R ) , where “ R ” is the Re vis i on Letter . Look a t the BO M to find out wha t the la tes t “ R ” v a l u e is. Page 5 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2305-2360 MHz LMX Modem Document No.: 67-00308-00 Rev: B Date: August 20, 2005 050820a_Navini_2305-2360_MHz_LMX_Modem_Label_67-00308-00B.ppt Regulatory , and ID l a bel PLACEMENT Modem FRONT Regulatory Label I.D. Label Na v i n i Ne t w o r k s ® In c . M ode l : 2 4 00 - 2 4 83 LC D E I n p ut : 6V , 3A P a r t #: 9 2 - 0 007 8- ZZ M a de i n C h i n a S / N : M M Y Y - xxxxxxx x Na v i n i Ne t w o r k s ® In c . M ode l : 2 4 00 - 2 4 83 LC D E I n p ut : 6V , 3A P a r t #: 9 2 - 0 007 8- ZZ M a de i n C h i n a S / N : M M Y Y - xxxxxxx x …

Text truncated - open the document above for the full version.

Internal Photos

LCD Modem Internal Photos LCD Modem Internal A LCD Modem Internal B

RF Exposure Info

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power densit y P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:28.00(dBm) Maximum peak output power at antenna input terminal:630.9573445(mW) Antenna gain(typical):6(dBi) Maximum antenna gain:3.981071706(numeric) Time Averaging:100(%) Prediction distance:20(cm) Prediction frequency:2330(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.499724(mW/cm^2) Margin of compliance:-3.0(dB) 2 4R PG S π =

Test Report

Total pages: 194 Nemko Test Report: 5L0360RUS1 Applicant: Navini Networks 2240 Campbell Creek Blvd. Suite 110 Richardson, TX 75082 Equipment Under Test: 2305 – 2360 LMX E (E.U.T.) In Accordance With: FCC PART 27, Subpart C Wireless Communications Systems Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Abe Cox Key Account Manager Date: 11/15/2005 Nemko Dallas FCC PART 27, SUBPART C MULTIPOINT DISTRIBUTION SERVICE PROJECT NO.:5L0360RUS1 EQUIPMENT: 2305 – 2360 LMX E Page 2 of 194 Table of Contents Section 1. Summary of Test Results .................................................................................................... 3 Section 2. General Equipment Specification ....................................................................................... 5 Section 3. RF Power Output .................................................................................................................. 7 Section 4. Occupied Bandwidth ......................................................................................................... 12 Section 5. Spurious Emissions at Antenna Terminals ..................................................................... 77 Section 6. Field Strength of Spurious .............................................................................................. 114 Section 7. Frequency Stability .......................................................................................................... 117 Section 8. Test Equipment List ......................................................................................................... 184 Section 9. Test Details ....................................................................................................................... 185 Section 10. Test Diagrams................................................................................................................... 191 Nemko Dallas FCC PART 27, SUBPART C MULTIPOINT DISTRIBUTION SERVICE PROJECT NO.:5L0360RUS1 EQUIPMENT: 2305 – 2360 LMX E Page 3 of 194 Section 1. Summary of Test Results Manufacturer: Navini Networks Model No.: 2305 – 2360 LMX E Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 27. New Submission Production Unit Class II Permissive Change Pre-Production Unit This test report relates only to the item(s) tested. The following deviations from, additions to, or exclusions from the test specifications have been made. none See “ Summary of Test Data”. Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 27, SUBPART C MULTIPOINT DISTRIBUTION SERVICE PROJECT NO.:5L0360RUS1 EQUIPMENT: 2305 – 2360 LMX E Page 4 of 194 Summary Of Test Data NAME OF TEST PARA. NO. PART 27 PARA. NO. RESULT RF Power Output 2.1046 27.50 Complies Occupied Bandwidth 2.1049 27.53(a) Complies Spurious Emissions @ Antenna Terminals 2.1051 27.53(a) Complies Field Strength of Spurious Radiation 2.1053 27.53(a) Complies Frequency Stability 2.1055 27.54 Complies Nemko Dallas FCC PART 27, SUBPART C MULTIPOINT DISTRIBUTION SERVICE PROJECT NO.:5L0360RUS1 EQUIPMENT: 2305 – 2360 LMX E Page 5 of 194 Section 2. General Equipment Specification Supply Power: 115 Vac Frequency Range: See Fig. 1 below Type(s) of Modulation: QPSK Emission Designator: 500KF9W Output Impedance: 50 ohms RF Power Output Rated: See Section 3 Duty Cycle: Software controlled 50% TDD Operator Selection Of Operating Frequency: Software controlled Power Output Adjustment Capability: Software controlled 70 + 10 log (P) 43 + 10 l og ( P ) 43 + 10 lo g ( P ) A B C DARS Band 80 + 10 log (P) B ADB 2300 MHz 2305 MHz 2310 MHz 2315 MHz 2320 MHz 2 3 4 5 MHz 2350 MHz 2355 MHz 2 360 MHz 2370 MHz 70 + 10 log Nemko Dallas FCC PART 27, SUBPART C MULTIPOINT DISTRIBUTION SERVICE PROJECT NO.:5L0360RUS1 EQUIPMENT: 2305 – 2360 LMX E Page 6 of 194 Description Of EUT The equipment tested is a Customer Premise Equipment (CPE) transceiver that functions as a wireless broadband data modem. System Diagram BTS CPE Nemko Dallas FCC PART 27, SUBPART C MULTIPOINT DISTRIBUTION SERVICE PROJECT NO.:5L0360RUS1 EQUIPMENT: 2305 – 2360 LMX E Page 7 of 194 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: Kevin Rose DATE: September 12, 2005 Test Results: Complies Measurement Data: Antenna is detachable. The rf power output is measured at the rf output from the transmitter. The measured power is Average with a power meter Antenna gain: 6 dBi Navini (SCDMA) Mode Signal Type Carrier Position FCC A or B band Tx Out (dBm) FCC C or D band TX Out (dBm) 8-Carrier BTS Signal 4 carriers (1 MHz) From DARS 14 4 carriers (2 MHz) From DARS 23 4 carriers (3 MHz) From DARS 24 10-Carrier BTS Signal Outside 4 carriers 24 Inside 4 carriers 28 6-Carrier BTS Signal Outside 4 Carriers 25 Inside 4 Carriers 22 Nemko Dallas FCC PART 27, SUBPART C MULTIPOINT DISTRIBUTION SERVICE PROJECT NO.:5L0360RUS1 EQUIPMENT: 2305 – 2360 LMX E Page 8 of 194 RF Output Power 802.16e Mode Band CPE Signal Type Guard Band Power (dBm) A LOW 1.6MHz OFDM 0.1MHz guard band from band edge 24dBm A LOW 1.6MHz OFDM 1.1MHz or more guard band from band edge 28dBm A HIGH 1.6MHz OFDM 0.1MHz guard band from band edge 24dBm A HIGH 1.6MHz OFDM 1.1MHz or more guard band from band edge 28dBm B LOW 1.6MHz OFDM 0.1MHz guard band from band edge 24dBm B LOW 1.6MHz OFDM 1.1MHz or more guard band from band edge 28dBm B HIGH 1…

Text truncated - open the document above for the full version.

Test Setup Photos

Photos – Field Strength of Spurious Emissions Rear Side

Contact Information

Applicant

Gerard Thorpe(Manager , EMC Standards and Operations)
[email protected]408-527-7907Fax: 408-526-4184

Technical Contact

Nemko USA, Inc.Abe Cox
[email protected]972-436-9600

802 N. Kealy · Lewisville, Texas · United States

Non-Technical Contact

Nemko USA, Inc.Abe Cox
[email protected]972-436-9600

Test Firm

Nemko Dallas, Inc.Michael Cantwell
@.972-436-9600Fax: 972-436-2667

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
8272.35 GHz - 2.36 GHz631.00 mW1M60W7D2.5 ppm
Confidentiality
Long Term
Grant Notes
Power listed is conducted. Output power is reduced at the band edges as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
