PL6-2400-MDM08-C2Wireless Modem

Cisco Systems, Inc
Wireless Modem - FCC ID PL6-2400-MDM08-C2 - Cisco Systems, Inc
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jan 16, 2006
Application Purpose
Original Equipment
Date of Application
Jan 16, 2006
Equipment Note
Wireless Modem
Frequency Range
2402.00000000 - 2478.00000000
Company
Cisco Systems, Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

R R i i p p w w a a v v e e ™ ™ - - M M X X M M o o d d e e m m U U s s e e r r G G u u i i d d e e For use with all Ripwave-MX Modem models Part Number 40-00382-00 Revision B, Version 1.0, PV1.3 November 23, 2005 Proprietary All information disclosed by this document is the proprietary property of Navini Networks, Inc. and is protected by copyright, trademark, and/or trade secret laws. All rights therein are expressly reserved. Navini Networks, Inc. Ripwave-MX Modem User Guide TABLE OF CONTENTS PERMISSIONS, TRADEMARKS & DISTRIBUTION.............................................................................3 SAFETY.......................................................................................................................................................4 REGULATORY INFORMATION..............................................................................................................5 INTRODUCTION.......................................................................................................................................7 PACKAGE INVENTORY.........................................................................................................................7 LMX MODELS...........................................................................................................................................7 O PERATING FREQUENCIES.........................................................................................................................8 MINIMUM COMPUTING REQUIREMENTS......................................................................................8 PHYSICAL CHARACTERISTICS ..........................................................................................................9 INSTALLING THE LMX MODEM......................................................................................................10 ACCESSING THE INTERNET..............................................................................................................12 TROUBLESHOOTING...........................................................................................................................12 LCD D ISPLAY..........................................................................................................................................12 INSTALLING NAVINI DIAGNOSTICS (NAVDIAG)........................................................................14 TROUBLESHOOTING USING NAVINI DIAGNOSTICS (NAVDIAG)..........................................17 UNINSTALLING NAVINI DIAGNOSTICS (NAVDIAG)..................................................................24 OPTIONAL BATTERIES.......................................................................................................................25 O PTIONAL EXTERNAL BATTERY PACKS...................................................................................................25 C ONNECTING THE STANDARD EXTERNAL BATTERY PACK (S-EBP)........................................................26 T HE INDICATOR LIGHT ON THE STANDARD EXTERNAL BATTERY PACK (S-EBP)....................................27 C HARGING THE STANDARD EXTERNAL BATTERY PACK (S-EBP)............................................................27 C ONNECTING AND DISCONNECTING THE HEAVY DUTY EXTERNAL BATTERY PACK (HD-EBP).............28 T HE INDICATOR LIGHT ON THE HEAVY DUTY EXTERNAL BATTERY PACK (HD-EBP)............................29 C HARGING THE HEAVY DUTY EXTERNAL BATTERY PACK (HD-EBP)....................................................30 CARE & MAINTENANCE.....................................................................................................................30 UPGRADING THE MODEM.................................................................................................................31 ADDENDUM 1: RIPWAVE ™ -MX MODEM - PC TROUBLESHOOTING....................................33 ADDENDUM 2: END USER SOFTWARE LICENSE AGREEMENT.............................................38 2 051123_pv1.3_Ripwave-MX Modem User Guide_40-00382-00b(prelim4.4.2) Navini Networks, Inc. Ripwave-MX Modem User Guide Permissions, Trademarks & Distribution Because of continuing developm m is Copyright © 2001 - 2005, Navini Networks, Inc. All information contained herein and disclosed by this document is confidential and the proprietary property of Navini Networks, Inc. and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of Navini Networks, Inc. Navini Networks is a registered trademark. The Navini Networks logo, Zero-Install, Ripwave, and Unwired by Navini are trademarks of Navini Networks, Inc. Other product and company names mentioned herein may be trademarks and/or service marks of their respective owners. Except for the hardware warranty, nothing herein constitutes any representation, warranty, assurance, or guaranty of any kind. ents and improvements in design, manufacturing, and deployment, aterial in this document is subject to change without notification and does not represent any commitment or obligation on the part of Navini Networks, Inc. Navini Networks, Inc. shall have no liability for any error or damages resulting from the use of this document. All Navini Networks logos and trademarks are the property of Navini Networks, Inc. Unauthorized usage strictly prohibited without the express written permission of Navini Networks, Inc. © 2001 - 2005 Navini Networks, Inc. All rights reserved. 3 051123_pv1.3_Ripwave-MX Mo…

Text truncated - open the document above for the full version.

Cover Letter(s)

FCC ID#: PL6-2400-MDM08-C2 REQUEST FOR CONFIDENTIALITY Navini Networks requests confidentiality per 47 CFR 0.459 with regards to the following documents in the filing for equipment approval identified by FCC ID. #: PL6-2400-MDM08-C2 1. Schematic diagrams contained in electronic file(s) identified as LMX E_Schematic.pdf 2. Block diagrams contained in electronic file(s) identified as LMX E block Diagram 3. Technical Description contained in the electronic file(s) identified as Technical description.pdf 4. PA information contained in electronic file(s) identified as RF Voltage and current for LMX E.pdf 5. Tune-up procedures contained in electronic file(s) identified as LMX E Tune-up.pdf We ask that this information be kept confidential. Navini Networks feels that the disclosure of this information would result in significant loss of revenue. Best Regards, Vinod Ramachandran Director QRA and Test Engineering Navini Networks 2240 Campbell Creek Blvd. Suite 110 Richardson, TX 75080 972-852-4332

External Photos

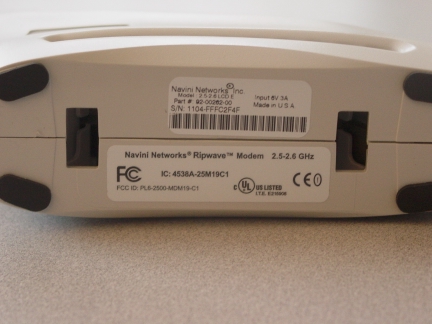

LCD Modem External Photos LCD Modem front LCD Modem rear LCD Modem Bottom LCD w/o plastics A LCD w/o plastics B

ID Label/Location Info

Page 1 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2400-2483 MHz LMX Modem Document No.: 67-00278-00 Rev: F Date: August 20, 2005 050820a_Navini_2400-2483_MHz_LMX_Modem_Label_67-00278-00F.ppt Note:1. This document, along with the separate bill of materials (BOM), comprise all informat ion required to make the desired label. See the separate BOM for other associated files and materials. 2. This document describes multiple labels. 3. Material for REGULATORY Non-Bar-Code labels shall be FLEXcon THERMLfilm Select 21940 4. Material for IDENTIFICATION Bar-Code labels shall be 3M material 7816 5. Font type and size, line widths, and scale should approx imate the illustrations contai ned in this document. Label size shall be as specified. 6. Unless otherwise specified, all characters shall be black. 7. Bar Code Labels: Where “S/N” (serial number) is called out, the construction of the serial number shall be:MMYY - xxxxxxxxMM = numerical month of assembly (01 = Jan., 02 = Feb., etc.)YY = last 2 digits of the year of assemblyxx = unique hexadecimal I.D. of the CPE 8. On the Bar-Code label, represent the serial number as a bar code, as illustrated. 9. All corners to have 0.100” radius. Page 2 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2400-2483 MHz LMX Modem Document No.: 67-00278-00 Rev: F Date: August 20, 2005 050820a_Navini_2400-2483_MHz_LMX_Modem_Label_67-00278-00F.ppt 0.65” 2.30” Part No. 40-00254-00 REGULATORY Label R= 0.10” FCC ID: PL6-2400-MDM08-C2 -This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference; (2) it must accept any interference received including interference that may cause undesired operations. - Intended only for use with listed class 2 or I.T.E. L.P.S. power units I.T.E. E215908 Navini Networks ® Ripwave-MX modem 2400-2483 MHz ! 40-00254-00 Page 3 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2400-2483 MHz LMX Modem Document No.: 67-00278-00 Rev: F Date: August 20, 2005 050820a_Navini_2400-2483_MHz_LMX_Modem_Label_67-00278-00F.ppt 0.65” 1.6” Navini Networks ® Inc. Model:2400-2483 LMX E Input:6VDC/3APart#: 92-00078-30 R made in China S/N: MMYY - xxxxxxxx Part No. 40-00255-00 IDENTIFICATION (I.D.) Label (Ethernet) R= 0.10” Note: Part number is called out in format (92-12345-67 R ), where “ R ” is the Revision Letter. Look at the BOM to find out what the latest “ R ” value is. Page 4 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2400-2483 MHz LMX Modem Document No.: 67-00278-00 Rev: F Date: August 20, 2005 050820a_Navini_2400-2483_MHz_LMX_Modem_Label_67-00278-00F.ppt Navini Networks ® Inc. Model:2400-2483 LMX U Input:6VDC/3APart#: 92-00077-30 R made in China S/N: MMYY - xxxxxxxx 0.65” 1.6” Part No. 40-00256-00 IDENTIFICATION (I.D.) Label (USB) R= 0.10” Note: Part number is called out in format (92-12345-67 R ), where “ R ” is the Revision Letter. Look at the BOM to find out what the latest “ R ” value is. Page 5 of 5 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2005 Navini Networks Description: Label, Regulato ry/I.D., 2400-2483 MHz LMX Modem Document No.: 67-00278-00 Rev: F Date: August 20, 2005 050820a_Navini_2400-2483_MHz_LMX_Modem_Label_67-00278-00F.ppt Regulatory, and ID label PLACEMENT Modem FRONT Regulatory Label I.D. Label FCC ID: PL6-2400-MDM08-R1 -This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference; (2) it must accept any interference received including interference that may cause undesired operations. - Intended only for use with listed class 2 or I.T.E. L.P.S. power units I.T.E. E215908 Navini Networks ® Ripwave™ Modem 2400-2483 MHz IC: 4538A-24M08C1 ! 40-00254-00 FCC ID: PL6-2400-MDM08-R1 -This device …

Text truncated - open the document above for the full version.

Internal Photos

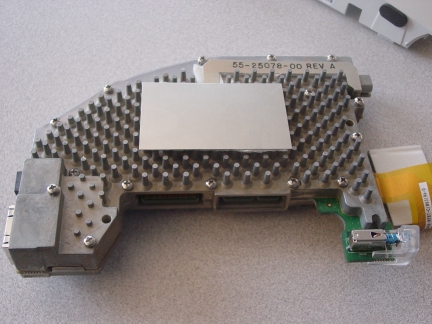

LCD Modem Internal Photos LCD Modem Internal A LCD Modem Internal B

Operational Description

Operational Description The Liquid Crystal Display Ripwave ™ -MX (LMX) dual-mode Modem is a user-friendly, easy-to-install device that helps you connect wirelessly to the Internet. It provides complete broadband Internet access to residential and small office/home office (SOHO) customers without the necessity of professional hardware installation. The LMX Modem also provides nomadic service availability as a computer with this device is moved from room to room, location to location, or even city to city as long as there is coverage in the area. The LMX modem utilizes TDD giving it a duty cycle of 50%.

RF Exposure Info

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:29.30(dBm) Maximum peak output power at antenna input terminal:851.1380382(mW) Antenna gain(typical):6(dBi) Maximum antenna gain:3.981071706(numeric) Time Averaging:50(%) Prediction distance:20(cm) Prediction frequency:2450(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.337055(mW/cm^2) Margin of compliance:-4.7(dB) The MPE was done at 50% which is the operational duty cycle of this unit. 2 4R PG S π =

Test Report

Nemko Test Report: 5L0390RUS1 Applicant: Navini Networks Equipment Under Test: 2400 - 2483 LMX E (E.U.T.) In Accordance With: FCC Part 15, Subpart C, 15.247 Direct Sequence Spread Spectrum Transmitters Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: EMC Engineer Date: 10/4/05 Total Number of Pages: 69 Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2400 – 2483 LMX E PROJECT NO.: 5L0390RUS1 Page 2 of 69 Table of Contents Section 1. Summary of Test Results ......................................................................................3 Section 2. Equipment Under Test (E.U.T.)............................................................................5 Section 3. Powerline Conducted Emissions ..........................................................................7 Section 4. Minimum 6 dB Bandwidth .................................................................................11 Section 5. Maximum Peak Output Power............................................................................18 Section 6 Spurious Emissions at Antenna Terminals .........................................................21 Section 7. Radiated Emissions .............................................................................................39 Section 8. Peak Power Spectral Density ..............................................................................49 Section 9. Test Equipment List ............................................................................................56 ANNEX A - TEST DETAILS .....................................................................................................57 ANNEX B - TEST DIAGRAMS.................................................................................................66 Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2400 – 2483 LMX E PROJECT NO.: 5L0390RUS1 Page 3 of 69 Section 1. Summary of Test Results Manufacturer: Navini Networks Model No.: 2400 – 2483 LMX E Serial No.: 01 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, and Paragraph 15.247 for Direct Sequence Spread Spectrum devices. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2400 – 2483 LMX E PROJECT NO.: 5L0390RUS1 Page 4 of 69 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT Powerline Conducted Emissions 15.207(a) 0.15-0.5 66 to 56* QP 56 to 46* AVG *Decreases with Log(f) 0.5-5 56 QP 46 Ave 5-30 60 QP 50 Ave Complies Minimum 6 dB Bandwidth 15.247(a)(2) >500 kHz Complies Maximum Peak Power Output 15.247(b)(1) <1 Watt Complies Spurious Emissions (Antenna Conducted) 15.247(c) -20 dBc/100kHz Complies Spurious Emissions (Restricted Bands) 15.247(c) < 74 dBuV/m Peak < 54 dBuV/m Avg Complies Peak Power Spectral Density 15.247(d) +8 dBm/3kHz Complies Footnotes: Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2400 – 2483 LMX E PROJECT NO.: 5L0390RUS1 Page 5 of 69 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Band: 902 – 928 MHz 2400 – 2483.5 MHz 5725 – 5850 MHz Frequency Band of operation: 2402MHz to 2478MHz Center to Center User Frequency Adjustment: Software controlled Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2400 – 2483 LMX E PROJECT NO.: 5L0390RUS1 Page 6 of 69 Description of EUT Navini's Wireless Modem is a sleek end-user wireless terminal device used to give the user access to Navini's wireless broadband network System Diagram AC Pwr ACHIME CORP MODEL AM138B06S18 S/N 0000014 PN: 32-21300-00 EUT Dell labtop Inter connect board for test software Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2400 – 2483 LMX E PROJECT NO.: 5L0390RUS1 Page 7 of 69 Section 3. Powerline Conducted Emissions NAME OF TEST: Powerline Conducted Emissions PARA. NO.: 15.207(a) TESTED BY: Kevin Rose DATE: September 8, 2005 Test Results: Complies Measurement Data: See attached plots. Measurement Uncertainty: +/- 1.7 dB Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2400 – 2483 LMX E PROJECT NO.: 5L0390RUS1 Page 8 of 69 Test Data – Powerline Conducted Emissions BLACK LEAD Meas.EUTDetectorLimitMeterPathTransducerCorrectedSpec.limitCR/SLPass Freq. TestTypeTypeReadingLossFactorReading(dBuV)Diff.Fail (MHz)Point(P,QP, A)(QP, A)(dBuV)(dB)(dB)(dBuV)Q.P.Avg.(dB)Unc.Comment 0.17NQPQP560.31.958.264.96 54.961 -6.8Pass 0.17NAA440.31.946.264.96 54.961 -8.8Pass Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2400 – 2483 LMX E PROJECT NO.: 5L0390RUS1 Page 9 of 69 Test Data – Powerline Conducted Emissions WHITE LEAD Meas.EUTDetectorLimitMeterPathTransducerCorrectedSpec.limitC…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Gerard Thorpe(Manager , EMC Standards and Operations)
[email protected]408-527-7907Fax: 408-526-4184

Technical Contact

Nemko USA, Inc.Abe Cox
[email protected]972-436-9600

802 N. Kealy · Lewisville, Texas · United States

Non-Technical Contact

Nemko USA, Inc.Abe Cox
[email protected]972-436-9600

Test Firm

Nemko Dallas, Inc.Michael Cantwell
@.972-436-9600Fax: 972-436-2667

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz851.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from the radiating element to any nearby persons. This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitting operating conditions for satisfying RF exposure compliance.
