PL6-2400-MDM08-R1CPE Transceiver-Model 2.4 GHz LCD Modem Release 1

R R i i p p w w a a v v e e ™ ™ M M o o d d e e m m U U s s e e r r G G u u i i d d e e For use with all Ripwave Modem models Part Number 40-00097-00 Revision F, Version 1.0 May 21, 2004 Proprietary All information disclosed by this document is the proprietary property of Navini Networks, Inc. and is protected by copyright, trademark, and/or trade secret laws. All rights therein are expressly reserved. Ripwave Modem User Guide Navini Networks, Inc. TABLE OF CONTENTS INTRODUCTION.......................................................................................................................................7 PACKAGE INVENTORY.........................................................................................................................7 RIPWAVE MODELS.................................................................................................................................7 OPERATING FREQUENCIES.........................................................................................................................8 COMPUTER CONNECTIONS.........................................................................................................................8 MINIMUM COMPUTING REQUIREMENTS......................................................................................9 PHYSICAL CHARACTERISTICS........................................................................................................10 INSTALLING AN ETHERNET MODEM............................................................................................12 INSTALLING A USB MODEM..............................................................................................................15 ACCESSING THE INTERNET..............................................................................................................19 TROUBLESHOOTING...........................................................................................................................20 INDICATOR LIGHTS OR LCD DISPLAY.....................................................................................................20 INSTALLING NAVINI MONITOR.......................................................................................................21 USING NAVINI MONITOR...................................................................................................................25 UNINSTALLING NAVINI MONITOR.................................................................................................28 INSTALLING NAVINI DIAGNOSTICS...............................................................................................29 USING NAVINI DIAGNOSTICS...........................................................................................................32 UNINSTALLING NAVINI DIAGNOSTICS.........................................................................................35 INSTALLING & CHARGING THE BATTERY..................................................................................36 2.4 GHZ BATTERY...................................................................................................................................36 2.3 GHZ, 2.5 GHZ, 2.6 & 3.5 GHZ BATTERY.........................................................................................37 CARE & MAINTENANCE.....................................................................................................................38 UPGRADING THE MODEM.................................................................................................................38 ADDENDUM 1: RIPWAVE MODEM - PC TROUBLESHOOTING ™ ............................................39 ADDENDUM 2: END USER SOFTWARE LICENSE AGREEMENT.............................................44 2 Part #40-00097-00 Rev F v1.0 May 21, 2004 Navini Networks, Inc. Ripwave Modem User Guide Permissions, Trademarks & Distribution Copyright © 2001 - 2004, Navini Networks, Inc. All information contained herein and disclosed by this document is confidential and the proprietary property of Navini Networks, Inc. and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of Navini Networks, Inc. Navini Networks, the Navini Networks logo, Internet at the Speed of Thought, Zero-Install, Ripwave, and Unwired by Navini are trademarks of Navini Networks, Inc. Other product and company names mentioned herein may be trademarks and/or service marks of their respective owners. Except for the hardware warranty, nothing herein constitutes any representation, warranty, assurance, or guaranty of any kind. Because of continuing developments and improvements in design, manufacturing, and deployment, material in this document is subject to change without notification and does not represent any commitment or obligation on the part of Navini Networks, Inc. Navini Networks, Inc. shall have no liability for any error or damages resulting from the use of this document. All Navini Networks logos and trademarks are the property of Navini Networks, Inc. Unauthorized usage is strictly prohibited without the express written permission of Navini Networks, Inc. © 2001 - 2004 Navini Networks, Inc. All rights reserved. Part #40-00097-00 Rev F v1.0 3 May 21, 2004 Ripwave Modem User Guide Navini Networks, Inc. Safety When using Navini Ripwave electronic equipment, always follow basic safety precautions to reduce the risk of electrical shock, fire, and injury to people and/or property. Follow all warnings …

Text truncated - open the document above for the full version.

Ripwave Modem Quick Installation Guide Navini Networks, Inc. Ripwave TM Modem Quick Installation Guide The following instructions are for the experienced user as a quick setup guide for the Ripwave unit. For m o re details on installation of the Ripwave unit and software, see the Ripwave Modem User Guide . Hardw a re Installation 1. Turn the com puter off before installation. Connect the USB or Ethernet straight cable to the unit and to the corresponding port on the PC. USB Cable Ethernet Cable 2. Connect the AC power adapter to the Ripwave unit and to a 110 VAC outlet. 3. Rotate the antenna clockwise to the UP position. 4. Push the On/Of f switch on the Ripwave unit to turn the unit ON . The lower indicator light on the Ripwave unit illum i nates green. On/Of f Switch Power adapter cab l e jack USB Port Ethernet Port ( 2400E ) 5. Set the power switch on the com puter to the ON position. W h en the system is up, log in to the com puter. Note: For W i ndows NT ® and W i ndows ® 2000, you m u st be logged into an account having adm i nistrative privileges to install the Ripwave Modem and its software. AC power adapter 6. For an Ethernet connection, go to the Navini Monitoring Softw are Installation section. For a USB connection, Plug and Play will detect the new hardware – click Next in the Add New Hardware W i zard dialog box, and continue on with the hardware installation. 7. Insert the Navini Networks Ripwave Installation CD in the CD-ROM drive. 8. Follow the instructions f o r the ‘Add New Hardware W i zard’ to install the device driver for the Ripwave Modem . 9. Select the ‘CD-ROM drive’ checkbox. Click Next to continue. 10. Restart the com puter, and proceed to the Navini Monitoring Softw are Installation . Note: Navini Monitor & Ripwave Monitor ref e r to the sam e sof t ware. Ethernet Port ( 2600E ) USB Port Power adapter cable jack Navini Monitoring Softw are Installation 1. Navini Networks offers two type s of m onitoring software: Navini Ripwave Monitor and Navini Diagnostics Tool. The Navini Ripwave Monitor is available with sof t ware releases prior to Release 4 while the Navini Diagnostics Tool is available with a software release of 4 or greater. Before installing either the Navini Monitor or Navini Diagnostics software, shut down all program s. This includes all anti- virus software. 2. Insert the Navini Networks Ripwave Installation CD in the CD-ROM drive. 3. Click Start > Run from the m e nu at the bottom left corner of your screen. In the Run window, enter e:\setup (where “e” represents the CD drive; use the letter representing your specific CD drive) in the Open field. Click OK . 4. Follow the instructions given by the Navini Monitor Installation W i zard or the Navini Diagnostics Installation W i zard to install the m onitoring software. 5. Restart the com puter. W h en the system is up, log in to the com puter and open the W e b browser. 6. LET IT RIP...BEGIN SURFING THE INTERNET! Copy r i ght © 2001, 2002, 2003, 2004 Navini Networ ks, I n c. All r i ghts r e ser v ed. Pr inted in the USA. Navini Networ ks, I n ter n et at the Speed of T hought, Z e r o - I n stall, Ripwave, and Unwir e d by Navini ar e tr adem ar ks of Navini Networ ks, I n c. Other pr oduct and com p any nam e s m e ntioned her e in m a y be tr adem ar ks and/or ser v ice m a rk s o f th eir resp ectiv e o w n e rs. Ripwave ™ Modem Quick Installation Guide Par t Num b er 40- 00098- 00 Revision G Ver s ion 1. 0 M a y 21, 2004

1_040724a_Navini_Confidentiality_Request_to_FCC_PL6-2400-MDM08-R1.doc Navini Confidential Page 1 of 1 Request for Confidentiality July 24, 2004 Navini Networks, Inc. 2240 Campbell Creek Blvd., Suite 110 Richardson, TX 75082 RE: Certification Application for Model Number: “ 2.4 GHz LCD Modem, Release 1 “ FCC ID: PL6-2400-MDM08-R1 Dear Sir/Madame: Please be advised that the following information listed below is to be held confidential on behalf of Navini Networks, Inc. - Item 1: Block Diagram, File name: 3_040723a_Navini_2.4_GHz_LCD_Modem_RF_BLOCK_Diagram_(for_FCC)_CONFIDENTIAL.pdf - Item 2: Operational Description, File name: 4_040723a_Navini_2.4_GHz_LCD_Modem_OPERATIONAL_DESCRIPTION_(for_FCC)_CONFIDENTIAL.pdf - Item 3: Schematics, File name: 5_040703a_Navini_2.4_GHz_LCD_Modem_62-00240-03_B_SCHEMATICS_(for_FCC)_CONFIDENTIAL.pdf This application contains technical information that Navini Networks, Inc. deems to be trade secrets and proprietary. If this information was made public, it may be used to the disadvantage of Navini Networks, Inc. in the market place. Regards, Yasser Hannush Sr. Product Manager Navini Networks, Inc.

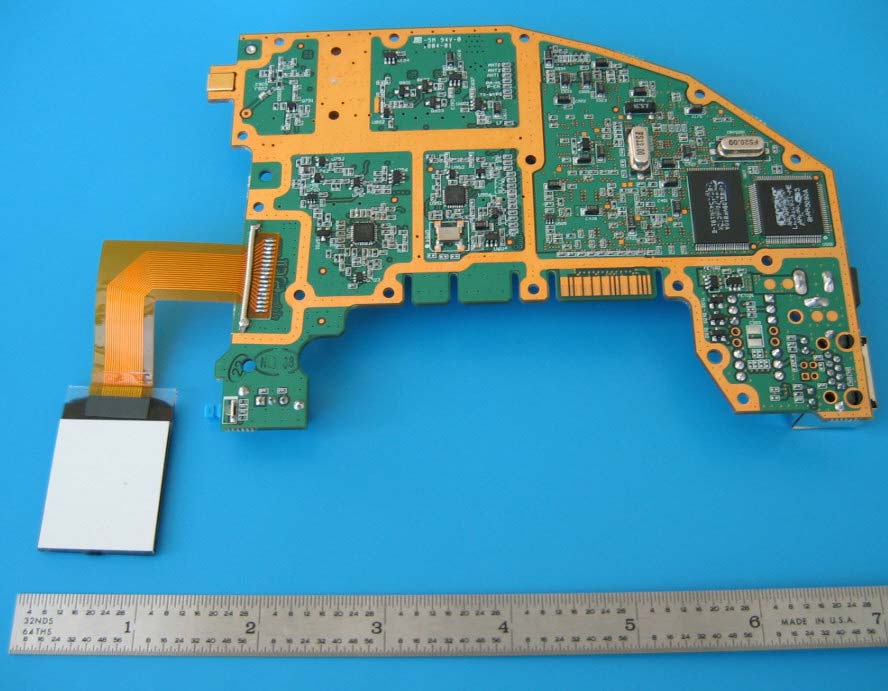

FCC ID #: PL6-2400-MDM08-R1 6_040723a_Navini_2.4_GHz_LCD_MHz_Modem_PHOTOS_(for_FCC)_MOD.doc 2.4 GHz Ripwave TM LCD MODEM External & Internal Photos For FCC Certification FCC ID #: PL6-2400-MDM08-R1 July 19, 2004 Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 2 of 9 Permissions, Trademarks & Distribution Copyright © March 2004, Navini Networks, Inc. All information contained herein and disclosed by this document is the proprietary property of Navini Networks, Inc. and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of Navini Networks, Inc. Navini Networks, Internet at the Speed of Thought, zero-install, unwired by Navini, the Navini Networks logo, and Ripwave are trademarks of Navini Networks, Inc. Other product and company names mentioned herein may be trademarks and/or service marks of their respective owners. Nothing herein constitutes any representation, warranty, assurance, or guaranty of any kind. Because of continuing developments and improvements in design, manufacturing, and deployment, material in this document is subject to change without notification and does not represent any commitment or obligation on the part of Navini Networks, Inc. Navini Networks, Inc. shall have no liability for any error or damages resulting from the use of this document. Any unauthorized usage is strictly prohibited without the express written permission of Navini Networks, Inc.  2004 Navini Networks, Inc. All rights reserved. Navini Networks, Inc. 2240 Campbell Creek Blvd., Suite 110 Richardson, Texas 75082 USA Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 3 of 9 About This Document Purpose This document provides external and internal photos of the Navini Ripwave 2.4 GHz LCD modem. This document is a required by the USA FCC as part of the product certification process. Revision History Date YYMMDD Revision /Version Authors Comments 040719 1.0.0 Yasser Hannush 214.632.9277 First Release Note: Key to document revision numbering: Doc. #: X.Y (e.g. 1.14) X: Update of document with peer review and feedback. Y: Minor updates and changes with no peer review. Contacts Contact Navini Networks during normal business hours: Monday - Friday 8:30 a.m.-5:30 p.m. USA Central Time (Coordinated Universal Time – 5 hours). Corporate Headquarters: Navini Networks, Inc. 2240 Campbell Creek Blvd., Suite 110 Richardson, Texas 75082 USA 972.852.4200 www.navini.com Technical Support: USA: 866.RIP.WAVE Dallas: 972.852.4389 Offshore 001.972.852.4389 email: [email protected] Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 4 of 9 1. External Photos Figure 1. External Front & Side view with LCD and Power switch showing Figure 2. LEFT-External Front view with Upright Antenna folded down Figure 3. RIGHT- External Back view with Data & Power ports showing Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 5 of 9 2. Internal Photos Figure 4. Internal board Front View Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 6 of 9 Figure 5. Internal board Back View Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 7 of 9 Figure 6. Internal board inside shield, Patch Antenna, Front View Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 8 of 9 Figure 7. Internal board, Shield, Patch & Upright Antenna, & Casing Front View Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 9 of 9 Figure 8. Internal board, Shield, Patch & Upright Antenna, & Casing Back View

FCC ID #: PL6-2400-MDM08-R1 6_040723a_Navini_2.4_GHz_LCD_MHz_Modem_PHOTOS_(for_FCC)_MOD.doc 2.4 GHz Ripwave TM LCD MODEM External & Internal Photos For FCC Certification FCC ID #: PL6-2400-MDM08-R1 July 19, 2004 Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 2 of 9 Permissions, Trademarks & Distribution Copyright © March 2004, Navini Networks, Inc. All information contained herein and disclosed by this document is the proprietary property of Navini Networks, Inc. and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of Navini Networks, Inc. Navini Networks, Internet at the Speed of Thought, zero-install, unwired by Navini, the Navini Networks logo, and Ripwave are trademarks of Navini Networks, Inc. Other product and company names mentioned herein may be trademarks and/or service marks of their respective owners. Nothing herein constitutes any representation, warranty, assurance, or guaranty of any kind. Because of continuing developments and improvements in design, manufacturing, and deployment, material in this document is subject to change without notification and does not represent any commitment or obligation on the part of Navini Networks, Inc. Navini Networks, Inc. shall have no liability for any error or damages resulting from the use of this document. Any unauthorized usage is strictly prohibited without the express written permission of Navini Networks, Inc.  2004 Navini Networks, Inc. All rights reserved. Navini Networks, Inc. 2240 Campbell Creek Blvd., Suite 110 Richardson, Texas 75082 USA Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 3 of 9 About This Document Purpose This document provides external and internal photos of the Navini Ripwave 2.4 GHz LCD modem. This document is a required by the USA FCC as part of the product certification process. Revision History Date YYMMDD Revision /Version Authors Comments 040719 1.0.0 Yasser Hannush 214.632.9277 First Release Note: Key to document revision numbering: Doc. #: X.Y (e.g. 1.14) X: Update of document with peer review and feedback. Y: Minor updates and changes with no peer review. Contacts Contact Navini Networks during normal business hours: Monday - Friday 8:30 a.m.-5:30 p.m. USA Central Time (Coordinated Universal Time – 5 hours). Corporate Headquarters: Navini Networks, Inc. 2240 Campbell Creek Blvd., Suite 110 Richardson, Texas 75082 USA 972.852.4200 www.navini.com Technical Support: USA: 866.RIP.WAVE Dallas: 972.852.4389 Offshore 001.972.852.4389 email: [email protected] Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 4 of 9 1. External Photos Figure 1. External Front & Side view with LCD and Power switch showing Figure 2. LEFT-External Front view with Upright Antenna folded down Figure 3. RIGHT- External Back view with Data & Power ports showing Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 5 of 9 2. Internal Photos Figure 4. Internal board Front View Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 6 of 9 Figure 5. Internal board Back View Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 7 of 9 Figure 6. Internal board inside shield, Patch Antenna, Front View Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 8 of 9 Figure 7. Internal board, Shield, Patch & Upright Antenna, & Casing Front View Navini Networks, Inc. FCC ID #: PL6-2400-MDM08-R1 9 of 9 Figure 8. Internal board, Shield, Patch & Upright Antenna, & Casing Back View

Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2.4 GHz LCD Modem, Release 1 PROJECT NO.: 4L0166RUS1 Page 16 of 55 Section 6. RF Exposure NAME OF TEST: RF Exposure PARA. NO.: 15.247(b)(4) TESTED BY: Dustin Oaks DATE: 4/6/2004 Test Results: Complies. Measurement Data: Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power (EIRP):31.18(dBm) Maximum peak output power (EIRP):1312.2(mW) Prediction distance:20(cm) Prediction frequency:2400(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.261054(mW/cm^2) 2 4R PG S π =

Nemko Test Report: 4L0166RUS1REV1 Applicant: Navini Networks Equipment Under Test: 2.4 GHz LCD Modem, Release 1 (E.U.T.) In Accordance With: FCC Part 15, Subpart C, 15.247 Direct Sequence Spread Spectrum Transmitters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: David Light, Lab Resource Manager Date: 9/15/2004 Total Number of Pages: 58 Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2.4 GHz LCD Modem, Release 1 PROJECT NO.: 4L0166RUS1 Page 2 of 55 Table of Contents Section 1. Summary of Test Results .....................................................................3 Section 2. Equipment Under Test (E.U.T.) ...........................................................5 Section 3. Powerline Conducted Emissions ..........................................................6 Section 3. Powerline Conducted Emissions ..........................................................7 Section 4. Minimum 6 dB Bandwidth.................................................................11 Section 5. Maximum Peak Output Power ...........................................................15 Section 6. RF Exposure .......................................................................................16 Section 7. Spurious Emissions (conducted) ........................................................17 Section 8. Spurious Emissions (radiated)............................................................35 Section 9. Peak Power Spectral Density .............................................................38 Section 10. Band Edge ............................................................................................42 Section 11. Test Equipment List ............................................................................44 ANNEX A - TEST DETAILS .................................................................................45 ANNEX B - TEST DIAGRAMS.............................................................................54 Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2.4 GHz LCD Modem, Release 1 PROJECT NO.: 4L0166RUS1 Page 3 of 55 Section 1. Summary of Test Results Manufacturer: Navini Networks Model No.: 2.4GHz LCD Modem, Release 1 Serial No.: 01 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 for Direct Sequence Spread Spectrum devices. Radiated tests were conducted is accordance with ANSI C63.4-2001. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2.4 GHz LCD Modem, Release 1 PROJECT NO.: 4L0166RUS1 Page 4 of 55 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT Powerline Conducted Emissions 15.207(a) 0.15-0.5 66 to 56* QP 56 to 46* ave *Decreases with Log(f) 0.5-5 56 QP 46 Ave 5-30 60 QP 50 Ave Complies Minimum 6 dB Bandwidth 15.247(a)(2) >500 kHz Complies Maximum Peak Power Output 15.247(b)(1) <1 Watt Complies Spurious Emissions (Antenna Conducted) 15.247(c) -20 dBc/100kHz Complies Spurious Emissions (Restricted Bands) 15.247(c) < 74 dBuV/m Peak < 54 dBuV/m Avg Complies Peak Power Spectral Density 15.247(d) +8 dBm/3kHz Complies Footnotes: Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2.4 GHz LCD Modem, Release 1 PROJECT NO.: 4L0166RUS1 Page 5 of 55 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Band: 902 – 928 MHz 2400 – 2483.5 MHz 5725 – 5850 MHz Frequency Band of operation: 2401.35MHz to 2478.9MHz User Frequency Adjustment: Software controlled Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2.4 GHz LCD Modem, Release 1 PROJECT NO.: 4L0166RUS1 Page 6 of 55 Description of EUT Navini's Wireless Modem is a sleek end-user wireless terminal device used to give the user access to Navini's wireless broadband network System Diagram EUT AC Pwr Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2.4 GHz LCD Modem, Release 1 PROJECT NO.: 4L0166RUS1 Page 7 of 55 Section 3. Powerline Conducted Emissions NAME OF TEST: Powerline Conducted Emissions PARA. NO.: 15.207(a) TESTED BY: Dustin Oaks DATE: June 28, 2004 Test Results: Pass Measurement Data: See attached plots. Measurement Uncertainty: +/- 1.7 dB Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2.4 GHz LCD Modem, Release 1 PROJECT NO.: 4L0166RUS1 Page 8 of 55 Test Data – Powerline Conducted Emissions BLACK LEAD Freq in MHzMeter dBμV/mFactorsCorrSpecMarginRType 0.15010049.62.251.856-4.2 Ave 0.44815238.40.63946.9-7.9Peak 2.79400037.60.337.946-8.1Peak 2.66300036.50.336.846-9.2Peak 0.29700039.40.840.250.3-10.1 Ave Nemko USA, Inc. FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: 2.4 GHz LCD Modem, Release 1 PROJECT NO.: 4L0166RUS1 Page 9 of 55 Test Data – Powerline Conducted …
