FCC ID#: PL6-2500-PCM19-R1 REQUEST FOR CONFIDENTIALITY Navini Networks requests confidentiality per 47CFR0.459 with regards to the following documents in the filing for equipment approval identified by FCC ID. #: PL6-2500-PCM19-R1 1. Technical Card operation contained in electronic file(s) identified as 2.5-2.686 PCMCIA Card Operation Description.PDF 2. Schematic diagrams contained in electronic file(s) identified as 62-00225-06_B_Schematic.PDF 3. Tune-up procedures contained in the electronic file(s) identified as PCMCIA Tune-up procedure.PDF 4. Block Diagram contained in electronic file(s) identified as 2.5-2.686 PCMCIA Card Block Diagram.PDF 5. Parts List contained in electronic file(s) identified as 2.6 PCMCIA parts list Navini Networks feels that the disclosure of this information would result in significant loss of revenue. Best Regards, Abe Cox Regulatory Engineer Navini Networks 2240 Campbell Creek Blvd. Suite 110 Richardson, TX 75080 972-852-4332

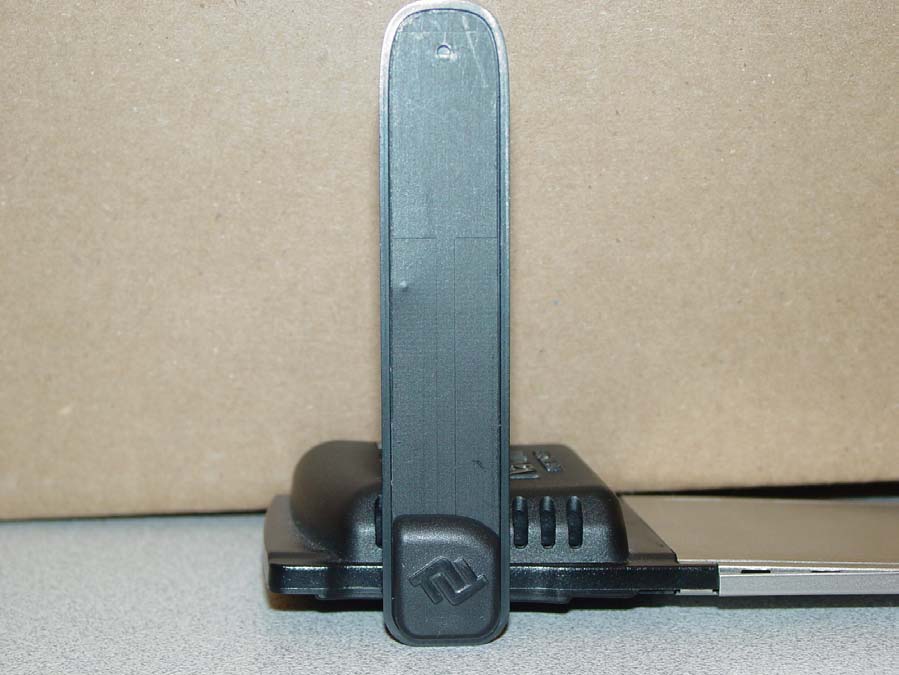

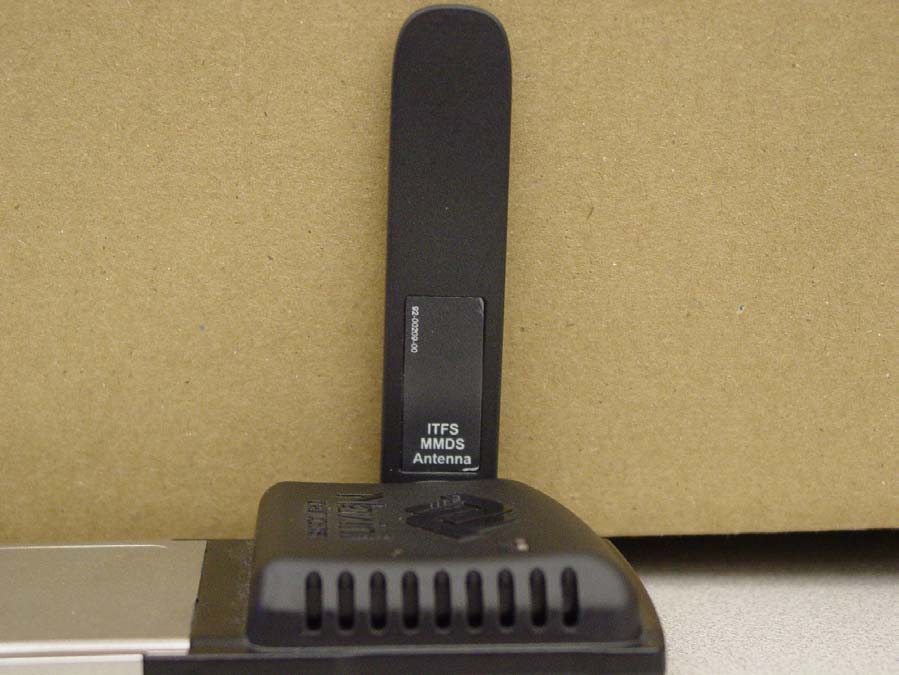

External Photos for 2.6 PCMCIA External Top PCMCIA External photos of 2.6 PCMCIA Page 2 of 5 External Bottom External photos of 2.6 PCMCIA Page 3 of 5 External Side w/Navini Stick Antenna (Front) External photos of 2.6 PCMCIA Page 4 of 5 External PCMCIA Navini Stick Antenna (back) External photos of 2.6 PCMCIA Page 5 of 5 Navini Stick connection

Page 1 of 16 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2004 Navini Networks Description: Label, Regulatory/I.D., 2.3 , 2.5/2.6 , 3.4/3.5 GHz PCMCIA Document No.: 67-00280-00 Rev: C Date: 10/29/04 041029a_Navini_2.3_2.6_3.5_GHz_PCMCIA_Labels_67-00280-00C.ppt Note:1. This docum e nt, along w i th the separate bill of m a teri al s (BOM ), compri se all inform at ion required to m a ke the d esire d la be l. See t h e se p a ra te BO M f o r o t h e r ass o c ia ted f i les a n d ma ter i als . 2 . T h i s d o cu me n t describes mu lt ip le la b e ls. 3 . Ma te r i al s h all be F L EXc on T H ER ML f ilm Se lect 219 40. 4. Font t y pe and size, line w i dths, and scal e should a pprox im ate the illustrations contai ned in this document. Lab e l si ze s h al l b e a s sp e c i fi ed. 5 . U n less o t herw i s e s p ecif i ed , a ll c h arac ters s h all be b l ack. 6. Wher e “S/N” (s e r i a l num be r) i s c a l l e d out, the con s tru c tion of the s e r i a l nu mbe r sh a ll b e : MMYY - xxxx xxxx MM = n u m e r ical mo n t h o f assembly ( 0 1 = Ja n . , 02 = F e b., e t c . ) YY = las t 2 dig i t s o f t h e y ear o f assemb l y xx = u n i q u e h exadecima l I.D . o f t h e CPE 7. R e present t h e serial num ber as a bar code, as illust rated. 8 . W h e r e a par t n u m b e r is ca lle d o u t (12- 34567- Z Z ) , lo o k a t t h e B O M t o f i n d o u t w h at t h e la tes t “ Z Z” v a lue is. 9 . A ll c o r n ers to h a v e 0.100 ” ra dius . Page 2 of 16 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2004 Navini Networks Description: Label, Regulatory/I.D., 2.3 , 2.5/2.6 , 3.4/3.5 GHz PCMCIA Document No.: 67-00280-00 Rev: C Date: 10/29/04 041029a_Navini_2.3_2.6_3.5_GHz_PCMCIA_Labels_67-00280-00C.ppt REGULATORY Label H = 1. 6 0 ” R= 0.100” W = 1.80” PROTOTYPE / DEMONSTRATION This device has not been authorized as requi r ed by the rules of the Nati onal Regul a tory Agency. This device is not for sal e or l ease, and may not be sold until authorization is obtai n ed. Par t No . 40- 0 0245-00 Page 3 of 16 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2004 Navini Networks Description: Label, Regulatory/I.D., 2.3 , 2.5/2.6 , 3.4/3.5 GHz PCMCIA Document No.: 67-00280-00 Rev: C Date: 10/29/04 041029a_Navini_2.3_2.6_3.5_GHz_PCMCIA_Labels_67-00280-00C.ppt H = 1. 6 0 ” PROTOTYPE / DEMONSTRATION W = 0.65” R= 0.100” Par t No . 40- 0 0246-00 Page 4 of 16 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2004 Navini Networks Description: Label, Regulatory/I.D., 2.3 , 2.5/2.6 , 3.4/3.5 GHz PCMCIA Document No.: 67-00280-00 Rev: C Date: 10/29/04 041029a_Navini_2.3_2.6_3.5_GHz_PCMCIA_Labels_67-00280-00C.ppt H = 1. 6 0 ” R= 0.100” MECHANICAL PROTOTYPE W = 0.65” Par t No . 40- 0 0247-00 Page 5 of 16 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2004 Navini Networks Description: Label, Regulatory/I.D., 2.3 , 2.5/2.6 , 3.4/3.5 GHz PCMCIA Document No.: 67-00280-00 Rev: C Date: 10/29/04 041029a_Navini_2.3_2.6_3.5_GHz_PCMCIA_Labels_67-00280-00C.ppt REGULATORY Label PROTOTYPE / DEMONSTRATION This device has not been authorized as requi r ed by the rules of the Nati onal Reg u l a tory Agency. Th is devic e is not for sale or l ease, and may not be sol d unti l authorizati on is obtained. Navini Networks, Inc. Ripwave PCM C IA Wireless Modem 2305–2360 MHz H = 1.60” ww w . na vi n i.c o m R= 0.100” W = 1.80 ” Par t No . 40- 0 0286-00 Page 6 of 16 Navini Networks, Inc.2240 Campbell Creek Blvd.Suite 110Richardson, Texas 75082 Proprietary Information: The information contained in th is document is the property of Navini Networks. Except as specifically authorized in writing by Navini Networks, the holder of this document shall keep all information contained herein confidential and sh all protect same in whole or in part from disclosure and dissemination to all third parties. © 2004 Navini Networks Description: Label, Regulatory/I.D., 2.3 , 2.5/2.6 , 3.4/3.5 GHz PCMCIA Document No.: 67-00280-00 Rev: C Date: 10/29/04 041029a_Navini_2.3_2.6_3.5_GHz_PCMCIA_Labels_67-00280-00C.ppt REGULATORY Label PRO…

Text truncated - open the document above for the full version.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak EIRP:33.10(dBm) Source-Based Time Averaging50.00(%) Corrected max peak EIRP power:30.09(dBm) Maximum peak EIPR power:1020.869(mW) Prediction distance:20(cm) Prediction frequency:2600(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.203095(mW/cm^2) 2 4R PG S π =

© 2004 RF Exposure Lab, LLC 2867 Progress Place, Suite 4D • Escondido, CA 92029 • U.S.A. TEL (760) 737-3131 • FAX (760) 737-9131 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Navini Networks Dates of Test: April 6, 7 & 8,2004 2240 Campbell Creek Rd., Suite 110 Test Report Number: SAR.20050401 Richardson, TX 75082 This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President FCC ID: PL6-2500-PCM19-R1 Model(s): 2.5-2.6 PCM Serial No.: Prototype Version FL (Identical to Production Unit) Equipment Type: PCMCIA Wireless Modem Classification: Certification TX Frequency Range: 2500.0 – 2686.0 MHz Maximum RF Output: 25.5 dB Conducted Signal Modulation: DSSS CDMA Antenna Type (Length): (1) Internal, (1) External Fixed (85mm x 18 mm) FCC Rule Parts: Part 27 FCC ID: PL6-2500-PCM19-R1 © 2004 RF Exposure Lab, LLC Page 2 of 122 Table of Contents 1. Introduction ........................................................................................................................... 3 SAR Definition [5]...................................................................................................................... 3 2. SAR Measurement Setup ..................................................................................................... 4 Robotic System ......................................................................................................................... 4 System Hardware ..................................................................................................................... 4 System Description ................................................................................................................... 4 E-Field Probe ALS-E-020 .........................................................................................................5 3. Robot Specifications ............................................................................................................. 7 4. Probe and Dipole Calibration ................................................................................................8 5. Phantom & Simulating Tissue Specifications........................................................................ 9 SAM Phantom ........................................................................................................................... 9 Brain & Muscle Simulating Mixture Characterization ................................................................ 9 Device Holder ........................................................................................................................... 9 6. Body Worn Configurations .................................................................................................. 10 7. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2]............................................................... 11 Uncontrolled Environment.......................................................................................................11 Controlled Environment .......................................................................................................... 11 8. Measurement Uncertainty ................................................................................................... 12 9. System Validation ............................................................................................................... 13 Tissue Verification................................................................................................................... 13 Test System Verification ......................................................................................................... 13 10. SAR Test Data Summary ................................................................................................ 14 See Measurement Result Data Pages.................................................................................... 14 Procedures Used To Establish Test Signal............................................................................. 14 Device Test Condition ............................................................................................................. 14 Device Information .................................................................................................................. 14 SAR Data Summary – 2450 MHz Muscle ............................................................................... 15 SAR Data Summary – 2450 MHz Muscle ............................................................................... 16 SAR Data Summary – 2450 MHz Muscle ............................................................................... 17 SAR Data Summary – 2450 MHz Muscle ............................................................................... 18 11. Test Equipment List ........................................................................................................19 12. Conclusion ...................................................................................................................... 20 13. References ...................................................................................................................... 21 Appendix A – System Validation Plots …

Text truncated - open the document above for the full version.

FCC ID: PL6-2500-PCM19-R1 © 2004 RF Exposure Lab, LLC Page 116 of 122 Figure 13 – Front of Antenna Figure 14 – Front of Unit FCC ID: PL6-2500-PCM19-R1 © 2004 RF Exposure Lab, LLC Page 117 of 122 Figure 15 – Back of Unit Figure 16 – Side of Unit FCC ID: PL6-2500-PCM19-R1 © 2004 RF Exposure Lab, LLC Page 118 of 122 Figure 17 – Front of Unit w/External Antenna Figure 18 – Side of Unit w/External Antenna FCC ID: PL6-2500-PCM19-R1 © 2004 RF Exposure Lab, LLC Page 119 of 122 Figure 19 – Body Tissue Depth FCC ID: PL6-2500-PCM19-R1 © 2004 RF Exposure Lab, LLC Page 120 of 122 Appendix D – Probe Calibration Data Sheets NCL CALIBRATION LABORATORIES Calibration File No.: CP-399 Client.: RFEL C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe 2450 MHz BODY Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 217 Calibration Procedure: SSI/DRB-TP-D01-032-E020-V2 Project No: RFEB-ALSAS-10U-4087 Calibrated: 10 th June 2004 Released on: 11 th June 2004 This Calibration Certificate is Incomplete Unless Accompanied with the Calibration Results Summary Released By: ______________________________________________________ NCL CALIBRATION LABORATORIES 51 SPECTRUM WAY Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2R 1E6 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. Introduction This Calibration Report reproduces the results of the calibration performed in line with the SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure. The results contained within this report are for APREL E-Field Probe E-020 217. References SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure IEEE 1528 “Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” SSI-TP-011 Tissue Calibration Procedure Conditions Probe 217 was a new probe taken from stock prior to calibration. Ambient Temperature of the Laboratory: 22 qC +/- 0.5qC Temperature of the Tissue: 21 qC +/- 0.5qC Page 2 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Calibration Results Summary Probe Type:E-Field Probe E-020 Serial Number: 217 Frequency: 2450 MHz Sensor Offset: 1.56 mm Sensor Length: 2.5 mm Tip Enclosure: Ertalyte* Tip Diameter: <5 mm Tip Length: 60 mm Total Length: 290 mm *Resistive to recommended tissue recipes per IEEE-1528 Sensitivity in Air Channel X:1.2 μV/(V/m) 2 Channel Y:1.2 μV/(V/m) 2 Channel Z:1.2 μV/(V/m) 2 Diode Compression Point: 95 mV Page 3 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Sensitivity in Body Tissue Frequency: 2450 MHz Epsilon: 52.7 (+/-5%)Sigma:1.95 (+/-10%) ConvF Channel X: 3.6 Channel Y: 3.6 Channel Z: 3.6 Tissue sensitivity values were calculated using the load impedance of the APREL Laboratories Daq-Paq. Boundary Effect: Uncertainty resulting from the boundary effect is less than 2% for the distance between the tip of the probe and the tissue boundary, when less than 2.54mm. Spatial Resolution: The measured probe tip diameter is 5 mm (+/- 0.01 mm) and therefore meets the requirements of SSI/DRB-TP-D01-032 for spatial resolution. Page 4 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Receiving Pattern 2450 MHz (Air) Receiving Pattern Probe s/n 217 2450MHz 0 0.2 0.4 0.6 0.8 1 1.2 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1Ch2Ch3Tot Page 5 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Isotropy Error 2450 MHz (Air) Isotropy Error Probe s/n 217 2450MHz -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 0100200300 Error [dB] Isotropy Plot Probe s/n 217 2450MHz 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0100200300 Degrees (x10) Voltage (mV) Ch1Ch2Ch3 Isotropicity:0.10 dB Page 6 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Dynamic Range Probe 217 Dynamic Range 0.01 0.1 1 10 100 1000 10000 1.0010.00100.001,000.0010,000.00100,000.001,000,000.0010,000,000.00 Electric Field [(V/m)^2] Voltage [microV] Uncompensated Compensated Page 7 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Video Bandwidth Probe Frequency Characteristics -6 -5 -4 -3 -2 -1 0 1 110100100010000 Frequency (Hz) Video Bandwidth at 500 Hz1 dB Video Bandwidth at 1.02 KHz: 3 dB Page 8 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Conversion Factor Uncertainty Assessment Frequency:2450MHz Epsilon: 52.7 (+/-5%)Sigma:1.95 S/m (+/-10%) ConvF Channel X: 3.6 7%(K=2) Channel Y: 3.6 7%(K=2) Channel Z: 3.6 7%(K=2) To minimize the uncertainty calculation all tissue sensitivity values were calculated using a load impedance of 5 M:. Boundary Effect: For a distance of 2.4mm the evaluated uncertainty (increase in the probe sensitivity) is less than 2%. Page 9 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2004. Page 10 of 10Calibrated byApproved by: FCC ID: PL6-2500-PCM19-R1 © 2004 RF Exposure Lab, LLC Page 121 of 122 Appendix E – Dipole Calibration Data Sheets NCLCALIBRATIONLABORATORIES CalibrationFileNo:CD-342 ProjectNumber:RFEB-ALSAS-10U-4087 CERTIFICATE OF CALIBRATION It iscertifiedthattheequipmentidentifiedbelowhasbeencalibratedinthe NCLCALIBRATIONLABORATORIESbyqualifiedpersonnelfollowingr…

Text truncated - open the document above for the full version.

Master: ktlDPT21SUBKmds Date: August 26, 1999 Nemko Test Report: 4L0619RUS1REV1 Applicant: Navini Networks 2240 Campbell Creek Blvd. Suite 110 Richardson, TX 75082 Equipment Under Test: 2500-2686 MHz PCMCIA MODEM (E.U.T.) In Accordance With: FCC PART 27, Subpart M Broadband Radio Service and Educational Broadband Service Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Dustin Oaks, Engineer Date: May 17, 2005 Nemko USA FCC PART 27, SUBPART M Broadband Radio Service and Educational Broadband Service EQUIPMENT: 2500-2686 MHz PCMCIA MODEM PROJECT NO.:4L0619RUS1 Page 2 of 45 Table of Contents Table of Contents .......................................................................................................................... 2 Section 1. Summary of Test Results ..................................................................................... 3 Section 2. General Equipment Specification......................................................................... 5 Section 3. RF Power Output.................................................................................................. 7 Section 4. Occupied Bandwidth ............................................................................................ 8 Section 4. Occupied Bandwidth ............................................................................................ 9 Section 5. Spurious Emissions at Antenna Terminals......................................................... 11 Section 6. Field Strength of Spurious.................................................................................. 16 Section 7. Frequency Stability............................................................................................. 23 Section 8. Test Equipment List ........................................................................................... 35 ANNEX A - TEST DETAILS..................................................................................................... 36 ANNEX B - TEST DIAGRAMS ................................................................................................ 42 Nemko USA FCC PART 27, SUBPART M Broadband Radio Service and Educational Broadband Service EQUIPMENT: 2500-2686 MHz PCMCIA MODEM PROJECT NO.:4L0619RUS1 Page 3 of 45 Section 1. Summary of Test Results Manufacturer: Navini Networks Model No.: 2500-2686 MHz PCMCIA MODEM Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 27, Subpart M. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 27, SUBPART M Broadband Radio Service and Educational Broadband Service EQUIPMENT: 2500-2686 MHz PCMCIA MODEM PROJECT NO.:4L0619RUS1 Page 4 of 45 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. LIMIT RESULT RF Power Output 2.1046 33 dBW + 10log(X/Y) dBW Complies Occupied Bandwidth 2.1049 5.5 MHz Complies Spurious Emissions @ Antenna Terminals 2.1051 -13 dBm Complies Field Strength of Spurious Radiation 2.1053 -13 dBm Complies Frequency Stability 2.1055 Must remain within authorized bandwidth Complies Footnotes: X is the actual channel width in MHz and Y is either 6 MHz if prior to transition or the station is in the MBS following transition or 5.5 M…
