FCC ID#: PL6-ISM-BTS-R1 REQUEST FOR CONFIDENTIALITY Navini Networks requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID. #: PL6-ISM-BTS-R1 1. Schematic diagrams contained in electronic file(s) identified as Synth_Schematic.pdf IF_Schematic.pdf PA_Schematic.pdf Navini Networks feels that the disclosure of this information would result in significant loss of revenue. We ask that this information be kept confidential for, at least, 2 years. Thank you, /BS/ Brian Sutton Regulatory/Compliance Engineer Navini Networks 2240 Campbell Creek Blvd. Suite 110 Richardson, TX 75080 972-852-4217

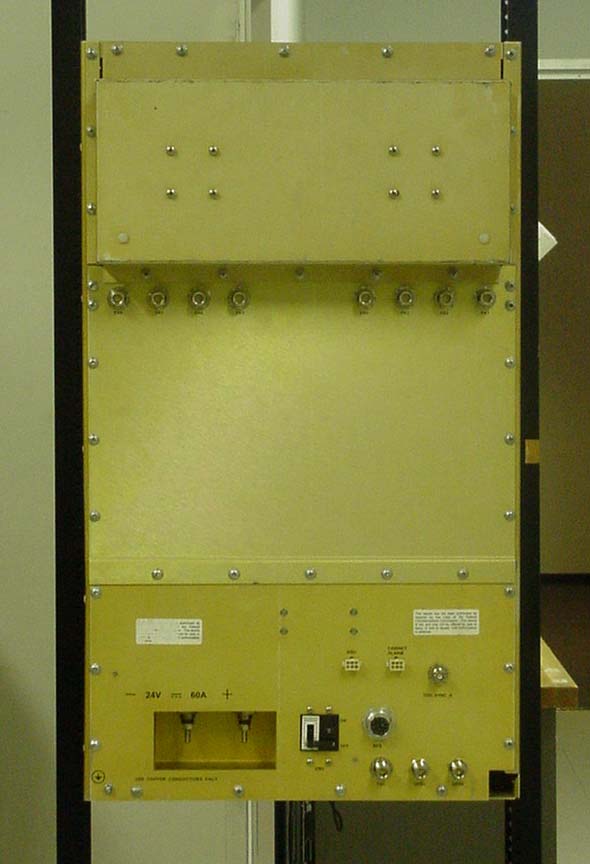

EXTERNAL PHOTOS BTS Front Power Amplifiers (1-8) Synthesizers IF Cards BTS Rear RF Out (1-8)

FCC ID#: PL6-ISM-BTS-R1 Label Information FCC ID: PL6-ISM-BTS-R1 Ripwave 2.4GHz BTS Model Number Navini Networks Listed XXXX E###### This equipment has been tested and found to comply with the limits for a class A digital device, Pursuant to Part 15 of the FCC rules. The operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

FCC ID#: PL6-ISM-BTS-R1 Label Information FCC ID: PL6-ISM-BTS-R1 Ripwave 2.4GHz BTS This equipment has been tested and found to comply with the limits for a class A di gital device, Pursuant to Part 15 of the FCC rules. The operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation XXXX E###### Listed Navini Networks Model Number

Power Amplifier Power Amplifier – Power Supply Board Synthesizer IF Card

FCC ID#: PL6-ISM-BTS-R1 12 dBi 8-Element Antenna Array FCC ID#: PL6-ISM-BTS-R1 Photos Antennas Page 2 of 3 FCC ID#: PL6-ISM-BTS-R1 Photos Antennas Page 3 of 3

FCC ID#: PL6-ISM-BTS-R1 Description Navini Networks Wireless Integrated Solution (WINS) BTS consists of two major parts: RF front-end unit that will be placed on the tower top, and tower base unit (see Fig.1). The RF front-end unit contains an antenna assembly of 8 dipole antennas, a calibrator board for calibration, and a distributor for T/R switch signal and RF _LO distribution. As per the FCC requirement each transmitter has its own power amplifier - Multiple transmitters do not share a common amplifier. Tower base unit contains 8 transceivers, an IF module, a synthesizer, and base band modules. The distance between RF front-end unit and tower base units varies from 10 ft to 200 ft depending on the deployment scenarios. The modulated transmit and receive IF signals flow between the tower top and tower base units. The IF signal center frequency is 140MHz. During the transmission period, a total of 8 sets of I and Q data are generated from the base band modules where they have been weighted for the purpose of beam forming. They are then fed into the IF module and quadrature modulated. The resulting IF spectrum is 5 MHz wide centered at 140MHz. The signals are then up-converted to 2.4GHz ISM band and amplified to the FCC limit. Finally the signals are sent to the antennas and radiated into the air. Each of the signals is a separate signal. Multiple signals may be from/for one user or one signal from/for each user. They are dynamically configurable. During the receive period, 8 sets of signals received from 8 antennas are first amplified and then down-converted to the 140MHz IF frequency. Then they are sent to the IF module and quadrature demodulated to 8 sets of I and Q data, which are then sent to the base band unit for further processing. The synthesizer generates the RF_LO and IF_O signals and distributes them to IF and RF front-end modules. It also facilitates the calibration by generating the calibration signals. The base band unit controls the Tx/Rx switch system timing. The Navini Networks BTS is almost identical to conventional spread spectrum devices except that we transmit the sum of multiple spread spectrum signals modulated (or spread) on multiple pseudo random codes. Our modulation method is analogous to that of IEEE 802.11b, which modulates 8 co-channel signals with 8 CCK sequences. FCC I D #: PL6-I S M-BTS-R1 D e scrip t i on Pa g e 2 of 2 Synthesizer Ca l RF LO GP S IF L O A&B IF IF 0 IF 1 IF 3 IF 2 IF L O 2 IF L O 1 IF IF 0 IF 1 IF 3 IF 2 IF L O 2 IF L O 1 Synthesizer Ca l RF LO GP S IF A & B Di g i ta l B a ckp l a n e 2: 1 CA L GP S 2: 1 GP S GP S RF B a ckp l a n e 2: 8 R F L O S p lit t e r T r an s c i ev er A T r an s c i ev er B T r an s c i e v er C T r an s c i e v er D T r an s c i ev er E T r an s c i ev e r F Tr a n s c i e v e r G T r an s c i e v er H RF LO IFIF 8+ / - 2 d B m 3+ / - 2 d B m T x = [ - 30 , - 60] dB m Rx = [0 ,- 2 0 ]d B m Los s = 4 . 2 dB , I S M C oupl er ver s i o n . Lo ss = 1 5 - 17 dB RF S Ca l P C B RF LN A M o d u le LN A M o d u le LN A M o d u le LN A M o d u le LN A M o d u le LN A M o d u le LN A M o d u le LN A M o d u le C a v i ty B P F C a v i ty B P F C a v i ty B P F C a v i ty B P F C a v i t y BPF C a v i t y BPF C a v i t y BPF C a v i t y BPF CA L C oupl i n g : C a l t o TX /R X ports , - 30 dB I F T X M o de: G a i n = 0 dB IM R 3 > 4 5 d B c P out = - 40, - 1 5 dB m IF R X M o d e : Gai n = 6 0 dB NF = 13. 4 dB I P 3 = 24. 74 XC V R R X M o d e : G a i n = 18.5 dB N F = 5.8 dB IIP 3 = 19. 4 dB m IP 1dB = - 13 dB m X C V R T X Mode : G a i n = 64 dB IMR 3 > 40 dB c P out = 37 dB m Lo ss = 4. 4- 5. 0 d B , MMD S C oupl er ve rs i on. C a vi ty B P F C a v i t y BPF Figure 1

S= power density P= power input to the antenna G= power gain of the antenna in the direction of 2 interest relative to an isotropic radiator R= distance to the center of radiation of the antenna Choose ENTER Occupational/Controlled -(BTS) General Population/Uncontrolled -(CPE) Tx Frequency: 2400.00 (MHz) Maximum Peak Power at Antenna Input Terminal: 24.00 (dBm) Antenna gain (typical)+ 8-element Beamforming gain: 30.00 (dBi) S=1.00 (mW/cm^2) P=251.19 (mW) G=1000.00 (numeric) R =141.38(cm) NOTE: The following warning must appear in the installation manual. OET Bulletin 65, Edition 97-01 Prediction of MPE Limit Equation from page 18 WARNING: This device is intended to be used with an antenna professionally installed on a fixed, outdoor structure. A minimum separation distance of 1.5 meters should be maintained in order to ensure compliance with the FCC rules for Radio Frequency Exposure. Installation where this minimum distance cannot be maintained may result in exposure to RF levels that exceed the FCC limits and is discouraged. 2 4R PG S

4 R PG S

Nemko Test Report: 1L0617RUS1rev2 Applicant: Navini Networks 2240 Campbell Creek Blvd. Suite 110 Richardson, TX 75082 Equipment Under Test: RipWave 2.4 GHz BTS, Release 1 (E.U.T.) FCC ID: PL6-ISM-BTS-R1 In Accordance With: FCC Part 15, Subpart C, 15.247 Direct Sequence Spread Spectrum Transmitters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: David Light, Wireless Group Supervisor Date: 11 June 2002 Total Number of Pages: 44 Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: RipWave 2.4 GHz BTS PROJECT NO.: 1L0617RUS1rev2 Table of Contents Section 1. Summary of Test Results.......................................................................3 Section 2. Equipment Under Test (E.U.T.)............................................................5 Section 3. Powerline Conducted Emissions...........................................................8 Section 4. Minimum 6 dB Bandwidth....................................................................9 Section 5. Maximum Peak Output Power.............................................................13 Section 6. RF Exposure ........................................................................................14 Section 7. Spurious Emissions (conducted).........................................................16 Section 8. Spurious Emissions (radiated).............................................................20 Section 9. Peak Power Spectral Density...............................................................25 Section 10. Minimum Processing Gain................................................................29 Section 11. Test Equipment List...........................................................................30 ANNEX A - TEST DETAILS...............................................................................31 ANNEX B - TEST DIAGRAMS...........................................................................41 Page 2 of 44 Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: RipWave 2.4 GHz BTS PROJECT NO.: 1L0617RUS1rev2 Section 1. Summary of Test Results Manufacturer: Navini Networks Model No.: RipWave 2.4 GHz BTS, Release 1 Serial No.: Sample #01 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 for Direct Sequence Spread Spectrum devices. Radiated tests were conducted is accordance with ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Page 3 of 44 Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: RipWave 2.4 GHz BTS PROJECT NO.: 1L0617RUS1rev2 Summary Of Test Data NAME OF TEST PARA. NO. Limit RESULT Powerline Conducted Emissions 15.207(a) 48 dBμV N/A Minimum 6 dB Bandwidth 15.247(a)(2) >500 kHz Complies Maximum Peak Power Output 15.247(b)(1) <1 Watt Complies Spurious Emissions (Antenna Conducted) 15.247(c) -20 dBc/100kHz Complies Spurious Emissions (Restricted Bands) 15.247(c) < 74 dBuV/m Peak < 54 dBuV/m Avg Complies Peak Power Spectral Density 15.247(d) +8 dBm/3kHz Complies Processing Gain 15.247(e) 10 dB Complies Footnotes: The equipment under test does not connect to the AC power mains network. Page 4 of 44 Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: RipWave 2.4 GHz BTS PROJECT NO.: 1L0617RUS1rev2 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Band in which TX operates: 902 – 928 MHz 2400 – 2483.5 MHz 5725 – 5850 MHz Frequency Range of Operation: 2.403 GHz – 2.4775 GHz User Frequency Adjustment: Not adjustable by user Page 5 of 44 Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: RipWave 2.4 GHz BTS PROJECT NO.: 1L0617RUS1rev2 Description of Operation and Approval Notes The EUT is part of a high speed wireless LAN system. Then transmitter uses Direct Sequence Spread Spectrum techniques. The antenna for this product is mounted on a fixed outdoor structure. The antenna consists of multiple radiating elements fed by multiple tranmitters. The antenna system uses beam-forming techniques to optimize the efficiency and coverage of the system. The following points were agreed between the manufacturer and the FCC for the approval of this equipment under 15.247 rules. 1. The individual transmitters in the system will be subject to the technical requirements set forth in Section 15.247; 2. Section 15.31 will not apply; 3. The system will be considered "point to point" under Section 15.247(b)(3)(i) and (iii); 4. Total antenna gain per transmitter will be computed as the sum of (a) the actual gain of the antenna used, and (b) the beam-forming gain (18dBi) of the system determined by the formula 20log10 N, where N is the number of transmitters in the array; and 5. The peak output power for each transmitter will be reduced per Section 15.247(b)(3)(i) based on the total antenna gain, however, a "phase coherence loss" correction factor of 2…
