PLLLT22A01LCD MONITER

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFE RENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH M ODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

AA BB CC DD EE 4 4 3 3 2 2 1 1 3B TECHNOLOGY CO., JTD 25~135MHz 27MHz 65MHz 1.8B LT22A01[BLOCK] C 89 , 6 07, 2003 TitleSize Document Number Rev Date: Sheet of POWER<Value> AUXPWON PCBPWON V15 VCC SW_V33 SW_V33A V33V25 ADC<Value> VCC V15 GCLK GFBK ADCOE GPENSOG SDASCL GREF GCOAST GBLKSPL GHS GVS GRE[7..0] GGE[7..0] GBE[7..0] GBO[7..0] GGO[7..0] GRO[7..0] CLOCK<Value> V33 VCC A0 BHENn ROMWEn RXD TXD RDn CS1n IRRCVRO RESET NMI D[7..0] VOLUMEASEL1ASEL0 I2CSDA I2CSCL V15 MCKEXT DCKEXT LVDS<Value> DCLKDRE[7..0] DGE[7..0] DBE[7..0] DHSDVSDENG LCPWON DRO[7..0]DGO[7..0]DBO[7..0]V33 VIDEO<Value> SCL SDA SW_V33A SW_V33 VCLK VPEN VVS VHS VG[7..0] VB[7..0] CVBS VFIELD TMDS <Value> VCC LCDPWON SCDTPD CONTROLDHSDVSDENGDCLKDRE[7..0]DGE[7..0] DBE[7..0] DBO[7..0] DRO[7..0]DGO[7..0] LCDPWON FLASH<Value> V33 VCCROMOEnROMWEn A[19..1] BOOTWE VPPEN I2CSCLI2CSDA D[15..0] ZOOM SCALER<Value> V25 V33 GCOASTGBLKSPLGREF GFBK GCLK GPESOGGVSGHS GRE[7..0] GGE[7..0] GBE[7..0]GBO[7..0] GRO[7..0] GGO[7..0] RESET MCKEXT DCKEXT RXDTXDIRRCVRO SDASCL PD CONTROL VCLKVPENVVSVHS VFIELD VG[7..0] VB[7..0] D[15..0] A[19..1] BHENnROMOEn ROMWEnRDnCS1n NMI A0 VOLUME DRE[7..0] DGE[7..0] DBE[7..0] DRO[7..0] DGO[7..0] DBO[7..0] D[7..0] DCLK DVS DHS DENG ADCOE SCDT ASEL0ASEL1 VPPEN BOOTWE AUXPWON LCDPWON PCBWON AV <Value> VOL-PWM ASEL1ASEL0 SDASCL VCC V15 CVBS SENSOR <Value> VCC IRRCVRO

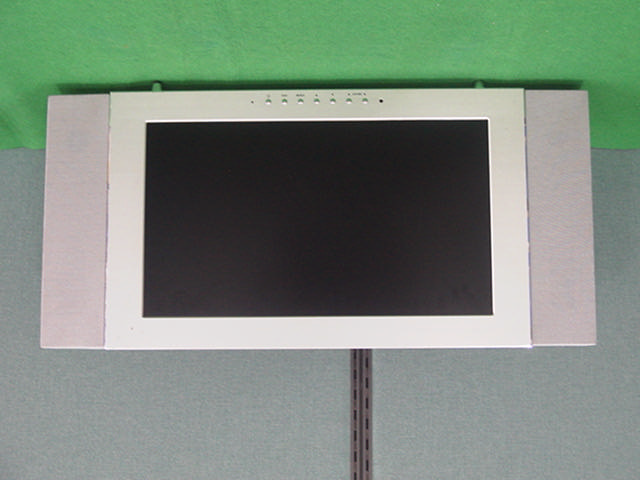

KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 1 of 2 External photo (front) KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 2 of 2 External photo (Rear)

KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC Label Location

AA BB CC DD EE 55 44 33 22 11 87 16 53014-0410 RADIAL RADIAL AXIAL AXIAL RADIAL OPEN T_GND GND A_GND T_GND RedWhite OPEN OPEN 43 1 2 5 STEREO JACK ST_OUT ST_IN 1.7A LT22A01_AV(TV & AUDIO) Custom 11 Saturday, June 07, 2003 TitleSize Document Number Rev Date: Sheet of I2C_CLKI2C_DATA ASEL0 ASEL1 VOL-PWM CVBS IN_R OUT_L OUT_R IN_L +5V +5V V15 V15 +5V +5V +5V +5V R211.5K R242.7K R226.8K R235.6K C32103 Q4 MMBT2 222A R30 10K R31 10K C33222C34222 R284K7 R274K7R264K7 R294K7 C37 4.7u/16 R33100 R32100 C38 4.7u/16 J1CON9 123456789 TU1TPI8NSR11P( NTSC) 11 13 12 14 15 20 22 23 24 25 VT SCL VS SDA AS N.C IF OUT CVBS VIF AF OUT L2 47uH L147uH + C410uF/16V R6100 R5100 C2156P C27222 C1856PR8 1k C22102 + C610uF/16V + C510uF/16V + C26 10U/ 6.3V R11 4k7 C25222 R12220K C2104 + C147U/16V C10103 + C24 10U/ 6.3V R9 4k7 R1470 CN6 PJ-322 D31N4148 U1 4052 12141511 15246 10 9 133 X0X1X2X3Y0Y1Y2Y3INHAB XY C8104 D41N4148 C15103 R7 1k R14 1K2 R10220K C11104 + C71000u F/6.3V + C1347U/16V C19102 + C14 47U/16V R19470 R20470 J2CON2 12 R151.8K C304.7u/10V R161.8K R1791K R1891K C314.7u/10V CN3 A-IN L CN2 A-IN R U2TDA7057AQ 1311 49 53 810 17 6 12 OUT R + OUT R - VpGND INPUT LINPUT R OUT L + OUT L - VOL CONT 1VOL CONT 2 GND GND CN1SPR-OUT1234 C294.7u/10V C284.7u/10V R3820R4820 C17330u/16V C23474 C20474 C12104 + C3610U/6.3V + C3510U/6.3V D9 1N4148 D8 1N4148 R2 000 CN5 12345 Q3MMBT2 222A Q2MMBT2 222A CN4 12345 R25 000

KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 1 of 13 Test Report Test Report No.: KTI03EF07001 Registration No.: 99058 Applicant: 3B TECHNOLOGY CO., LTD. Applicant Address: 219-6 Gasan-dong, Kumchun-ku, seoul, korea Product: LCD Monitor FCC ID: PLLLT22A01 Model No. LT22A01 Receipt No.: 03-0604 Date of receipt: June 5, 2003 Date of Issue: July 3, 2003 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: FCC/ANSI. C63.4: 2001 Rule Parts: FCC Part 15, Class B Equipment Class: Computing Device Test Result: The above-mentioned product has been tested with compliance. Tested by: E.S. Park / Engineer Approved by: G. C. Min /President Signature Date Signature Date Other Aspects: Abbreviations: OK, Pass=passed Fail=failed N/A=not applicable - This test report is not permitted to copy partly without our permission. - This test result is dependent on only equipment to be used. - This test result is based on a single evaluation of one sample of the above mentioned. - This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. - We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 2 of 13 Contents 1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 List of peripherals 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 7 8 8 12 14 16 18~20 List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Conducted Emissions Table 3 Test Data. Radiated Emissions List of Figures Figure 1 Spectral Diagram, LINE-PE Figure 2 Spectral Diagram, Neutral-PE List of Photographs Photograph 1 Setup for Radiated Emissions Photograph 2 Setup for Conducted Emissions 4 11 13 9 10 14 15 KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 3 of 13 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. Korea Technology Institute Co., Ltd. performed all measurements reported herein. And were made under Chief Engineer’s supervisor. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., Ltd. 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/2001 for measurement of radio Interference. KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 4 of 13 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 11.2003 Field Strength Meter ESPC 832827/011 9.2003 LISN KNW407 8-1157-2 10.2003 LISN EM-7823 115019 1.2004 Conducted Cable N/A N/A 11.2003 - Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 9.2003 Spectrum Analyzer R3261C 61720417 11.2003 Pre Amplifier 8447D 2944A06874 11.2003 BiconiLog Antenna 3142B 1705 12.2003 Bilog Antenna CBL6140A 1217 5.2004 Open Site Cable N/A N/A 11.2003 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A 2.3 Test Date Date of Application: June 5, 2003 Date of Test: June 9, 2003 2.4 Test Environment See each test item’s description. KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 5 of 13 3. Description of the tested samples The EUT is LCD Monitor. 3.1. Rating and Physical Characteristics - DISPLAY : 22.0” TFT LVDS LCD - PIXEL PITCH : 0.381 X 0.381mm - VIEWING ANGLE : Horizontal(±85°) Vertical(±85°) - CONTRAST RATIO : 500 : 1 - LUMINANCE : 450 cd/(Typ) - Display Color : 16,7M(True 8-bit) - Scanning Frequency : 30.0~81.0KHz , 56~85Hz(V) - SOUND OUTPUT : 4 ± 0.3 [W] / CH - SPEAKER : 110 X 42 mm , 8 / Ö37, 8 - DIMENSIONS(W X H X D) : 594.4(W) X 368.8(H) X 73.5(D) mm (without Speaker) - WEIGHT(NET) : 15.0 Kg - POWER SOURCE : Input AC 100~240V , 50/60Hz Output DC 15V , 7.5A Submitted Documents - User’s Guide - Block Diagram KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 6 of 13 4. Measurement Conditions Testing Input Voltage: AC 230V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 1) Display H pattern on monitor. 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID PC Compaq computer Corp. ARMADA M700 3J14FmpzBD2C - 4.3 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = 1.8dB Expanded uncertainty U=KUc K = 2 U = 3.6dB 2) Conducted disturbance Uc = 0.88dB U = KUc=2 x Uc = 1.8dB KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 7 of 13 4.4 Test Setup Signal Line Power Line EUT PC Printer MOUSE Keyboard MOUSE KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 8 of 13 5. EMISSION Test 5.1.Conducted Emissions Result: Pass The line-conducted facility is located inside a 2.3M x 3.5M x 5.5M shielded closure. The shielding effectiveness of the shielded room is in accordance with MIL-Std-285 or NSA 605- 05. A 1m x 1.5m wooden table 80cm high is placed 80cm away from the conducting ground plane and 40cm away from the sidewall of the shielded room. Electro-Metroics Model EM…

Text truncated - open the document above for the full version.

KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 1 of 2 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions KTI03EF07001 FCC ID:PLLLT22A01 Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
