PLXHAN-250XMP3 Player

Copyright Notices Information in this document is subject to change without notice and represent a commitment on the part of AMAC TEK CO., LTD. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the written permission of AMAC TEK CO., LTD. The software described in this document is furnished under a license agreement and may be used or copied only in accor- dance with the terms of the license agreement. It is agreement the law to copy the software on any other medium except as specifically allowed in the license agreement. The licensee may make one copy of the software for backup purpose. Copyright 2004 by AMAC TEK CO., LTD All rights reserved. Certificated Of Conformity 1. Company : AMAC TEK CO., LTD 1. Company : 3rd Floor, Seyo Bldg, 161-8, Samsung -Dong, 1. Company : Kangnam-Gu, Seoul, Korea 135-881 2. Model Name : HAN-250X 3. FCC Compliance Statement: 3. This device complies with part 15 of FCC Rules. 3. Operation is subject to the following two conditions: 3. (1) This device may not cause harmful interference, and 3. ( 2)This device must accept any interference received, including 3.(2)interference that may cause undesired operation. 4. CE Rules : Product with the CE Marking comply with both the EMC Directive (89/336/EEC) and the amendments ( 9 1 / 2 6 3 / E E C ) issued by the Commission of the European community. Compliance with these directives implies conformity to the fol- lowing Europan Norms: - EN55022 + A1 : 2000 --- Information Technology - EN55022 + A1 : Equipment - Radio disturbance - EN55024 : 1998 --- Information Technology Equipment - Immunity - EN55013 + A14 : 1999 --- Sound and television broadcast receivers and equipment - Radio distur- bance FCC Information This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio Communications, However, there is no guarantee that interference will not occur in a particular installation. If this equip- ment does cause unacceptable interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced Radio / TV technician for help CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Content To Record / Encode How to record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 6 To record with MIC ........................................................................... 16 To encode from other Audio Devices(Direct Encoding) ................... 16 To listen to the recorded file ............................................................... 17 To listen to FM Radio & Record at the Real time To preset frequency by Auto Scan . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . . . . . . . . . . . . 1 8 To save frequency by Manual . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . 1 8 To record FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . 1 9 To set up FM Band ...................................... . . . . . . . . . . . . . . . . . . ...................... 19 To set the MODE Function Major MODE Setting Up ............................................ . . ..................... 20 How to use the UTILITY program Convorting format from TVF to WAV ................ . . . . . ........................ 25 Font Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 7 Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 0 Other and Trouble Diagnosis P r e c a u t i o n s . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3 How to troubleshoot ......... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....................................... 33 To disconnect from PC(Windows 98SE / ME) ......... ........................ 36 Low Format ..................................................... . . . . . . . . . . . . ........................ 36 Specifications of Product ................ . . . . . . . . . . . . . . . ................................ 37 Content Features& Others F e a t u r e s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 1 E n c l o s u r e s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02 Play Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

12MHz MCLK:25MHz MCLK:8MHz

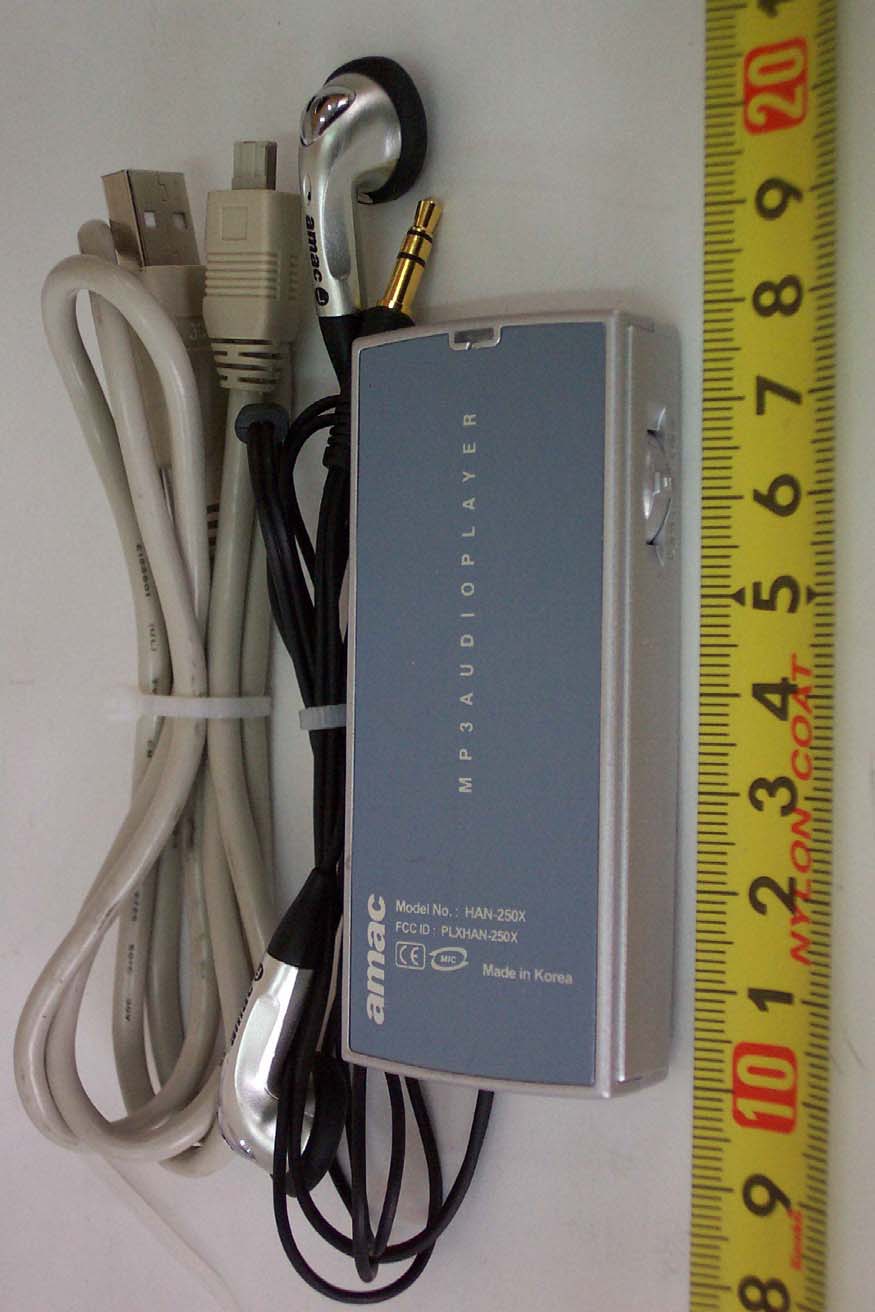

Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 20 of 29 APPENDIX C – EUT PHOTOGRAPHS ● Front View of EUT Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 21 of 29 ● Rear View of EUT

Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 17 of 29 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. *** The following paragraph specified in the user manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. z FCC ID Location of EUT Labelling Requirements FCC ID : PLXHAN-250X

Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 22 of 29 ● Inside View of EUT Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 23 of 29 ● Top View of Up Board Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 24 of 29 ● Bottom View of Up Board Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 25 of 29 ● Top View of Down Board Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 26 of 29 ● Bottom View of Down Board

Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 1 of 29 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Amac Tek Co., Ltd. Dates of Issue : April 14, 2004 3rd Floor, Seyo Bldg, 161-8, Samsung-1Dong, Test Report No. : NK2EE224 Kangnam-Gu, Seoul, 135-881 Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. K. H. Na EMC site, Korea MODEL Brand Name CONTACT PERSON Applied Standard: Part 15 & 2 Classification : FCC Class B Device EUT Type: MP3 Player The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : Y. S. Park Reviewed By : H.H. Kim Senior Engineer Manager & Chief Engineer PLXHAN-250X AMAC Amac Tek Co., Ltd. 3rd Floor, Seyo Bldg, 161-8, Samsung-1Dong, Kangnam-Gu, Seoul, 135-881, Korea Mr. K. H. Na Telephone No. : +82 2 539 6958 Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 2 of 29 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITIONS & EUT INFORMATION SUMMARY OF TEST RESULTS RECOMMANDATION / CONCLUSION SAMPLE CALCULATION DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Conducted Emissions Diagram) ACCURACY OF MEASUREMENT TEST EQUIPMENT APPENDIX A – SAMPLE LABEL APPENDIX B – PHOTOGRAPHS OF TEST SET-UP APPENDIX C – EUT PHOTOGRAPHS APPENDIX D – CIRCUIT DIAGRAM APPENDIX E – USER’S MANUAL APPENDIX F – SCHEMATIC DIAGRAMS 3 4 5 6 6 6 7 8 9 10 13 15 16 17 18 20 27 28 29 Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 3 of 29 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : Factory : Amac Tek Co., Ltd. Mr. K. H. Na Amac Tek Co., Ltd. 3rd Floor, Seyo Bldg, 161-8, Samsung-1Dong, Kangnam-Gu, Seoul, 135-881, Korea Tel No.: +82 2 539 6958 Amac Tek Co., Ltd. 3rd Floor, Seyo Bldg, 161-8, Samsung-1Dong, Kangnam-Gu, Seoul, 135-881, Korea Tel No.: +82 2 539 6958 z FCC ID: PLXHAN-250X z Brand Name: Amac, Hansori z EUT Type: MP3 Player z Voltage: DC 1.5V (size AAA battery) z Port/Connector USB, Earphone, Line In z Classification: z Rule Part(s): z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Class B FCC Part 15 & Part 2 ANSI C63.4 (1992) March 30, 2004 to April 01, 2004 Nemko Korea Co., Ltd. EMC Site NK2EE224 Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 4 of 29 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from Amac Tek Co., Ltd. MODEL : PLXHAN-250X, MP3 Player. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 on October 19, 1992. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 5 of 29 TEST CONDITIONS & EUT INFORMATION Operating During Test The MP3 player connected with PC was operated at download mode and play mode for the testing. Support Equipment Notebook PC Dell Asia Pacific Sdn., Model:PPT (Latitude D400) S/N: N/A AC/DC Adaptor Dongguang Lite Power 2nd Plant Model : PA-1900-02 1.8m unshield AC power cord 2.0m Shielded DC Cable S/N: N/A PS/2 Mouse N/A, Model : JMP2000WX 1.8m Unshielded Din cable S/N: N/A Serial Mouse IO TEC, Model : Laser Mouse 1.5m Unshielded D-sub cable S/N : N/A Keyboard DELL, Model : SK-8110 1.5m Unshielded Din cable S/N: N/A Printer H.P., Model: C5870A 1.8m shielded D-sub cable S/N: SG88R131GW AC/DC Adaptor YOKOGAWA, Model: C4557-60104 1.8m unshielded AC power cable 1.2m unshielded DC power cable S/N: N/A Earphone 1.0m unshielded, phone Jack S/N: N/A EUT Information Clock: 32.76kHz, 25MHz, 8MHz Chipset(s): J1(JMK68), J10(CON10A), U10(SM8142BD) Port(s): Earphone, USB, Line In Download Speed : 8 Mbps Memory : 128 / 256 / 512MB Interface Port : USB 1.1 FM : 87.5 ~ 108.0MHz (USA, KOREA, CHINA) 76 ~ 90MHz (JAPAN) Test Report No.: NK2EE224 FCC Certification Amac Tek Co.,…

Text truncated - open the document above for the full version.

Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 18 of 29 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK2EE224 FCC Certification Amac Tek Co., Ltd. FCC ID :PLXHAN-250X Page 19 of 29 z Radiated Test Picture(Front) z Radiated Test Picture(Rear)
