PMJT1000Digital Wireless Headphones

Limited warrantyWHAT YOUR WARRANTY COVERSThis warranty extends only to the original user of the equipment (“you”, ”your”) and is limited to thepurchase price of each part. Amphony and it’s affiliated companies (”we”, ”our”, ”us”) warrant thisWireless Headphone Set against defects in materials or workmanship as follows. For a period of ninety (90) days from the original date of purchase, if we determine that the equipment is defective subject to the limitations of this warranty, we will replace it at no charge for labor.We warrant any such work done against defects in materials or workmanship for the remaining portion ofthe original warranty period. For a period of one (1) year from the original date of purchase, we will supply, at no charge, new or rebuilt replacement parts in exchange for parts we determine are defective subject to the limitations ofthis warranty. We warrant any such replacement parts against defects in materials or workmanship forthe remaining portion of the original warranty period. ”Parts” means items included in this package. It does include other parts purchased seperately. LABOR:PARTS:Note: not WHAT YOUR WARRANTY DOES NOT COVERLEGAL LIMITATIONSThis warranty consumer instruction, physical setup or adjustment of any consumer electronic equipment, headphone batteries, or signal transmission problems.This warranty cosmetic damage, damage due to the affixing of any attachment not provided with the product, loss of parts, connecting the product to any but the specified receptacles,lightning, electrical surges, fire, flood, or other acts of God, accident, misuse, abuse, repair or alterationby other than authorized service personnel, negligence, commercial or institutional use, or improper orneglected maintenance.This warranty equipment sold AS IS or WITH ALL FAULTS, equipment removal or reinstallation, shipping damage if the equipment was not packed and shipped in the manner weprescribe, nor equipment purchased, serviced, or operated outside the contiguous United States orAmerica.REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. WESHALL NOT BE HELD LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FORBREACH OF ANY EXPRESSED OR IMPLIED WARRANTY ON THIS EQUIPMENT, NOR FOR ANYINCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF, OR INABILITY TOUSE, THIS EQUIPMENT. UNDER NO CIRCUMSTANCES SHALL OUR LIABILITY, IF ANY, EXCEEDTHE PURCHASE PRICE PAID FOR THIS EQUIPMENT, EXCEPT TO THE EXTENT PROHIBITED BYAPPLICABLE LAW. EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS ORIMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULARPURPOSE. WE RESERVE THE RIGHT TO REFUSE TO HONOR THIS WARRANTY IF WEDETERMINE ANY OF THE ABOVE EXCEPTIONS TO HAVE CAUSED THIS EQUIPMENT NOT TOHAVE PERFORMED PROPERLY. THIS WARRANTY SHALL BE VOID IF ANY FACTORY-APPLIEDIDENTIFICATION MARK, INCLUDING BUT NOT LIMITED TO SERIAL NUMBERS AND WARRANTYLABELS, HAS BEEN ALTERED OR REMOVED. THIS WARRANTY SHALL ALSO BE VOID IF THETRANSMITTER OR HEADPHONES HAVE BEEN OPENED BY AN UNAUTHORIZED PERSON (withthe exception of opening the battery lid on the outside of the headphones).This warranty gives you specific legal rights which may vary from state to state. Some states do not allowthe exclusion or limitation of incidental or consequential damages, or allow limitations on the duration ofan implied warranty, so those limitations may not apply to you. No responsibility is assumed for the presence of interference outside of Amphony’s control, such as other transmitters or microwave ovens, which may hamper proper signal reception. does not coverdoes not coverdoes not cover Note: R User and InstallationGuide 2.4 GHz DIGITALWireless HeadphonesModel 1000 User and Installation Guide Page 6 R Copyright (C) 2001 Amphony. All rights reserved.The information contained herein is subject to change without notice.Revisions may be issued to advise of such changes and/or additions.All product names, trade names, or corporate names mentioned in thisdocument are acknowledged to be the proprietary property of the registeredowners.This device complies with part 15 of the FCC Rules. Operation is subjectedto the following two conditions: 1) This device may not cause harmfulinterference and 2) this device must accept any interference received,including interference that may cause undesired operation.Printed in China.Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate theequipment. Technical SpecificationsTransmitter:Headphones:Audio transmission method:Transmitter frequency:Signal-to-Noise ratio (A-weighted):Dynamic range:Channel separation:Harmonic distortion:Error correction:Audio sampling method:Transmitted data rate:Data available at high-speed data portMax. Transmitter output power:Transmitter operating range (without RangeBooster modules):Type:Operating time:Frequency response:Maximum sound pressure level: Digital 2.4 GHz typ. 93 dB typ. 93 dB typ. 91 dB typ. -88 dB 1/2 rate FEC 64 times oversampling > 3 Mbps 1mW max. 200 ft. line of sight, max. 30 ft. through walls and ceilings dynamic, closed max. 100 hours with two AA batteries 20 Hz ... 24 kHz 113 dB User and Installation Guide Page 1 R Step 1 Connecting the transmitter The transmitter connects to a line-out interface via the supplied RCA cable.Most audio devices provide a line-out interface.If no line-out interface is available, the transmitter can also be connected toother audio outputs by using an appropriate adapter. It should be noted thatthe audio level of the audio output should conform to the standard line outputlevel (V ± 1.5 V maximum).If the audio level is too low, the dynamic range of the transmitter is not fullyused. If the audio level is too high, clipping at high audio levels may occur. Ifclipping occurs, either use an adjustable output (such as a headphonesoutput) or use an Amphony audio level attenuator.Connect the DC powe…

Text truncated - open the document above for the full version.

RR Product Information 2.4 GHz DIGITAL Wireless Headphones CD Quality Model 1000 Welcome to the World of Wireless Digital Audio If you want pure listening pleasure in CD quality with the freedom of wireless headphones but without the noise, distortions and low dynamics of 900 MHz analog headphones, then take a look at the next generation of 2.4 GHz Digital Wireless Headphones from Amphony. By transmitting the audio in a digital format, the 2.4 GHz Digital Wireless Headphones from Amphony allow you to listen to your favorite songs with the same audio quality that you are used to from your corded headphones, except that you can now move around with absolute freedom. Most importantly, since the 2.4 GHz Digital Wireless Headphones from Amphony transmit a data rate of over 3 Mbps (3 million bits per second) and since no audio compression is applied, you will experience true CD quality without audio degradation that you are used to from MP3 as well as other audio compression schemes. Further, an error correction mechanism is employed which is capable of correcting transmission errors to guarantee superior error-free reception even under difficult conditions. The 2.4 GHz Digital Wireless Headphones from Amphony are ready for the future by providing a high-speed data port that allows you to connect peripherals such as RangeBooster transmitters which can extend the operating range almost indefinitely. By having an ergonomic design which almost makes you forget that you are wearing headphones and with a continuous operating time of up to 100 hours, you are guaranteed to have a lasting and pleasant listening experience. If you want pure listening pleasure in CD quality with the freedom of wireless headphones but without the noise, distortions and low dynamics of 900 MHz analog headphones, then take a look at the next generation of 2.4 GHz Digital Wireless Headphones from Amphony. By transmitting the audio in a digital format, the 2.4 GHz Digital Wireless Headphones from Amphony allow you to listen to your favorite songs with the same audio quality that you are used to from your corded headphones, except that you can now move around with absolute freedom. Most importantly, since the 2.4 GHz Digital Wireless Headphones from Amphony transmit a (3 million bits per second) and since is applied, you will experiencewithout audio degradation that you are used to from MP3 as well as other audio compression schemes. Further, an is employed which is capable of correcting transmission errors to guarantee superior error-free reception even under difficult conditions. The 2.4 GHz Digital Wireless Headphones from Amphony are ready for the future by providing a that allows you to connect peripherals such as RangeBooster transmitters which can extend the operating range almost indefinitely. By having an ergonomic design which almost makes you forget that you are wearing headphones and with a continuous , you are guaranteed to have a lasting and pleasant listening experience. data rate of over 3 Mbps no audio compression true CD quality error correction mechanism high-speed data port operating time of up to 100 hours Main featuresMain features CD Quality No Audio Compression Hours 100100 1 0 ?? 1 0 1 Error Correction Range Booster compatible Digital audio transmission at full CD quality Up to 100 hours of continuous operation Unlimited range with RangeBooster transmitters Error correction No audio compression Digital audio transmission at full CD quality Error correction Up to 100 hours of continuous operation No audio compression Unlimited range with RangeBooster transmitters 2.4 GHz DIGITAL Wireless Headphones, Model 10002.4 GHz DIGITAL Wireless Headphones, Model 1000 Technical specifications Transmitter: Headphones: Audio transmission method: Digital (Audio is transmitted as PCM sample data) Transmitter frequency: 2.4 GHz Signal-to-Noise ration (A-weighted): typ. 93 dB Dynamic range: typ. 93 dB Channel separation: typ. 91 dB Harmonic distortion: typ. -88 dB Error correction: 1/2 rate FEC Audio sampling method: 64 times oversampling Transmitted data rate: > 3 Mbps Data available at high-speed data port for RangeBooster transmitter modules Max. transmitter output power: 1 mW Transmitter operating range: max. 200 ft. line of sight, max. 50 ft. through walls and ceilings, transmitter range can be extended indefinitely with optional RangeBooster modules Type: dynamic, closed Operating time: max. 100 hours with two AA batteries Frequency response: 20 Hz ... 24 kHz Maximum sound pressure level (MSPL): 113 dB Ergonomic design for maximum comfort Your Amphony dealer: Amphony GmbH, Annenstr. 26, 10179 Berlin, GermanyAmphony GmbH, Annenstr. 26, 10179 Berlin, Germany For more information, visit the Amphony web site at: http://www.amphony.com For more information, visit the Amphony web site at: http://www.amphony.com T h e i n f o r m a t i o n c o n t a i n e d h e r e i n i s p r o v i d e d “ a s i s ” a n d i s s u b j e c t t o c h a n g e w i t h o u t n o t i c e . T h e i n f o r m a t i o n c o n t a i n e d h e r e i n i s p r o v i d e d “ a s i s ” a n d i s s u b j e c t t o c h a n g e w i t h o u t n o t i c e . RR

Request for Confidentiality May 25, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: PMJT1000 Please be advised that the following information is to be held confidential and behalf of Amphony Corp. • Transmitter and Receiver Schematics (File: schematics.pdf) • Technical Description (File: Technical Description.doc) • Comments on Schematics (File: Schematics Comments.doc) The application contains technical information which Amphony Corp. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Jens Kurrat President

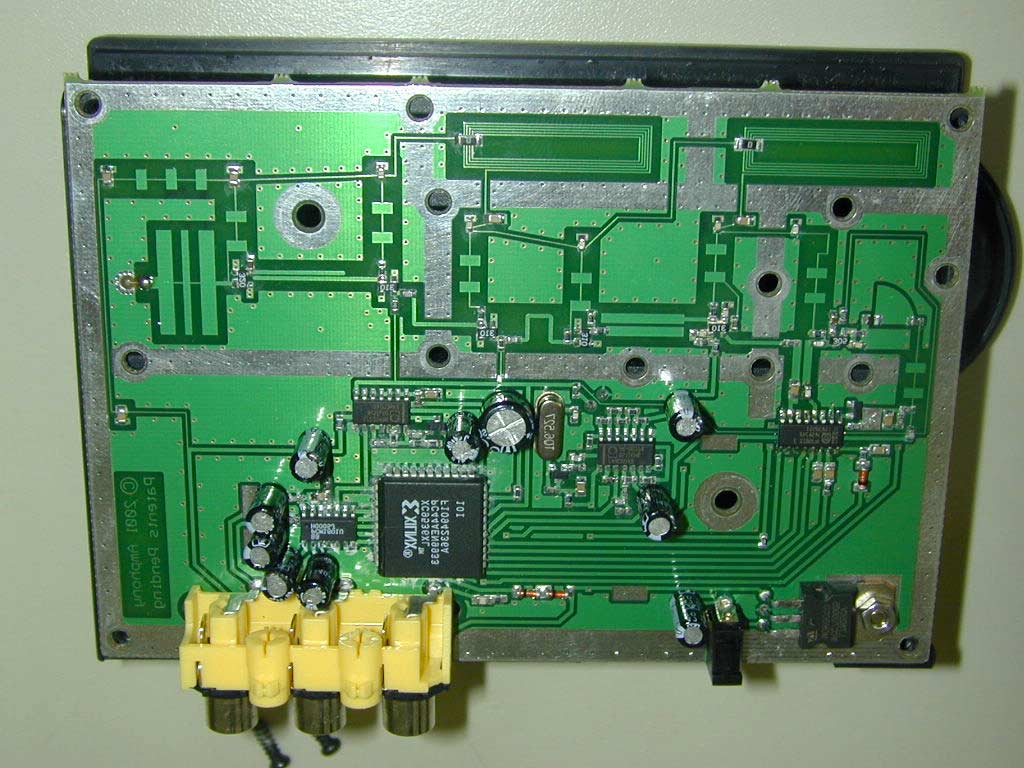

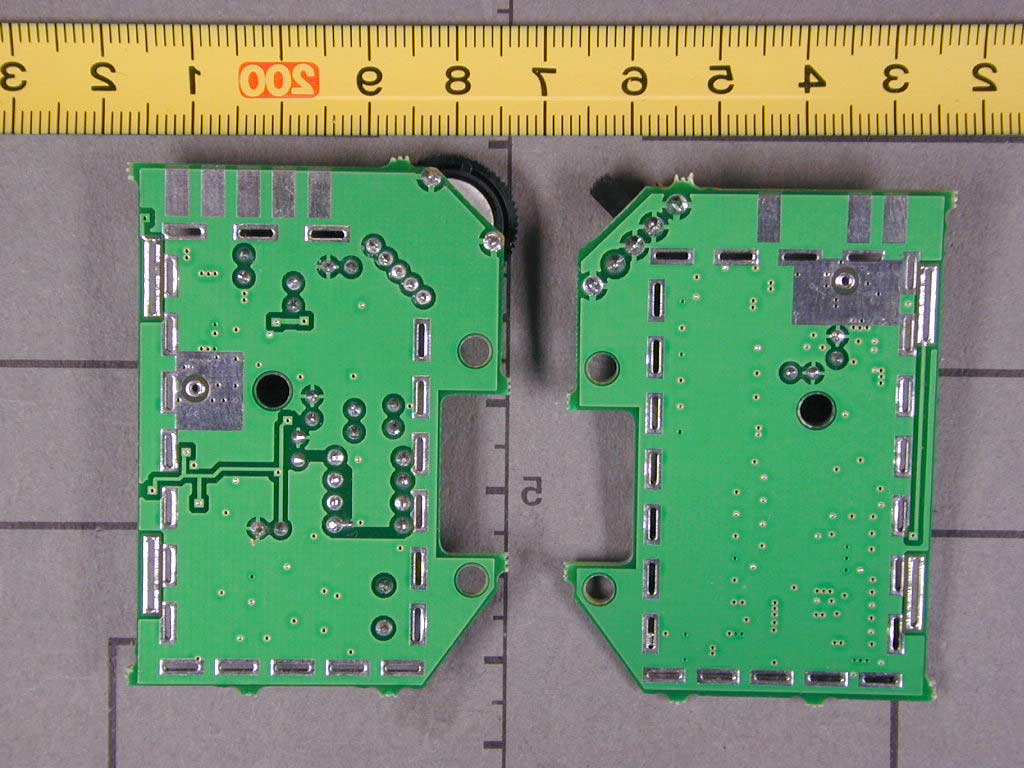

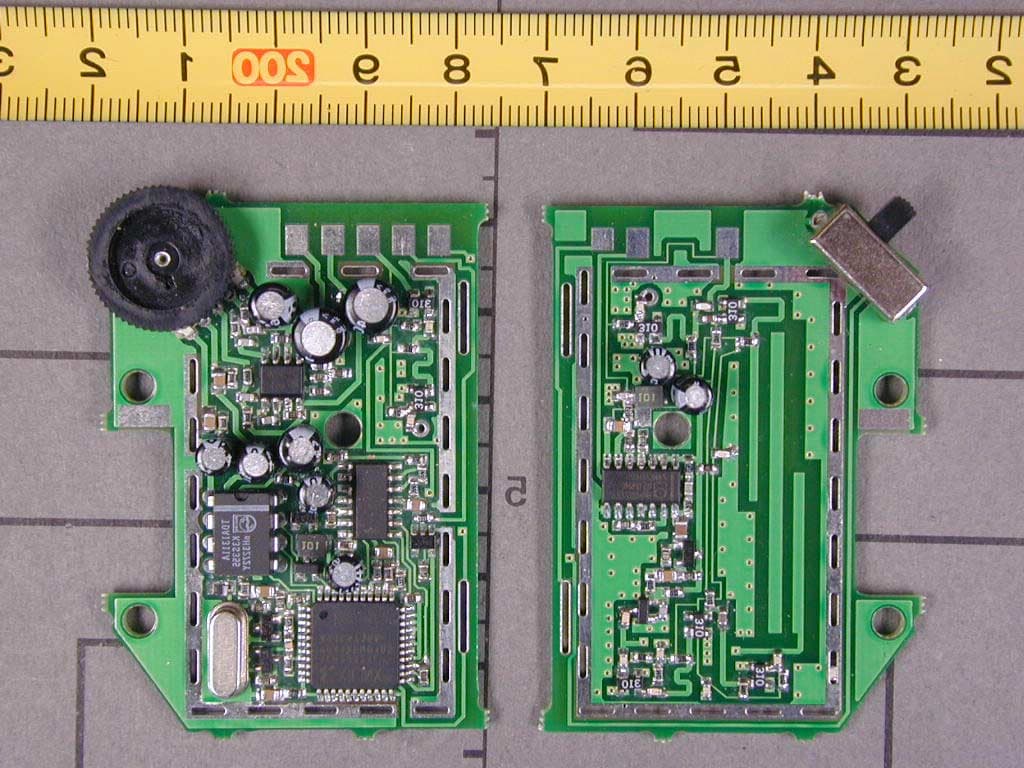

FCC ID: PMJT1000Project File: 50104-10327 Internal Photos FCC ID: PMJT1000Project File: 50104-10327 FCC ID: PMJT1000Project File: 50104-10327 FCC ID: PMJT1000Project File: 50104-10327

FCC ID PMJT1000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Label artwork for the Amphony 2.4 GHz Digital Transmitter, Model 1000 Below is the artwork of the FCC label. The label will be attached to the bottom of the transmitter using a non-removable label. The label cannot be removed without being destroyed. This label will further serve as a warranty label and will cover a screw opening on the bottom of the transmitter to avoid opening of the device by an unauthorized person.

G:\Projekte\Amphony (Deutschland) GmbH Berlin (50104)\Auftr‰ge\10327\Zulassungen\Warning.doc Information to the user (ß 15.21) der FCC Rules The following warning is contained on page 6 of the user manual: Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC ID: PMJT1000Project File: 50104-10327

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 1 of 24 Pages TEST-REPORT No. 50104-10327 Product Description Wireless Headphone System Brand Amphony Model / Type Model 1000 Serial No.--- Applicant Amphony Corporation 1006 S. Raven Road Shorewood, IL 60431, USA Contact Mr. Jens Kurrat Order / Date May 09, 2001 Test sample received May 26, 2001 Test Specification FCC Rules Part 15, Subpart C, Section 15.249 Test Result The tested sample complies with the test specification Tested by June 28, 2001 Johann RoidtDate Checked June 28, 2001 Johann RoidtDate NoteThe test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 2 of 24 Pages Table of Contents 1. ADMINISTRATIVE DATA3 2. OPERATION MODE OF EUT4 3. CHANGES MADE TO THE EUT DURING THIS CERTIFICATION TEST5 4. CONFIGURATION OF EUT AND PERIPERAL DEVICES6 5. MEASURING METHODS7 Transmitter Parameter TestS (ß15.209)7 Radiated Emissions 0.009 ñ 30 MHz8 Radiated Emissions 30 MHz ñ 1 GHz9 Radiated Emissions above 1 GHz10 Procedure for preliminary Radiated Emission Tests11 Method for comparing spectrum analyzer output to the limit12 Spectrum analyzer setting for final test12 6. PHOTOGRAPHS TAKEN DURING TESTING13 7. LIST OF MEASUREMENTS17 8. TEST RESULTS18 9. EQUIPMENT LIST22 10.CHARTS TAKEN DURING TESTING24 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 3 of 24 Pages 1. Administrative Data Equipment under Test: Model 1000, Transmitter and Receiver Type of equipment: Wireless Headphone System Parts / accessories: AC Adapter, Transmitter, Headphone Serial Number: --- Version of EUT: As delivered FCC-ID: PMJT1000 Applicant: (full address) Amphony Corporation S. Raven Rd. Shorewood, IL 60431, USA Contract Identification: N/A Contact person: Mr. Jens Kurrat Manufacturer: Applicant Receipt of EUT: May 26, 2001 Date of Test: June 2001 Responsible for Testing: J. Roidt Responsible for Report: J. Roidt EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 4 of 24 Pages 2. Operation Mode of EUT - TX active EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 5 of 24 Pages 3. Changes made to the EUT during this certification test No changes have been made to the EUT during this certification test. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 6 of 24 Pages 4. Configuration of EUT and periperal devices Configuration of cables connected to the EUT Not applicable Configuration of peripheral devices connected to the EUT Not applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 7 of 24 Pages 5. Measuring Methods Transmitter Parameter TestS (ß15.209) All transmitter parameter radiated tests are performed at a test distance of 3 meteters in a semianechoic chamberDuring the tests the EUT will be rotated all around and the receiving antenna will be raised and lowered from 1 meter to 4 meter to find the maximum levels of emission. Cables and equipment will be placed and moved within the position likely to find their maximum emissions. Measurements will be made in horizontal and vertical polarization of the receiving antenna. The EUT was operating in transmit mode with its internal modulation. The bandwidth of the emission will be measured with a spectrum analyzer. Resolution Bandwidth and Video Bandwidth will be set to 10 kHz. Wooden turntable 70 cm high Test fixture with EUT Semi-anechoic chamber Test distance 3 meter Measuring antenna Spectrum analyzer EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 8 of 24 Pages Radiated Emissions 0.009 ñ 30 MHz Radiated emissions in the frequency range 0.009 ñ 30 MHz will be measured initially at a distance of 3 meters. A prescan at 3 meter distance will be performed in a shielded room with the detector of the spectrum analyzer or EMI Receiver set to peak. Final measurement is then performed at 30 meter distance. In case the regulation requires testing at other distances, the result will be extrapolated. The extrapolation factor will be determined by making a second measurement at 10 meter distance. The provisions of 15.31 (d) apply. According to section 15.209 (d) final measurementis performed with the detector set to Quasi Peak except for the frequency bands 9 ñ 90 kHz and 110 ñ 490 kHz where average detector is employed. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 9 of 24 Pages Radiated Emissions 30 MHz ñ 1 GHz Radiated emissions in the frequency range 30 ñ 1000 MHz will be measured at a distance of 3 meter. The bandwidth of the spectrum analyzer will be set to 100 kHz and the detector function set to Quasi Peak. The test setup will be made in accordance with ANSI C.63.4-1992. Measurements will be made in horizontal and vertical polarization of the receiving antenna. Prescans will be taken in a semianechoic chamber using a spectrum analyzer with the detector function set to peak. All tests will be performed at a test distance of 3 meters. For final testing an open field test site will be used. During the tests the EUT will be rotated all around and the receiving antenna will be raised and lowered from 1 meter to 4 meterto find maximum levels of emissions. test-distance 3 meters Receiving antenna Spectrum analyzer Wooden Turntable 80 cm high Test fixture with EUT EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC ID: PMJT1000Test Report No.:50104-10327 Page 10 of 24 Pages Radiated Emissions above 1 GHz Radiated emissions were measured in the frequency range 1 GHz to 3.15 GHz in transmit mode .The resolution bandwidth and the video bandwidth of the spectrum analyzer was set to 1 MHz. Prescans with video bandwidth 1 MHz (peak mode) …

Text truncated - open the document above for the full version.

1. Photographs taken during testing Conducted Emision Measurement 0.45 ñ 30 MHz Radiated emission measurement >30 MHz
