PN2-STC1Data logger for inhaled medication

TIMCO Engineering Inc. 849 NW State Road 45 Newberry Florida 32669 USA 15 th January 2016 Subject: FCC ID: PN2-STC1 Model Differences – SmartTouch Non-Rechargeable The model number for this product is currently NF0054. This model number will be changing sometime in the next 3-6months to NF0091. The product is identical to the existing model (NF0054), the only difference being a new model number. Labels have been included in the application for both the current model number (NF0054) and the updated model number (NF0091). Best regards Chris Mander Quality & Regulatory Manger Adherium (NZ) Ltd

Federal Communications Commission Authorization and Evaluation Division 15 th December 2015 Request for Confidentiality regarding application for certification of FCC ID: PN2‐STC1 To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting Timco Engineering Inc to withhold the following attachments as confidential document from public disclosure indefinitely:  Schematic Diagram  Block Diagram  Theory of Operation  Parts List The above mentioned documents contain detailed system and equipment description, and are considered as proprietary information in operation of the equipment. The public disclosure of the above documents might be harmful to our company and would give competitors an unfair advantage in the market. In addition to the above mentioned documents, pursuant to Public Notice DA 04‐1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we are requesting the commission to grant short‐term confidentiality request on the following attachments for 180 days, from the day of issue of the grant:  User manual  Test Setup Photos  External / Internal Photos It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process will be available for public review once the grant of equipment authorization is issued. Best regards, Chris Mander Quality & Regulatory Manager Adherium (NZ) Ltd

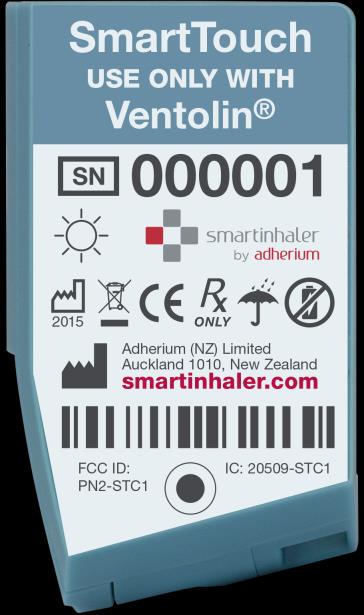

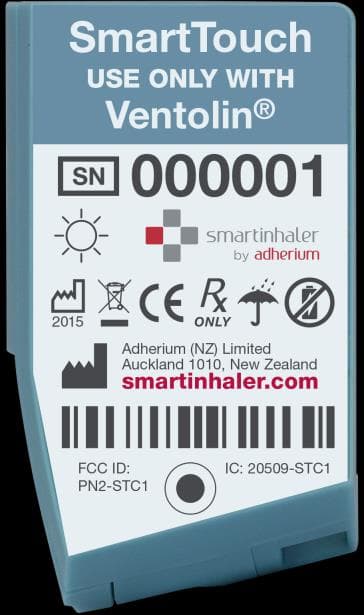

SmartTouch Non-Rechargeable BLE - Model: NF0054 FCC ID: PN2-STC1 External Photos

SmartTouch Non-Rechargeable BLE - Model: NF0054 & NF0091 FCC ID: PN2-STC1 Label Sample Artwork and Material Materials: 25 micron white PET label, with S333 acrylic based adhesive Printing: Full Colour Finishing: Die Cut follows the red line. Model No: NF0054 Model No: NF0091 SmartTouch Non-Rechargeable BLE - Model: NF0054 & NF0091 FCC ID: PN2-STC1 Label Location

SmartTouch Non-Rechargeable BLE - Model: NF0054 FCC ID: PN2-STC1 Internal Photos

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 21 Test Report No 150811.2 9 th December 2015 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland 1145 New Zealand Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT SmartTouch Non-Rechargeable NF0054 tested to the Code of Federal Regulations (CFR) 47 Part 15 – Radio Frequency Devices, Subpart C – Intentional Radiators Section 15.249 – Operation in the band 2400.0 – 2483.5 MHz for Adherium (NZ) Limited This Test Report is issued with the authority of: ________________________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 21 Test Report No 150811.2 9 th December 2015 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. CLIENT INFORMATION 3 4. DESCRIPTION OF TEST SAMPLE 4 5. EQUIPMENT PARAMETERS 5 6. ATTESTATION 6 7. TEST RESULTS 7 8. TEST EQUIPMENT USED 17 9. ACCREDITATIONS 17 10. PHOTOGRAPHS 18 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 21 Test Report No 150811.2 9 th December 2015 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The SmartTouch Non-Rechargeable NF0054 complies with 47 CFR Part 15 and in particular Sections, 15.205, 15.207, 15.209, 15.215 and 15.249 as detailed below when tested in accordance with ANSI C63.4 – 2003. 2. RESULTS SUMMARY The results of testing carried out in November 2015 are detailed below. Clause Description Result 15.201 Equipment authorisation requirement Applied 15.203 Antenna requirement Complies 15.204 External power amplifiers Not applicable 15.205 Operation in restricted bands Complies 15.207 Conducted emissions Not applicable 15.209 Radiated emissions See below 15.215 Additional provisions Complies 15.249 (a) Field strength of fundamental Complies 15.249 (a) Field strength of harmonics Complies 15.249 (b) Fixed, point to point operations Not applicable 15.249 (c) 3 metre measurement distance Noted 15.249 (d) Spurious emission levels except harmonics Complies 15.249 (e) Detectors above 1000 MHz Noted 15.249 (f) Reference to section 15.37(d) Noted 3. CLIENT INFORMATION Company Name Adherium (NZ) Limited Address Level 2 204 Quay Street City Auckland 1010 Country New Zealand Contact Ms Tina Mason ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 21 Test Report No 150811.2 9 th December 2015 This report may not be reproduced except in full. 4. DESCRIPTION OF TEST SAMPLE Brand Name SmartTouch Non-Rechargeable Model Number NF0054 Product Battery powered electronic data logger for inhaled medication Manufacturer Adherium (NZ) Ltd Country of Origin New Zealand Serial Number 600501, 600502 FCC ID PN2-STC1 Product Description The device tested is a battery powered electronic data logger that monitors inhaled medication actuations and records the date and time of use. The data can then be uploaded using the Bluetooth Low Energy (Bluetooth Smart) Transceiver. The USB port is provided for service, installation and upgrade purposes and would not be accessed by the user for these purposes. Certification is being sought for the Bluetooth Low Energy (Bluetooth Smart) Transceiver contained within the device. ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 21 Test Report No 150811.2 9 th December 2015 This report may not be reproduced except in full. 5. EQUIPMENT PARAMETERS The Bluetooth Low Energy (Bluetooth Smart) Transceiver in this device has the following RF specifications: FCC Band: 2400.0 MHz – 2483.5 MHz Test Frequencies: 2402 MHz, 2440 MHz, 2480 MHz Channel Spacing: 2 MHz Modulation Description: GFSK, AFH (Bluetooth Low Energy) Rated Power: 2.5 mW (+4.0 dBm) Antenna Type: Internal Power Supply: Internal 3 Vdc battery that cannot be re-charged Clock frequencies 32.768 kHz crystal 32 MHz crystal Ports USB port for set up and installation purposes only ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 21 Test Report No 150811.2 9 th December 2015 This report may not be reproduced except in full. 6. ATTESTATION This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The client selected the test sample. The report relates only to the sample tested. This report contains no corrections. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. All compliance statements have been made with respect of the specification limit with no reference to the measurement uncertainty. In addition this equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures that are consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. I further certify that the necessary measurements were made by EMC Technologies NZ Ltd, 47 MacKelvi…
