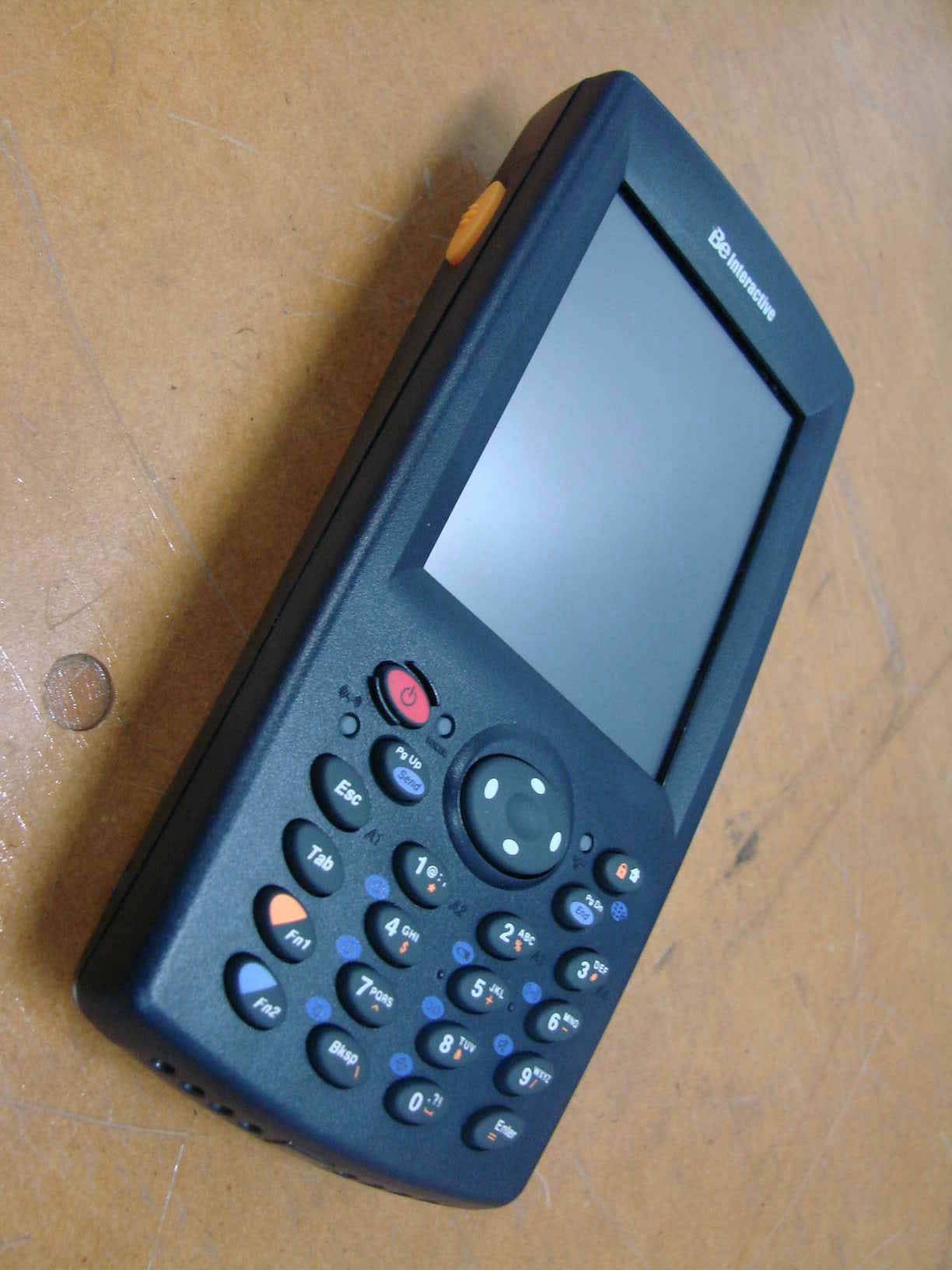

PNGUD720Industrial Mobile Computer

Introduction Thanks for your purchase of UD 720 series of BeInteractive Co., Ltd. Our product is widely extensive, highly durable and standard hand-held type Mobile device providing easy operation and a comfortable grip in the industrial workplace as well as smaller than other company product. UD 720series are Bluetooth type, etc. in accordance with function . Contents of the shipping box Open the package and check to make sure all the parts are present: Figure 1. UD720 series 2. Quick manual 3. USB cable 4. USB & Power basic cradle 5. Hand strap ring 6. Lithium ion 2,000mA battery 7. Ear microphone 8. Stylus 9. Hand strap 10. AC adaptor ** The package of the product above is basic spec, so its package can be different by the UD 720series. ** The image above can be different from the real image. Accessories Purchase below accessories separately according to the use of UD 720series and the taste of the users. Accessories 1. USB cable 2. Ethernet Cradle 3. Ethernet cable 4. 6 BAY multi Cradle 5. Cradle pack 6 for vehicles 6. AC adaptor 7. Gun handle 8. 2,000mA lithium standard battery 9. Assistant battery floor electricity Stylus (3ea) 10. Stylus pack (3ea) 11. Screen protection film 12. Stylus strap ** For more information about the purchase of accessories above, refer to agent and the place you purchased. Part of the UD 720series Compact flash slot on the top and mini SD slot on the side are combined with bolts for the standards of dustproof and waterproof. When using a memory card outside for a long time, replace the Compact flash slot cover and tighten bolts. Please keep the cover and bolts carefully. NOTE! Hand clip fixing groove is applied to the product back such as Bluetooth type. TFT LCD Ear Microphone Jack Trigger Button Mini SD Slot Scan LED Power Button Power Terminal 2,000mA Lithium Ion Battery Reset Button Extension Battery Fixing Groove Extension Appliance Fixing Groove Hand Strap Ring Hand Strap Fixing Groove Gun Trigger Button Speaker Hand Clip Fixing Groove Product Sticker Hand Strip Groove Laser Warning Sticker Stylus CF Slot Bar Code Scanner Backup Battery Detector Backup Battery On/Off Switch IrDA Port USB Terminal Wireless LED Keypad Charge LED Navigation Key * * Above described product functions can be different by product series. Installing Batteries 1. Move the back up battery switch inside of the product back to the “on” before starting the product This back up battery retains data in memory for about 5 minutes in average when the battery is discharged. Change or charge the battery as soon as possible. * If you don’t move the back-up battery switch to the “on”, data may be lost. For this reason, DO NOT switch off when using the product. 2. Insert the 2000mA lithium ion battery in the battery slot 3. Set the top edge of the battery into the inside of the battery slot properly and slide the battery down into the bottom of the battery to lock down. 4. For removing the battery, press the battery latch on the bottom of the battery upward and easily remove the battery. 4-1. The Backup Battery Switch 4-2. Installing the Battery 4-3. Removing the Battery ** DO NOT remove the battery when the power is on. The product may not work well. Charging the Battery Before using the UD720 series first, charge the lithium ion battery for a few hours in the terminal by using USB and power basic cradle. When the battery is fully discharged, you need to charge it for 4 hours. 1. Connect AC adaptor to power port in the cradle back. 2. Connect the USB cable to the USB client port and connect the USB cable into PC, then automatically install USB Driver. 3. Insert the UD720 series terminal into the cradle and plug in the AC adaptor. Note: In case of being covered with foreign substance such as dust or a piece of metal on the terminal of the product and the cradle, it would raise a problem with the product. 3-1. Connecting to the cradle 3-2. Inserting the UD720 series terminal in the cradle Attaching the Handstrap Follow the procedure to attach the Handstrap. 1. Face the Velcro down and insert the end of the strap into the niche on the top of the product back. 2. Pull the strap out of the niche down to the bottom of the product. 3. Insert the end of the strap into the strap ring. 4. Insert the strap ring into the notch on the bottom of the product and adjust the strap as necessarily and attach the Velcro. 5. Detach the ring from the notch of the product when you change the battery. Using the UD720 series Using the Keypad Power Key Charge LED Scan LED Page up Key Cancellation Key Wireless state LED Tab Key Function1 Key Navigation Key Enter Key Number/Alphabet Keys Application Shortening Key (Fn2 and association) Page down Key Home Key Hardware Function Key (Fn2 and association) Back Space Key Function2 Key (Shift Function) Association of Fn1 (function 1) Association Function Fn2 ＋ home key CDMA function Fn2 ＋ 1 Application1 Fn2 ＋ 2 Application2 Fn2 ＋ 3 Application3 Fn2 ＋ 4 Application4 Fn2 ＋ 5 Shock On/Off Fn2 ＋ 6 Battery State Confirmation Fn2 ＋ 7 Wireless LAN On/Off Fn2 ＋ 8 Backlight On/Off Fn2 ＋ 9 Recording On/Off Fn2 ＋ Back space Sound On/Off Fn2 ＋ 0 Keypad Light On/Off Fn2 ＋ Enter LCD Screen Control Association of Fn2 (function 2) Association Function Fn2 ＋ Home Key Keypad Lock Fn2 ＋ Esc Application1 Fn2 ＋ 1 Application2 Fn2 ＋ 2 Application3 Fn2 ＋ 3 Application4 Fn2 ＋ 4 Shock On/Off Fn2 ＋ 5 Battery State Confirmation Fn2 ＋ 6 Wireless LAN On/Off Fn2 ＋ 7 Backlight On/Off * Fn2 ＋ 8 Recording On/Off Fn2 ＋ 9 Sound On/Off Fn2 ＋ Back Space Keypad Light On/Off Fn2 ＋ 0 LCD Screen Control * Backlight on/off functions in Fn2+7 mean Basis control and state of Idleness control brightness that is established in lighting menu of the control panel Inputting Alphabet and Number Keypad mode Fn2＋Tab once= Lowercase Letter Fn2＋Tab Twice– Capital Letter Fn2＋Tab Three times - Number Key press First Second Third Fourth First Second Third Fourth Scanning with the UD 720series 1. Aim the scanner at the center o…

Text truncated - open the document above for the full version.

Be Interactive Co., Ltd.. #1007 Byucksan DigitalValley 5th, 60-73 Gasan-Dong, Geumchun-Gu, Seoul, 153-807, Korea Tel: +82-2-3281-6716, Fax: +82-2-3281-6719 Power of Attorney Date: September 04, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ONETECH Corp., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ONETECH Corp on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ONETECH Corp., as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, _________________________ Mr. Ho-Il, Kim / Research Engineer Be Interactive Co., Ltd. Tel: +82-2-3281-6716 Fax: +82-2-3281-6719 E-Mail: [email protected]

#505 SK Apt. Factory, 223-28 Sangdaewon1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-705 Korea [TEL]031-746-8500 [FAX]031-746-8700 Date : 2007. 09. 04. Ref. No : To : Application Examiner / Reviewing Engineer FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 CC : Subject : Request for confidentiality per Section 0.459 of FCC Rules Applicant: Beinteractive Co., Ltd., FCC ID: PNGUD720 To whom it may concern, Request is hereby submitted, on behalf of my client, Beinteractive Co., Ltd., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Operational Description Block Daigram Parts List Rationale for request for confidentiality: Beinteractive Co., Ltd., has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, Y.K. Kwon / Chief Engineer Onetech Corp. Email: [email protected] www.onetech.co.k r 전사-002 (Rev. 2)

http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11516ffa4c55fcde&ww=988&cvap=2&qt=&zx=8vmlcdhh72tk Be Interactive Co., Ltd., FCC ID: PNGUD720, (DSS Bluetooth part) Assessment NO.: AN07T7179, Notice#1 Inbox Reply from "Y.G. Gwon" <[email protected]> hide details Sep 14 (4 days ago) to [email protected] date Sep 14, 2007 11:09 AM subject Be Interactive Co., Ltd., FCC ID: PNGUD720, (DSS Bluetooth part) Assessment NO.: AN07T7179, Notice#1 Hi Tim, How are you doing? I would like to embed my reply between your kind comments. Please review those at your earliest convenience. Best Regards, Y. G. Gwon ( ) ONETECH Corp. RF/EMC Div. TEL: +82-31-765-8289 (Ext.107) FAX: +82-31-766-2904 -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Tuesday, September 11, 2007 10:07 AM To: Y.K. Kwon Cc: [email protected] Subject: Be Interactive Co., Ltd., FCC ID: PNGUD720, (DSS Bluetooth part) Assessment NO.: AN07T7179, Notice#1 Dear Y.K., This notice is for items specific to the Bluetooth part. Q1: Information has already been requested for the DTS part of this device. Those items will not be repeated in this notice although some are applicable to this part. [YK] Attached please find a SAR test report. WLAN and Bluetooth functions were simultaneously operated during the testing. Q2: The schematics and block diagram do not include details for the Bluetooth module. Only the http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&...11516ffa4c55fcde&ww=988&cvap=2&qt=&zx=8vmlcdhh72tk (1 of 5)9/18/2007 6:20:17 AM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11516ffa4c55fcde&ww=988&cvap=2&qt=&zx=8vmlcdhh72tk Bluetooth module connector is shown. Please provide schematics and block diagram for the Bluetooth module. [YK] Attached please find 2 files for block diagram and schematic for the BT module. Best regards, Tim Dwyer CCS Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 3 attachments — Download all attachments bluetooth_schematic.pdf 18K View as HTML Download Block Diagram_BT.pdf 25K View as HTML Download SAR REPORT_UD720.pdf 2843K View as HTML Download Reply Reply to all Forward Invite Gwon to Gmail Reply from Tim Dwyer <[email protected]> hide details Sep 14 (4 days ago) to "Y.G. Gwon" <[email protected]> date Sep 14, 2007 11:27 AM subject Re: Be Interactive Co., Ltd., FCC ID: PNGUD720, (DSS Bluetooth part) Assessment NO.: AN07T7179, Notice#1 mailed-by gmail.com Dear Y.G., I received your replies and will work on this today as soon as possible . We have many applications today to complete, but I hope to complete all by later in the day my time. I will email if there are any questions. Best regards, Tim - Show quoted text - http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&...11516ffa4c55fcde&ww=988&cvap=2&qt=&zx=8vmlcdhh72tk (2 of 5)9/18/2007 6:20:17 AM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11516ffa4c55fcde&ww=988&cvap=2&qt=&zx=8vmlcdhh72tk Reply Forward Reply from "Y.G. Gwon" <[email protected]> hide details Sep 16 (2 days ago) to Tim Dwyer <[email protected]> date Sep 16, 2007 8:49 PM subject RE: Be Interactive Co., Ltd., FCC ID: PNGUD720, (DSS Bluetooth part) Assessment NO.: AN07T7179, Notice#1 Hi Tim, Did you have a nice weekend? Could you please inform me any updated status at your earliest convenience? Thanks a lot! Best Regards, Y. G. Gwon () ONETECH Corp. RF/EMC Div. TEL: +82-31-765-8289 (Ext.107) FAX: +82-31-766-2904 From: [email protected] [mailto:[email protected]] On Behalf Of Tim Dwyer Sent: Saturday, September 15, 2007 12:27 AM To: Y.G. Gwon Subject: Re: Be Interactive Co., Ltd., FCC ID: PNGUD720, (DSS Bluetooth part) Assessment NO.: AN07T7179, Notice#1 - Show quoted text - Reply Forward Invite Gwon to Gmail Reply from Tim Dwyer <[email protected]> hide details Sep 17 (19 hours ago) to "Y.G. Gwon" <[email protected]> date Sep 17, 2007 10:54 AM subject Re: Be Interactive Co., Ltd., FCC ID: PNGUD720, (DSS Bluetooth part) Assessment NO.: AN07T7179, Notice#1 mailed-by gmail.com http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&...11516ffa4c55fcde&ww=988&cvap=2&qt=&zx=8vmlcdhh72tk (3 of 5)9/18/2007 6:20:17 AM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11516ffa4c55fcde&ww=988&cvap=2&qt=&zx=8vmlcdhh72tk Dear YK, Yes, the weekend was nice here. The weather is starting to get cooler, down to about 8°C. I hope your weekend was also nice. I finished the review of the documents including SAR for both DSS and DTS applications. All technical requirements are met, but there is one minor issue that needs to be corrected. In the SAR report, FCC requires the exact FCCID be shown. In the SAR report, it shows PNGUD72. It should be PNGUPD720. I know that this is probably a typographical error, but the FCC has a strict requirement for this. So please revise the report to correct the FCCID, and return it to me. I am ready to send the final evaluation report to certification as soon as I receive it. Best regards, Tim Dwyer. - Show quoted text - Reply Forward Reply from "Y.G. Gwon" <[email protected]> hide details 1:00 am (5 hours ago) to Tim Dwyer <[email protected]> cc Mike Kuo <[email protected]> date Sep 18, 2007 1:00 AM subject RE: Be Interactive Co., Ltd., FCC ID: PNGUD720, (DSS Bluetooth part) Assessment NO.: AN07T7179, Notice#1 Hi Tim, Thanks for your comment and I would like to send revised SAR test report to you. Could you please help me to issue certificates for this project ASAP.…

Text truncated - open the document above for the full version.

FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904)

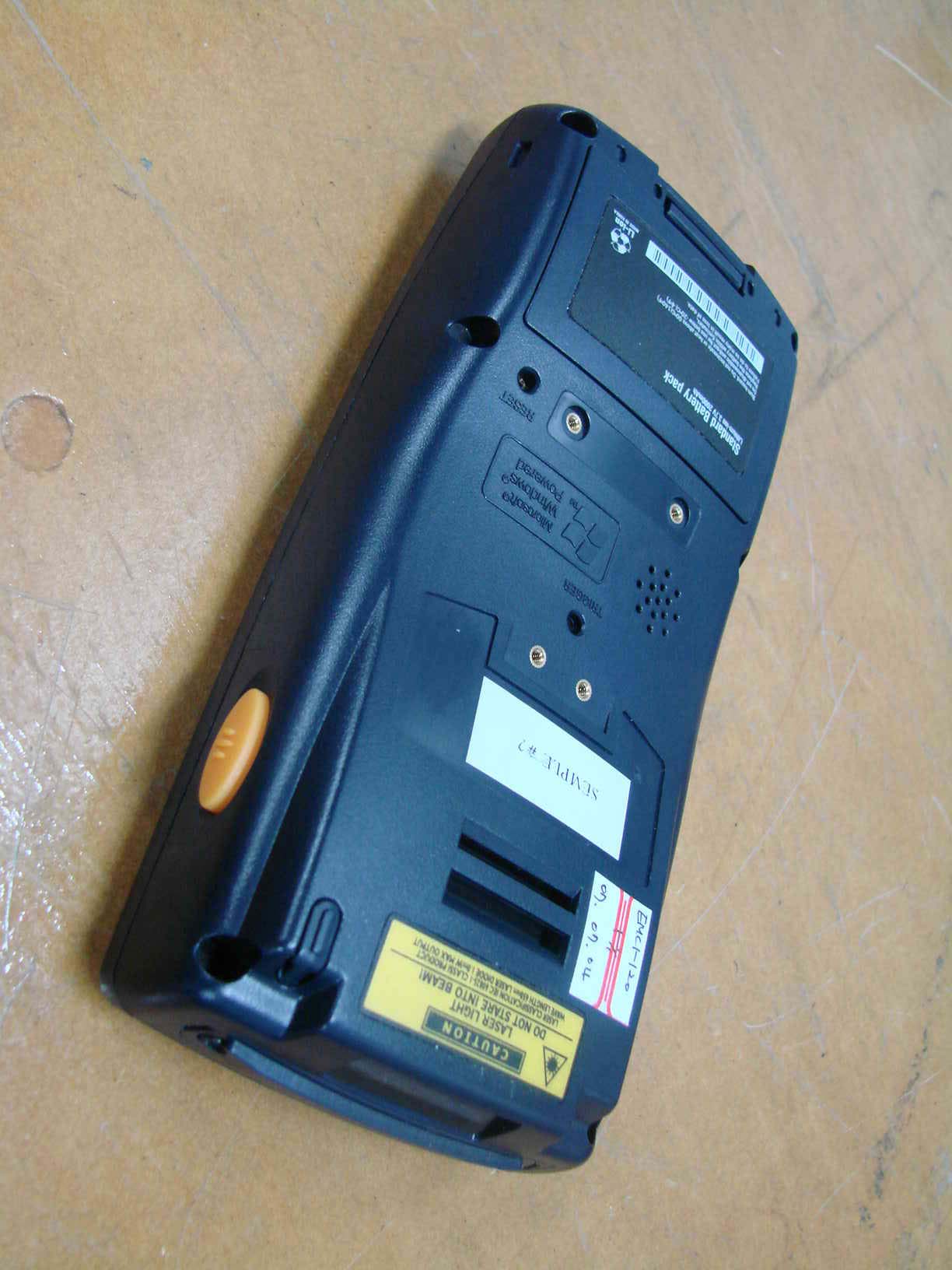

FCC ID. : PNGUD720 Report No. : E079R-004 IDENTIFICATION LABEL: PROPOSED FCC ID LABEL Due to the product size, only the FCC ID shall be permanently affixed to the rear side of the equipment and other information shall be placed in the instruction manual. It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID : PNGUD720 FC C

FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : PNGUD720 Report No. : E079R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu…

Text truncated - open the document above for the full version.

- 1 - Object Internal Chip Antenna Page 1 of 8 Customer WINiZEN Date September 13, 2005 System Bluetooth/ WLAN/Zigbee Rev. IR Model Name W5I–BF–XX Written by W. I. KWAK Electrical Specifications Frequency Range ( MHz ) 2400 〜 2500 Band Width ( MHz ) 100 V.S.W.R ( Min ) 1.9 : 1 Gain ( Max ) 2 ± 0.5 ( dBi ) Input Impedance 50 ( Ω ) Polarization Linear Mechanical Specifications Antenna Size ( Width x Length x Height ) 10 × 4 × 1.2 mm Weight N / A Radiator Material Copper Operation Temperature – 30 〜 90 ( °C ) Operation Humidity 10 〜 90 ( % ) Option Remarks The performance data was measured with a test board. The performance will vary in specific applications. WINiZEN Co., Ltd. Specifications Sheet - 2 - Fig 1. Return Loss (Agilent E8357A 300KHz∼6GHz PNA Series Network Analyzer) Fig 2. V.S.W.R (Agilent E8357A 300KHz∼6GHz PNA Series Network Analyzer) - 3 - Fig 3. Measurement Configuration (Hewlett Packard 8722ES 50 MHz∼40 GHz S-Parameter Network Analyzer) Fig 4. Axis Definitions (Antenna Center ) Z AxisZ Axis X Axis X Axis Y Axis Y Axis a. Azimuth Pattern : XY Plane ; Horn Antenna Polarization : Vertical b. Elevation Pattern : XZ Plane ; Horn Antenna Polarization : Horizontal - 4 - Fig 5. Gain Patterns a. Azimuth Pattern b. Elevation Pattern

FCC ID. : PNGUD720 Page 1 of 43 Report No. : E079R-005 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : E079R-005 AGR No. : A076A-123R Applicant : Be Interactive Co., Ltd. Address : #1007 Byucksan DigitalValley 5th, 60-73 Gasan-Dong, Geumchun-Gu, Seoul, 153-807, Korea Manufacturer : Be Interactive Co., Ltd. Address : #1007 Byucksan DigitalValley 5th, 60-73 Gasan-Dong, Geumchun-Gu, Seoul, 153-807, Korea Type of Equipment : Industrial Mobile Computer with Bluetooth FCC ID. : PNGUD720 Model Name : UD720 Multiple Model Name : UD720W, UD720B, UD720WB, UD721, UD721W, UD721B, UD721WB Serial number : N/A Total page of Report : 43 pages (including this page) Date of Incoming : July 30, 2007 Date of issue : September 04, 2007 SUMMARY The equipment complies with the regulation; FCC Part 15 Subpart C Section 15.247. This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Young-Min, Choi / Senior Engineer Y. K. Kwon / Director EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. FCC ID. : PNGUD720 Page 2 of 43 Report No. : E079R-005 It should not be reproduced except in full, without the written approval of ONETECH. EMC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-ri, Chowol-eup, Gwangju-si, Gyeonggi-do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE .............................................................................................................................5 2. TEST SUMMARY..............................................................................................................................................................6 2.1 T EST ITEMS AND RESULTS.............................................................................................................................................6 2.2 A DDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS..........................................................................................6 2.3 R ELATED SUBMITTAL(S) / GRANT(S)............................................................................................................................6 2.4 PURPOSE OF THE TEST...................................................................................................................................................6 2.5 T EST METHODOLOGY....................................................................................................................................................6 2.6 T EST FACILITY...............................................................................................................................................................6 3. GENERAL INFORMATION........................................................................................................................…

Text truncated - open the document above for the full version.
