PNKDO-S1052.4GHz Wireless Digital Audio

Pocket ReceiverPocketReceiver & USB Line-in2in1 Transmitter USBLine-in2in1 Transmitter 2.4GHz Wireless Digital Audio Before operating the units, please read this manual thoroughly. CAUTION RISK OF ELECTRONIC SHOCK DO NOT OPEN CAUTION: DO NOT REMOVE THE COVER FOR REDUCING THE RISK OF ELECTRIC SHOCK. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GENERAL SAFETY SUMMARY WARNING To prevent fire or shock hazard , do not expose the unit to rain or moisture. IMPORTANT SAFETY INSTRUCTIONS All the safety and operating instructions should be read before the product is operated. The safety and operating instructions should be retained for future reference. 1. 2. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for the cleaning. 5. All warnings on the product and in the operating instructions should be adhered to. 3. All operating and use instructions should be followed. 4. Do not use attachments not recommended by the products manufacturer if they may cause hazards. 6. Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool; and the like. 7. 8. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electronic shock. Never spill liquid of any kind on the product. 9. Unplug the USB transmitter from the computer and refer servicing to qualified service personnel under the following conditions. When the computer or USB transmitter is damaged. If liquid have been spilled, or objects have fallen into the computer. If the product does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other control, may result in damage and will often require extensive work by a qualified technician to restore this product to its normal operation. If the products has been dropped or damaged in any way. When the product exhibits a distinct change in performance - this indicates a need for service. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 10. 11. Upon completion of any service or repair to this product ask the service technician to perform safety checks to determine that the product is in proper operating condition. The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products including amplifiers that produce heat. 12. Overview Features Package Contents Names of parts Getting Started Table of Contents 1 1 2 2 3 .......................................................... ....................................................... .................................... .......................................... ............................................ Specification 5 ........................................ Trouble Shooting 4 ....................................................... Operation ........................................ ............................................... 6 Overview 1 Features Transmitter supporting both of USB Audio in and Line-in connecting Transmit wirelessly music from any audio source such as PC (Notebook), DVD and CD player Non-compression for high sound quailty with delay time 0.5 ms Audio Frequency response: 20Hz ~20KHz (-3dB) Operating at 2.4 GHz ISM band with digital signal With 8 selectable channels / Auto-scan channel selected on RX side Stylish Pocket size RX with two AAA battery; 3.5mm Transmitter power from DC adaptor or USB Antenna for TX and RX embedded Easily install plug-in need only Low power consumption Digital transmission at CD quality φ Earphone jack for Stereo Line Out Transmit range 30m (Open field) Signals penetrate through walls The 2.4GHz Wireless Digital Audio uses the latest wireless technology to transmit crystal-clear audio in a digital format. The pocket size receiver is easy to carry and the transmitter has two way to decide Audio source. It makes you enjoy the true CD quality by eliminating the hassle of wire, and allows you to experience your favorite music where it belongs - on your stereo. Package Contents Check the package before you enjoy the product. Pocket receiver (X1) USB / Line in Transmitter (X1) Users Manual (X1) 1.5V AAA battery (X2) 9V DC adaptor Earphone (X1) (X1) + _ + _ Names of parts Transmitter USB cable RCA cable RCA plug jack (X1) (X1) (X1) LED: USB LED: Line in Power switch: USB Power switch: Off Power Switch: Line in DC jack Phone jack USB jack 2 Channel selector Getting Start Receiver Open the battery compartment cover of receiver. Insert 2X AAA batteries into battery compartment. Make sure the plus and minus poles of battery was correctly touched their contains. Close the battery compartment cover. 1. 2. 3. 1 2 3 LED(blue) Power LED(orange) Link Phone jack Channel selector Volume control Power off Power on ()Tact switch () Battery compartment cover Strap eyelet 3 4. 5. 4.1 Audio source(PC or Notebook):Connect the transmitter to audio source with USB cable. PC Notebook Audio source to transmitter 4.2 Audio source( DVD,VCD,CD,DAB Mp3):Connect the transmitter to audio source with RCA cable. With power adaptor plug the transmitter into standard electric outlet.(If Audio source is from PC or Notebook, you don’t need to plug with power adaptor.) 4 Operations 1. Turn on the Transmitter and Receiver. 2. Turn on the audio source. 3. Adjust the channel selector to the same channel between Transmitter and Receiver. 4. Installation of earphone and Receiver Screw off Pierce through Screw on 5 Trouble Shooting Please read this users manual carefully before using the Wireless Audio Product. If you still have difficulties to use the…

Text truncated - open the document above for the full version.

. Federal Communications Commission Dear Sir: We, the undersigned, hereby authorize ETS Dr. Genz Taiwan PS Co., Ltd. to act on our behalf in all matters relating to application for 2.4GHz Wireless Digital Audio ( Model : DIO-T105, FCC ID : PNKDO-S105 )authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ETS Dr. Genz Taiwan PS Co., Ltd. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By: By: Mrs. Erin Chu (Signature) (Printed) Title : Supervisor Applicant : ELANsat Technologies Inc. Address : 5F, No.12, Innovation Rd. 1, Hsinchu Science Park, Taiwan, R.O.C. Tel : +886-3-563-5105 Fax:+886-3-563-5107 Date : Dec 19, 2005

Federal Communications Commission FCC ID : PNKDO-S105 Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block diagram, Schematics, and part lists By: By: Mrs. Erin Chu ( Signature ) ( Printed ) Title: Supervisor Applicant: ELANsat Technologies Inc. Address: 5F, No.12, Innovation Rd. 1, Hsinchu Science Park, Taiwan, R.O.C. Tel : +886-3-563-5105 Fax :+886-3-563-5107 Date: Dec 19, 2005

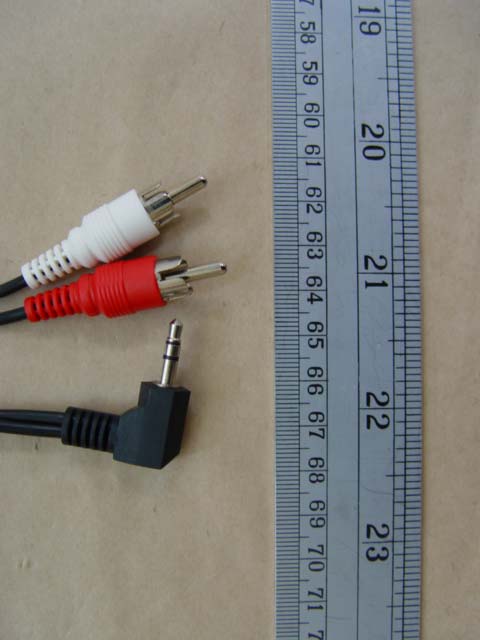

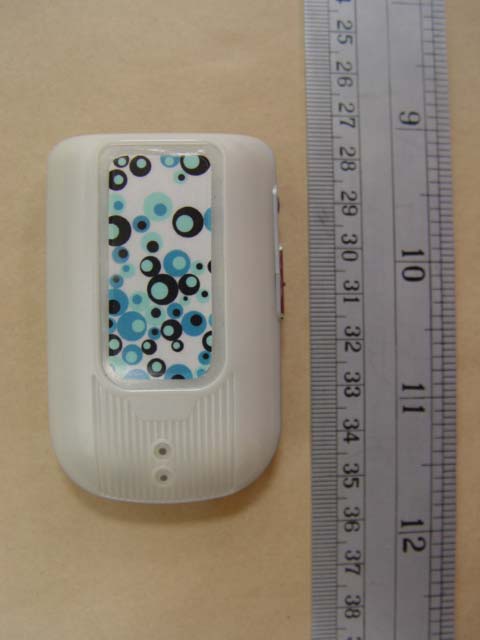

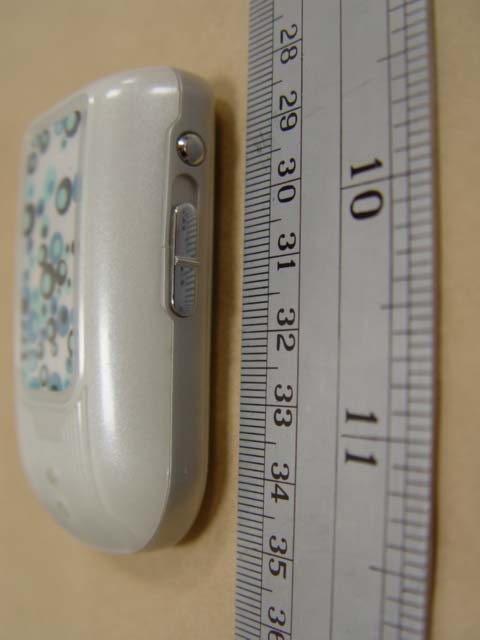

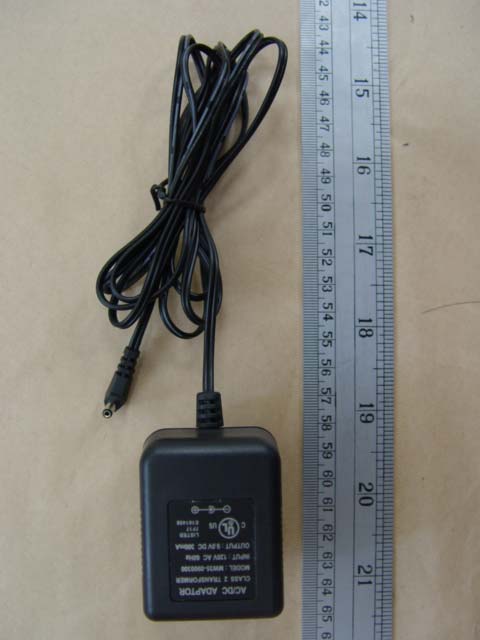

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. External Photos ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd.

Label黏貼處

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 11.21 (dBm) Maximum peak output power at antenna input terminal: 13.21296 (mW) Antenna gain(maximal): 1.0 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2410 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.00342 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: PNKDO-S105 Test report no.: W6M20511-6346-C-1 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 35 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 T ESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 A PPLICATION DETAILS.......................................................................................................... 3 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 3 1.6 T EST STANDARDS.................................................................................................................. 3 2 TECHNICAL TEST ..................................................................................................................3 2.1 S UMMARY OF TEST RESULTS................................................................................................. 3 2.2 T EST ENVIRONMENT.............................................................................................................. 3 2.3 T EST EQUIPMENT LIST.......................................................................................................... 3 3 TEST RESULTS (ENCLOSURE)............................................................................................ 3 3.1 P EAK OUTPUT POWER (TRANSMITTER) ................................................................................. 3 3.2 E QUIVALENT ISOTROPIC RADIATED POWER........................................................................... 3 3.2.1 Transmitter................................................................................................................... 3 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS....................................................................... 3 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................... 3 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................... 3 3.6 M INIMUM 6 DB BANDWIDTH................................................................................................ 3 3.7 P EAK POWER SPECTRAL DENSITY......................................................................................... 3 3.8 RADIATED EMISSIONS FROM RECEIVER SECTION....................................................................... 3 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................... 3 APPENDIX ......................................................................................................................................... 3 A PPENDIX A...................................................................................................................................... 3 A PPENDIX B ...................................................................................................................................... 3 A PPENDIX C ...................................................................................................................................... 3 A PPENDIX D...................................................................................................................................... 3 A PPENDIX E ...................................................................................................................................... 3 A PPENDIX F ...................................................................................................................................... 3 A PPENDIX G...................................................................................................................................... 3 A PPENDIX H...................................................................................................................................... 3 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 35 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The t…

Text truncated - open the document above for the full version.

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. Setup Photos ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20511-6346-C-1 FCC ID: PNKDO-S105 ETS Dr.Genz Taiwan PS Co., Ltd.
