ELANsat Technologies Inc. 5F, No.12, Innovation Rd.1 Hsinchu Science Park Hsinchu 300 Taiwan, R.O.C. Federal Communications Commission FCC ID : PNKWDA-105C Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagrams, Schematics and Part List, Operational Description By: By: Erin Chu ( Signature ) ( Printed ) Title: Assistant Manager Applicant: ELANsat Technologies Inc. Address: 5F, No.12, Innovation Rd.1 Hsinchu Science Park Hsinchu 300 Taiwan, R.O.C. Tel: +886- 3-563-5105 Fax: +886- 3-563-5107 Date: July 25, 2006

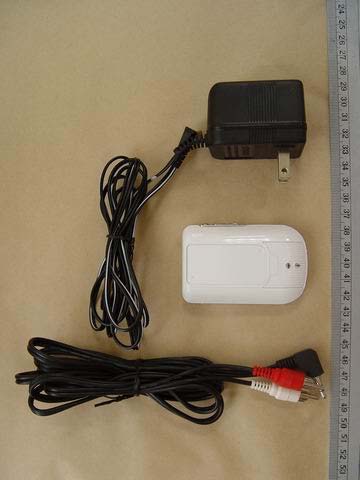

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd. External Photos ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd.

DATE CHECKED MATERIAL APPROVED FINISH DESIGNED DRAWING NO. HRC- SCALE PAGE 2:1 1/1 1 REV 2 3 DATEDESCRIPTION DIO-T105C 標籤位置圖 ELANsat TECHNOLOGIES INC. PART NO. DESCRIPTION BASE MODEL 1.0 UNIT: mm 2006.07.25 X.X ±0.1 X.XX ±0.05 MEDIUM TOLERANCE SIGN REV.

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 8.36 (dBm) Maximum peak output power at antenna input terminal: 6.85488 (mW) Antenna gain(maximal): 0.87 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2472 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.001186 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: PNKWDA-105C Test report no.: W6M20607-7203-C-1 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 31 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 TESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 APPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 TEST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 TEST ENVIRONMENT.............................................................................................................. 7 2.3 T EST EQUIPMENT LIST.......................................................................................................... 8 3 TEST RESULTS (ENCLOSURE).......................................................................................... 12 3.1 PEAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 14 3.2.1 Transmitter................................................................................................................. 14 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 14 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 15 3.5 SPURIOUS EMISSIONS (TX) .................................................................................................. 16 3.6 M INIMUM 6 DB BANDWIDTH.............................................................................................. 19 3.7 PEAK POWER SPECTRAL DENSITY....................................................................................... 20 3.8 RADIATED EMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 21 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 22 APPENDIX ....................................................................................................................................... 23 A PPENDIX A.................................................................................................................................... 24 APPENDIX B .................................................................................................................................... 25 A PPENDIX C .................................................................................................................................... 26 APPENDIX D.................................................................................................................................... 27 A PPENDIX E .................................................................................................................................... 28 APPENDIX F .................................................................................................................................... 29 APPENDIX G.................................................................................................................................... 30 A PPENDIX H.................................................................................................................................... 31 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20607-7203-C-1 FCC ID: PNKWDA-105C ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 31 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published i…
