PNMCT-150LCD Monitor

FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

gmZAN1 (ADC & SCALING ENGINE) MICRO CONTROLLER (CPU) BACKLIGHT INVERTER CTRL POWER +5V +3.3V PANEL R[5:0] G[5:0] B[5:0] DOTCLK HSYNC_OUT VSYNC_OUT DIS_EN KEY INPUT & LED DISP ANALOG RED ANALOG GREEN ANALOG BLUE S-EEPROM (OSD DATA) HSYNC INPUT S-EEPROM (DDC DATA)

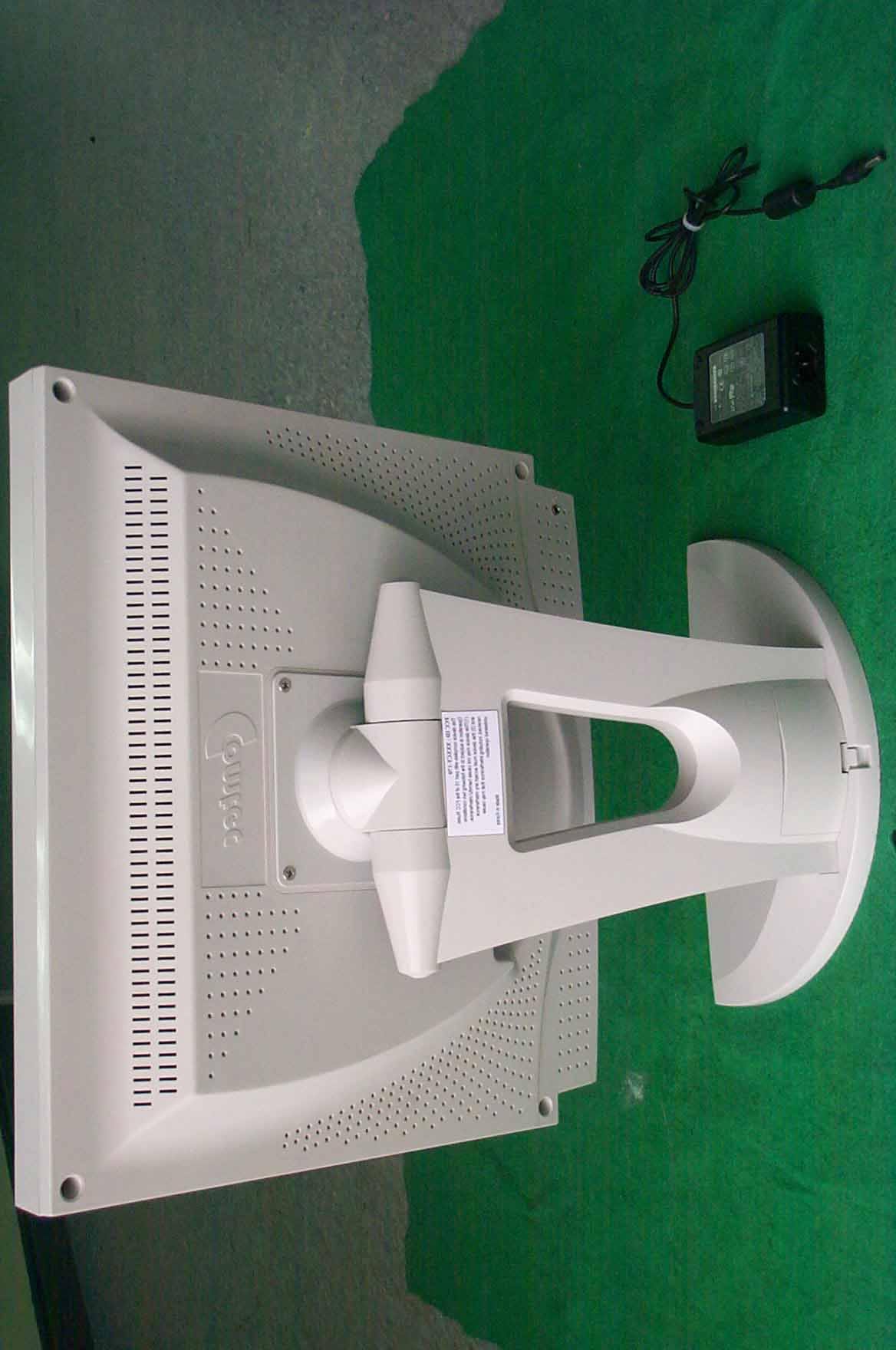

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-02001 FCC ID : PNMCT-150 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-02001 FCC ID : PNMCT-150

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02001 FCC ID : PNMCT-150 FCC ID Label Sample

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02001 FCC ID : PNMCT-150 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER 2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PNMCT-150 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 5 SKT SKTOS-02001 FCC ID : PNMCT-150 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 5 SKT SKTOS-02001 FCC ID : PNMCT-150 SK TECH CO., LTD. Page 3 of 5 SKT SKTOS-02001 FCC ID : PNMCT-150 SK TECH CO., LTD. Page 4 of 5 SKT SKTOS-02001 FCC ID : PNMCT-150 SK TECH CO., LTD. Page 5 of 5 SKT SKTOS-02001 FCC ID : PNMCT-150

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-02001 FCC ID : PNMCT-150 Certificate of Compliance Test Report No.: SKTOS-02001 NVLAP CODE : 200220-0 Applicant: Comtec Systems Co., Ltd. Applicant Address: 779-10, Daelim 3-Dong, Youngdungpo-Ku, Seoul, Korea Product: LCD Monitor FCC ID: PNMCT-150 Model No.: CT-150 Receipt No.: SKE20011224-906 Date of receipt: Dec. 24, 2001 Date of Issue: Jan. 14, 2002 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H.Kang Tested by:K.W.Song/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-02001 FCC ID : PNMCT-150 Contents Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. EMISSION Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-02001 FCC ID : PNMCT-150 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-02001 FCC ID : PNMCT-150 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment l Conducted Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 02.2002 Artificial Mains Network ESH2-Z5 834549/001 10. 2002 EMI Receiver ESHS10 385871/002 10.2002 Artificial Mains Network ESH3-Z5 836679/018 10.2002 Conducted Cable N/A N/A 11.2002 l Radiated Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2002 EMI Receiver ESVS 10 361324/014 11.2002 Spectrum Analyzer R3361A 11730187 06.2002 Amplifier 8447F 3113A05153 05.2002 Log Periodic Antenna UHALP9107 1819 02.2002 Biconical Antenna BBA9106 91031626 02.2002 Open Site Cable N/A N/A N/A Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 N/A N/A Amp & Receiver connection cable N/A N/A N/A Amp & Spectrum connection cable N/A N/A N/A 50 Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : Dec. 24, 2001 Date of Test : Jan. 04, 2002 ~ Jan. 09, 2002 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-02001 FCC ID : PNMCT-150 3. Description of the tested samples The EUT is LCD MONITOR. 3.1 Rating and Physical Characteristics l Panel Size : 15.0” (diagonal) l Resolution : 1024 x 768 l Display Size : 304.1(W) x 228.1(H) mm l Dot Pitch : 0.297mm x 0.297mm l Color : 16.7M colors (Dithering On) l Contrast : TYP : 300 : 1 CR l Brightness : TYP : 250 cd/m 2 l Compatibility : IBM, MAC l Input Signal : Analog R.G. B (0.7 Vp-p) l Connection Cable : D-sub 15 pin l Plug-and Play : VESA DDC 1/2B l Power Management System : VESA DPMS (Display Power Management Signaling) l Horizontal Frequency : 48.4 ~ 60 KHz l Vertical Frequency : 60 ~ 75Hz l Main Body Dimension : 355(H) x 158(D) x 360(W) mm l Gross Weight : 4.7 Kg l Power Consumption : 27W l Input Voltage : AC 100V ~ 240V, 50/60Hz l Viewing Angle : 70/ 70(R/L), 55/60(U/D) l Response Time : 25ms l Surface Treatment : Anti-glare & Hard-Coating (3H) 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-02001 FCC ID : PNMCT-150 4. Measurement Conditions Operating of EUT voltage is AC 120V, 60Hz. 4.1 Modes of Operation The EUT was in the following operation mode during all testing; EUT is connected with PC by video interface cable. Tested in mode of displaying “H” on the screen. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Personal Computer LG-IBM R70 103KI00189 N/A Printer H.P 2225D 3240S09221 DSI6XU2225 Keyboard Sejin SPR-8695U 1BAB018298 GJJSPR-8695U Mouse LG-IBM M-S48a LZH0468022 JNZ201213 Adaptor(for EUT) L.S.E LSE0107A1240 A10142103041 N/A Adaptor (for Printer) Dream Electronic DR-05600U N/A N/A SK TECH CO., LTD. Page 7 of 13 SKT SKTOS-02001 FCC ID : PNMCT-150 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark AC/DC Adapter cable 1.2m Non-shield None For EUT VGA cable 1.8m Shield None For EUT PC Powe…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-02001 FCC ID : PNMCT-150 Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-02001 FCC ID : PNMCT-150 Photograph 2: Setup for Radiated Emissions
