PP20100E0WIRELESS OPTICAL MOUSE

SPECIFICATION Of WMU91S Cordless Optical Mouse Note: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. REV : 1.02 Prepared by MLK Technologies Limited 10. Jun.2003 Part 1.0 : General features and description - Prevent Repetitive Strain Injury on your wrists and arms! - Radio frequency : 27 MHz, single channel with 256 random ID, no more problems with radio frequency interference . - Battery suggestion: Two AA size alkaline batteries for mouse. - The operation distance of 1.8M (typically under normal office environment). - Mouse resolution of 800dpi counts per inch of motion. - Sensor detects motion on all kinds of surface, including wood, plastics, pants, etc... ( Highly reflective like mirror or deep dark color may not work properly). - Compatible with windows 98/ME/2000/XP. - Super 3D wheel scrolling functions, easy to scroll or zoom for the window and web. - Compatible shape: The comfortable shape provides easy control. Part 2.0 : System Requirements . IBM PC or compatible system Part 3.0 : Preface The functionality and performance requirements related to the mouse are defined in this specification. Part 4.0 : Version - PS/2 Interface - USB Interface Part 5.0 : Physical characteristics and configuration Item 5.1: Dimension - Mouse : 123mm(L) x 74mm(W) x 42mm(H) - Receiver:50mm(L) x 42mm(W) x 107mm(H) 107 43 42 50 Item 5.2: Material Mouse Body ABS Wheel Rubber Receiver Body ABS Item 5.3: Finish: Te x t u r e Item 5.4: Color: To be defined by ID Item 5.5: Button Mouse: 3 Buttons with scrolling wheel, 1 CONNECT button, Receiver: 1 CONNECT button. Item 5.6: Mechanical Performance 5.6.1 Operating force of mouse buttons: 80g±20gf 5.6.2 Operating force of browser switches: 170g ± 25gf 5.6.3 Operating force of wheel scrolling: 20 ± 10gf 5.6.4 Operating force of movable: 60 ± 10gf 5.6.5 Mouse weight: 160 ± 15gf Part 6.0 : Electrical specification Item 6.1: Compatibility - The USB mode is using the low speed interface defined in the USB specification. It’s compliant to the USB specification as well as to the HID class specifications. - The USB mode shall be compatible with IBM PC/PENTIUM and works with operating system such as Windows 98/2000/ME/XP as well as the most software applications. Item 6.2 : Technical of mouse Optical sensor for X/Y axis, the precise sensor detects motion on hundreds of surfaces, including wood, plastic, and even your pants leg. ( highly reflective surface or deep dark color surface may not work properly) .Wheel button uses a mechanical encoder. Item 6.3 : Sensor Report Rate on Mouse 2300 times per second Item 6.4 : Sensor Light on mouse Red LED Item 6.5 : Power Requirement (Receiver) 5V/ DC 20mA directly from Computer USB Port Item 6.6 : Cable The length of the cable on receiver is 1.6 meters and the color is defined by ID. Item 6.7 : Operating Angle The mouse operation angle is 360 degrees. Item 6.8 : Operating Distance The Mouse operation distance is 1.8 Meter ( typically under normal office environment, Mouse to Receiver set), Item 6.9 : ID changeable The ID is changed by the CONNECT button . Item 6.10 Battery 6.10.1 Battery Type The mouse use two AA alkaline batteries. 6.10.2 Battery Consumption Mouse will be on sleep mode 1 while not moving the mouse within 10 second.Sleep mode 1 will maintain within 90 seconds before turning into sleep mode2. Sleep mode 2 will maintain within 10 minutes before turning into sleep mode 3. Mouse work again by movement or mouse click. Operating mode: 28mA±10% @ 3V Sleep mode 1:4.0MA±10% @ 3V Sleep mode 2 :800UA±10% @ 3V Sleep mode 3 :300UA±10% @ 3V 6.10.3: Low Battery Indicator When the battery voltage is less than 1.8V, the indicator on offside of the mouse should be blinking when moving the mouse. 6.10.4: Battery saving mode, provides for longer battery life Item 6.11 : Tracking Speed The unit shall be capable of tracking between 50mm/s and 350mm/s of hand movement on the matt white paper without loss of data. Item 6.12 :Sensor Features - Optical motion estimation technology - Complete 2D motion sensor - Accurate motion estimation over a wide range of surfaces - High speed motion detection up to 14+inches/sec - High resolution up to 800dpi Part 7.0: Button Programming The MLKF-800F Optical Wheel Mouse has 3 buttons which can be programmed to perform a variety of functions for speeding up common tasks with a single click. Some examples of functions: • Close • Forward command • Back command • Click Lock • Start Menu • My computer • Undo • Alt • Ctrl Part 8.0: Reliability and environmental specification Item 8.1 : Button Switch Activation Conditions: 3 cycles per second. Testing method: a small DC motor fixed with cam automatically press the key for three time per second. The switch is connected to a calculator. The number displayed on calculator is pressed cycle of the key. Result: key tested have a lift cycle of more than 1,000,000.00. Item 8.2 : Cable Bending Strength Conditions: Cable load at 100gram, Testing methods: bend 60 degrees any direction from its centerline at speed of 30 cycles/min. 5000 cycles. Result: No visible damage and no breakage in each wire. Item 8.3 : Drop Shock with Bare Unit Conditions: Drop the Unit from 76cm height onto floor. Testing Methods: drop the unit on top, bottom and 4 side of the unit ( 1 time for each side). Result: The Unit function properly, no mechanical failure. Item 8.4 : Drop Shock in Gift box Conditions: Unit have been packed with gift box Testing Methods: Drop the gift box from 91cm onto a floor, on the 4 corners and 6 sides of the box (1 time for each side) …

Text truncated - open the document above for the full version.

Applicant : MLK Technologies Limited FCC ID : PP20100E0

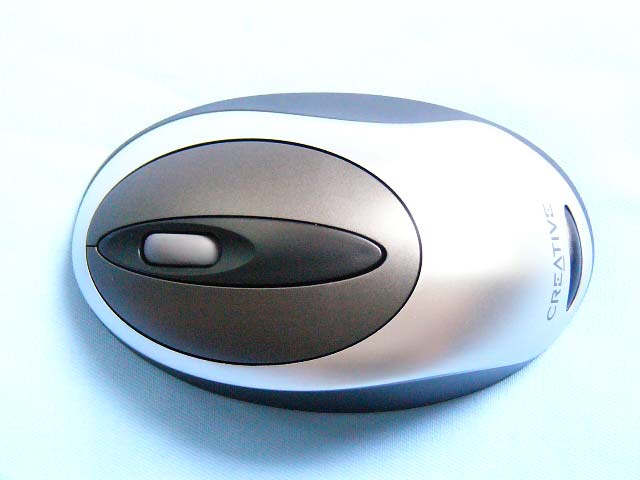

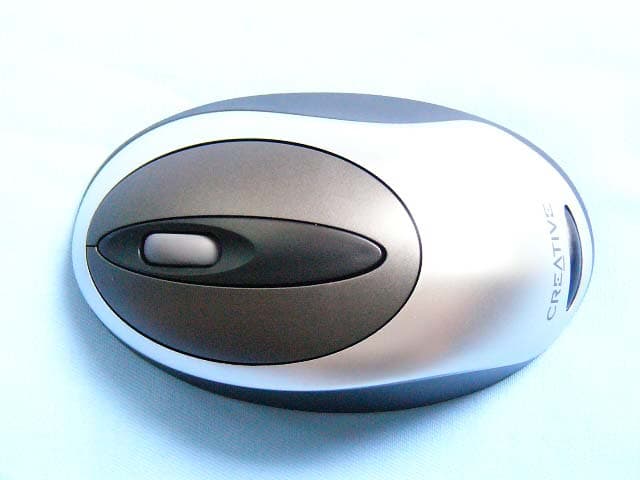

Applicant : MLK Technologies Limited FCC ID : PP20100E0 (1) EUT top view (2) EUT bottom view

Applicant : MLK Technologies Limited FCC ID : PP20100E0 Proposed Label Location on EUT EUT Bottom View/Proposed FCC Mark Location FCC ID: PP20100E0

Applicant : MLK Technologies Limited FCC ID : PP20100E0 (3) EUT inside whole view (4) Main board component side (5) Main board solder side

Applicant : MLK Technologies Limited FCC ID : PP20100E0

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:7-Jun-2003 Sheet of File:E:\Èȼü\ID1\ID1.ddbDrawn By: 1 2 3 4 5 6 7 8 9 10 11 12 13 1415 16 17 18 19 20 21 22 23 24 25 26 27 28 OSC1 VSS OSC2 VDD RBUT MBUT LBUT RFOUT ORFIN0 ORFO TXD PD WAKE_A WAKE_BXIR Z1IN Z2IN SDIO SCLK P15 P16 TXCB BBUT FBUT SVD_IN DCVR VL VL_NM U1MA6226-S17K30 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 XY-LED REFBOSC1 GND GND VDD OSC2 SCLK XA XB YB YA REFA R_BIN PD SDIO U2ADNS-2030 R1 10M X1 76.8KHZ X2 27.042MHZ X3 18.432MHZ C1 22P C2 22P SW1 SW2 SW3 C4 100P L1 2.2UH C6 0P C8 100P C9 0.1U C3 15P C14 2P C5 33P PD D1 IN5819 L2 100UH C10 0.1U C15 220U BT1 3V R4 930K C16 220U R5 1.2M SDIO SCLK SW4 SCLK SDIO PD R6 15K VDD C12 0.1U C17 4.7U C18 2.2U C13 0.1U LED1 R7 0R VDD SW5 ID1 MLK004101 1 of 1 Àî²ýÓ R9 560R LED2 R10 1K Vin 3 GND 1 Vout 2 U3 RT9261B-30CX R2 0R R3 0R R8 0R R11 0R R12 0R R13 0R R14 0R R15 0R R16 0R R17 0R

FCC TEST REPORT UNDER FCC 15 Subpart C, Paragraph 15.227 PREPARED FOR： MLK Technologies Limited Block A1, 1 st Industrial Park, 3 rd Industrial Zone, Fenghuang Village, FuYong, BaoAn, Shenzhen, P.R.China. June 16, 2003 PREPARED BY : Shenzhen Academy of Metrology & Quality Inspection Longzhu Road, Nanshan FCC Registration Number: 97379 FCC ID: PP20100E0 EUT: Wireless Optical Mouse Model: 0100E0(MLK); WMU91S(CREATIVE) Report Type: Original Report Test Engineer: Peter Lin Test Date: June 15, 2003 Review By: Apollo Liu MLK Technologies Limited. FCC ID: PP20100E0 FCC ID Report Report #: KSZ2003060901J Page 2 of 23 TABLE OF CONTENTS 1. Summary of Test Results..................................................................................................................................................... 3 2. Test Statement ...................................................................................................................................................................... 4 2. 1 Test Statement................................................................................................................................................................. 4 2. 2 Departure From Document Policies, Procedure or Specifications, The Statement ......................................................... 4 3. EUT Modifications .............................................................................................................................................................. 5 4. Conducted Power Line Test ................................................................................................................................................ 6 4. 1 Test Equipment ............................................................................................................................................................... 6 4. 2 Test Procedure ................................................................................................................................................................ 6 4. 3 Test Setup ....................................................................................................................................................................... 6 4. 4 Configuration of The EUT.............................................................................................................................................. 7 4. 5 EUT Operating Condition............................................................................................................................................... 8 4. 6 Conducted Power Line Emission Limits......................................................................................................................... 8 4. 7 Conducted Power Line Test Result ................................................................................................................................. 9 5. RADIATED EMISSION TEST........................................................................................................................................ 10 5. 1 Test Equipment ............................................................................................................................................................. 10 5. 2 Test Procedure .............................................................................................................................................................. 10 5. 3 Radiated Test Setup ...................................................................................................................................................... 10 5. 4 Configuration of The EUT............................................................................................................................................ 11 5. 5 EUT Operating Condition............................................................................................................................................. 11 5. 6 Radiated Emission Limit .............................................................................................................................................. 11 5. 7 Radiated Emission Test Result...................................................................................................................................... 12 6. Band Edge .......................................................................................................................................................................... 14 6. 1 Test Equipment ............................................................................................................................................................. 14 6. 2 Test Procedure .............................................................................................................................................................. 14 6. 3 Radiated Test Setup ...................................................................................................................................................... 14 6. 4 Configuration of The EUT............................................................................................................................................ 15 6. 5 EUT Operating Condition............................................................................................................................................. 15 6. 6 Band Edge Limit........................................................................................................................................................... 15 6. 7 Band Edge Test Result .................................................................................................................................................. 15 7. PHOTOS OF TESTING.................................................................................................................................................... 16 7. 1 EUT Test Photographs ......................................................…

Text truncated - open the document above for the full version.

Applicant : MLK Technologies Limited FCC ID : PP20100E0 Radiated emission test view
