PP2010180Wireless Optical Mouse

Applicant : MLK Industries (ShenZhen) Limited FCC ID : PP2010180 SPECIFICATION Of WMU92SCordless Optical Mouse Note: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. REV : 1.00 Prepared by MLK Technologies Limited 31 July 2003 Part 1.0 : General features and description - Prevent Repetitive Strain Injury on your wrists and arms! - Radio frequency : 27 MHz, single channel with 256 random ID, no more problems with radio frequency interference . - Battery suggestion: Two AA size alkaline batteries for mouse. - The operation distance of 1.5M (typically under normal office environment). - Mouse resolution of 800cpi counts per inch of motion. - Sensor detects motion on all kinds of surface, including wood, plastics, pants, etc... ( Highly reflective like mirror or deep dark color may not work properly). - 5 Programmable buttons, Super 3D wheel scrolling functions, easy to scroll or zoom for the window and web. - Comfortable shape: The comfortable shape provides easy control. - Compatible with windows 98/ME/2000/XP. Part 2.0 : System Requirements . IBM PC or compatible system Part 3.0 : Preface The functionality and performance requirements related to the mouse are defined in this specification. Part 4.0 : Version - PS/2 Interface - USB Interface - USB + PS/2 Interface Part 5.0 : Physical characteristics and configuration Item 5.1: Dimension - Mouse : 123mm(L) x 74mm(W) x 42mm(H) - Receiver:50mm(L) x 42mm(W) x 107mm(H) 121 4 2 7 9 1 0 7 43 42 50 Item 5.2: Material Mouse Body ABS Wheel Rubber Left contact side Rubber Receiver Body ABS Item 5.3: Finish: Texture Item 5.4: Color: To be defined by ID Item 5.5: Button Mouse: 5 Buttons with scrolling wheel, 1 CONNECT button, Receiver: 1 CONNECT button. Item 5.6: Mechanical Performance 5.6.1 Operating force of mouse buttons: 80g±20gf 5.6.2 Operating force of browser switches: 170g ± 25gf 5.6.3 Operating force of wheel scrolling: 20 ± 10gf 5.6.4 Operating force of movable: 60 ± 10gf 5.6.5 Mouse weight: 160 ± 15gf Part 6.0 : Electrical specification Item 6.1: Compatibility - The USB mode is using the low speed interface defined in the USB specification. It’s compliant to the USB specification as well as to the HID class specifications. - The USB mode shall be compatible with IBM PC/PENTIUM and works with operating system such as Windows 98/2000/ME/XP as well as the most software applications. Item 6.2 : Technical of mouse Optical sensor for X/Y axis, the precise sensor detects motion on hundreds of surfaces, including wood, plastic, and even your pants leg. ( highly reflective surface or deep dark color surface may not work properly) .Wheel button uses a mechanical encoder. Item 6.3 : Sensor Report Rate on Mouse 2300 times per second Item 6.4 : Sensor Light on mouse Red LED Item 6.5 : Power Requirement (Receiver) 5V/ DC 20mA directly from Computer USB Port Item 6.6 : Cable The length of the cable on receiver is 1.6 meters and the color is defined by ID. Item 6.7 : Operating Angle The mouse operation angle is 360 degrees. Item 6.8 : Operating Distance The Mouse operation distance is 1.5 Meter ( typically under normal office environment, Mouse to Receiver set), Item 6.9 : ID changeable The ID is changed by the CONNECT button . Item 6.10 Battery 6.10.1 Battery Type The mouse use two AA alkaline batteries. 6.10.2 Battery Consumption Mouse have 4 level sleep mode Operating mode: 30mA±10% @ 3V Stand-by mode: 13.5mA ±10% @ 3V Sleep mode: 0.10mA ±10% @ 3V 6.10.3: Low Battery Indicator When the battery voltage is less than 2.1, the indicator on front of the rubber wheel should be blinking when moving the mouse. 6.10.4: Battery saving mode, provides for longer battery life 6.10.5: Battery life 3 months under normal operation (alkaline battery) Item 6.11 : Tracking Speed The unit shall be capable of tracking between 50mm/s and 400mm/s of hand movement on the matt white paper without loss of data. Item 6.12 :Sensor Features - Optical motion estimation technology - Complete 2D motion sensor - Accurate motion estimation over a wide range of surfaces - High speed motion detection up to 16+inches/sec - High resolution up to 800cpi Part 7.0: Reliability and environmental specification Item 7.1 : Button Switch Activation Conditions: 3 cycles per second. Testing method: a small DC motor fixed with cam automatically press the key for three time per second. The switch is connected to a calculator. The number displayed on calculator is pressed cycle of the key. Result: key tested have a lift cycle of more than 1,000,000.00. Item 7.2 : Cable Bending Strength Conditions: Cable load at 100gram, Testing methods: bend 60 degrees any direction from its centerline at speed of 30 cycles/min. 5000 cycles. Result: No visible damage and no breakage in each wire. Item 7.3 : Drop Shock with Bare Unit Conditions: Drop the Unit from 76cm height onto floor. Testing Methods: drop the unit on top, bottom and 4 side of the unit ( 1 time for each side). Result: The Unit function properly, no mechanical failure. Item 7.4 : Drop Shock in Gift box Conditions: Unit have been packed with gift box Testing Methods: Drop the gift box from 91cm onto a floor, on the 4 corners and 6 sides of the box (1 time for each side) Result: no content escape from packaging. Item 7.5 : High Temperature Test for operating pattern Conditions: N/A Testing Methods: Keep the unit at the temperature of 0 to 40 degrees Celsius and relative humidity of 0% to 95% for 25 hours and then left at ambient room temperature for 2 hours. Result: the unit work properly Item 7.6 : Heat Cycle Test for Shipment…

Text truncated - open the document above for the full version.

Applicant : MLK Industries (ShenZhen) Limited FCC ID : PP2010180 Left right middle button Base oscillator (76.8KHz) Base oscillator (18.43MHz) CPU MA6226 RF 3V DC/DC Low power indicator light Optical wireless mouse sensor (ADNS-2030) Batter LED Wheel Base oscillator (27MHz) A A A A

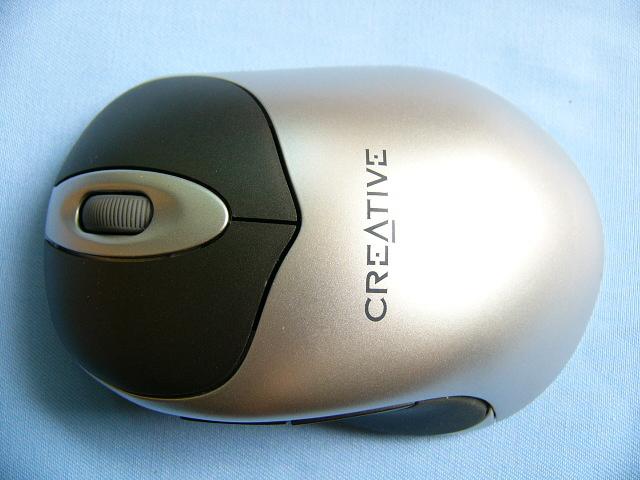

Applicant : MLK Industries (ShenZhen) Limited FCC ID : PP2010180 EUT top view EUT bottom view

Applicant : MLK Industries (ShenZhen) Limited FCC ID : PP2010180 Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: PP2010180

Applicant : MLK Industries (ShenZhen) Limited FCC ID : PP2010180 EUT inside whole view Main board component side Main board solder side

Applicant : MLK Industries (ShenZhen) Limited FCC ID : PP2010180 The task of light – electronic translating and data collection was completed in ADNS 2030IC. Then the date would be transferred to CPU CMA6226. The function of MA6226 include the following items: 1.DC/DC steady voltage circuit 2.Encode left, middle, right button and encoder 3.Deal with data and encode it 4.RF local oscillator data 5.FSK modulate and RF power export 6.Low battery test 7.Low battery indicator

Applicant : MLK Industries (ShenZhen) Limited FCC ID : PP2010180 1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:27-Aug-2003Sheet of File:E:\\ID2\ID2.ddb热键Drawn By: 1 2 3 4 5 6 7 8 9 10 11 12 13 1415 16 17 18 19 20 21 22 23 24 25 26 27 28 OSC1 VSS OSC2 VDD RBUT MBUT LBUT RFOUT ORFIN0 ORFO TXD PD WAKE_A WAKE_BXIR Z1IN Z2IN SDIO SCLK P15 P16 TXCB BBUT FBUT SVD_IN DCVR VL VL_NM U1MA6226-S17K30 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 XY-LED REFBOSC1 GND GND VDD OSC2 SCLK XA XB YB YA REFA R_BIN PD SDIO U2ADNS-2030 R1 10M X1 76.8KHZ X2 27.042MHZ X3 18.432MHZ C1 22P C2 22P SW1 SW2 SW3 C4 100P L1 1.8UH C6 100P C8 51P C9 0.1U C3 15P C14 2P C5 39P PD D1 IN5819 L2 100UH C10 0.1U C15 220U BT1 3V R4 910K C16 220U R5 1.2M SDIO SCLK SW4 SCLKSDIO PD R6 15K VDD C12 0.1U C17 4.7U C18 2.2U C13 0.1U LED1 R7 0R VDD SW5 ID2 MLK030001 1 of 1 李昌勇 R9 100R LED2 R10 1K SW6 SW7 R11 220K R12 100K R20 0R R13 0R R21 0R R7 0R R16 0R R17 0R R18 0R R19 0R C7104 R14 100R R15 0R

The test report consists 22 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.227 Prepared For: MLK Industries (ShenZhen) Limited Block A1, 1 st Industrial Park, 3 rd Industrial Zone, Fenghuang Village, FuYong, BaoAn, Shenzhen, P.R.China. April 16, 2004 FCC ID: PP2010180 EUT: Wireless Optical Mouse Model: WMU92S Report Type: Original Report Test Engineer: Peter Lin Test Date: September 6, 2003 Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 MLK Industries (ShenZhen) Limited. FCC ID: PP2010180 FCC ID Report Report #: KSZ2003090103J Page 2 of 22 TABLE OF CONTENTS 1. General Information...........................................................................................................................................................3 1. 1 Notes...............................................................................................................................................................................3 1. 2 Testing Laboratory..........................................................................................................................................................3 1. 3 Details of Applicant........................................................................................................................................................3 1. 4 Application Details.........................................................................................................................................................3 1. 5 Test Item.........................................................................................................................................................................3 1. 6 Test Standards.................................................................................................................................................................4 2. Technical Test.......................................................................................................................................................................5 2. 1 Summary of Test Results................................................................................................................................................5 3. EUT Modifications..............................................................................................................................................................6 4. Conducted Power Line Test................................................................................................................................................7 4. 1 Test Equipment...............................................................................................................................................................7 4. 2 Test Procedure................................................................................................................................................................7 4. 3 Test Setup.......................................................................................................................................................................7 4. 4 Configuration of The EUT..............................................................................................................................................8 4. 5 EUT Operating Condition...............................................................................................................................................9 4. 6 Conducted Power Line Emission Limits........................................................................................................................9 4. 7 Conducted Power Line Test Result...............................................................................................................................10 5. Radiated Emission Test......................................................................................................................................................11 5. 1 Test Equipment.............................................................................................................................................................11 5. 2 Test Procedure..............................................................................................................................................................11 5. 3 Radiated Test Setup......................................................................................................................................................11 5. 4 Configuration of The EUT............................................................................................................................................12 5. 5 EUT Operating Condition.............................................................................................................................................12 5. 6 Radiated Emission Limit..............................................................................................................................................12 5. 7 Radiated Emission Test Result......................................................................................................................................13 6. Band Edge..........................................................................................................................................................................14 6. 1 Test Equipment....................................................…

Text truncated - open the document above for the full version.

Applicant : MLK Industries (ShenZhen) Limited FCC ID : PP2010180 Radiated emission test view
