PP20102H0Wireless Optical Mouse

DR： Sam CHECK： APPD： Applicant : MLK Technologies Limited FCC ID : PP20102H0 SPECIFICATION Of WMU93S Cordless Optical Mouse Note: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. REV: 1.0 Prepared by MLK Industries (ShenZhen) Limited 29 March 2004 DR： Sam CHECK： APPD： Part 1.0: General features and description - Prevent Repetitive Strain Injury on your wrists and arms! - Radio frequency : 27 MHz, single channel with 256 random ID, no more problems with radio frequency interference . - Battery suggestion: Two AA size alkaline batteries for mouse. - Mouse resolution of 800 counts per inch of motion. - Sensor detects motion on all kinds of surface, including wood, plastics, pants, etc... ( Highly reflective like mirror or deep dark color may not work properly). - Comfortable shape: The comfortable shape provides easy control. - Compatible with windows 98/ME/2000/XP. Part 2.0: System Requirements . IBM PC or compatible system Part 3.0: Preface The functionality and performance requirements related to the mouse are defined in this specification. Part 4.0: Version - USB Interface - PS/2 Interface Part 5.0: Physical characteristics and configuration Item 5.1: Dimension Mouse: 120.82mm(L) x 78.53mm(W) x 41.57mm(H) Receiver: 107mm(L) x 49.5mm(W) x 42.3mm(H) DR： Sam CHECK： APPD： Mouse: Receiver: - DR： Sam CHECK： APPD： Item 5.2: Material Mouse Body ABS Left contact side Rubber Wheel Rubber Receiver Body ABS Item 5.3: Finish: Texture Item 5.4: Color: To be defined by ID Item 5.5: Button Mouse: 3 Buttons with scrolling wheel, 1 CONNECT button. Receiver: 1 CONNECT button. Item 5.6: Mechanical Performance 5.6.1 Operating force of mouse buttons: 60 ±15gf 5.6.2 Operating force of browser switches: 170 ± 25gf 5.6.3 Operating force of wheel scrolling: 20 ± 10gf 5.6.4 Operating force of movable: 60 ± 10gf 5.6.5 Mouse weight: 85± 5g 5.6.6 Receiver weight: 70± 5g Part 6.0: Electrical specification Item 6.1: Compatibility - The USB mode is using the low speed interface defined in the USB specification. It’s compliant to the USB specification as well as to the HID class specifications. - The USB mode shall be compatible with IBM PC/PENTIUM and works with operating system such as Windows 98/2000/ME/XP as well as the most software applications. - Item 6.2: Technical of mouse Optical sensor for X/Y axis, the precise sensor detects motion on hundreds of surfaces, including wood, plastic, and even your pants leg. (Highly reflective surface or deep dark color surface may not work properly). Wheel button uses a mechanical encoder. Item 6.3: Sensor Report Rate on Mouse 2300 times per second Item 6.4: Sensor Light on mouse Red LED Item 6.5: Power Requirement (Receiver) 5V/ DC 50mA directly from Computer USB Port DR： Sam CHECK： APPD： Item 6.6: Operating Angle The mouse operation angle is 360 degrees. Item 6.7: Operating Distance The Mouse operation distance is 1.8 Meter (typically under normal office environment, Mouse to Receiver set), Item 6.8: ID changeable The ID is changed by the CONNECT button. Item 6.9 Battery 6.9.1 Battery Type The mouse use two AA alkaline batteries. 6.9.2 Battery Consumption Mouse have 4 level mode Operating mode: ＜40 mA @ 3.0V （white paper）if no mouse movement and mouse click after maintaining for approximately 3 seconds. Sleep mode1: ＜3.5 mA@ 3.0V（white paper）after maintaining for approximately 2 minutes Sleep mode2: ＜1.3 mA @ 3.0V（white paper）after maintaining for approximately 6 minutes Sleep mode3: ＜0.5 mA @ 3.0V （white paper） 6.9.3: Battery saving mode, provides for longer battery life 6.9.4: Low Battery Indicator Function. If your mouse blue led of the foreside is light, It’s voltage under 1.8V of the batteries, It will not normal work, please change two new batteries. Item 6.10: Tracking Speed The unit shall be capable of tracking between 50mm/s and 400mm/s of hand movement on the matt white paper without loss of data. Item 6.11:Sensor Features - Optical motion estimation technology - Complete 2D motion sensor - No mechanical moving parts - Accurate motion estimation over a wide range of surfaces - High speed motion detection up to 16+inches/sec - High resolution up to 800cpi Part 7.0: Reliability and environmental specification Item 7.1: Button Switch Activation Conditions: 3 cycles per second. Testing method: a small DC motor fixed with cam automatically presses the key for three times per second. The switch is connected to a calculator. The number displayed on Calculator is pressed cycle of the key. DR： Sam CHECK： APPD： Result: key tested have a lift cycle of more than 1,000,000.00. Item 7.2: Drop Shock with Bare Unit Conditions: Drop the Unit from 76cm height onto floor. Testing Methods: drop the unit on top, bottom and 4 side of the unit ( 1 time for each side). Result: The Unit function properly, no mechanical failure. Item 7.3: Drop Shock in Gift box Conditions: Unit have been packed with gift box Testing Methods: Drop the gift box from 91cm onto a floor, on the 4 corners and 6 sides of the box (1 time for each side) Result: no content escape from packaging. Item 7.4: High Temperature Test for operating pattern Conditions: N/A Testing Methods: Keep the unit at the temperature of 0 to 40 degrees Celsius and relative humidity of 0% to 95% for 25 hours and then left at ambient room temperature for 2 hours. Result: the unit work properly Item 7.5: Heat Cycle Test for Shipment Pattern Conditions: N/A Testing Methods: -40 degrees Celsius to 40 degrees Celsius under 0% to 90% related humidity with total time of 40 hours, and then left at ambient room temperat…

Text truncated - open the document above for the full version.

Applicant : MLK Technologies Limited FCC ID : PP20102H0

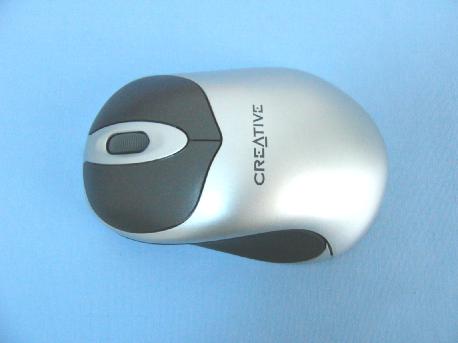

Applicant : MLK Industries (ShenZhen) Limited FCC ID : PP20102H0 EUT top view EUT bottom view

Applicant : MLK Technologies Limited FCC ID : PP20102H0 Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: PP20102H0

Applicant : MLK Technologies Limited FCC ID : PP20102H0 EUT inside whole view Main board component side Main board solder side

Applicant : MLK Technologies Limited FCC ID : PP20102H0 Operational Description X2 the 27.042 crystal oscillator driver the base of U1 the final/buffer amplifier into the same base(U1)is the modulation provided by U1,the output of U1 has the matching network consisting of C1, C3,C4,C5,C6,C8 and C6,C8 that Limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna is include printed on the PCB and the metal antenna ,there is no external ground connection.the ground is only that of the printed circuit board. Electric current is supplied by 2*AA.

1 2 3 4 ABCD 4 3 2 1 DCBA T i t l e N u m b e r R e v i s i o n S i z e A 4 D a t e : 1 9 - A p r - 2 0 0 4 S h e e t o f F i l e : G : \ r e f e r e n c e \ 热 键 \ I D 2 \ I D 2 . d d b D r a w n B y : 123456789 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7 2 8 O S C 1 V S S O S C 2 V D D R B U T M B U T L B U T R F O U T O R F I N 0 O R F O T X D P D W A K E _ A W A K E _ B X I R Z 1 I N Z 2 I N S D I O S C L K P 1 5 P 1 6 T X C B B B U T F B U T S V D _ I N D C V R V L V L _ N M U 1 M A 6 2 2 6 - S 1 7 K 3 0 12345678 91 0 1 1 1 2 1 3 1 4 1 5 1 6 X Y - L E D R E F B O S C 1 G N D G N D V D D O S C 2 S C L K X A X B Y B Y A R E F A R _ B I N P D S D I O U 2 A D N S - 2 0 3 0 R 1 1 0 M X 1 7 6 . 8 K H Z X 2 2 7 . 0 4 2 M H Z X 3 1 8 . 4 3 2 M H Z C 1 2 2 P C 2 2 2 P S W 1 S W 2 S W 3 C 4 1 0 0 P L 1 1 . 8 U H C 6 1 0 0 P C 8 5 1 P C 9 0 . 1 U C 3 1 5 P C 1 4 2 P C 5 3 9 P P D D 1 I N 5 8 1 9 L 2 1 0 0 U H C 1 0 0 . 1 U C 1 5 2 2 0 U B T 1 3 V R 4 9 1 0 K C 1 6 2 2 0 U R 5 1 . 2 M S D I O S C L K S W 4 S C L K S D I O P D R 6 1 5 K V D D C 1 2 0 . 1 U C 1 7 4 . 7 U C 1 8 2 . 2 U C 1 3 0 . 1 U L E D 1 R 7 0 R V D D S W 5 I D 2 M L K 0 3 0 0 0 1 1 o f 1 R 9 1 0 0 R L E D 2 R 1 0 1 K S W 6 S W 7 R 1 1 2 2 0 K R 1 2 1 0 0 K R 2 0 0 R R 1 3 0 R R 2 1 0 R R 7 0 R R 1 6 0 R R 1 7 0 R R 1 8 0 R R 1 9 0 R C 7 1 0 4 R 1 4 1 0 0 R R 1 5 0 R

The test report consists 21 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.227 Prepared For: MLK Industries (ShenZhen) Limited Block A1, 1 st Industries Park, 3 rd Industries Zone, Fenghuang, FuYong, BaoAn, Shenzhen April 27, 2004 FCC ID: PP20102H0 EUT: Wireless Optical Mouse Model: 0102H0 Report Type: Original Report Test Engineer: Peter Lin Test Date: April 20, 2004 Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 MLK Industries (ShenZhen) Limited. FCC ID: PP20102H0 KMO FCC ID Report Report #: KSZ2004041502J Page 2 of 21 TABLE OF CONTENTS 1. General Information....................................................................................................................................................3 1. 1 Notes......................................................................................................................................................................3 1. 2 Testing Laboratory..................................................................................................................................................3 1. 3 Details of Applicant................................................................................................................................................3 1. 4 Application Details..................................................................................................................................................3 1. 5 Test Item.................................................................................................................................................................3 1. 6 Test Standards.........................................................................................................................................................4 2. Technical Test...............................................................................................................................................................5 2. 1 Summary of Test Results.........................................................................................................................................5 3. EUT Modifications.......................................................................................................................................................6 4. Conducted Power Line Test.........................................................................................................................................7 4. 1 Test Equipment.......................................................................................................................................................7 4. 2 Test Procedure........................................................................................................................................................7 4. 3 Test Setup...............................................................................................................................................................7 4. 4 Configuration of The EUT.......................................................................................................................................8 4. 5 EUT Operating Condition........................................................................................................................................9 4. 6 Conducted Power Line Emission Limits..................................................................................................................9 4. 7 Conducted Power Line Test Result.........................................................................................................................10 5. Radiated Emission Test...............................................................................................................................................11 5. 1 Test Equipment.....................................................................................................................................................11 5. 2 Test Procedure......................................................................................................................................................11 5. 3 Radiated Test Setup...............................................................................................................................................11 5. 4 Configuration of The EUT.....................................................................................................................................12 5. 5 EUT Operating Condition......................................................................................................................................12 5. 6 Radiated Emission Limit.......................................................................................................................................12 5. 7 Radiated Emission Test Result...............................................................................................................................13 6. Band Edge..................................................................................................................................................................14 6. 1 Test Equipment.....................................................................................................................................................14 6. 2 Test Procedure....................................................................................................…

Text truncated - open the document above for the full version.

The test report consists 21 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.227 Prepared For: MLK Industries (ShenZhen) Limited Block A1, 1 st Industries Park, 3 rd Industries Zone, Fenghuang, FuYong, BaoAn, Shenzhen April 27, 2004 FCC ID: PP20102H0 EUT: Wireless Optical Mouse Model: 0102H0 Report Type: Original Report Test Engineer: Peter Lin Test Date: April 20, 2004 Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 MLK Industries (ShenZhen) Limited. FCC ID: PP20102H0 KMO FCC ID Report Report #: KSZ2004041502J Page 2 of 21 TABLE OF CONTENTS 1. General Information....................................................................................................................................................3 1. 1 Notes......................................................................................................................................................................3 1. 2 Testing Laboratory...................................................................................................................................................3 1. 3 Details of Applicant.................................................................................................................................................3 1. 4 Application Details..................................................................................................................................................3 1. 5 Test Item.................................................................................................................................................................3 1. 6 Test Standards.........................................................................................................................................................4 2. Technical Test...............................................................................................................................................................5 2. 1 Summary of Test Results..........................................................................................................................................5 3. EUT Modifications.......................................................................................................................................................6 4. Conducted Power Line Test..........................................................................................................................................7 4. 1 Test Equipment........................................................................................................................................................7 4. 2 Test Procedure.........................................................................................................................................................7 4. 3 Test Setup................................................................................................................................................................7 4. 4 Configuration of The EUT.......................................................................................................................................8 4. 5 EUT Operating Condition........................................................................................................................................9 4. 6 Conducted Power Line Emission Limits...................................................................................................................9 4. 7 Conducted Power Line Test Result.........................................................................................................................10 5. Radiated Emission Test..............................................................................................................................................11 5. 1 Test Equipment......................................................................................................................................................11 5. 2 Test Procedure.......................................................................................................................................................11 5. 3 Radiated Test Setup...............................................................................................................................................11 5. 4 Configuration of The EUT.....................................................................................................................................12 5. 5 EUT Operating Condition......................................................................................................................................12 5. 6 Radiated Emission Limit........................................................................................................................................12 5. 7 Radiated Emission Test Result...............................................................................................................................13 6. Band Edge..................................................................................................................................................................14 6. 1 Test Equipment......................................................................................................................................................14 6. 2 Test Procedure.........................................................................................…

Text truncated - open the document above for the full version.

Applicant : MLK Technologies Limited FCC ID : PP20102H0 Radiated emission test view

Applicant : MLK Technologies Limited FCC ID : PP20102H0 Radiated emission test view
