Note: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including i nterference that may cause undesired operation. Caution: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.
Applicant: MLK Technologies Limited FCC ID: PP2M51W

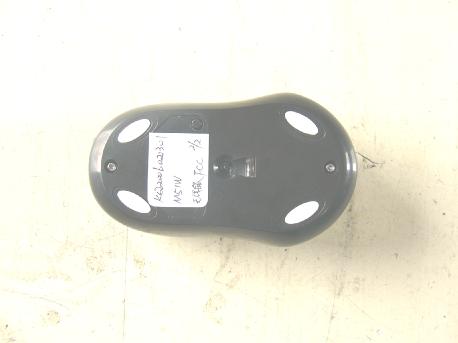

Applicant: MLK Technologies Limited FCC ID: PP2M51W EUT top view EUT bottom view
Applicant: MLK Technologies Limited FCC ID: PP2M51W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: PP2M51W
Applicant: MLK Technologies Limited FCC ID: PP2M51W EUT inside whole view Main board component side Main board solder side
Applicant: MLK Technologies Limited FCC ID: PP2M51W Operational Description MLK 1053 circuit description: X2 the 27.045MHz crystal oscillator driver the base of U2 the final/buffer amplifier into the same base (U2) is the modulation provided by U2 , the output of U2 has the matching network consisting of C20,C7, C8 and the C8,C20 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna ground and power source The antenna is extension, there is no external ground connection .the ground is only that of the printed circuit board. electric current is supplied by 2*AAA batteries.
1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 23-Feb-2006 Sheet of File: Drawn By: PCBANT SW4 SW ENCODER R410M L21.8uH C422PC522P C3104 SW5 C7100P C812P X1 76.8K C20220p C633P C134P X227.045MHz C1427P SW3SW2SW1 DCVRSVDIN LBUT 7 MBUT 6 RBUT 5 VDD 4 OSC2 3 VSS 2 OSC1 1 RFOUT 8 ORFIN0 9 ORFO 10 TXD 11 PD 12 WA 13 WB 14 Z1IN 15 Z2IN 16 X2IN 17 X1IN 18 BATL 19 Y1IN 20 Y2IN 21 TXCB 22 BBUT 23 FBUT 24 SVDIN 25 DCVR 26 VL 27 VL_NM 28 MA6223-Q17K -+ VBAT1UM-4(X2) L1100uH D1IN5819 + C1220U C24104 VBT + C9 220U C10104 R5*16K R6*30K R12910K R121.2M VBT DCVRSVDIN LED1LED R7 10KR8 100K C23 220U C150.1U YB YAXBXA PD PD YAYBXA 010 51 XY-LED 1 VDD 2 NC 3 VSS 4 NC 5 YA 6 YB 7 XB 8 XA 9 OSC 10 VSSA 11 VDDA 12 U1ATA2180 Q1 2N3906 R1 75R-82R\47r XB
The test report consists 18 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.227 Prepared For: MLK Technologies Limited Block A1, 1 st Industries Park, 3 rd Industries Zone, Fenghuang, FuYong, BaoAn, Shenzhen March 31, 2006 FCC ID: PP2M51W EUT: Wireless Optical Mouse Model: M51W Report Type: Original Report Test Engineer: Peter Lin Test Date: February 15, 2006 Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 MLK Technologies Limited FCC ID: PP2M51W KMO FCC ID Report Report #: KSZ2006021301J Page 2 of 18 TABLE OF CONTENTS 1. General Information....................................................................................................................................................3 1. 1 Notes......................................................................................................................................................................3 1. 2 Testing Laboratory..................................................................................................................................................3 1. 3 Details of Applicant................................................................................................................................................3 1. 4 Application Details..................................................................................................................................................3 1. 5 Test Item.................................................................................................................................................................3 1. 6 Test Standards.........................................................................................................................................................3 2. Technical Test...............................................................................................................................................................4 2. 1 Summary of Test Results.........................................................................................................................................4 2. 2 Antenna Requirement..............................................................................................................................................4 3. EUT Modifications.......................................................................................................................................................4 4. Conducted Power Line Test.........................................................................................................................................5 4. 1 Test Equipment.......................................................................................................................................................5 4. 2 Test Procedure........................................................................................................................................................5 4. 3 Test Setup...............................................................................................................................................................5 4. 4 Configuration of The EUT.......................................................................................................................................6 4. 5 EUT Operating Condition........................................................................................................................................7 4. 6 Conducted Power Line Emission Limits..................................................................................................................7 4. 7 Conducted Power Line Test Result...........................................................................................................................7 5. Radiated Emission Test................................................................................................................................................8 5. 1 Test Equipment.......................................................................................................................................................8 5. 2 Test Procedure........................................................................................................................................................8 5. 3 Radiated Test Setup.................................................................................................................................................8 5. 4 Configuration of The EUT.....................................................................................................................................10 5. 5 EUT Operating Condition......................................................................................................................................10 5. 6 Radiated Emission Limit.......................................................................................................................................10 5. 7 Radiated Emission Test Result...............................................................................................................................11 6. Band Edge..................................................................................................................................................................12 6. 1 Test Equipment.........................................................................................................................…
