PP2S100Bluetooth Multi-Style Headset

5606-02600-222 It is forbidden to reproduce any part of this quick start guide without the permission of Rapoo Technology Co., Ltd. 製造商：深圳雷柏科技股份有限公司 地址：深圳市坪山新區錦繡東路22號 公司電話：4008 887 778 S100 Schnellstartanleitung Guide de démarrage rapide Quick Start Guide Bluetooth Multi-Style Headset Bluetooth Multi-Style-Headset Casque Multi-Style Bluetooth To turn on, press and hold the power button; To turn off, press and hold the power button. Volume up Built-in microphone Volume down Power button Turn on/off / Volume & Microphone Turn on/offPair and connect Voice callPlay/Pause 1. Press and hold the power button until the blue LED blinks quickly when the headset is off. 2. Activate the Bluetooth feature on your device, and scan and search for the headset. The blue LED will blink once every 3s when Bluetooth is disconnected. The blue LED will blink rapidly when pairing. The blue LED will blink once every 5s when Bluetooth is connected successfully. The red LED will be on when charging. The blue LED will be on when fully charged. Indicator / Charging / Pair and connect The red LED blinks when the battery is low, please charge the device. 3. Select "Rapoo S100". 4. The blue LED will blink once every 5s when Bluetooth is connected successfully. Note: 1. The Bluetooth headset will save connected device information automatically, you don’ t have to pair it again. 2. Some devices need a password when connecting, please enter "0000". Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. IC RSS warning This device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC Radiation Exposure Statement: This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

QA-FR-170-B FCC Authorization Date: 2014-8-5 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Rapoo Technology Co., Ltd. , the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Charles Tsou Director of Research and Development Centre Tel: +86-0755-28588666 Add: 22,Jinxiu Road East,Pingshan District,Shenzhen,China Shenzhen Rapoo Technology Co., Ltd. Add: 22, Jinxiu Road East, Pingshan District, Shenzhen, China Tel: +86-0755-28588666 Fax: +86-0755-28588555

Shenzhen Rapoo Technology Co., Ltd. Add: 22, Jinxiu Road East, Pingshan District, Shenzhen, China Tel: +86-0755-28588666 Fax: +86-0755-28588555 FCC Confidential Authorization Date: 2014-8-5 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: PP2S100 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ƒ Detailed Circuit Schematics of EUT--- (Long term) ƒ Block Diagram--- (Long term) ƒ Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Charles Tsou Director of Research and Development Centre

Shenzhen Rapoo Technology Co., Ltd. Add: 22, Jinxiu Road East, Pingshan District, Shenzhen, China Tel: +86-0755-28588666 Fax: +86-0755-28588555 Date: 2014-08-05 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 Dear Sir/Madam, Product name: Bluetooth Multi-Style Headset, Model number: S100 The Bluetooth chipset CSR8635 which support BT3.0 and BLE, the BLE function has been shielded by the manufacturer using specific software. Sincerely, Signature: Charles Tsou Director of Research and Development Centre

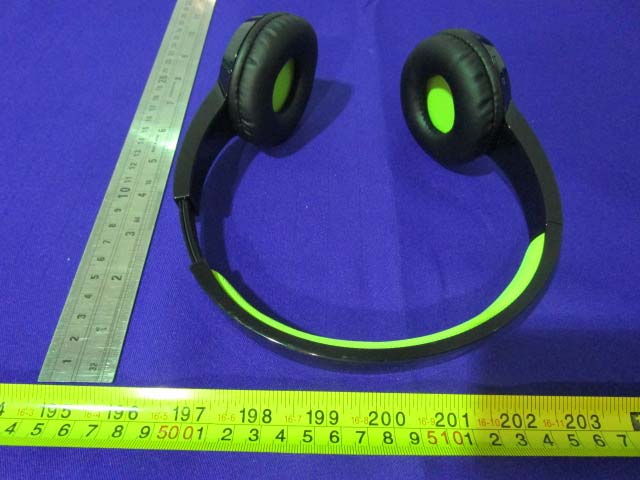

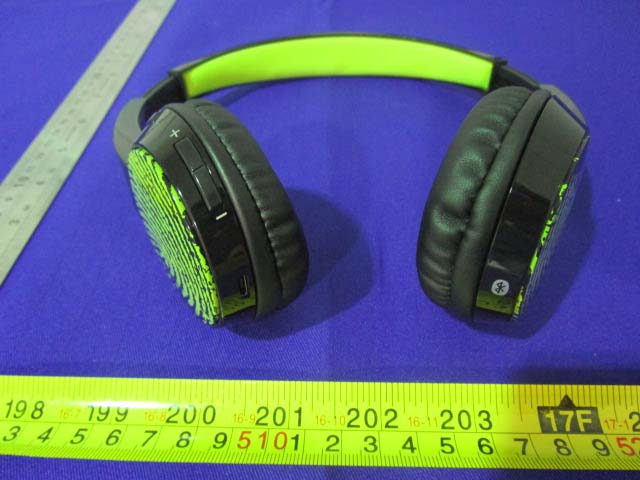

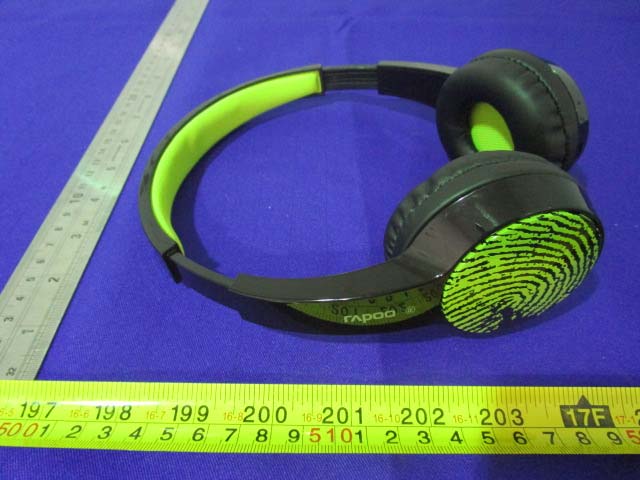

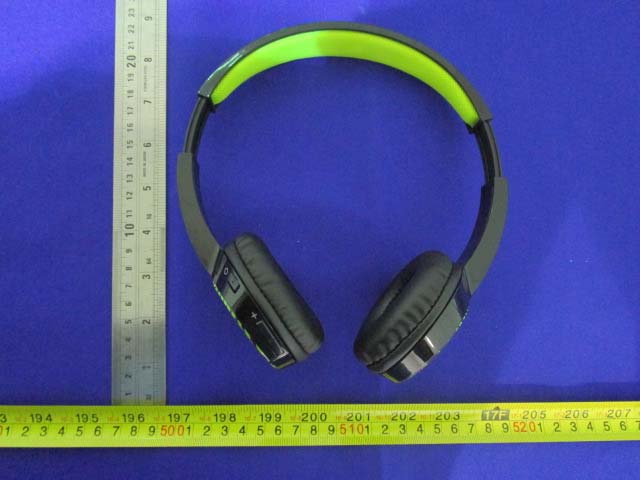

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View EUT – Side View EUT – Side View EUT – Side View EUT – Side View EUT – USB Port View EUT – Button View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View 1 EUT –Uncover View 2 EUT – Main Board Top View EUT –Main Board Bottom View EUT –RF Chip View EUT – Battery View Antenna
