PPB-FB929Pedometer

Fitbug FB929 User Manual EN Introduction Thank you for selecting the Fitbug FB929 pedometer. The FB929 pedometer is a sensor-type that can detect steps in any dimension it is carried. It comes equipped with internal clock, 14-day memory, step counter, distance counter and calorie counter functions, which are all displayed on the screen of a compatible Bluetooth Smart device. Control Buttons 1. SET: The Setup button found on the front of the FB929 is used to pair the pedometer with a compatible Bluetooth Smart device. Getting Started Activate Pedometer (First-time use only) Once you have inserted the battery, hold the button on the front of the Orb for five seconds. An orange light indicates that the Orb is working. Pair your Orb with your Fitbug account via the Fitbug app, which you can download from iTunes Please see https://www.fitbug.com/setup/orb for more setup details. Carrying the Pedometer The FB929 pedometer can be carried on the waist, worn on the wrist, around the neck, discreetly attached to your underwear using a clip, in a pocket/handbag by using the various accessories available. Set time and user data To effectively use the pedometer for calculating calories burned (based on step count and user body weight) and distance walked (based on step count and length of user’s stride), you are advised to set your user data in the Setting Mode of the app. Refer to https://www.fitbug.com/setup/orb for more details. Battery replacement The pedometer uses a CR2032 3V battery, which you need to install prior to use. Insert into the back of the FB929, replace the lid and twist back into place using a small coin. A red light flashing three times after you have pressed the button to start a mode indicates battery power is low. A low battery is also indicated on the app in the Device Setup tab. To replace battery: 1. Use a small coin to remove the battery compartment lid at the back of the pedometer. 2. Remove the old battery and insert the new one, matching the polarities. 3. Replace the lid by twisting it back into place using a small coin. NOTE: When the battery compartment is opened or battery is replaced, that day’s steps and all the setting mode data in the pedometer will be reset. The device will not have to be paired again but all the setting modes e.g. date, time, stride length will have to be reset within the Fitbug app. Operation modes The FB929 has 3 modes of operation. The Main Mode is displayed on the front page of the app. The current step count and time are displayed on the app. To enter other modes, select the Settings tab on the Fitbug app. Main Mode Once data has been sent from the FB929, in the Main Mode you can: View the time and step count, calories burned, distance walked and walking speed. To view the current total steps, aerobic steps, total time, aerobic time, calories burned and distance walked, swipe between the two screens in the Today tab. Setting Mode In the Setting Mode - Device Setup on the app – you can set the stride length, weight, stride extender ON/OFF, beaconing ON/OFF, beaconing interval. Refer to https://www.fitbug.com/setup/orb for more information on how to pair and setup the FB929. REMARK When the stride extender is turned on the device will adjust your stride length according to your steps per minute rate. When beaconing is turned on the device will attempt to transmit step data to a receiving station within range. You can set how often the device will do this on the Fitbug app. Memory Mode The Memory Mode is displayed on the Fitbug app. You can send up to 14-days of steps and calories burned to Fitbug app. Tap on the History tab of the Fitbug app to view all your aerobic steps and total steps. To reset records: You cannot reset the records manually. The pedometer is designed to automatically reset the records. Data Transfer To help users keep track of the results, all the measurements recorded by the FB929 are uploaded to the Fitbug app and network for viewing and analysis. There are three ways to send data from the FB929: On-demand Mode Click the button once so the light goes green, which indicates the data has been pushed to the app. The light will switch off once all the data has been sent. Stream Mode Click the button twice and the green light will blink every five seconds to indicate that the steps are being streamed in real-time to the Fitbug app. Beacon Mode Sends steps to your app at regular intervals (every 15, 30, 45 minutes). Select Beacon Mode on the Device Setup page after choosing the Orb from the paired devices list on Devices page. Sleep Mode Click three times on the button, the green light will blink every second for five seconds to indicate sleep mode is on. Please use inserted into the wristband and wear on your wrist. Turn Sleep Mode off when you wake up by pushing the button and holding until the green light blinks every second for five seconds. Note: Sleep Mode will turn off automatically once it has registered that you have walked 50 steps. Refer to https://www.fitbug.com/setup/orb for more information. Important There is a 14-day limit for memory. To prevent records being erased before being uploaded to the network, users are reminded to send data every few days. Specifications Real time clock 12 / 24 format with hour/minute Step measurement range 0 – 99,999 steps Distance measurement range 0 – 999.99 km / miles User adjustable stride length 28 – 152 cm (11 – 60 inches) Calorie measurement range 0 – 99,999 kcal Body weight range 29 – 250 kg (64 – 553 pounds) Power 1 x CR2032 3V battery Operating temperature -10C to 40C (14 F to 104F) Storage temperature -20C to 60C (-4F to 140F) Precautions To ensure you use your product correctly and safely, read these warnings before using the product: Use a soft, slightly moistened cloth to clean. Do not use abrasive or corrosive cleaning agents, as these may cause damage. Use lukewarm water and mild soap to clean the device. The FB929 is splash-proof but do not use the product in hot …

Text truncated - open the document above for the full version.

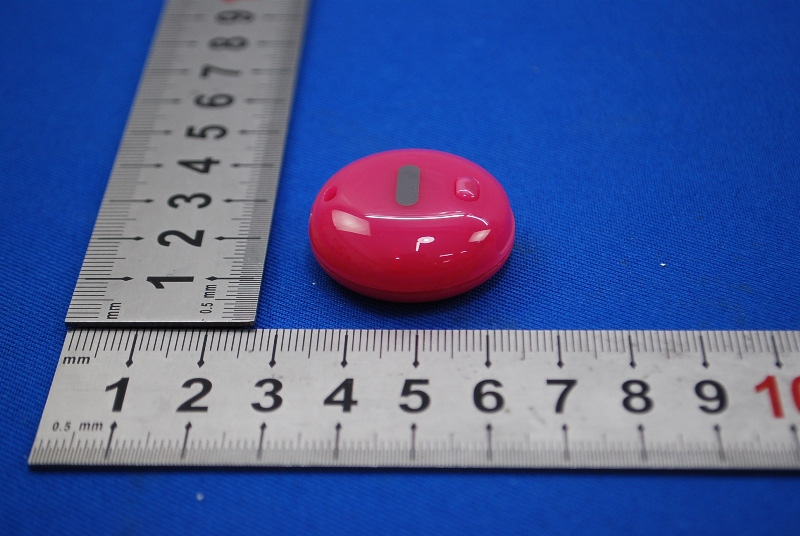

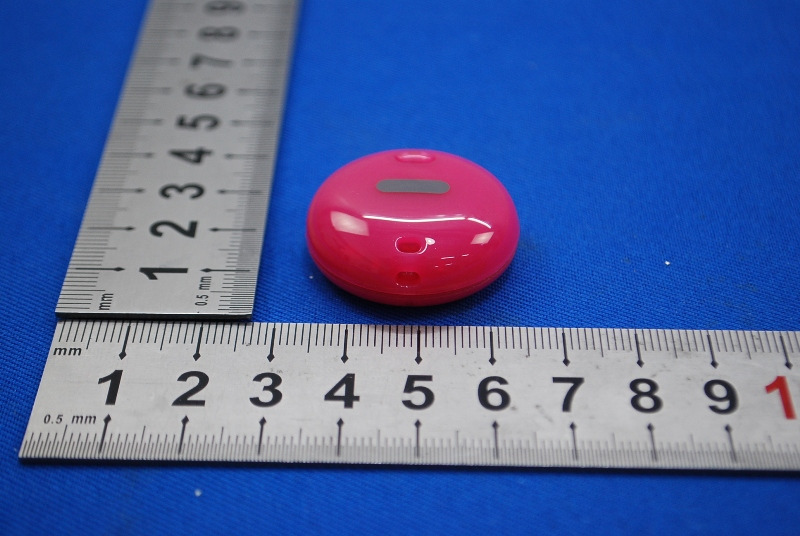

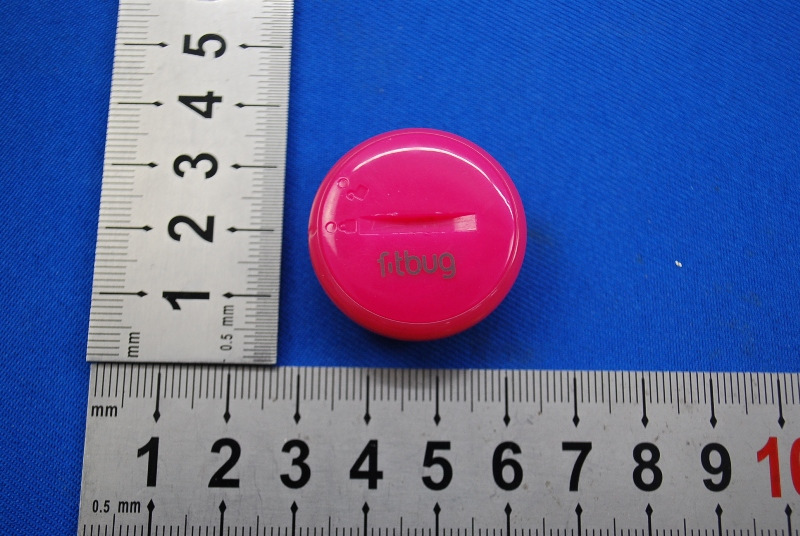

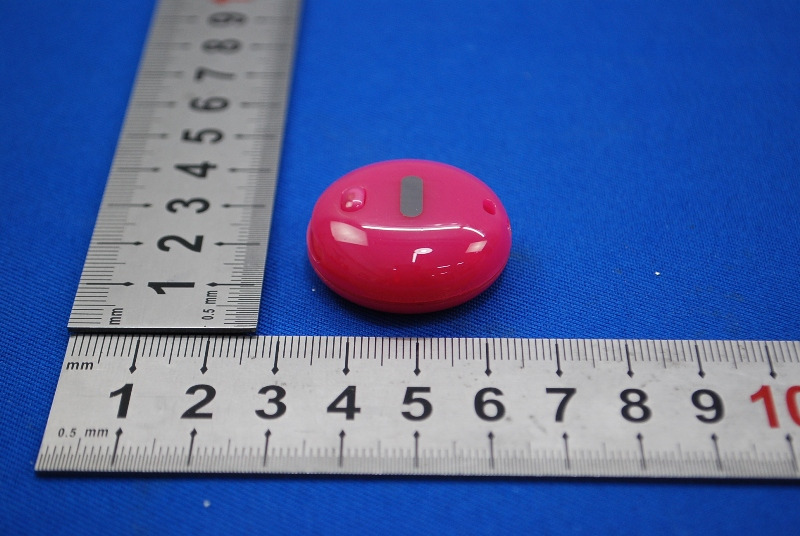

1 Photographs - EUT Constructional Details (Test Model No.: FB929)

PE938 1.0 Mark Yuan 2013-4-26 REMARKS: -Inj. Color: translucent black (refer sample) -Finishing: high glossy FRONT CAB: FRONT KEY: Engraved icon Silkscreen color: BLACK VERSION REAR CAB & BATTERY DOOR: -PMS Rubine Red C -Apply UV coating -Inj. Color: black -Finishing: high glossy -Apply UV coating -Artwork should under UV coating Silkscreen color: -PMS 431C -Artwork should under UV coating All visible part: Finishing:glossy PE938 1.0 Mark Yuan 2013-4-26 REMARKS: -Inj. Color: -Finishing: high glossy FRONT CAB: FRONT KEY: Engraved icon Silkscreen color: PINK VERSION REAR CAB & BATTERY DOOR: -PMS 431C -Apply UV coating -Inj. Color: -Finishing: high glossy -Apply UV coating -Artwork should under UV coating Silkscreen color: -PMS 431C -Artwork should under UV coating All visible part: Finishing:glossy Translucent PMS Rubine Red C PMS Rubine Red C PE938 1.0 Mark Yuan 2013-4-26 REMARKS: -Inj. Color: translucent white -Finishing: high glossy FRONT CAB: FRONT KEY: Engraved icon Silkscreen color: WHITE VERSION REAR CAB & BATTERY DOOR: -PMS Rubine Red C -Apply UV coating -Inj. Color: white -Finishing: high glossy -Apply UV coating -Artwork should under UV coating Silkscreen color: -PMS 427C -Artwork should under UV coating All visible part: Finishing:glossy

1 Photographs - EUT Constructional Details (Test Model No.: FB929)

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130600296201 Page: 1 of 41 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1306002962RF Applicant: Fitbug Limited Manufacturer: IDT Technology Limited Factory: IDT Technology Limited Product Name: Pedometer Model No.(EUT): FB929 FCC ID: PPB-FB929 Standards: 47 CFR Part 15, Subpart C (2012) Date of Receipt: 2013-06-08 Date of Test: 2013-06-14 to 2013-07-05 Date of Issue: 2013-08-01 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130600296201 Page: 2 of 41 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 2009 PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(3) KDB558074 D01 PASS 6dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(2) KDB558074 D01 PASS Power Spectral Density 47 CFR Part 15, Subpart C Section 15.247 (e) KDB558074 D01 PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS Radiated Spurious Emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130600296201 Page: 3 of 41 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights an…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130600296202 Page: 1 of 5 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page SAR Evaluation Report Application No.: SZEM1306002962RF Applicant: Fitbug Limited Manufacturer: IDT Technology Limited Factory: IDT Technology Limited Product Name: Pedometer Model No.(EUT): FB929 FCC ID: PPB-FB929 Standards: 47 CFR Part 1.1307(2012) 47 CFR Part 2.1093 (2012) KDB447498D01 General RF Exposure Guidance v05 Date of Receipt: 2013-06-08 Date of Test: 2013-06-14 to 2013-07-05 Date of Issue: 2013-08-01 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130600296202 Page: 2 of 5 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE ..................................................................................................................................................... 1 2 CONTENTS ......................................................................................................................................................... 2 3 GENERAL INFORMATION ................................................................................................................................ 3 3.1 CLIENT INFORMATION ......................................................................................................................................... 3 3.2 GENERAL DESCRIPTION OF EUT .......................................................................................................................... 3 3.3 TEST LOCATION .................................................................................................................................................. 4 3.4 TEST FACILITY.................................................................................................................................................... 4 3.5 DEVIATION FROM STANDARDS ............................................................................................................................. 4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................................... 4 3.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER .......................................................................................... 4 4 SAR EVALUATION .................................................................................................................…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup(Test Model No.: FB929) 1.1 Radiated Emission 1.2 Radiated Spurious Emission
