PPIRM-884GSM/WCDMA cellular phone w/BT and WLAN

Nokia Asha 302 User Guide 5555555 Issue 1 CyanCyanMagentaMagentaYellowYellowBlackBlack Contents Safety4 Get started5 Keys and parts5 Write with the keyboard6 Messaging key7 Insert the SIM card and battery7 Insert a memory card8 Charge the battery9 Switch the phone on or off10 Antenna locations10 Attach a strap11 Basic use11 Access codes11 Lock the keys12 Indicators12 Copy contacts and other stuff from your old phone13 Change the volume of a call, song, or video13 Use your phone without a SIM card14 Calls14 Make a call14 Call the last dialled number14 View your missed calls14 Contacts14 Save a name and phone number14 Use speed dial15 Write text15 Write using the keyboard15 Predictive text input16 Messaging17 Send a message17 Listen to voice messages17 Personalise your phone18 About the home screen18 Add shortcuts to your home screen18 Personalise your home screen18 Personalise your phone tones19 Time management19 Change the time and date19 Alarm clock19 Add an appointment20 Connectivity 20 Bluetooth20 USB data cable21 Connect to a WLAN22 Music and audio23 FM radio23 Media player25 Camera26 Take a picture26 Record a video26 Send a picture or video27 Browse the web27 About the web browser27 Browse the web28 Clear your browsing history28 Keep in touch with your online friends28 About Social28 Mail and chat29 About Mail29 Send a mail29 Read and reply to mail29 About Chat29 Chat with your friends30 Nokia Services30 2Contents 2www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Availability and costs of Nokia Services30 Access Nokia Services30 Phone management30 Update phone software using your phone30 Update phone software using your PC 31 Restore original settings32 Back up your pictures and other content to a memory card32 Support32 Product and safety information33 Index40 Contents3 www.nokia.com/support3 CyanCyanMagentaMagentaYellowYellowBlackBlack Safety We invite you to read the instructions on this guide before using the device. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. KEEP YOUR DEVICE DRY Your device is not water-resistant. Keep it dry. PROTECT YOUR HEARING Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use. 4Safety 4www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Get started Keys and parts 1Charger connector 2Headset connector/Nokia AV connector (3.5 mm) 3Micro-USB connector 4Earpiece 5Screen 6Selection key 7Social key 8Call key 9Bluetooth key. Press and hold to access the Bluetooth settings. 10WLAN key. Press and hold to access the WLAN settings. 11Navi™ key (scroll key) 12Selection key 13Messaging key 14End/Power key 15Keyboard Get started5 www.nokia.com/support5 CyanCyanMagentaMagentaYellowYellowBlackBlack 1Camera lens. Before using the camera, remove the protective tape from the lens. 2Wrist strap hole 3Loudspeaker 4Memory card slot 5Back cover release latch Write with the keyboard Your phone has a full keyboard. 1 Function key. To insert special characters printed at the top of keys, press the function key, and then press the corresponding key. To enter several special characters in a row, press the function key twice. To return to normal mode, press the function key. 2 Shift key. To switch between the upper and lower case modes, press the shift key twice. To enter a single upper case letter in lower case mode, or a single lower 6Get started 6www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack case letter in upper case mode, press the shift key, and then press the desired alphabet key. 3 Car key. To insert special characters not shown on the keyboard, press the car key, and select the desired character. 4 Backspace key. To delete a character, press the backspace key. To delete several characters, press and hold the backspace key. 5 Enter key. To move the cursor to the next row or text input field, press the enter key. Additional functions are based on the current context. 6 Ctrl key. To copy, cut, or paste selected text, while pressing and holding the ctrl key, press C, X, or V. To select all the text, while pressing and holding the ctrl key, press A. Insert a variation of a letter You can insert, for example, letters with accents. To insert á, press and hold the car key, and then press A repeatedly, until the desired letter is displayed. The order and availability of letters depends on the selected writing language. Messaging key To quickly write a mail or message, view your inbox, or start chatting, on the home screen, press the messaging key . Set what happens when you press the key Select Menu > Settings and My shortcuts > Messaging key, and select an option. Insert the SIM card and battery Important: This device is designed to be used with a standard SIM card (see figure) only. Use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card. Please consult your mobile operator for the use of a SIM card that has a mini-UICC cutout. This phone is intended for use with a BL-5J battery. Always use original Nokia batteries. 1Pull the back cover release latch toward the bottom of the phone, and remove the cover. Get started7 www.nokia.com/support7 CyanCyanMagentaMagentaYellowYellowBlackBlack 2If the battery is inserted, lift it out. 3Slide the SIM card holder to unlock it (1), and use your fingernail to lift it. Make sure the contact area would face d…

Text truncated - open the document above for the full version.

NOKIA GmbH Yrttipellontie 6F FIN-90230 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 58020 July 23, 2012 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: PPIRM-813 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA GmbH Jorma Hanni Product Certification Officer CTO/PCC, Oulu

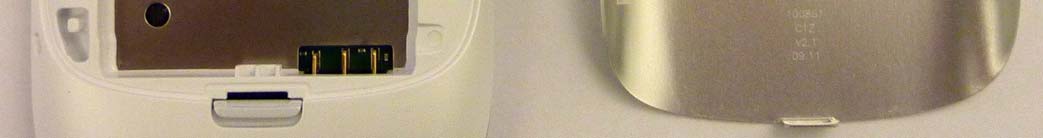

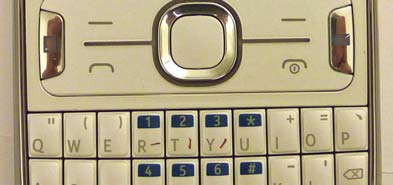

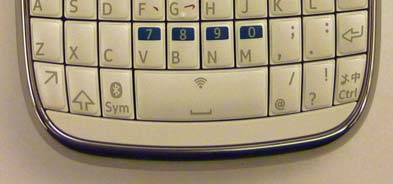

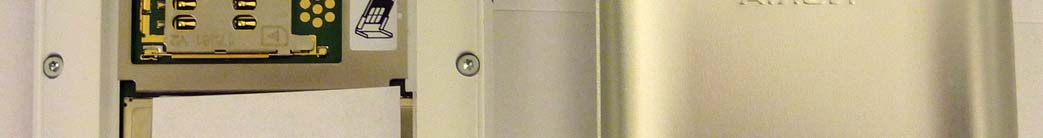

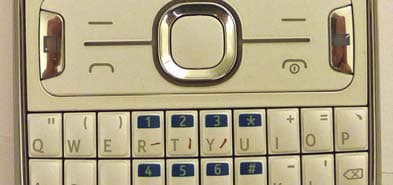

30-May-2012 External photographs FCC ID: PPIRM-884 Exhibit 3 Applicant: Nokia Corporation Copyright © 2012 Nokia. All rights reserved. 1. EXTERNAL PHOTOGRAPHS 1.1 Front and back 30-May-2012 External photographs FCC ID: PPIRM-884 Exhibit 3 Applicant: Nokia Corporation Copyright © 2012 Nokia. All rights reserved. 1.1 Disassembled 30-May-2012 External photographs FCC ID: PPIRM-884 Exhibit 3 Applicant: Nokia Corporation Copyright © 2012 Nokia. All rights reserved. 1.2 External interfaces

Confidential 26-Jun-12 1(1) Copyright  2012 Nokia. All rights reserved Label for PPIRM-884 LABEL LOCATION FOR PPIRM-884

08-June-2012 Internal photographs FCC ID: PPIRM-884 Exhibit 9 Applicant: Nokia Corporation Copyright © 2012 Nokia. All rights reserved. 1. INTERNAL PHOTOGRAPHS 1.1 Pwb back 08-June-2012 Internal photographs FCC ID: PPIRM-884 Exhibit 9 Applicant: Nokia Corporation Copyright © 2012 Nokia. All rights reserved. 1.2 Pwb front BT Antenna Cellular Antenna

Nokia ____________________________________________________________________________ SAR Report FCC_RM-884_01 Applicant: Nokia Corporation Type: RM-884 Copyright  2012 TCC Nokia 1/116 SAR Compliance Test Rep SAR Compliance Test RepSAR Compliance Test Rep SAR Compliance Test Repo oo ort rtrt rt Test report no.: Test report no.:Test report no.: Test report no.: FCC_RM-884_01 Date of report: Date of report:Date of report: Date of report: 2012-07-20 Template version: Template version:Template version: Template version: 19.2 Number of pages: Number of pages:Number of pages: Number of pages: 116 Testing laboratory: Testing laboratory:Testing laboratory: Testing laboratory: TCC Nokia Ulm Laboratory Lise-Meitner-Str. 10 89081 Ulm Germany Tel. +49 731 1754 0 Fax. +49 731 1754 6800 Client: Client:Client: Client: Nokia Corporation Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 Responsible test Responsible test Responsible test Responsible test engineer: engineer:engineer: engineer: Leif Funch Klysner Product contact Product contact Product contact Product contact person: person:person: person: Tobias Cremer Measurements made by: Measurements made by:Measurements made by: Measurements made by: Daniel Albrecht Tested device: Tested device:Tested device: Tested device: RM-884 FCC ID: FCC ID:FCC ID: FCC ID: PPIRM-884 IC: IC:IC: IC: - Supplement reports: Supplement reports:Supplement reports: Supplement reports: FCC_RM-813_04 for RM-813 Testing has been carried Testing has been carried Testing has been carried Testing has been carried out in accordance with: out in accordance with:out in accordance with: out in accordance with: 47CFR 47CFR 47CFR 47CFR §2.1093 §2.1093§2.1093 §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97 FCC OET Bulletin 65 (Edition 97FCC OET Bulletin 65 (Edition 97 FCC OET Bulletin 65 (Edition 97- -- -01), Supplement C (Edition 01 01), Supplement C (Edition 0101), Supplement C (Edition 01 01), Supplement C (Edition 01- -- -01) 01)01) 01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS RSSRSS RSS- -- -102 102102 102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 IEEE 1528 IEEE 1528 IEEE 1528 - -- - 2003 20032003 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: Documentation:Documentation: Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: Test results:Test results: Test results: The tested device complies with the requirements in respect of all parameters subject to the The tested device complies with the requirements in respect of all parameters subject to the The tested device complies with the requirements in respect of all parameters subject to the The tested device complies with the requirements in respect of all parameters subject to the test. test. test. test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: Date and signatures:Date and signatures: Date and signatures: For the contents:










____________________________________________________________________________










  !
<3
$ $$ $ - 4
<

3
- 4
<

3
- 4
<

3
- 4
<

3
36<  36<  36<  36<



$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$$ $$$$$$$$$



   $ 3
%38.
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
 $$ +  "

7 #
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
 $ E8-
3-.
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
 $$ A 7
&+
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
( $$ =7
C
&+
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
! $$1 +""

7
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
' $$ 2"+"
% &
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
' $$(  #+ "
-
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
' $ $$ $ %3 868<
<
A3
% %3 868<
<
A3
%%3 868<
<
A3
% %3 868<
<
A3
%3F83
-%3
3 3F83
-%3
33F83
-%3
3 3F83
-%3
3



$$$$$$$$$$$$$$$$$$$$$$$$…

Text truncated - open the document above for the full version.

FCC Part 22 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_09.docx Copyright © TCC Nokia 1 (9) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 22/24 Compliance Test Report Test Report no.: FCC22&24_RM-884_09.docx Date of Report: 26-Jun-2012 Number of pages: 9 Customer’s Contact person: Tobias Cremer Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia Corporation Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: Phone RM-884 / Battery BL-5J / AC charger AC-11E / Headset WH-102 FCC ID: PPIRM-884 IC: - Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-C-2004 and IC standards RSS-GEN (Issue 2, June 2007), RSS-132 (Issue 2, September 2005) and RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Kalle Hannila, Engineer, EMC & SAR FCC Part 22 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_09.docx Copyright © TCC Nokia 2 (9) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 22 Compliance Test Report Date of receipt 03-Oct-2011 Testing completed 01-Nov-2011 The customer's contact person Ramelli Bruno Test Plan referred to T:\Projects\RM-813\TestPlan\RS_testplan_RM-813.xls Notes - Document name T:\Projects\RM-813\EMC\FCC22&24_RM-813_01.docx 1.1. EUT and Accessory Information The EUT is a 8-band mobile phone: GSM850/900/1800/1900/GPRS/EGPRS/ WCDMA I/II(1900)/V(850)/VIII/WLAN/Bluetooth The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SNHWMVSW DUT Phone RM-813 004402136622101 0150 - jc13.32 42686 Battery BL-5J 4175351253D10101414;0670573 - - - 42688 AC charger AC-11E 4090491212970501626;0675479 - - - 42689 Headset WH-102 06943231163V4121358 - - - 42690 1.2. Summary of Test Results GSM850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth NP §22.917(a) 4.5 Band edge compliance NP §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.3 Frequency stability, voltage variation NP GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the testResult §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth NP §24.238(a) 6.5 Band edge compliance NP §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation NP §2.1055(d) 6.3 Frequency stability, voltage variation NP FCC Part 22 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_09.docx Copyright © TCC Nokia 3 (9) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 WCDMA 850 (Band V): Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the testResult §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth NP §22.917(a) 4.5 Band edge compliance NP §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.3 Frequency stability, voltage variation NP WCDMA 1900 (Band II): Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the testResult §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth NP §24.238(a) 6.5 Band edge compliance NP §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation NP §2.1055(d) 6.3 Frequency stability, voltage variation NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. The test results of PPIRM-813 are re-used for certification of the PPIRM-884. The table above indicates the results, which will be re-used. FCC Part 22 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_09.docx Copyright © TCC Nokia 4 (9) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 22 Compliance Test Report .................................................. 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ...................................................................................................…

Text truncated - open the document above for the full version.

FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_10.docx Copyright © TCC Nokia 1 (7) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 22/24 Compliance Test Report Test Report no.: FCC22&24_RM-884_10.docx Date of Report: 26-Jun-2012 Number of pages: 7 Customer’s Contact person: Tobias Cremer Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia Corporation Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: Phone RM-884 / Dummy Battery SF-274T FCC ID: PPIRM-884 IC: - Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-C-2004 and IC standards RSS-GEN (Issue 2, June 2007), RSS-132 (Issue 2, September 2005) and RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Kalle Hannila, Engineer, EMC & SAR FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_10.docx Copyright © TCC Nokia 2 (7) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 03-Oct-2011 Testing completed 04-Oct-2011 The customer's contact person Tobias Cremer Test Plan referred to T:\Projects\RM-813\TestPlan\RS_testplan_RM-813.xls Notes - Document name FCC22&24_RM-813_04.docx 1.1. EUT and Accessory Information The EUT is a 8-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/V(850)/VIII) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-813 004402136622077 0150 - jc13.32 42687 Dummy battery SF-274T 22.06.2011/03618 V.1 287 - - 42692 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the testResult §2.1046(a), 22.913(a) 4.4 Conducted RF output power - §22.913(a) 4.4 Radiated RF output power - §2.1049(h) 4.6.1 99 % occupied bandwidth - §22.917(a) 4.5 Band edge compliance - §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals - §22.917(a), §2.1053 4.5 Spurious radiated emissions - §2.1055(a) 4.3 Frequency stability, temperature variation - §2.1055(d) 4.3 Frequency stability, voltage variation PASSED GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the testResult §2.1046(a) 6.4 Conducted RF output power - §24.232(b) 6.4 Radiated RF output power - §2.1049(h) 4.6.1 99 % occupied bandwidth - §24.238(a) 6.5 Band edge compliance - §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals - §24.238(a), §2.1053 6.5 Spurious radiated emissions - §2.1055(a) 6.3 Frequency stability, temperature variation - §2.1055(d) 6.3 Frequency stability, voltage variation PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. The test results of PPIRM-813 are re-used for certification of the PPIRM-884. The table above indicates the results, which will be re-used. FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_10.docx Copyright © TCC Nokia 3 (7) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ............................................. 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 3. Frequency stability, voltage variation (FCC §2.1055(d), RSS-132 4.3, RSS-133 6.3) ..................................................................... 4 3.1. Test setup ............................................................................................................................... 4 3.2. Test method and limit .............................................................................................................. 4 3.3. GSM 850 Test results ............................................................................................................. 5 3.4. GSM 1900 Test results ........................................................................................................... 5 Test Equipment .................................................................................................................................. 6 3.5. Conducted measurements ...................................................................................................... 6 3.6. Radiated measurements ......................................................................................................... 7 FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_10.docx Copyright © TCC Nokia 4 (7) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 71…

Text truncated - open the document above for the full version.

FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_11.docx Copyright © TCC Nokia 1 (13) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 22/24 Compliance Test Report Test Report no.: FCC22&24_RM-884_11.docx Date of Report: 26-Jun-2012 Number of pages: 13 Customer’s Contact person: Tobias Cremer Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia Corporation Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: PHONE RM-884 / Battery BL-5J / Charger AC-11E / Headset WH-102 FCC ID: PPIRM-884 IC: - Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-C-2004 and IC standards RSS-GEN (Issue 2, June 2007), RSS-132 (Issue 2, September 2005) and RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Kalle Hannila, Engineer, EMC & SAR FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_11.docx Copyright © TCC Nokia 2 (13) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 3-Oct-2011 Testing completed 7-Oct-2011 The customer's contact person Bruno Ramelli Test Plan referred to T:\Projects\RM-813\TestPlan\RS_testplan_RM-813.xls Notes - Document name FCC22&24_RM-813_05.docx 1.1. EUT and Accessory Information The EUT is a 8-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/V(850)/VIII) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-813 004402136622077 0150 - Jc13.32 42687 Battery BL-5J - - - - 42688 Charger AC-11E - - - - 42689 Headset WH-102 - - - - 42691 FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-884_11.docx Copyright © TCC Nokia 3 (13) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the testResult §2.1046(a), 22.913(a) 4.4 Conducted RF output power - §22.913(a) 4.4 Radiated RF output power - §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §22.917(a) 4.5 Band edge compliance - §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals - §22.917(a), §2.1053 4.5 Spurious radiated emissions - §2.1055(a) 4.3 Frequency stability, temperature variation PASSED §2.1055(d) 4.3 Frequency stability, voltage variation - GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the testResult §2.1046(a) 6.4 Conducted RF output power - §24.232(b) 6.4 Radiated RF output power - §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §24.238(a) 6.5 Band edge compliance - §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals - §24.238(a), §2.1053 6.5 Spurious radiated emissions -…
