PQB-RDN-P119Video Card

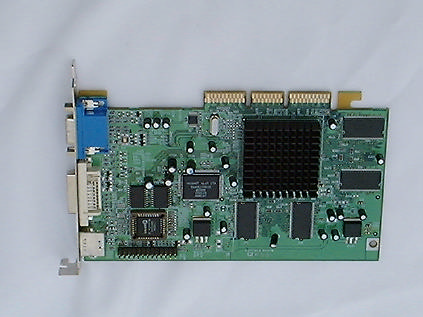

FCC ID: PQB-RDN-P119 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: PQB-RDN-P119 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Date: 2001-10-16 TEST REPORT Page 1 of 19 No.: HM106026 FCC PART 15 SUBPART B TEST REPORT TEST REPORT No.:HM106026 Equipment Under Test [EUT]:AGP VGA Card Model Number:RDN-119 Applicant:Althon Micro Inc. Date: 2001-10-16 TEST REPORT Page 2 of 19 No.: HM106026 CONTENT: Cover Page 1 of 19 Content Page 2-3 of 19 Conclusion Page 4 of 19 1.0General Details 1.1Test Laboratory Page 5 of 19 1.2Applicant Details Page 5 of 19 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 19 Description of EUT operation 1.4Date of Order Page 6 of 19 1.5Submitted Sample Page 6 of 19 1.6Test Duration Page 6 of 19 1.7Country of Origin Page 6 of 19 1.8 Additional Information of EUT Page 7 of 19 2.0Technical Details 2.1Investigations Requested Page 8 of 19 2.2Test Standards and Results Summary Page 8 of 19 3.0Test Results 3.1Emission Page 9-14 of 19 Date: 2001-10-16 TEST REPORT Page 3 of 19 No.: HM106026 Appendix A List of Measurement Equipment Page 15-16 of 19 Appendix B Ancillary Equipment Page 17-19 of 19 Appendix C Photographs Page 17-19 of 19 Date: 2001-10-16 TEST REPORT Page 4 of 19 No.: HM106026 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Managing Director Date: 2001-10-16 TEST REPORT Page 5 of 19 No.: HM106026 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant ALTHON MICRO INC. 280-290 S. Paseo Tesoro, Walnut, CA 91789 USA Telephone:909 594 3128 Fax:909 594 9771 HKSTC Code Number for ApplicantALM004 Manufacturer ALTHON MICRO INC. 280-290 S. Paseo Tesoro, Walnut, CA 91789 USA Telephone:909 594 3128 Fax:909 594 9771 Date: 2001-10-16 TEST REPORT Page 6 of 19 No.: HM106026 1.3Equipment Under Test [EUT] Description of Sample Product: AGP VGA Card Manufacturer:Althon Micro Inc. Brand Name: N/A Model Number:RDN-119 Input Voltage:The product was drawing power from the signal port of the console. 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is an Althon Micro Inc., AGP VGA Card 1.4Date of Order 2001-10-05 1.5Submitted Sample(s): 1 sample per model 1.6Test Duration 2001-10-16 1.7Country of Origin China Date: 2001-10-16 TEST REPORT Page 7 of 19 No.: HM106026 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC DOC Label Date: 2001-10-16 TEST REPORT Page 8 of 19 No.: HM106026 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.109ANSI C63.4:2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.107ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2001-10-16 TEST REPORT Page 9 of 19 No.: HM106026 3.0Test Results 3.1Emission 3.1.1Radiated Emissions (30 – 1000MHz) Test Requirement:FCC 47CFR 15.109 Class B Test Method:ANSI C63.4:2000 Test Date:2001-10-16 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2001-10-16 TEST REPORT Page 10 of 19 No.: HM106026 Limited for Radiated Emissions [FCC 47 CFR 15.109 Class B]: Frequency RangeQuasi-Peak Limits [MHz][μV/m] 30-88100 88-216150 216-960200 Above960500 The emission limits shown in the above table are based on measurement employing a CISPR quasi- peak detector and above 1000MHz are based on measurements employing an average detector. Results: Radiated Emissions Quasi-Peak FrequencyLevel @3mLimit @3mMarginAntenna Polarity MHzdBμV/mdBμV/mdBμV/m 71.0821.140.0-18.9Horizontal 121.1926.343.5-17.2Horizontal 124.1332.243.5-11.3Horizontal 134.8432.343.5-11.2Horizontal 186.1825.343.5-18.2Horizontal 225.0033.546.0-12.5Horizontal 248.5034.746.0-11.3Horizontal 300.4034.346.0-11.7Horizontal 333.8031.946.0-14.1Horizontal 366.7033.346.0-12.7Horizontal 492.7033.546.0-12.5Horizontal 528.1033.646.0-12.4Horizontal ** For effective averaging, the bandwidth of the video filter must be smaller than the resolution bandwidth. The higher the ratio of resolution bandwidth to video bandwidth, the greater the averaging will be recorded. .Below setting for HP8572A EMI Receiver. Resolution Bandwidth =3MHz Video Bandwidth =1Hz Date: 2001-10-16 TEST REPORT Page 11 of 19 No.: HM106026 3.1.1Conducted Emissions (0.45MHz to 30MHz) Test Requirement:FCC 47CFR 15.107 Test Method:ANSI C63.4:2000 Test Date:2001-10-16 Mode of Operation:On mode Test Method: The test was performed in accordance with ANSI C63.4: 1992, with the following: an initial measurement was performed in peak and average detection mode on the live line. Any emissions recorded within 30dB of the relevant limit line we…

Text truncated - open the document above for the full version.

Marianne Bosley From:Marianne Bosley Sent:Monday, November 12, 2001 4:52 PM To:Marianne Bosley Subject:FW: New app for Althon (HKSTC) FCC ID:PQB-RDN-P119 MET#11495 #11495 checklist (JBP).doc -----Original Message----- From: Greg Czumak To: Marianne Bosley; Chris Harvey Sent: 11/12/2001 2:34 PM Subject: RE: New app for Althon (HKSTC) FCC ID:PQB-RDN-P119 MET#11495 Technical review complete, RT question below. Checklist attached. Gregory Rt Question: 1. Pursuant to Section 15.33 (b), unintentional radiators that contain a clock that operates between between 108 and 500 MHz, such as the EUT, must have their radiated emissions measured up to 2 GHz. The test report indicates that the radiated emissions were only measured up to 1 GHz. Please scan between 1 and 2 GHz, and submit any additional data. -----Original Message----- From: Marianne Bosley To: Greg Czumak Sent: 11/9/2001 2:30 PM Subject: New app for Althon (HKSTC) FCC ID:PQB-RDN-P119 MET#11495 Hi Greg, <<block.PDF>> <<P119spec-32mTVO.PDF>> <<In-photo.PDF>> <<circuit.PDF>> <<revised report.PDF>> <<user manual.PDF>> <<agreement.PDF>> Marianne T. Bosley EMC Administrator 410-354-3300, ext. 412 <<#11495 checklist (JBP).doc>>

FCC ID: PQB-RDN-P119 TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
