PQHCU100Single-Mode Cellular CDMA Phone

© 2001 PCTEST Lab ATTACHMENT M – USER’S MANUAL Langchao LG (YANTAI) Digital Mobile Technology R&D Co., Ltd May 7. 2001 1/24 CU100 User’s Manual For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure compliance requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure compliance requirements, and should be avoided. WARNING! Read this information before using your phone Langchao LG (YANTAI) Digital Mobile Technology R&D Co., Ltd May 7, 2001 1/24 Introduction Highlights Congratulations on your purchase of the “C100” cellular phone that been designed to operate with the latest digital mobile communication technology, code division multiple access (CDMA). - Large, easy-to-read, 5-line, backlight LCD with status icons. - Paging, Messaging, Voice mail and Caller ID capability. - 21-button keypad. - Long battery standby and talk times. - Menu-driven interface with prompts for easy operation and configuration. - auto redialing, one-touch and speed dialing with 200 memory locations. - Optional accessories. Chapter 1. Getting Started You have just purchased the “C100” cellular phone, and we are sure you must be anxious to call someone. Just a moment ! You will get much more enjoyment and use, if you take a moment to check the contents of this manual so that you can recognize and be familiar with the basic parts, functions of the buttons, and the LCD display screen. Do not connect the personal Handsfree kit to handsets because it causes unnecessary battery reduction. Phone Overview Lamp: The red light goes on when you use the power key to turn on the phone and when there are incoming calls and messages. END: When turning power on/off. This key disconnects a call. Using this key, you can also exit out of a menu back to the phone’s standby display without changing the setting. SEND: When making/receiving a call. Soft Key 1: Used to display the function setting menu. Soft Key 2: Used to search through the stored phone numbers and select the function. Up Navigation: When search a character/voice message and scroll through menu items vertically. Down Navigation: When search today schedules and scroll through menu items vertically. Langchao LG (YANTAI) Digital Mobile Technology R&D Co., Ltd May 7. 2001 2/24 Left Navigation(<) : Used to connect Internet service and scroll through menu items horizontally. Right Navigation(>) : Used to scroll through menu items horizontally. CLR: If you press this key once, you can erase one digit or character. If you press and hold this key, you can erase all digits. (When enter the phone number) If you press this key once in a menu, you can go back one level and if you press and hold the key in a menu, you can go back to the standby display. - In the standby status, set the manner mode by pressing the # button. (for 2 seconds) - In the standby status, set the lock function by pressing the * button. (for 2 seconds) Alphanumeric keypad: These keys enable you to enter numbers and characters and choose menu items. Battery Charge Level The battery charge level is shown at the top right of the LCD screen on the phone. When the battery charge level becomes low, the low battery sensor will alert you in three ways: Sounding an audible tone, blinking the battery icon outline, and displaying “LOW BATTERY WARNING”. After a short period of time, the power is automatically shut down to prevent any battery damage. Using the Desktop Charger The “C100” desktop charger has a slot for recharging batteries. The slot accommodates phone and battery pack for charging. Warning! Use only the desktop charger provided with the phone. Using the wrong charger may cause damage to your phone or battery. 1. Plug the charger into a wall outlet. ¢∫ The charger should operate on a 220V source. 2. Insert the phone with an installed battery pack or a battery pack into the charger’s slot. ¢∫ Fit the battery terminal and charger terminal properly. The lamp on the front of the charger should be red. If completely discharged, the battery will take about 3 hours to recharge. If you leave the phone on while it is in the desktop charger, the battery will take longer to charge. Langchao LG (YANTAI) Digital Mobile Technology R&D Co., Ltd May 7. 2001 3/24 Chapter 2. Basic Functions Making a Call Whenever you make a call, follow these simple steps: 1. Make sure the phone is turned on. ¢∫ If not, press [END] 2. Enter the phone number with area code, if needed. 3. Press [SND] ¢∫ If the phone is locked, enter the lock code and press [SND] 4. Press [END] to disconnect the call. Correcting Diali…

Text truncated - open the document above for the full version.

July 30, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics Co., Ltd. FCC ID: BEJCU100 Part 22 Certification Gentlemen: Attached herewith, on behalf of Langchao LG (YANTAI) Digital Mobile Technology is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Phone: FCC ID: PQHCU100 TRADE / MODEL(s): LGE CU100 EUT TYPE: Non-Broadcast transmitter Held to Ear (TNE) Tx Freq. Range: 824.70 — 848.31 MHz Rx Freq. Range: 869.70 — 893.31 MHz Max. RF Output Power: 0.287 W ERP (24.573 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Gi Sup Lee, Assistant Manager Langchao LG (YANTAI) Digital Mobile Technology

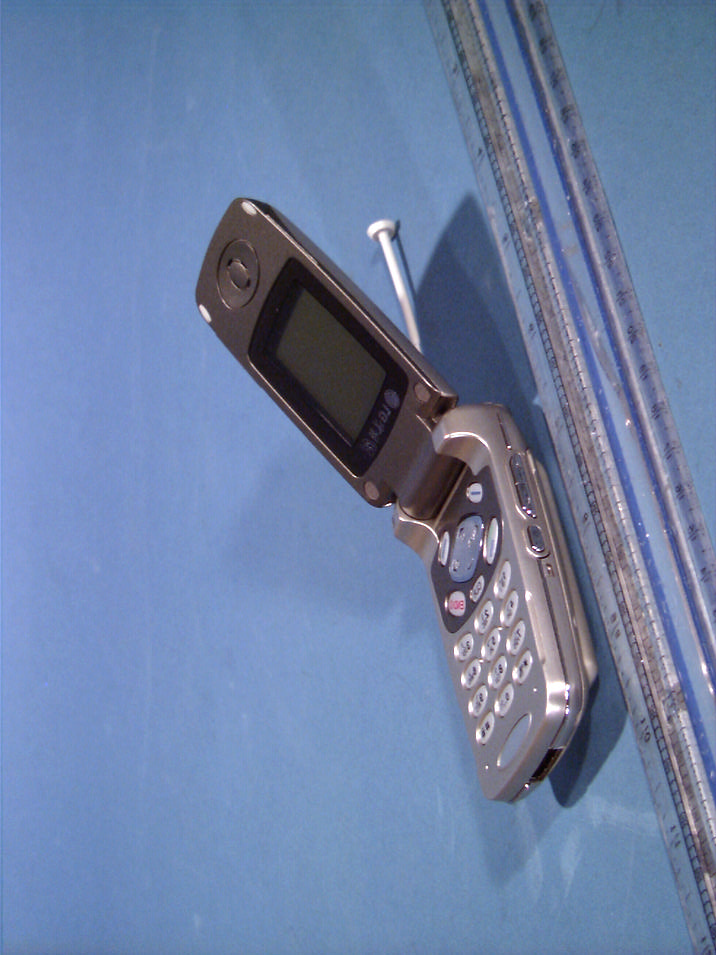

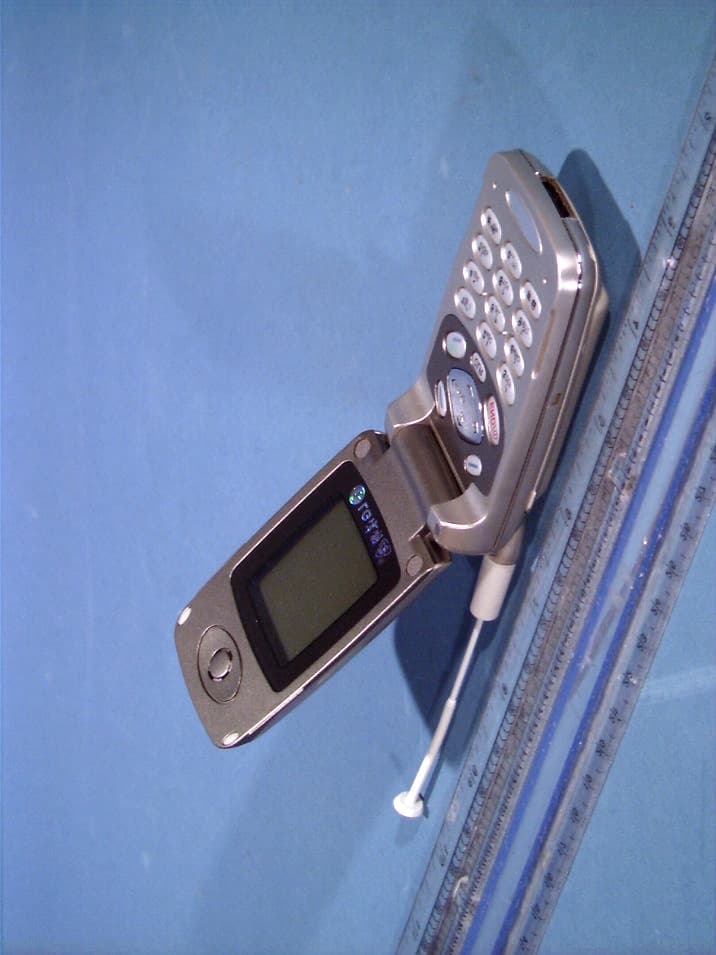

© 2001 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA)

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA)

© 2001 PCTEST Lab ATTACHMENT O – SAR TEST DATA Peak SAR Location © 2001 PCTEST Lab LGE FCC ID: BEJCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01052521_ZOOM.VLT Start : 25-May-101 02:33:43 pm End : 25-May-101 02:45:27 pm Radio Type : LGE Model Number : CU100 Serial Number : 1 Frequency : 824.70 MHz Peak Trans. Pwr : 0.225 W Start Trans. Pwr: 0.225 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : LGE SINGLE MODE PHONE - CDMA MODE CH 1013 Conducted 23.5 dBm LGE SINGLE MODE PHONE - HEAD SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.750, Y = -2.750, Z = 0.000 (cm) Value = 18.251 Measured Values (volts) = 1.802E-002 1.601E-002 1.437E-002 1.291E-002 1.182E-002 1.065E-002 9.603E-003 8.327E-003 7.171E-003 5.833E-003 4.735E-003 3.749E-003 3.041E-003 2.508E-003 2.319E-003 2.326E-003 2.483E-003 2.645E-003 2.713E-003 2.553E-003 2.089E-003 Calc. Voltage @ Surface (Vs) = 0.0202 Voltage @ 1.00 cm (Vt) = 0.0129 Ave. Voltage (Vs+Vt)/2 = 0.0165 Ave. SAR over 1 g (mW/g) = 1.2073 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01052521_ZOOM Start : 25-May-101 02:33:43 pm End : 25-May-101 02:45:27 pm LGE/CU100/1;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01052521_ZOOM Start : 25-May-101 02:33:43 pm End : 25-May-101 02:45:27 pm LGE/CU100/1;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.33 1.22 1.11 1.00 0.89 0.78 0.67 0.56 0.45 0.34 File : 01052521_ZOOM Start : 25-May-101 02:33:43 pm End : 25-May-101 02:45:27 pm LGE/CU100/1;848.31MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.33 1.22 1.11 1.00 0.89 0.78 0.67 0.56 0.45 0.34 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01052523_ZOOM.VLT Start : 25-May-101 02:52:59 pm End : 25-May-101 03:04:08 pm Radio Type : LGE Model Number : CU100 Serial Number : 1 Frequency : 824.70 MHz Peak Trans. Pwr : 0.225 W Start Trans. Pwr: 0.225 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : LGE SINGLE MODE PHONE - CDMA MODE CH 1013 Conducted 23.5 dBm LGE SINGLE MODE PHONE - HEAD SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 3.000, Y = -2.750, Z = 0.000 (cm) Value = 18.754 Measured Values (volts) = 1.859E-002 1.667E-002 1.496E-002 1.332E-002 1.211E-002 1.068E-002 9.505E-003 8.056E-003 6.770E-003 5.384E-003 4.362E-003 3.423E-003 2.837E-003 2.508E-003 2.379E-003 2.493E-003 2.603E-003 2.737E-003 2.717E-003 2.417E-003 1.753E-003 Calc. Voltage @ Surface (Vs) = 0.0207 Voltage @ 1.00 cm (Vt) = 0.0133 Ave. Voltage (Vs+Vt)/2 = 0.0170 Ave. SAR over 1 g (mW/g) = 1.2421 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01052523_ZOOM Start : 25-May-101 02:52:59 pm End : 25-May-101 03:04:08 pm LGE/CU100/1;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01052523_ZOOM Start : 25-May-101 02:52:59 pm End : 25-May-101 03:04:08 pm LGE/CU100/1;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.37 1.23 1.08 0.94 0.80 0.65 0.51 0.37 0.22 0.08 File : 01052523_ZOOM Start : 25-May-101 02:52:59 pm End : 25-May-101 03:04:08 pm LGE/CU100/1;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.37 1.23 1.08 0.94 0.80 0.65 0.51 0.37 0.22 0.08 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01052316_ZOOM.VLT Start : 23-May-101 05:26:22 pm End : 23-May-101 05:35:56 pm Radio Type : LGE Model Number : CU100 Serial Number : 1 Frequency : 835.89 MHz Peak Trans. Pwr : 0.225 W Start Trans. Pwr: 0.225 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : LGE SINGLE MODE PHONE - CDMA MODE CH 363 Conducted 23.5 dBm LGE SINGLE MODE PHONE - HEAD SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 3.250, Y = -2.750, Z = 0.000 (cm) Value = 17.156 Measured Values (volts) = 1.714E-002 1.467E-002 1.286E-002 1.140E-002 1.017E-002 9.102E-003 7.914E-003 6.715E-003 5.359E-003 4.180E-003 3.090E-003 2.195E-003 1.586E-003 1.145E-003 8.430E-004 7.656E-004 8.641E-004 9.796E-004 1.014E-003 9.230E-004 5.153E-004 Calc. Voltage @ Surface (Vs) = 0.0198 Voltage @ 1.00 cm (Vt) = 0.0114 Ave. Voltage (Vs+Vt)/2 = 0.0156 Ave. SAR over 1 g (mW/g) = 1.1380 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01052316_ZOOM Start : 23-May-101 05:26:22 pm End : 23-May-101 05:35:56 pm LGE/CU100/1;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01052316_ZOOM Start : 23-May-101 05:26:22 pm End : 23-May-101 05:35:56 pm LGE/CU100/1;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.25 1.14 1.02 0.91 0.80 0.68 0.57 0.45 0.34 0.22 File : 01052316_ZOOM Start : 23-May-101 05:26:22 pm End : 23-May-101 05:35:56 pm LGE/CU100/1;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.25 1.14 1.02 0.91 0.80 0.68 0.57 0.45 …

Text truncated - open the document above for the full version.

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Langchao LG (YANTAI) Digital Mobile Technology Dates of Tests: May 23-29, 2001 F4, Fu Xing Building, #57 Chang Jiang Road Test Report S/N: SAR.210509288.BEJ Yantai Economy & Technology Development Zone 264006, PRC Test Site: PCTEST Lab, Columbia, MD USA Attn: Gi Sup Lee, Assistant Manager FCC ID PQHCU100 APPLICANT Langchao LG (YANTAI) Digital Mobile Technology EUT Type: Single-Mode Cellular Phone (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.287W ERP CDMA (24.573 dBm) Trade Name/Model(s): LGE CU100 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3179 W/kg Brain SAR 1.2373 W/kg Body SAR 1.2815 W/kg Hand SAR (over 10 gms) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210509288.BEJ Test Report S/N: SAR.210509288.BEJ SAR Measurement Report Test Dates: MAY 23-29, 2001 FCC Part 22 Certification Table of Contents 1.1 SCOPE ........................................................................................................... 1 2.1 INTRODUCTION ............................................................................................ 2 3.1 SAR MEASUREMENT SET-UP ..................................................................... 3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM........................................................ 4 5.1 E-field PROBE CALIBRATION PROCESS ................................................... 5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................... 7 7.1 SYSTEM SPECIFICATIONS .......................................................................... 8 8.1 MEASUREMENT PROCESS ......................................................................... 9 9.1 TEST POSITION OF THE PHONE............................................................... 10 10.1 BODY-WORN TEST SETUP...................................................................... 11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ..................................... 12 12.1 MEASUREMENT UNCERTAINTIES.......................................................... 13 13.1 SAR TEST DATA SUMMARY....................................................................14 14.1 SAR TEST EQUIPMENT............................................................................ 17 15.1 CONCLUSION............................................................................................ 18 Test Report S/N: SAR.210509288.BEJ SAR Measurement Report Test Dates: May 23-29, 2001 FCC Part 22 Certification LGE FCC ID: PQHCU100 (Model: CU100) © 2001 PCTEST Lab Single-Mode Cellular Phone (CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: Langchao LG (YANTAI) Digital Mobile Technology Address: F4, Fu Xing Building, #57 Chang Jiang Road Yantai Economy & Technology Development Zone 264006, PRC Attention: Gi Sup Lee, Assistant Manager • EUT Type: Single-Mode Cellular Phone (CDMA) • Trade Name: LGE • Model(s): CU100 • FCC IDENTIFIER: PQHCU100 • Tx Frequency: 824.70 — 848.31 MHz (CDMA) • Rx Frequency: 869.70 — 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max RF. Output Power: 0.287W ERP CDMA (24.573 dBm) • Date(s) of Tests: May 23-29, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210509288.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210509288.BEJ SAR Measurement Report Test Dates: May 23-29, 2001 FCC Part 22 Certification LGE FCC ID: PQHCU100 (Model: CU100) © 2001 PCTEST Lab Single-Mode Cellular Phone (CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. © 1992 by the Institute of Electrical and Electronics Engineers, In…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA)

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Langchao LG (YANTAI) Digital Mobile Technology Dates of Tests: May 23-29, 2001 F4, Fu Xing Building, #57 Chang Jiang Road Test Report S/N: 22.210509349.BEJ Yantai Economy & Technology Development Zone Test Site: PCTEST Lab, Columbia, MD 264006, PRC Attn: Gi Sup Lee, Assistant Manager FCC ID PQHCU100 APPLICANT Langchao LG (YANTAI) Digital Mobile Technology Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: Single-Mode Cellular CDMA Phone Trade Name/Model(s): LGE CU100 Tx Frequency Range: 824.70 ~ 848.31 MHz Rx Frequency Range: 869.70 ~ 893.31 MHz Max. RF Output Power: 0.287 W ERP (24.573 dBm) Max. SAR Measurement(s): 1.3179 W/kg Brain SAR; 1.2373 W/kg Body SAR 1.2815 W/kg Hand SAR (over 10gms) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in § 2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. 210509349.A3L FCC Part 22 Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 DESCRIPTION OF INSERTS 3 4.1 DESCRIPTION OF TESTS 4-5 5.1 EFFECTIVE RADIATED POWER OUTPUT 6 6.1 RADIATED MEASUREMENTS 7-9 7.1 FREQUENCY STABILITY 10-11 8.1 PLOTS OF EMISSIONS 12 9.1 LIST OF TEST EQUIPMENT 13 10.1 SAMPLE CALCULATIONS 14 11.1 CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.210509349.BEJ FCC Part 22 Test Dates: May 23-29, 2001 Certification © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) 1 Single-Mode Cellular Phone (CDMA) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: Langchao LG (YANTAI) Digital Mobile Technology Address: F4, Fu Xing Building, #57 Chang Jiang Road Yantai Economy & Technology Development Zone 264006, PRC Attention: Gi Sup Lee, Assistant Manager • FCC ID: PQHCU100 • Trade Name: LGE • Model(s): CU100 • Quantity: Quantity production is planned • Emission Designator: 1M25F9W • Tx Freq. Range: 824.70 — 848.31 MHz Rx Freq. Range: 869.70 — 893.31 MHz • Equipment Class: Non-Broadcast Transmitter Held to Ear (TNE) • Equipment Type: Single-Mode Cellular CDMA Phone • Modulation: CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Output Power: 0.287W ERP CDMA (24.573 dBm) • FCC Rule Part(s): §22.201(d), §2 • Battery Pack: 3.6 VDC Li-Ion (Model: BEX0257RK) • Dates of Tests: May 23-29, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.210509349.BEJ Test Report S/N: 22.210509349.BEJ FCC Part 22 Test Dates: May 23-29, 2001 Certification © 2001 PCTEST Lab LGE FCC ID: PQHCU100 (Model: CU100) 2 Single-Mode Cellular Phone (CDMA) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level was recorded. For readings above 1 GHZ, the above procedure would be repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Figure 2. 3-Meter Outdoor Test Site Test Report S/N: 22.210509349.BEJ FCC Part 22 Test Dates: May 23-29, 2001 Certification © 2001 PCTEST L…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT D – TEST PLOTS PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22.210509349.BEJ FCC Part 22Test Date:06.06.2001 EUT:LGE Single Mode Cellular CDMA Phone (CDMA) Model:CU100 FCC ID: PQHCU100 REFERENCE:1 kHz = 0 dB Modulation Limiting 0 2000 4000 6000 8000 10000 12000 14000 -35-30-25-20-15-10-50 Audio Input Level (dBV) Deviation (Hz) PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22.210509349.BEJ FCC Part 22Test Date:06.06.2001 EUT:LGE Single Mode Cellular CDMA Phone (CDMA) Model:CU100 FCC ID: PQHCU100 REFERENCE:1 kHz = 0 dB Frequency Response of Audio Low Pass Filter -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 10k1k 100k PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22.210509349.BEJ FCC Part 22Test Date:06.06.2001 EUT:LGE Single Mode Cellular CDMA Phone (CDMA) Model:CU100 FCC ID: PQHCU100 REFERENCE:1 kHz = 0 dB Transmitter Audio Frequency Response -60.00 -50.00 -40.00 -30.00 -20.00 -10.00 0.00 10.00 20.00 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 100 1k 10k 100k
