PRHIPR-100FVoice Recorder

IPR-100F Test User Manual PROJECT: IPR-100F July 5, 2001 I. Overview The digital equipment “IPR-100F” is the product model of Innotek Inc.: The IPR-100F (Pro Record) is a Springboard module for the Handspring Visor. It allows you to record voice messages of up to 8 hours length. You can edit the message description. The Hotkey button allows you quick start/stop re- cording, playing a message and controlling a volume. The IPR-100F has interoperable features among basic Palm OS programs. Also, the stored voice messages in IPR-100F can be able to upload to PC by using the upload program that operate at MS O/S, e.g. MS window95, 98 and ME. II. Test Environments 1. Uploading the recorded voice messages from a Springboard module to a PC - IPR-100F (Springboard module), Handspring Visor, Cradle, Notebook PC, PC Software 2. Playing the recorded voice messages with earphone - IPR-100F (Springboard module), Handspring Visor, Cradle, Earphone III. How to use for uploading the recorded voice messages û VISOR SIDE 1. Insert the IPR-100F into the Handspring Visor external slot. 2. Click the “Home” button of the Handspring Visor 3. Launch the “ProLoader” program. û PC SIDE 4. Run “Voice uploader” program. 5. Select the voice messages to be desired. 6. Click the “Upload” button for uploading the voice messages. IV. How to use for playing the û VISOR SIDE 1. Insert the IPR-100F into the Handspring Visor external slot. 2. Insert the earphone into the earphone jack of the IPR-100F. 3. Click the “REC” button for launching the “Pro Record” main program. 4. Click the “Play/Pause” button for playing the recorded voice messages CF) ó The IPR-100F Firmware Specification REV. 20.00 ó Before the tests, the IPR-100F must be prepared the recorded voice messages that can be able to record by using the voice record processing of the “Pro Record” main program IPR-100F Test User Manual PROJECT: IPR-100F July 5, 2001 1. Uploading the recorded voice messages from a Springboard module to a PC PICTURE CONTENT Uploading Test of the Recorded Voice Messages (Visor Side) ó Insert the IPR-100F into the Handspring Visor external slot. ó Click the “Home” button of the Handspring Visor Uploading Test of the Recorded Voice Messages (Visor Side) ó Launch the “ProLoader” program. Uploading Test of the Recorded Voice Messages (PC Side) ó Run “Voice uploader” program. ó Select the voice messages to be desired. ó Click the “Upload” button for uploading the voice messages. Uploading Test of the Recorded Voice Messages (Visor Side) ó Uploading now & EMI test IPR-100F Test User Manual PROJECT: IPR-100F July 5, 2001 Playing the recorded voice messages with earphone PICTURE CONTENT Playing Test of the Recorded Voice Messages (Visor Side) ó Insert the IPR-100F into the Handspring Visor external slot. ó Insert the earphone into the earphone jack of the IPR-100F. ó Click the “REC” button for launching the “Pro Record” main program Playing Test of the Recorded Voice Messages (Visor Side) ó Click the “Play/Pause” button for playing the re- corded voice messages ó Playing now & EMI test IPR-100F Test User Manual PROJECT: IPR-100F July 5, 2001 FCC NOTICE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equip- ment. Such modifications could void the user's authority to operate the equipment.


              ! "#$   %   &' '( )


 % *  & $   +* ,    - & $ -         .
"/ 01-2
"/    &'

KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 1 of 2 External photo-Front KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 2 of 2 External photo-Rear

Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: IPR-100F FCC ID : PRHIPR-100F Innotek Inc. Made in Korea This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Korea Technology Institute Co., Ltd. Page 1 of 1 Label location

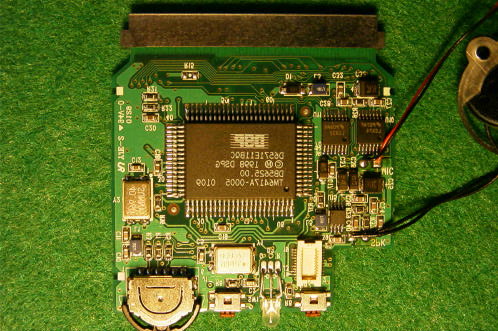

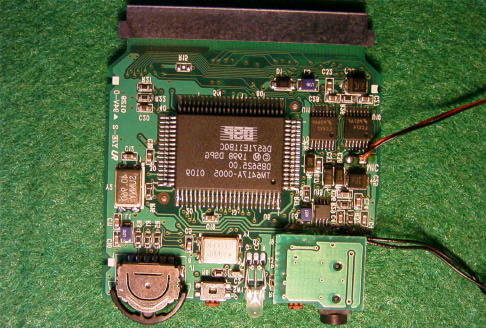

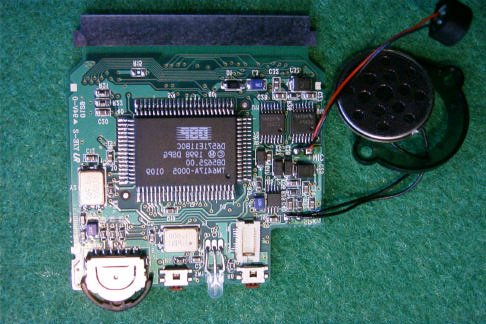

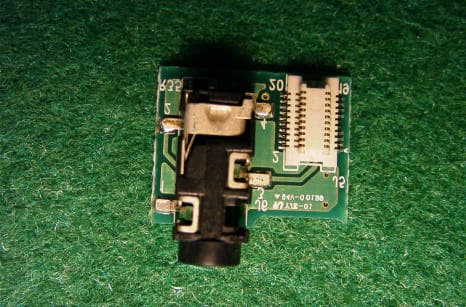

KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 1 of 3 Internal photo KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 2 of 3 Internal photo KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 3 of 3 Internal photo

KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 1 of 13 Certificate of Compliance Test Report No.: KTI01E-F0731 Registration No.: 99058 Applicant: Innotek Inc. Applicant Address: 2Fl WooShin Bldg. 194-3 Poi-dong, Seoul Korea Product: VOICE RECORDER FCC ID: PRHIPR-100F Model No. IPR-100F Receipt No.: KTI20010706 Date of receipt: July, 06, 2001 Date of Issue: July, 06, 2001 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: ANSI. C63.4 : 1992 Rule Parts: FCC Part 15, Subpart B Equipment Class: Class B Test Result: The above mentioned product has been tested and passed. Prepare by: J. H. Lee Tested by: S. B. Kim/ Engineer Approved by: G. C. Min/ President Signature Date Signature Date Signature Date Other Aspects : Abbreviations : • OK, Pass=passed • Fail=failed • N/A=not applicable • • This test report is not permitted to copy partly without our permission. • This test result is dependent on only equipment to be used. • This test result is based on a single evaluation of one sample of the above mentioned. • This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 2 of 13 •• Contents •• 1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 Additional equipments 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 6 7 8 11 12 14 15 16~19 • List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Conducted Emissions Table 3 Test Data. Radiated Emissions • List of Figures Figure 1 Spectral Diagram, LINE-PE Figure 2 Spectral Diagram, Neutral-PE • List of Photographs Photograph 1 Setup for Conducted Emissions Photograph 2 Setup for Radiated Emissions 4 11 13 9 10 16 17 KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 3 of 13 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by Korea Technology Institute Co., LTD. And were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., LTD 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/1992 for measurement of radio Interference. KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 4 of 13 KTI01E-F0731 FCC ID : PRHIPR-100F 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment • Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720427 11.2001 Field Strength Meter ESPC 832827/011 11.2001 LISN ESH3-Z5 8254601019 5.2002 LISN KNW407 8-1097-7 11.2001 Pulse limiter ESH3Z2 357.8810.52 11.2001 Conducted Cable N/A N/A 11.2001 • Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 11.2001 Spectrum Analyzer R3261C 61720427 11.2001 Log Periodic Antenna 3146 9105-1343 11.2001 Biconical Antenna 3110 9105-3100 11.2001 Open Site Cable N/A N/A 11.2001 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-03 91X519 N/A 2.3 Test Date Date of Application : July, 06, 2001 Date of Test : July, 06, 2001 2.4 Test Environment See each test item’s description . Korea Technology Institute Co., Ltd. Page 5 of 13 KTI01E-F0731 FCC ID : PRHIPR-100F 3. Description of the tested samples The EUT is VOICE RECORDER (PDA Module). •PDA: Visor Platinum •PC Connector: Visor USB HotSync Cradle 3.1 Rating and Physical Characteristics ! Processor: 8bit CMOS EPROM processor (16MHz) ! Memory: NAND Flash Memory (64MB) (Built – in) ! Download Type: USB ! Operating Voltage range: 2.5VDC ~ 3.3VDC ! Operating Current: 47.8 mA (approx) ! Operating temperature: -20 ̊C ~ 70 ̊C ! Dimensions: 57.5mm x 54.5mm x 7.5mm (W x D x H) ! Weight: 18g ! Power source: DC 3V (AAA size x 2ea) ! Output Connector: Audio output (L & R) 3.2 Submitted Documents • User’s Guide • Block Diagram KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 6 of 13 4. Measurement Conditions Testing Input Voltage: DC 3V. 4.1 Modes of Operation The EUT was in the following operation mode(download) during all testing; Prior to a measurement, the PDA Module shall be operated until stabilization has been reached. 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID Notebook FUJITSU LIMITED. LifeBook S series None - Mouse Microsoft ITE78CJ 1048611-5 - Mouse Sejin SMB-400 0CIM004047 - Printer Hewlett Packard C4569A SG78M1H0CF - Adapter SANKEN ELECTRIC CO., LTD. CA01007- 0750 01212720B 4.3 Uncertainty 1) Radiated disturbance UC (Combined standard Uncertainty) = ± 1.8dB Expanded uncertainty U=Kuc K = 2 • U = ± 3.6dB 2) Conducted disturbance UC = ± 0.88dB U = Kuc=2xUc = ± 1.8dB KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 7 of 13 4.4 Test setup PC Connector PDA PDA Module Noteboo k USB Ear-Phone Mouse Mouse KTI01E-F0731 FCC ID : PRHIPR-100F Korea Technology Institute Co., Ltd. Page 8 of 13 5. EMISSION Test 5.1 …

Text truncated - open the document above for the full version.

Korea Technology Institute Co., Ltd. Page 1 of 2 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
