PRHITM-100FTriMod (PDA Module)

ITM-100F Test User Manual PROJECT: ITM-100F July 5, 2001 1/4 I. Overview The digital equipment “ITM-100F” is the product model of Admobis Inc.: The ITM-100F is a springboard module for the Handspring Visor, it supplies you with playing a MP3 file and recording a voice messages. The MP3 player allows you to download MP3 files from desktop PC with using USB port, and the Voice Recorder allows you recording/playing a voice message. The Hotkey button attached allows you to start/stop playing the MP3 player and recording a voice message and controlling a volume. II. Test Environments 1. Downloading MP3 files from a PC to a Springboard module - ITM-100F (Springboard module), Handspring Visor, Cradle, Notebook PC, PC Software 2. Playing MP3 files - ITM-100F (Springboard module), Handspring Visor, Cradle, Earphone III. How to use for downloading MP3 files ! VISOR SIDE 1. Insert the ITM-100F into the Handspring Visor external slot. 2. Click the “Home” button of the Handspring Visor 3. Launch the “TriLoader” program. ! PC SIDE 4. Run “TriLoader for PC” program. 5. Select MP3 files to be desired. 6. Click the “Commit” button for downloading MP3 files. IV. How to use for playing MP3 files ! VISOR SIDE 1. Insert the ITM-100F into the Handspring Visor external slot. 2. Insert the earphone into the earphone jack of the ITM-100F. 3. Click the “Listen” button for launching the “Tri Juke Box” main program. 4. Click the “Play/Pa use” butto n for playi ng MP3 files CF) " The ITM-100F Firmware Specification REV. 11.03 ITM-100F Test User Manual PROJECT: ITM-100F July 5, 2001 2/4 1. Downloading MP3 files from a PC to a Springboard module PICTURECONTENT Uploading Test of MP3 files (Visor Side) " Insert the ITM-100F into the Handspring Visor external slot. " Click the “Home” button of the Handspring Vi- sor Downloading Test of MP3 files (Visor Side) " Launch the “TriLoader” program. Downloading Test of MP3 files (PC Side) " Run “TriLoader for PC” program. " Select MP3 files to be desired. " Click the “Commit” button for downloading MP3 files. " Downloading now & EMI test ITM-100F Test User Manual PROJECT: ITM-100F July 5, 2001 3/4 2. Playing MP3 files PICTURECONTENT Playing MP3 files (Visor Side) " Insert the ITM-100F into the Handspring Visor external slot. " Insert the earphone into the earphone jack of the ITM-100F. " Click the “REC” button for launching the “Tri- Juke Bo x” mai n pro gra m. Playing MP3 files (Visor Side) " Click the “Play/Pa use” butto n for playi ng MP3 files. " Playing now & E MI tes t. FCC NOTICE ITM-100F Test User Manual PROJECT: ITM-100F July 5, 2001 4/4 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equip- ment. Such modifications could void the user's authority to operate the equipment.

68-pin Connector 2MB Flash Memory PDA Interface Buffer DATA 64MB Flash Memory Processor Memory Control DATA Reset & Handshake Control Buffer Power Control MP3 Decoder Voice Recoder Mic Earphone Decoder Control Admobis Inc. Power

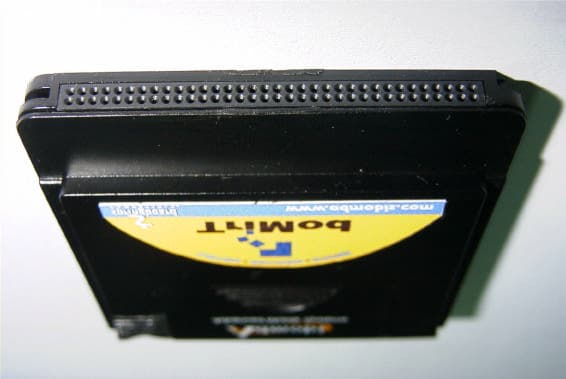

KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 1 of 2 External photo-Front KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 2 of 2 External photo-Rear

Korea Technology Institute Co., Ltd. Page 1 of 1 Label location

Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: ITM-100F FCC ID : PRHITM-100F Admobis Inc. Made in Korea This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 1 of 2 Internal photo-Front KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 2 of 2 Internal photo-Rear

KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 1 of 13 Test Report Test Report No.: KTI01E-F1040 Registration No.: 99058 Applicant: Admobis Inc. Applicant Address: 2Fl WooShin Bldg. 194-3 Poi-dong, Seoul Korea Product: TriMod FCC ID: PRHITM-100F Model No. ITM-100F Receipt No.: KTI20010925 Date of receipt: Sep, 25, 2001 Date of Issue: Sep, 28, 2001 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: ANSI. C63.4 : 1992 Rule Parts: FCC Part 15, Subpart B Equipment Class: JBP Test Result: The above mentioned product has been tested and passed. Prepare by: J. H. Lee Tested by: S. B. Kim/ Engineer Approved by: G. C. Min/ President Signature Date Signature Date Signature Date Other Aspects : Abbreviations : OK, Pass=passed Fail=failed N/A=not applicable This test report is not permitted to copy partly without our permission. This test result is dependent on only equipment to be used. This test result is based on a single evaluation of one sample of the above mentioned. This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 2 of 13 Contents 1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 Additional equipments 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 6 7 8 11 12 14 15 16~19 List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Conducted Emissions Table 3 Test Data. Radiated Emissions List of Figures Figure 1 Spectral Diagram, LINE-PE Figure 2 Spectral Diagram, Neutral-PE List of Photographs Photograph 1 Setup for Conducted Emissions Photograph 2 Setup for Radiated Emissions 4 11 13 9 10 16 17 KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 3 of 13 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by Korea Technology Institute Co., LTD. And were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., LTD 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/1992 for measurement of radio Interference. KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 4 of 13 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720427 11.2001 Field Strength Meter ESPC 832827/011 11.2001 LISN ESH3-Z5 8254601019 5.2002 LISN KNW407 8-1097-7 11.2001 Pulse limiter ESH3Z2 357.8810.52 11.2001 Conducted Cable N/A N/A 11.2001 Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 11.2001 Spectrum Analyzer R3261C 61720427 11.2001 Log Periodic Antenna 3146 9105-1343 11.2001 Biconical Antenna 3110 9105-3100 11.2001 Open Site Cable N/A N/A 11.2001 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-03 91X519 N/A 2.3 Test Date Date of Application : Sep, 25, 2001 Date of Test : Sep, 26, 2001 2.4 Test Environment See each test item’s description. KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 5 of 13 3. Description of the tested samples The EUT is TriMod (PDA Module). •PDA: Visor Platinum •PC Connector: Visor USB HotSync Cradle 3.1 Rating and Physical Characteristics l Processor: 8bit CMOS EPROM processor (16MHz) l Memory: NAND Flash Memory (64MB) (Built – in) l Download Type: USB l Operating Voltage range: 2.5VDC ~ 3.3VDC l Operating Current: 47.8 mA (approx) l Operating temperature: -20C ~ 70C l Dimensions: 57.5mm x 54.5mm x 7.5mm (W x D x H) l Weight: 18g l Power source: DC 3V (AAA size x 2ea) l Output Connector: Audio output (L & R) 3.2 Submitted Documents User’s Guide Block Diagram KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 6 of 13 4. Measurement Conditions Testing Input Voltage: DC 3V. 4.1 Modes of Operation The EUT was in the following operation mode(download) during all testing; Prior to a measurement, the PDA Module shall be operated until stabilization has been reached. 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID PC COMPAQ COMPUTER CORPORATION Deskpro EXM 6F13JC8JN619 DoC Monitor Samsung Electronics 750S P223HVAR502035 DoC Keyboard COMPAQ COMPUTER CORPORATION KB-9963 B26960GBUKKOVW DoC Mouse logitech M-S48a None JNZ201213 Mouse SEJIN ELECTRON INC. SMB-400 0CIM004047 GJJS965M3 Printer Hewlett Packard C4569A SG78M1H0CF DoC PDA Handspring Visor Platinum ABEEB27000646 DoC 4.3 Uncertainty 1) Radiated disturbance u c (Combined standard Uncertainty) = 1.8dB Expanded uncertainty U=K u c K = 2 U = 3.6dB 2) Conducted disturbance u c = 0.88dB U = Kuc=2x u c = 1.8dB KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 7 of 13 4.4 Test setup KTI01E-F1040 FCC ID : PRHITM-100F Korea Technology Institute Co., Ltd. Page 8 of 13 5. EMISSION Test 5.1 Conducted Emissions Result : Pass The lin…

Text truncated - open the document above for the full version.

Korea Technology Institute Co., Ltd. Page 1 of 2 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
