PS3T2000UAV-VLUAV AIRCRAFT TRANSPONDER

Microair Avionics Pty Ltd Airport Drive Bundaberg Queensland 4670 Australia Tel: +61 7 41 553048 Fax: +61 7 41 553049 e-mail: [email protected] Microair Avionics T2000UAV-VL Install and User Manual T2000UAV-VL Installation and User Manual 01R1.doc Page 2 of 21 1 st December 2010 About This Document This supplement describes the installation option, and software controls for the T2000UAV-VL transponder, operating with software revision T2000UAV_01R6.5. Microair reserves the right to amend this supplement as required, to reflect any enhancements or upgrades to the T2000 transponder series. © Microair Avionics Pty Ltd REVISION STATUS Revision Date Change 01R1 01/12/10 Initial release Microair Avionics T2000UAV-VL Install and User Manual T2000UAV-VL Installation and User Manual 01R1.doc Page 3 of 21 1 st December 2010 TABLE OF CONTENTS 1.0 INTRODUCTION 4 2.0 T2000UAV-VL DESCRIPTION 5 2.1 T2000UAV-VL ANTENNA OPTIONS 5 3.0 SOFTWARE CONTROL 6 3.1 MICROAIR UAV TERMINAL SOFTWARE 6 3.2 THE UAV COMMAND STRUCTURE 7 3.3 DATA SPEED 7 3.4 SERIAL DATA COMMAND SET 8 3.4.1 Standby (s=t) 9 3.4.2 Mode 3A (s=a) 9 3.4.3 Mode C (s=c) 9 3.4.4 Ident (i=s) 9 3.4.5 Altitude (a=?) 9 3.4.6 Altitude Source (d=?) 9 3.4.7 Encoder Power (e=?) 10 3.4.8 Voltage (v=?) 10 3.4.9 Reply Annunciator (r=y) 10 3.4.10 Ping Function (p=?) 10 4.0 T2000UAV-VL MOUNTING BRACKETS 11 5.0 MODE C ENCODER 12 6.0 ANTENNA 12 7.0 COAXIAL CABLE 13 8.0 WIRING 14 8.1 CABLING 14 8.2 POWER ON/OFF 15 8.3 SUPPRESSION IN / OUT 15 9.0 TECHNICAL DRAWINGS 16 10.0 WIRING DIAGRAMS 18 11.0 PIN ASSIGNMENTS 19 12.0 SPECIFICATIONS 20 13.0 LIMITED WARRANTY 21 Microair Avionics T2000UAV-VL Install and User Manual T2000UAV-VL Installation and User Manual 01R1.doc Page 4 of 21 1 st December 2010 1.0 INTRODUCTION The T2000UAV-VL is a special version of the T2000 Transponder, designed for operation in unmanned aircraft. This product is partially compliant to TSO C74d due to the absence of a human interface. All control and exchange of data is made via a serial data interface (RS232). The T2000UAV-VL is based upon the certified T2000SFL transponder, and is compliant with the following: TSO: C74d (INCOMP) Environmental: RTCA/DO-160F Hardware: RTCA/DO-254 Software: RTCA/DO-178B Transponder Function: RTCA/DO-144A FCC: Part 2, Part 87 Microair Avionics T2000UAV-VL Install and User Manual T2000UAV-VL Installation and User Manual 01R1.doc Page 5 of 21 1 st December 2010 2.0 T2000UAV-VL DESCRIPTION The UAV-L version of the T2000SFL has no display. The chassis has been truncated by having the display housing milled off. The front face is plated off and sealed. A command set allows the UAV’s flight management system to have full functional control over the transponder. The RS-232 interface is accessed from the DB-25 connector on the rear face of the chassis. The T2000UAV-VL receives all identity code and altitude data over the RS-232 interface from the UAV’s flight management system. The T2000UAV-VL features external lines for suppression in and suppression out functions. 2.1 T2000UAV-VL ANTENNA OPTIONS The T2000UAV-VL can be supplied with a standard BNC connector located on the rear face of the chassis, adjacent to the DB-25. Part Number: T2000UAV-VL_01R1 Order Number: T2000UAV-VL_MA1358_01R1-0 The T2000UAV-VL can be supplied with a standard TNC connector located on the rear face of the chassis, adjacent to the DB-25. Part Number: T2000UAV-VL_01R1 Order Number: T2000UAV-VL_MA1359_01R1-0 Microair Avionics T2000UAV-VL Install and User Manual T2000UAV-VL Installation and User Manual 01R1.doc Page 6 of 21 1 st December 2010 3.0 SOFTWARE CONTROL The T2000UAV-VL can be controlled by issuing of commands in the form of ASCII characters, sent and received over an RS232 interface. The command set can be used to either poll the transponder of the status of a parameter, or to command a function to a particular setting. 3.1 MICROAIR UAV TERMINAL SOFTWARE The T2000UAV-VL is supplied with UAV Control software to which it is capable of issuing all commands, and polling for all parameters. The terminal software is a simple EXE file, and is compatible with windows 98 through to windows XP operating systems. The terminal software is capable of issuing all of the commands, to either poll for any of the parameters, or to set any of the parameters to discrete values. Microair Avionics T2000UAV-VL Install and User Manual T2000UAV-VL Installation and User Manual 01R1.doc Page 7 of 21 1 st December 2010 3.2 THE UAV COMMAND STRUCTURE The T2000UAV-VL is controlled by a series of simple commands. The T2000UAV-VL can be commanded to set a code, and to operate in a particular mode. Once the code is set, and the operating mode decided, the T2000UAV-VL will operate until another command is received. The status the T2000UAV-VL’s various operating parameters can be queried. A query command returns a value for that particular parameter. The operator can address the T2000UAV with a command from the command set, via an RS232 interface. The command requires the correct syntax, to be valid. The command string will consist of STXx=<command>ETX Where STX is the non-printable ASCII character (02) ETX is the non-printable ASCII character (03) x is a valid command <command> may be either ? or a string of ASCII characters, if the <command> is a ?, this will evoke a response with the current status for that command 3.3 DATA SPEED The RS232 interface for the T2000UAV-VL has a data rate of: 9600,N,8,1,P where 9600 = baud rate of 9600 8 = 8 data bits 1 = 1 stop bit P = with XON / XOFF Refer to section 10.0 for wiring details and pin assignments. Microair Avionics T2000UAV-VL Install and User Manual T2000UAV-VL Installation and User Manual 01R1.doc Page 8 of 21 1 st December 2010 3.4 SERIAL DATA COMMAND SET CMD Action Write String Response a Altitude (Read/Write) a=? a=xxxxx where xxxxx=altitude in feet a=#$*& where #$*&=altitude in feet a=<current altitude data> eg 1234F a=xxxxx (writes altitude data in feet to T2000UA…

Text truncated - open the document above for the full version.

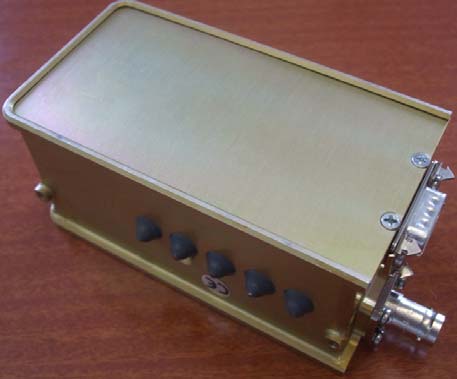

EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 24 of 29 10. PHOTOGRAPH (S) External views

EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 27 of 29 Label Ancillary test items SHEET OF DWG No. 01R1-0 REVISION DATE SCALE TITLE THIS DRAWING IS COPYRIGHT AND MUST NOT BE COPIED WITHOUT THE CONSENT OF MICROAIR AVIONICS PTY LTD DO NOT SCALE DIMENSIONS IN MILLIMETRES PROJECTION MATERIAL GENERAL TOLERANCES WHOLE NO.'S B0.5 DRN APPR. JW ONE DEC. B0.25 TWO DEC. B0.05 ANGLES B0.5` A4 2:1 T2000UAV-VL NAMEPLATE DECAL 01R1-0 13/12/2010 1 1 FILE NAME: MA1404 T2000UAV-VL NAMEPLATE DECAL SUPPLIER REF SURFACE FINISH SUPPLIER 0.1 THICK SELF ADHESIVE SIVER MYLAR 80 79 40 2 6.5 18 9 R2 4520 NOTE: ALL TEXT 2 HIGH LINES, CIRCLES AND TEXT ALL BLACK P3.5 NO BORDER ON EDGE OF LABEL SERIAL NUMBER TO START AT 001001 AND INCREASE BY 1 DIGIT ON EACH LABEL

EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 25 of 29 Internal photos EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 26 of 29

EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 22 of 29 Radio Frequency Hazard Information As per Section 1.1310 mobile transmitters are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with OST/OET Bulletin Number 65. A minimum safe distance between the user / general public and the device has been calculated below. In accordance with Section 1.1310 the Maximum Permissible Exposure (MPE) power density limit for the General Population / Uncontrolled Exposure of 0.73 mW/m 2 (1090/1500) has been applied. Power density, mW/m 2 = E 2 /3770 E for MPE: (1090/1500) = E 2 /3770 E = (1090/1500)*3770 E = 52.5 V/m The minimum distance from the antenna at which the MPE is met is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain and separation distance in metres: The rated maximum power of this transmitter is 200 watts with a duty cycle of 0.1% which gives a mean power of 0.2 watts In a typically mobile installation this transceiver would be used with a whip ¼ wave dipole type of antenna with a gain of 1.64. d =  (30 * P * G) / E =  (30 * 0.2 * 1.64 ) / 52.5 = 0.06 metres or 6 cm The above calculations that this device will meet the MPE requirement for mobile devices providing a safe distance of at least 6 cm is provided. A warning to this affect will need to be inserted in the equipment manual. Result: Complies

EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 1 of 29 TEST REPORT Microair Avionics T2000UAV-VL ATCRBS Transponder tested for compliance with the Code of Federal Regulations (CFR) 47 Part 87 –Aviation Services for Microair Avionics PTY Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 2 of 29 Table of Contents 1. CLIENT INFORMATION 3 2. DESCRIPTION OF TEST SAMPLE 3 3. SUMMARY OF TEST RESULTS 4 4. TEST SAMPLE DESCRIPTION 5 5. TEST CONDITIONS 6 6. ATTESTATION 7 7. TEST RESULTS 8 8. TEST EQUIPMENT USED 23 9. ACCREDITATIONS 23 10. PHOTOGRAPH (S) 24 EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 3 of 29 1. CLIENT INFORMATION Company Name Microair Avionics PTY Ltd Address PO Box 5532 Bundaberg West Queensland 4670 Country AUSTRALIA Contact Mr Ian Mugan 2. DESCRIPTION OF TEST SAMPLE Brand Name Microair Model Tested T2000UAV-VL Product ATCRBS Transponder Manufacturer Microair Avionics PTY Ltd Country of Origin Australia Serial Number 0010001 FCC ID PS3T2000UAV-VL The device that was tested is a single frequency aircraft transponder that has been specifically designed to operate on board UAV aircraft. Therefore the device has no operator controls or indicators. EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 4 of 29 3. COMPLIANCE STATEMENT & RESULT SUMMARY The Microair Avionics T2000UAV-VL ATCRBS Transponder complies with 47 CFR Part 87 when tested in accordance with 47 CFR Part 2 and Part 87 and when the test methods as described in ANSI C63.4 – 2003 were applied. A summary of the applicable clauses is detailed below CLAUSE TEST PERFORMED RESULT 2.1041 Measurement procedures Noted 2.1057 Frequency spectrum to be investigated Noted 87.131 2.1046 Power and emissions RF power output Complies Noted 87.133 2.1055 Frequency stability Frequency stability Complies Noted 87.135 2.202 2.1049 Bandwidth of emission Bandwidths Occupied bandwidth Complies Noted Noted 87.137 Types of emissions Complies 87.139 2.1051 2.1053 Emission limitations Spurious emissions at antenna terminals Field strength of spurious radiation Complies Noted Noted 87.141 Modulation requirements Not applicable 87.143 Transmitter control requirements Complies 87.145 Acceptability of transmitters for licensing Noted 87.147 Authorisation of equipment Noted 87.149 Special requirements for automatic link establishment (ALE) Not applicable 87.151 Special requirements for differential GPS Receivers Not applicable 1.1310 Radio frequency radiation exposure limits Complies EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 5 of 29 4. TEST SAMPLE DESCRIPTION The sample tested has the following specifications: Rated Transmitter Output Power 200 watts peak (+53.0 dBm) Duty Cycle 0.1 % Mean power 0.2 watts Transmitter operating frequency 1090.0 MHz Receiver operating frequency 1030.0 MHz FCC Bands Part 87: Aircraft radio navigation band (transponder) 960 - 1215 MHz Emission Designators / Modes of operation 14M0M1D Power Supply External supply between 12 – 28 Vdc supply. Typical operating voltages would be 13.2 Vdc or 28 Vdc EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 6 of 29 5. TEST CONDITIONS Standard Temperature and Humidity Temperature: +25C  4 maintained. Relative Humidity: 60%  10% observed. Standard Test Power Source Standard Test Voltage: 13.2 Vdc and 28 Vdc. Extreme Temperature High Temperature: + 50C maintained. Low Temperature: - 20 C maintained. Extreme Test Voltages High Voltage: 33.0 Vdc Low Voltage: 10.0 Vdc Testing carried out at the extremes of voltages as stated by customer EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland,…

Text truncated - open the document above for the full version.

EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 27 of 29 Label Ancillary test items EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 28 of 29 Radiated emissions test set ups EMC Technologies (NZ) Ltd Test Report No 101122.1 Report date: 7 December 2010 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 29 of 29
