PSL-WEN-2012Wireless LAN PC Card

- 1 - W-Link WN-2012 Wireless LAN PC Card User’s Guide - 2 - Introduction This User Guide is to guide you to install a Wireless LAN designed for both large and small business and SOHO environments and let you share a local printer and files, access internet, and roam about different working places. The attached drivers and utilities support for Windows 95 (OSR2), Windows 98, and Windows 2000, NT4.0 and Windows Millennium. Package Contents ü W-Link WN-2012 Wireless LAN PC Card ü W-Link Wireless LAN CD-ROM with drivers and utilities ü User’s Guide ü Quick Start Guide ü Warranty Card Planning your Wireless LAN There are two usage modes for Wireless LAN, Ad-hoc mode and Infrastructure mode. Please review your need and build your Wireless LAN. Ad-hoc Networking Ad-hoc network also is called Peer-to-Peer network. Without Access Point, notebook users with W-Link WN-2012 Wireless LAN PC card can build a Ad-hoc Peer-to-Peer wireless networks to share files with each other, share a public office printer and other peripheral resources, and even access the Internet via a modem. Infrastructure Networking 802.11b-compatible Access Point is a bridge or router for connect to the wired Ethernet network and wireless network. Through the deployment of Access Point, wireless LAN can be extended to the reach of a wired network. Therefore, A notebook user with W-Link WN-2012 Wireless LAN PC Card can access to fixed local network resources. - 3 - Installation Installation for Windows 95, Windows 98 and Windows 2000 Before installing the driver, you will need a copy of the operating system installation media, usually a CD supplied with your computer or operating system. On Windows 98 systems, the installation files are sometimes archived on the hard disk in C:\WINDOWS\OPTIONS\CABS. On Windows 2000 systems, the system may prompt you to load operating system files from the Windows 2000 installation disk. Installation under Windows 95 is identical to the procedure given above for Windows 98 and Windows 2000. Only Windows 95 OSR2 or higher is supported. The Setup program also installs Configuration Utility in the WN-2012 Wireless LAN PC Card in the Program directory. This configuration utility can help you to understand and maintain your Wireless LAN. Install Driver Step 1: Turn on your computer. Step 2: Insert the W-Link WN-2012 Wireless LAN PC Card into the PC Card slot. Align the card properly before putting it in the slot. Insert the card firmly without forcing until it seats snugly. CAUTION: Forcing a misaligned card into the slot can damage the computer or the card. Step 3: Windows finds a new hardware shown DLINK-DW650 and asks for the driver of WN-2012 Wireless PC Card. The driver installation wizard guides you through the steps standard for your operating system. Step 4: You will be asked to supply CDs or directory path information for the driver. This driver shall be located in the following directory. D:\DW650\ (if D:\ is your CD-ROM drive) Step 5: Windows finds the driver described as W-Link WN-2012 Wireless LAN PC Card. Follow the directions of Windows dialog boxes to complete the driver installation. After completing the installation, Windows dialog will display Systems Setting Change and ask to restart the notebook. Please click Yes to reboot the computer. - 4 - Install Configuration Utility 1. Restart the computer and ensure W-Link Wireless LAN Configuration Utility CD in the CD-ROM drive. You can run the program manually by selecting Run from the Start menu and running SETUP.EXE from the CD-ROM drive. D:\DW650\SETUP.EXE (if D:\ is your CD-ROM drive) 2. On the W-Link WN-2012 Wireless LAN PC Card – Installation screen, click next to start software installation. Read the information in the Welcome dialog box and click Next. Then, click Yes if you accept the Software License Agreement. 3. Enter the name of the Wireless LAN Service Set of the wireless network (SSID) to which your computer will connect. The name you enter here must match exactly the name assigned to the access point. Characters, capitalization, and spacing must be exactly identical. NOTE: If the access point you wish to associate with has encryption active, you must also enable encryption on the wireless client. Click Encryption in the Configuration Utilities after reboot to go to screens where you can enable and configure encryption. You must set the wireless client for the same Encryption algorithm and Key values as the access point it will associate with. Refer to the Advanced Configuration section for more details about configuring encryption 4. Select which network mode is suitable for your Wireless LAN. Infrastructure Mode is default selection. This setting can be changed at any time after installation completion. 5. Accept the default program folder or select where the SETUP.exe stores the Configuration Utility. 6. Select “Yes, I want to restart my computer now”. Reboot your computer by clicking Finish. Operation Orienting the Antenna The PC Card antenna is attached to the end of the PC Card. For best use of the antenna: l Keep the area around the antenna clear from materials that could block or obstruct radio transmission, such as metal objects, electronic devices, cordless telephones, and microwave oven. - 5 - l If necessary, move your notebook computer a few inches to find a better signal. Environmental condition varies with users’ location, a difference of one or two inches can mean the difference between a strong and a weak signal. Even a slight change in PC orientation can improve a wireless connection. l If you have installed the Configuration Utility, you may use the Signal Strength display in the Link Info to determine the best location and orientation for a wireless network connection. LED Indication The yellow LED of Wireless LAN PC Card performs identical functions when indicating the operational status of the card. Advanced Configuration Configuration Mode (Network Mode) 1. Ad-Hoc: The Ad-Hoc network is also known as …

Text truncated - open the document above for the full version.

            ! "# $ # %& '()* + , -./012345 6 798 :; <=>?@ @ > : 798 :; <= A ? @B C D EFGH IJK L MN L OP QR ST UVW XY Z[\ ] Z [^ _ `ab cde e b a f g h ij k l k j h jm i no pqr stu q v wx v wx y z{ |} ~ 9€  y z‚ |} ~ ƒ € {  y z„ |} ~ ƒ € { …†‡ ˆ ‰ Š9‹ ŠŒ … Ž   ‘’ “”  •–—˜ “ ‘™  •š š9› œ ™  “ž Ÿ —˜ š9› œ ™  ¡¢ —  •  ’ — š9› œ ™  £ ¤¥  •¦§ — –  ̈ ” ™  £ ¤¥ —˜ • ¦ –  ” ™  ‘ “© — ª«¬­ ® ̄ °± ± ²³ ́ μ¶ ·¹ ̧ º»¼ º½ ¾À¿Á Âà ÄÆÅÇ È Å É Ê Ê ËÌ ËÍÎ ÎÏÐ Ñ ÍÒ

TIMCO TIMCO Engineering Inc. 849 NW State Road 45 PO Box 370 Newberry, Florida 32669 888.472.2424 Fax: 352.472.2030 email: [email protected] FCC SUBJECT: W-Link FCC ID: PSL-WEN-2012 To Whom It May Concern: Attached you will find a letter requesting clarification and the response from Mr. Ray LaForge which seems to say that this is okay to approve as a module. The applicant has stated in supplemental communications that the connectors are unique. This ruling seems to be different than what we were previously told. Regards, Sid Sanders

From: Richard C. Mullen [[email protected]] Sent: Monday, September 10, 2001 12:32 PM To: TIMCO / Eric Dobson; TIMCO / Sid Sanders Cc: Quietek / Wang, Kevin; Quietek / Chang, Gene; Quietek / Chang, Patty Subject: Request for Interpretation for Modular Transmitter / FCC PN DA 00-1407 Monday, 09/10/01 Subject: W-Link 2.4 GHz WLAN PC Card Module / FCC ID: PSL-WEN-2012 / 864T1 Ref: SCC Ref No: QTK2001-F003 / TIMCO Reg No: 864T1 Dear Sid and Eric, Attached find request for interpretation letter sent to Richard Fabina and Ray LaForge last Friday. The below is copy of response from Ray LaForge recieved today, which agrees with me that the subject device can be TCB granted as WLAN PC Modular Transmitter. As such, please grant the subject device ASAP. Please feel free to contact Richard Fabina and/or Ray LaForge to confirm the above matters. Best regards, Richard Mullen / S&CC ________________________________________________________________ From: Raymond Laforge <[email protected]> To: <[email protected]> Sent: Monday, September 10, 2001 11:23 AM Subject: Re: Request for Interpretation for Modular Transmitter / FCC PN DA00-1407 If you comply with the modular and limited modular authority policies and your devices is not on the exclusion list (and not being installed in a portable device) it can be approved by TCB. If your TCB has concerns you may consider using a dirrerent TCB from our list of accredited TCBs. I hope this answers your question. ________________________________________________________________ From: Mullen, Richard <[email protected]> To: 'FCC / Fabina, Richard' <[email protected]>; 'FCC / LaForge, Raymond' <[email protected]> Sent: Friday, September 07, 2001 10:39 AM Subject: Request for Interpretation for Modular Transmitter / FCC PN DA 00 -1407

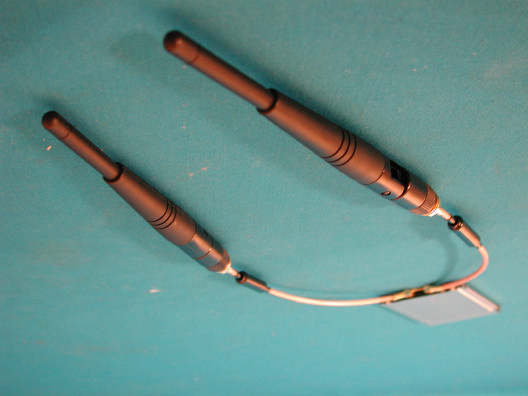

Report No.: 017H009FI Page : 1 of 5 Version : 1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

W Link TM FCC ID.: PSL-WEN-2012 1F, No. 20, Park Ave. II, Science-Based Induatrial Park, HsinChu, Taiwan, R.O.C. Tel: 886 3 563-9168 Fax: 886 3 563-9198 The FCC ID, DoC and house’s Label will be placed on the equipment as shown in the photograph below: DoC Wireless Lan PC Card W-Link Model No.:WEN-2012 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan ID Wireless Lan PC Card Model No.: WEN-2012 F F C C C C I I D D : : P P S S L L - - W W E E N N - - 2 2 0 0 1 1 2 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan House Product Name Model No.: XYZ F F C C C C I I D D : : X X Y Y Z Z M M O O D D E E L L 1 1 ( ( C C o o n n t t a a i i n n s s W W - - L L i i n n k k W W L L A A N N P P C C M M o o d d u u l l e e T T X X F F C C C C I I D D : : P P S S L L - - W W E E N N - - 2 2 0 0 1 1 2 2 ) ) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 017H009FI Page : 2 of 5 Version : 1.0 (3) EUT Photo (4) EUT Photo Report No.: 017H009FI Page : 3 of 5 Version : 1.0 (5) EUT Photo (6) EUT Photo Report No.: 017H009FI Page : 4 of 5 Version : 1.0 (7) EUT Photo Report No.: 017H009FI Page : 5 of 5 Version : 1.0 (8) EUT Photo

Report No. 017H009FI Page : 5 of 57 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : Wireless LAN PC Card Trade Name : W-Link FCC ID. : PSL-WEN-2012 Model No. : WEN-2012, DW-650C, WL-650C Frequency Range : 2412MHz to 2462MHz Channel Number : 11 Frequency of Each Channel (Working Frequency) : Channel 01: 2412MHz Channel 02: 2417 MHz Channel 03: 2422 MHz Channel 04: 2427MHz Channel 05: 2432MHz Channel 06: 2437MHz Channel 07: 2442MHz Channel 08: 2447MHz Channel 09: 2452MHz Channel 10: 2457MHz Channel 11: 2462MHz Type of Modulation : Direct Sequence Spread Spectrum Channel Control : Software 1.1.2 Operation Description The EUT is Wireless LAN PC Card. Four kind of transmission speed 1,2,5.5 and 11Mbps were provide by this RF module. The modulation of RF carrier are DQPSK, DBPSK and CCK. A extender was used during the test to prove the PCMCIA card can pass all the regulation alone Self-shielding and on board power regulator were built in the EUT. Direct sequence spread spectrum modulation was adopted by this module. Two dipole antenna provide diversity function to improve the receiving function of module. Data can be transmitted by the radio signal connect to Internet or local network. Note: 1. 4 kinds of transmission speed 1, 2, 5.5 and 11Mbps were selected as test mode. 2. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.247 for spread spectrum devices. 3. The receiver part was tested in report ”017H009F” subjected to Part 15 paragraph 15.5.

Report No. 017H009FI Page : 1 of 57 Version:1.0 Test Report Product Name : Wireless LAN PC Card Model No. : WEN-2012, DW-650C, WL-650C FCC ID.: PSL-WEN-2012 Applicant : W-Link Systems Inc. Address : 1F, No. 20, Park Ave. II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt : June 29, 2001 Date of Test : July 25, 2001 Report No. : 017H009FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 017H009FI Page : 3 of 59 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION.....................................................................................................5 1.1. EUT Description.........................................................................................................................5 1.2. Tested System Details..................................................................................................................6 1.3. Configuration of tested System.....................................................................................................7 1.4. EUT Exercise Software................................................................................................................7 1.5. Test Facility................................................................................................................................8 2. Conducted Emission..................................................................................................................9 2.1. Test Equipment List.....................................................................................................................9 2.2. Test Setup...................................................................................................................................9 2.3. Limits.........................................................................................................................................9 2.4. Test Procedure...........................................................................................................................10 2.5. Test Result of Conducted Emission..............................................................................................11 3. Peak Power Output..................................................................................................................13 3.1. Test Equipment..........................................................................................................................13 3.2. Test Setup.................................................................................................................................13 3.3. Test Condition...........................................................................................................................13 3.4. Minimum Standard....................................................................................................................13 3.5. Test Result of Peak Power Output...............................................................................................14 4. RF Exposure Evaluation..........................................................................................................15 4.1. Friis Formula.............................................................................................................................15 4.2. EUT Operation condition...........................................................................................................15 4.3. Test Result of RF Exposure Evaluation.......................................................................................16 5. Radiated Emission...................................................................................................................17 5.1. Test Equipment..........................................................................................................................17 5.2. Test Setup.................................................................................................................................17 5.3. Test Condition...........................................................................................................................18 5.4. Limits.......................................................................................................................................18 5.5. Test Procedure...........................................................................................................................19 5.6. Test Result of Radiated Emission................................................................................................20 5.7. Test Result of Band Edge...........................................................................................................44 6. Occupied Bandwidth...............................................................................................................46 6.1. Test Equipment..........................................................................................................................46 6.2. Test Setup.................................................................................................................................46 6.3. Test Condition...........................................................................................................................46 6.4. Standard Reqirement..................................................................................................................46 6.5. Test Result of Occupied Bandwidth............................................................................................47 7. Transmitter Power Density......................................................................................................50 7.1. Test Equipment...........................................................…

Text truncated - open the document above for the full version.

Report No. 017H009FI Page : 20 of 20 Version:1.0 5.6. Test Result of Radiated Emission Product : Wireless LAN PC Card Test Item : Harmonic Radiated Emission Data Test Site : No.1 OATS Test Mode : Channel 1 (1Mbps) Freq. Cable Probe PreAMP Reading Measurement Margin Limit Loss Factor Level MHz dB dB/m dB dBuV dBuV/m dB dBuV/m ============================================================== Peak Detector (Horizontal) 4823.949 6.27 33.50 34.77 43.09 48.09 25.91 74.00 7236.400 8.32 36.24 34.90 43.45 < 53.11 20.89 74.00 9648.951 10.18 37.43 35.10 44.08 < 56.59 17.41 74.00 Average Detector (Horizontal) 9648.855 10.17 37.43 35.10 34.52 < 47.01 6.99 54.00 Peak Detector (Vertical) 4823.849 6.27 33.50 34.77 48.36 53.36 20.64 74.00 7236.901 8.32 36.24 34.90 43.38 < 53.04 20.96 74.00 9649.251 10.18 37.43 35.10 44.38 < 56.89 17.11 74.00 Average Detector (Vertical) 9648.567 10.17 37.43 35.10 34.47 < 46.96 7.04 54.00 Note: 1. All Readings below 1GHz are Quasi-Peak, above are average value. 2. Emission Level = Reading Level + Probe Factor-PreAMP + Cable loss 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No. 017H009FI Page : 21 of 21 Version:1.0 Product : Wireless LAN PC Card Test Item : Harmonic Radiated Emission Data Test Site : No.1 OATS Test Mode : Channel 1 (2Mbps) Freq. Cable Probe PreAMP Reading Measurement Margin Limit Loss Factor Level MHz dB dB/m dB dBuV dBuV/m dB dBuV/m ============================================================== Peak Detector (Horizontal) 4825.002 6.27 33.50 34.77 43.79 48.79 25.21 74.00 7237.603 8.32 36.24 34.90 44.00 < 53.66 20.34 74.00 9648.901 10.18 37.43 35.10 45.15 < 57.66 16.34 74.00 Average Detector (Horizontal) 9647.653 10.17 37.43 35.10 36.20 < 48.69 5.31 54.00 Peak Detector (Vertical) 4824.100 6.27 33.50 34.77 47.42 52.42 21.58 74.00 7238.004 8.32 36.24 34.90 44.60 < 54.26 19.74 74.00 9649.102 10.18 37.43 35.10 45.28 < 57.79 16.21 74.00 Average Detector (Vertical) 7236.879 8.32 36.24 34.90 34.26 < 43.92 10.08 54.00 9650.123 10.18 37.43 35.10 36.20 < 48.71 5.29 54.00 Note: 1. All Readings below 1GHz are Quasi-Peak, above are average value. 2. Emission Level = Reading Level + Probe Factor-PreAMP + Cable loss 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No. 017H009FI Page : 22 of 22 Version:1.0 Product : Wireless LAN PC Card Test Item : Harmonic Radiated Emission Data Test Site : No.1 OATS Test Mode : Channel 1 (5.5Mbps) Freq. Cable Probe PreAMP Reading Measurement Margin Limit Loss Factor Level MHz dB dB/m dB dBuV dBuV/m dB dBuV/m ============================================================== Peak Detector (Horizontal) 4823.849 6.27 33.50 34.77 45.03 50.03 23.97 74.00 7235.549 8.32 36.24 34.90 44.32 < 53.98 20.02 74.00 9647.489 10.17 37.43 35.10 44.53 < 57.02 16.98 74.00 Average Detector (Horizontal) 9647.658 10.17 37.43 35.10 33.50 < 45.99 8.01 54.00 Peak Detector (Vertical) 4824.150 6.27 33.50 34.77 47.64 52.64 21.36 74.00 7236.350 8.32 36.24 34.90 44.74 < 54.40 19.60 74.00 9649.452 10.18 37.43 35.10 46.01 < 58.52 15.48 74.00 Average Detector (Vertical) 7236.859 8.32 36.24 34.90 37.20 < 46.86 7.14 54.00 9648.652 10.17 37.43 35.10 30.25 < 42.74 11.26 54.00 Note: 1. All Readings below 1GHz are Quasi-Peak, above are average value. 2. Emission Level = Reading Level + Probe Factor-PreAMP + Cable loss 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No. 017H009FI Page : 23 of 23 Version:1.0 Product : Wireless LAN PC Card Test Item : Harmonic Radiated Emission Data Test Site : No.1 OATS Test Mode : Channel 1 (11Mbps) Freq. Cable Probe PreAMP Reading Measurement Margin Limit Loss Factor Level MHz dB dB/m dB dBuV dBuV/m dB dBuV/m ============================================================== Peak Detector (Horizontal) 4824.768 6.27 33.50 34.77 43.22 48.22 25.78 74.00 7236.350 8.32 36.24 34.90 43.47 < 53.13 20.87 74.00 9647.248 10.17 37.43 35.10 44.76 < 57.25 16.75 74.00 Average Detector (Horizontal) 9647.564 10.17 37.43 35.10 36.20 < 48.69 5.31 54.00 Peak Detector (Vertical) 4824.150 6.27 33.50 34.77 48.40 53.40 20.60 74.00 7236.050 8.32 36.24 34.90 43.51 < 53.17 20.83 74.00 9648.350 10.18 37.43 35.10 44.60 < 57.11 16.89 74.00 Average Detector (Vertical) 9648.568 10.17 37.43 35.10 34.60 < 47.09 6.91 54.00 Note: 1. All Readings below 1GHz are Quasi-Peak, above are average value. 2. Emission Level = Reading Level + Probe Factor-PreAMP + Cable loss 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No. 017H009FI Page : 24 of 24 Version:1.0 Product : Wireless LAN PC Card Test Item : Harmonic Radiated Emission Data Test Site : No.1 OATS Test Mode : Channel 6 (1Mbps) Freq. Cable Probe PreAMP Reading Measurement Margin Limit Loss Factor Level MHz dB dB/m dB dBuV dBuV/m dB dBuV/m ============================================================== Peak Detector (Horizontal) 4874.050 6.32 33.56 34.75 42.60 47.73 26.27 74.00 7311.350 8.38 36.31 34.90 43.38 < 53.16 20.84 74.00 9747.549 10.25 37.45 35.10 44.55 < 57.15 16.85 74.00 Average Detector (Horizontal) 9747.654 10.25 37.45 35.10 37.20 < 49.80 4.20 54.00 Peak Detector (Vertical) 4874.299 6.32 33.56 34.75 45.80 50.93 23.07 74.00 7310.698 8.38 36.31 34.90 44.56 < 54.34 19.66 74.00 9748.391 10.25 37.45 35.10 45.00 < 57.60 16.40 74.00 Average Detector (Vertical) 7311.231 8.38 36.31 34.90 38.60 < 48.38 5.62 54.00 9749.562 10.25 37.45 35.10 33.10 < 45.70 8.30 54.00 Note: 1. All Readings below 1GHz are Quasi-Peak, above are average value. 2. Emission Level = Reading Level + Probe Factor-PreAMP + Cable loss 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No. 017H009FI Page : 25 of 25 Version:1.0 Product : Wireless LAN PC Card Test Item : Harmonic Radiated Emission Data Test Site : No.1 OATS Test Mod…

Text truncated - open the document above for the full version.

Report No.: 017H009FI Page: 1 of 3 Version: 1.0 Attachment 1 : EUT Test Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 017H009FI Page: 2 of 3 Version: 1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 017H009FI Page: 3 of 3 Version: 1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
