PTN008992.4GHz Wireless TV & Monitor System

Satow Electronic Co., LTD.
2.4GHz Wireless TV & Monitor System - FCC ID PTN00899 - Satow Electronic Co., LTD.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Apr 05, 2004
Application Purpose
Original Equipment
Date of Application
Apr 05, 2004
Equipment Note
2.4GHz Wireless TV & Monitor System
Frequency Range
2414.00000000 - 2468.00000000
Company
Satow Electronic Co., LTD.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Information This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by Summer infant may void the users authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: l Reorient or relocate the receiving antenna l Increase the separation between the equipment and the receiver l Consult the dealer or an experienced radio / TV technician for help. Applicant: Satow Electronic Co., Ltd. FCC ID: PTN00899

Block Diagram

Applicant: Satow Electronic Co., Ltd. FCC ID: PTN00899 Block Diagram

External Photos

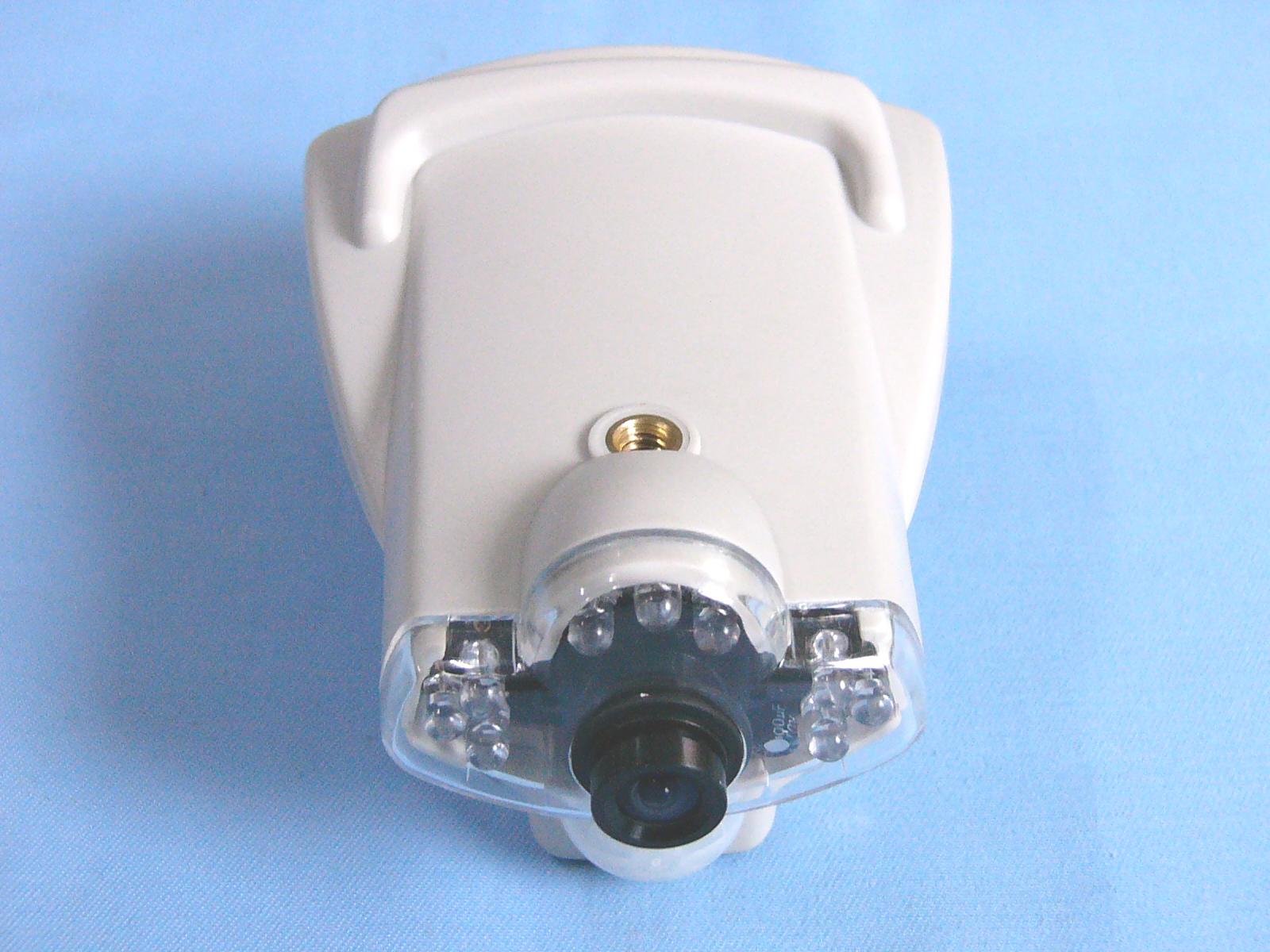

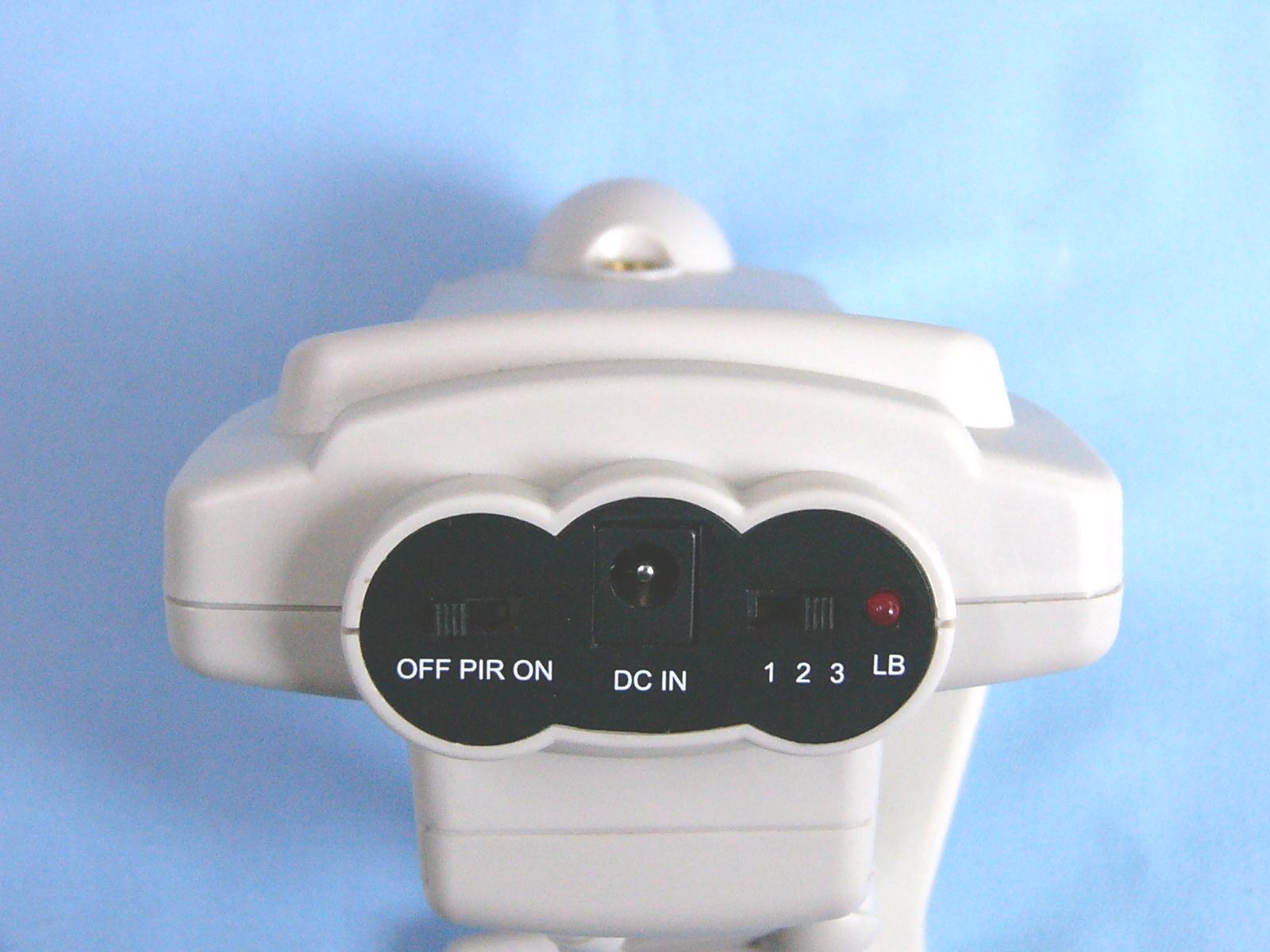

Applicant: Satow Electronic Co., Ltd. FCC ID: PTN00899 EUT top view EUT bottom view

ID Label/Location Info

Applicant: Satow Electronic Co., Ltd. FCC ID: PTN00899 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: PTN00899

Internal Photos

Applicant: Satow Electronic Co., Ltd. FCC ID: PTN00899 EUT inside whole view Main board component side Main board solder side

Operational Description

Applicant: Satow Electronic Co., Ltd. FCC ID: PTN00899 LEE-552BTW/ LEE-243BAL WORKING PRINCIPLE 1. LEE-243BAL is the B/W camera of 2.4GHz wireless transmitter system, which consists of four parts: A. PIR motion detector: Consist of PIR sensor, IC LM324 and appendix components, It can engender 500Hz control signal, and startup power to begin working. B. POWER SUPPLY PART: Consist of IC LM7805 and appendix components. It can provide stable power to the CMOS CAMERA and 2.4G TX MODULE when the power voltage is not stable. C. CMOS CAMERA PART: Single chip 1/4 inch format video image sensor, generates composite video signal, while additional audio-amplifying circuit diagram can amplify the weak signal from microphone. D. 2.4G MODULE PART: modulate Video, Audio and 500Hz control signal to 2.4G Band and send out.

Schematics

Applicant: Satow Electronic Co., Ltd. FCC ID: PTN00899

Test Report

The test report consists 28 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.249: 2002 Prepared For : SATOW ELECTRONIC CO., LTD WEIXING BLDG, HUADA INDUSTRIAL PARK, WEST REN MIN RD., ZHUHAI CHINA April 6, 2004 FCC ID: PTN00899 EUT: 2.4GHz Wireless TV& Monitor Sytem Model: 00899 Report Type: Original Report Test Engineer: Peter Lin Test Date: March 14, 2004 Review By: Apollo Liu / Manager FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com Satow Electronic Co., Ltd. FCC ID: PTN00899 KMO FCC ID Report Report #: KSZ2004031502J Page 2 of 28 TABLE OF CONTENTS 1. General Information...........................................................................................................................................................3 1. 1 Notes...............................................................................................................................................................................3 1. 2 Testing Laboratory..........................................................................................................................................................3 1. 3 Details of Applicant........................................................................................................................................................3 1. 4 Application Details.........................................................................................................................................................3 1. 5 Test Item.........................................................................................................................................................................3 1. 6 Test Standards.................................................................................................................................................................4 2. Technical Test.......................................................................................................................................................................5 2. 1 Summary of Test Results................................................................................................................................................5 3. EUT Modifications..............................................................................................................................................................6 4. Conducted Power Line Test................................................................................................................................................7 4. 1 Test Equipment...............................................................................................................................................................7 4. 2 Test Procedure................................................................................................................................................................7 4. 3 Test Setup.......................................................................................................................................................................7 4. 4 Configuration of the EUT...............................................................................................................................................8 4. 5 EUT Operating Condition...............................................................................................................................................9 4. 6 Conducted Power Line Emission Limits........................................................................................................................9 4. 7 Conducted Power Line Test Result...............................................................................................................................10 5. Radiated Emission Test.....................................................................................................................................................12 5. 1 Test Equipment.............................................................................................................................................................12 5. 2 Test Procedure..............................................................................................................................................................12 5. 3 Radiated Test Setup......................................................................................................................................................12 5. 4 Configuration of the EUT.............................................................................................................................................13 5. 5 EUT Operating Condition.............................................................................................................................................13 5. 6 Radiated Emission Limit..............................................................................................................................................13 5. 7 Radiated Emission Test Result......................................................................................................................................14 6. Band Edge..........................................................................................................................................................................16 6. 1 Test Equipment.............................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Applicant: Satow Electronic Co., Ltd. FCC ID: PTN00899 Conducted emission test view Radiated emission test view

Contact Information

Applicant

Dong Gang Wei(Material Control Manager)
[email protected]86-756-8614658Fax: 86-756-8621628

Test Firm

Ke Mei Ou Laboratory Co., Ltd.Apollo Liu
[email protected]86-755-83642690Fax: 86-755-83297077

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.47 GHz-
