PTS-PURSCANIT350UPUR-SCANiT-350U UHF-RFID Reader

RF-Embedded GmbH
PUR-SCANiT-350U UHF-RFID Reader - FCC ID PTS-PURSCANIT350U - RF-Embedded GmbH
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 11, 2026
Application Purpose
Original Equipment
Equipment Note
PUR-SCANiT-350U UHF-RFID Reader
Frequency Range
902.75000000 - 927.25000000
Company
RF-Embedded GmbH
Country
Germany

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Document Technical Specification version: v1.00 status: date: 2025-11-24 project title: PUR-SCANIT-350U HILTI – User Manual org 20251124_EN_UM - PUR-SCANIT- 350U Hilti_v1.00.docx created by: Jochen Kuhn page: 1 von 3 RF-Embedded GmbH • Kufsteiner Straße 11 • D-83080 Oberaudorf • [email protected] www.rf-embedded.eu PUR-SCANIT-350U HILTI USER MANUAL Document Technical Specification version: v1.00 status: date: 2025-11-24 project title: PUR-SCANIT-350U HILTI – User Manual org 20251124_EN_UM - PUR-SCANIT- 350U Hilti_v1.00.docx created by: Jochen Kuhn page: 2 von 3 RF-Embedded GmbH • Kufsteiner Straße 11 • D-83080 Oberaudorf • [email protected] www.rf-embedded.eu 1 Plug-In To start working with the PUR-SCANiT350U, plug the USB connector into a free USB port of your computer. The PC will then ask you for a valid driver. 2 Driver The driver will be installed automatically by your Operating System, Windows 10 or Windows 11. 3 Software 1) Connect the Reader to the PC. 2) Use the COM port assigned to the reader in the next steps, for example COM1. 3) Start the Skript on the CMD line: python toolbox.py COM1 bridge →Adjust the COM port number to match that of the device. 4) Use the reader as usual with the Silion Demo Tool. Document Technical Specification version: v1.00 status: date: 2025-11-24 project title: PUR-SCANIT-350U HILTI – User Manual org 20251124_EN_UM - PUR-SCANIT- 350U Hilti_v1.00.docx created by: Jochen Kuhn page: 3 von 3 RF-Embedded GmbH • Kufsteiner Straße 11 • D-83080 Oberaudorf • [email protected] www.rf-embedded.eu Declaration of Conformity for USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequencyenergy and, if notinstalledandused in accordance with the instructions, maycause harmfulinterferencetoradiocommunications. However, there isno guarantee thatinterference will notoccur in a particular installation. If this equipment doescause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, theuseris encouraged to try tocorrectthe interference by oneormoreof thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Anychanges ormodificationstothisdevicenot explicitlyapprovedby manufacturer could void your authority to operate this equipment. Thisdevice complies with part 15ofthe FCC Rules. Operation is subject tothe following two conditions: (1)This device may notcauseharmful interference, and (2) thisdevicemust acceptany interference received, including interference that may cause undesired operation. This equipmentcomplies withFCC radiation exposure limitssetforthforanuncontrolled environment.This equipment shouldbeinstalledand operated with minimumdistance20cm between the radiator and your body.

External Photos

FCC ID:PTS-PURSCANIT350U External Photos of the EUT FCC ID:PTS-PURSCANIT350U FCC ID:PTS-PURSCANIT350U

ID Label/Location Info

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : PTS-PURSCANIT350U

Internal Photos

FCC ID:PTS-PURSCANIT350U Internal Photos of the EUT FCC ID:PTS-PURSCANIT350U ANT FCC ID:PTS-PURSCANIT350U FCC ID:PTS-PURSCANIT350U

RF Exposure Info

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA25120201202 PTS-PURSCANIT350U Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 28, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : RF-Embedded GmbH Address............................................ : Kufsteiner Str. 11 Oberaudorf, 83080 Germany Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : PUR-SCANiT-350U UHF-RFID Reader Trade Mark ........................................ N/A Manufacturer .................................... : RF-Embedded GmbH Model/Type reference ...................... : PUR-SCANiT-350U Listed Models ................................... : N/A Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25120201202 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : PUR-SCANiT-350U UHF-RFID Reader Model /Type : PUR-SCANiT-350U Listed Models : N/A Applicant : RF-Embedded GmbH Address : Kufsteiner Str. 11 Oberaudorf, 83080 Germany Manufacturer : RF-Embedded GmbH Address : Kufsteiner Str. 11 Oberaudorf, 83080 Germany Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120201202 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25120201202 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with…

Text truncated - open the document above for the full version.

Test Report

Document Technical Specification version: v1.00 status: date: 2025-11-24 project title: Technical Specification org 20251124_Antenna specification document.docx created by: Jochen Kuhn page: 1 von 3 RF-Embedded GmbH • Kufsteiner Straße 11 • D-83080 Oberaudorf • [email protected] www.rf-embedded.eu ANTENNA SPECIFICATION HILTI 1 Basic information: The diagnostic reader requires a wide frequency range, as it is operated in both the EU and US frequency ranges. The complete reader, including the antenna, is installed in a plastic handheld housing.. 2 IMPLEMENTATION A sandwich design was chosen for the structure, meaning that the antenna is located above the reader circuit board. Due to the available space, a circular antenna structure was chosen. Frequency adjustment is achieved via the distance between the ends of the circle: Figure 1: Antenna design The simulation and subsequent tests determined an ideal distance of 1 mm. To improve broadband performance, a component for adjusting the antenna quality was provided in addition to the feed. Document Technical Specification version: v1.00 status: date: 2025-11-24 project title: Technical Specification org 20251124_Antenna specification document.docx created by: Jochen Kuhn page: 2 von 3 RF-Embedded GmbH • Kufsteiner Straße 11 • D-83080 Oberaudorf • [email protected] www.rf-embedded.eu Due to the underlying circuit board, the antenna's radiation pattern is directed in the desired direction: Figure 2: Directional characteristics at 868 MHz Figure 3: Directional characteristics at 915 MHz Document Technical Specification version: v1.00 status: date: 2025-11-24 project title: Technical Specification org 20251124_Antenna specification document.docx created by: Jochen Kuhn page: 3 von 3 RF-Embedded GmbH • Kufsteiner Straße 11 • D-83080 Oberaudorf • [email protected] www.rf-embedded.eu Figure 4: Antenna gain at 868 MHz Figure 5: Antenna gain at 915 MHz

Test Report

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : CTA25120201201 PTS-PURSCANIT350U Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jan. 28, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : RF-Embedded GmbH Address ............................................ : Kufsteiner Str. 11 Oberaudorf, 83080 Germany Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : PUR-SCANiT-350U UHF-RFID Reader Trade Mark ....................................... : N/A Manufacturer .................................... : RF-Embedded GmbH Model/Type reference....................... : PUR-SCANiT-350U Listed Models .................................. : N/A Frequency .......................................... From 902.75MHz to 927.25MHz Rating ............................................... : DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA25120201201 Page 2 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : PUR-SCANiT-350U UHF-RFID Reader Model /Type : PUR-SCANiT-350U Listed Models : N/A Applicant : RF-Embedded GmbH Address : Kufsteiner Str. 11 Oberaudorf, 83080 Germany Manufacturer : RF-Embedded GmbH Address : Kufsteiner Str. 11 Oberaudorf, 83080 Germany Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120201201 Page 3 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT configuration 5 2.6 EUT operation mode 6 2.7 Block Diagram of Test Setup 6 2.8 Related Submittal(s) / Grant (s) 6 2.9 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Output Power 27 4.4 20dB Bandwidth 28 4.5 Frequency Separation 30 4.6 Number of hopping frequency 31 4.7 Time of Occupancy (Dwell Time) 32 4.8 Out-of-band Emissions 34 4.9 Antenna Requirement 38 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 39 6 P H O T O S O F T H E E U T ............................................................. 41 Report No.: CTA25120201201 Page 4 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA25120201201 Page 5 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Dec. 02, 2025 Testing commenced on : Dec. 02, 2025 Testing concluded on : Jan. 28, 2026 2.2 Product Description Product Description: PUR-SCANiT-350U UHF-RFID Reader Model/Type reference: PUR-SCANiT-3…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID:PTS-PURSCANIT350U Test Setup Photos of the EUT FCC ID:PTS-PURSCANIT350U

Contact Information

Applicant

Jochen Kuhn
[email protected]Fax: +49803330231388

Technical Contact

MIRAMONT SOLUTIONS LLCWenyi Wang
[email protected]

34218 HOURGLASS ST,TEMECULA, · United States

Test Firm

SHENZHEN CTA TESTING TECHNOLOGY CO., LTD.Eric Wang
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C902.75 MHz - 927.25 MHz69.30 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.

Other Applications from RF-Embedded GmbH

UHF RFID Reader - FCC ID PTSPUR350HILTI - RF-Embedded GmbH
PTSPUR350HILTI

UHF RFID Reader

Mar 12, 2015

Equipment Class

DSS - Part 15 Spread Spectrum Transmitter
UHF RFID Reader - FCC ID PTSPURDNGL100U - RF-Embedded GmbH
PTSPURDNGL100U

UHF RFID Reader

Dec 11, 2013

Equipment Class

DSS - Part 15 Spread Spectrum Transmitter

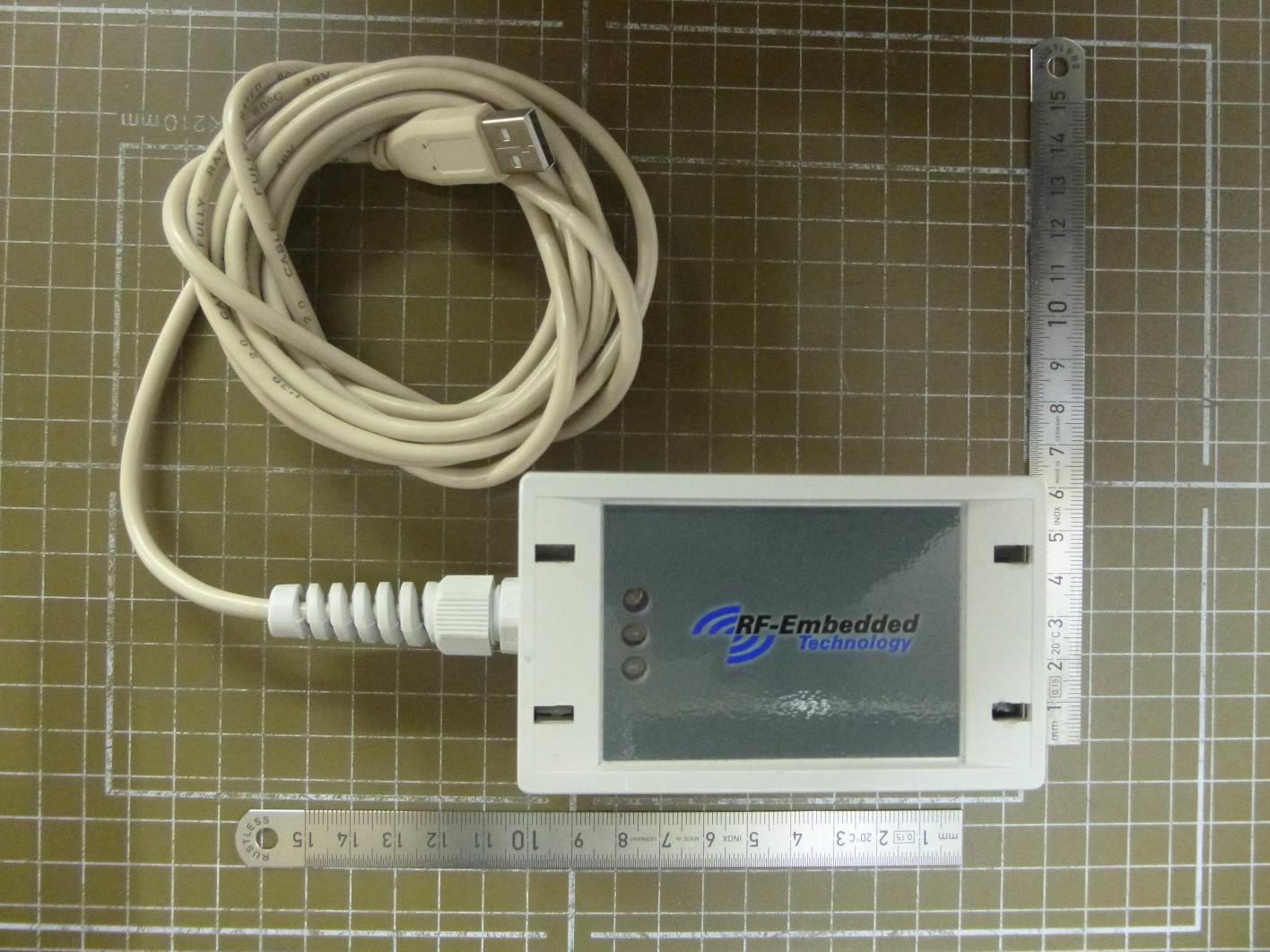

UHF RFID Reader - FCC ID PTSPURDTR100U - RF-Embedded GmbH
