PU7EV1044X-YMicrowave Oven

- 28 - Helpful information Microwave Terms Term Definition Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by : ·metal or foil touching the side of the oven. ·Foil that is not molded to food (upturned edges act like antennas). ·Metal such as twist ties. poultry pins, gold-rimmed dishes. ·Recycled paper towels containing small metal pieces. Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape. Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts. Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack. Ve n t i n g After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape. - 29 - Care and Cleaning Helpful Hints Open the over door a few minutes after cooking to air out the inside. An occasional thorough wiping with a solution of baking soda and water keeps the inside fresh. NOTE: Be certain the power is off before cleaning any part of this over. How to Clean the Inside Walls, Floor, Inside Window, Metal and Plastic Parts on the Door Some spatters can be removed with a paper towel; others may require a damp cloth. Remove greasy spatters with a sudsy cloth, and then rinse with a damp cloth. Do not use abrasive cleaners or sharp utensils on oven walls. Never use a commercial over cleaner on any part of your microwave. Removable Turntable and Turntable Support To prevent breakage, do not place the turntable into water just after cooking. Wash it carefully in warm, sudsy water or in the dishwasher. The turntable and support can be broken if dropped. Remember; do not operate the oven without the turntable and support in place. - 30 - Helpful information Care and Cleaning How to Clean The Outside Do not use cleaners containing ammonia or alcohol on the microwave oven. Ammonia or alcohol can damage the appearance of the microwave. Case Clean the outside of the microwave with a sudsy cloth. Rinse and then dry. Wipe the window clean with a damp cloth. Control Panel and Door Wipe with a damp cloth. Dry thoroughly. Do not use cleaning sprays; large amounts of soap and water, abrasives or sharp objects on the panel-they can damage it. Some paper towels can also scratch the control panel. Door surface It’s important to keep the area clean where the door seals against the microwave. Use only mild, nonabrasive detergents applied with a clean sponge or soft cloth. Rinse well. Bottom Clean off the grease and dust on the bottom often. Use a solution of warm water and detergent. - 31 - Light Bulb Replacement Cooktop Light Replace the burned-out bulb with a 40-watt incandescent bulb. 1 To replace the bulb(s), first disconnect the power at the main fuse or circuit breaker panel or pull the plug. 2 Remove the screw at the side of the light cover and lower the cover. 3 Be sure the bulb(s) to be replaced are cool before removing. After breaking the adhesive seal, remove the bulb by gently turning. 4 Replace the screw. Connect electrical power to the oven. Oven Light Replace the burned-out bulb with a 40-watt incandescent bulb. 1 To replace the oven light, first disconnect the power at the main fuse or circuit breaker panel or pull the plug. 2 Remove the top grille by taking out the 2 screws that hold it in place. 3 Next, remove the screw located above the door near the center of the oven that secures the light housing . 4 Replace the screw. Connect electrical power to the oven. - 32 - Helpful information The Exhaust Feature The Vent Fan The vent fan has 2 metal reusable grease filters. Models that recirculate air back into the room also use a charcoal filter. Reusable grease filters The metal filters trap grease released by foods on the cooktop. They also prevent flames from foods on the cooktop from damaging the inside of the microwave. For this reason, the filters must ALWAYS be in place when the hood is used. The grease filters should be cleaned once a month ,or as needed. Removing and Cleaning the Filter To remove, slide it to the left/right using the tab. Pull it down and out. To clean the grease filter, soak it and then swish it around in hot water and detergent. Don’t use ammonia or ammonia products because they will darken the metal. Light brushing can be used to remove embedded dirt. Rinse, shake and let it dry before replacing. To re p l a c e, slide the filter in the frame slot on the left/right of the opening. Pull up and to the left/right to lock into place. Charcoal Filter (on some models) Reusable Grease Filters (on all models) - 33 - Charcoal Filter (on some models) The charcoal filter cannot be cleaned. It must be replaced. If the model is not vented to the outside, the air will be recirculated through a disposable charcoal filter that helps remove smoke and odors. The charcoal filter should be replaces when it is noticeably dirty or discoloredusually after 6 to 12 months, depending on hood usage. To remove Charcoal Filter To remove the charcoal filter, disconnect power at the main fuse or circuit breaker panel or pull the plug. Remove the top grille by removing the 2 screws that hold it in place. Slide the filter towards the front of the oven and remove it. To Install Charcoal Filter To install a new filter, remove plastic and other outer wrapping from the new filter. Insert the filter into the top opening of the oven as shown. It will rest at an angle on 2 side support tabs and in front of the right rear tab. Replace the grille and 2 screws. - 34 - If Something Goes Wrong Before You Call For Service Problem Poss…

Text truncated - open the document above for the full version.

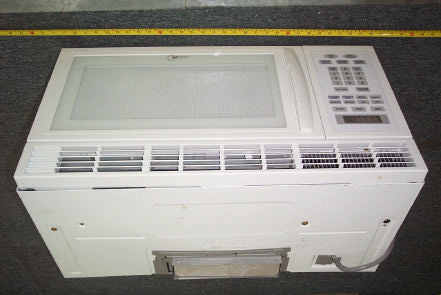

EUT External Photographs Front View Back View Side View

5 – FCC PRODUCT LABELING AND WARNING STATEMENT 5.1 Proposed FCC Label Format Specifications: Text is white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. 5.2 Proposed Label Location on EUT Rear View of EUT Proposed FCC ID Location 5.3 FCC Warning Statement This device complies with Part 18 of FCC rules. Information on the following matters shall be provided to the user in the instruction manual or on the packaging if an instruction manual is not provided for any type of any ISM equipment: a. The interference potential of the device or system b. Maintenance of the system c. Simple measures that can be taken by the user to correct interference. FCC ID: PU7EV1044X-Y

EUT Internal Photographs Open 1 Open 2 PCB 1 Back PCB 1 Front PCB 2 Back PCB 2 Front

Note: The test report is specially limited to the use of the above client company and the product model. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC ID PER PART 18 EMI MEASUREMENT AND TEST REPORT For Shunde MD Microwave Oven Manufactory Co., Ltd. Penglai Road, Beijiao, Shunde, Guangdong, P.R. China FCC ID: PU7EV1044X-Y October 01, 2002 This Report Concerns: Original Report Equipment Type: Microwave Oven – Consumer ISM Equipment Test Engineer:Philo Zhong Report Number:R0209188 Test Date:August 15, 2002 Reviewed By:Jerry Wang Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7EV1044X-Y Report # R0209188Rpt FCC ID Per Part 18 Test ReportPage 2 of 16 TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................................3 1.4 TEST FACILITY.........................................................................................................................................................................3 1.5 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................................3 1.6 EQUIPMENT UNDER TEST (EUT)...........................................................................................................................................4 2 – OPERATING CONDITION/TEST CONFIGURATION..............................................................................................5 2.1 JUSTIFICATION.........................................................................................................................................................................5 2.2 SCHEMATICS / BLOCK DIAGRAM..........................................................................................................................................5 2.3 EQUIPMENT MODIFICATIONS.................................................................................................................................................5 2.4 CONFIGURATION OF TEST SYSTEM.......................................................................................................................................6 2.5 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................6 3 – RADIATION HAZARD MEASUREMENT.....................................................................................................................7 3.1 RADIATION HAZARD MEASUREMENT..................................................................................................................................7 3.2 INPUT POWER...........................................................................................................................................................................7 3.3 LOAD FOR MICROWAVE OVENS.............................................................................................................................................7 3.4 RF OUTPUT POWER MEASUREMENT....................................................................................................................................8 3.5 OPERATING FREQUENCY MEASUREMENT...........................................................................................................................9 4 - RADIATED EMISSION DATA..........................................................................................................................................15 4.1 MEASUREMENT UNCERTAINTY...........................................................................................................................................15 4.2 EUT SETUP.............................................................................................................................................................................15 4.3 SPECTRUM ANALYZER SETUP.............................................................................................................................................15 4.4 TEST PROCEDURE..................................................................................................................................................................15 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION.......................................................................................................16 4.6 SUMMARY OF TEST RESULTS...............................................................................................................................................16 4.7 RADIATED EMISSIONS TEST RESULT DATA......................................................................................................................16 Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7EV1044X-Y Report # R0209188Rpt FCC ID Per Part 18 Test ReportPage 3 of 16 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Shunde MD Microwave Oven Manufactory Co., Ltd.’s model, EV1044X-Y or the “EUT” as referred to in this report is a microwave oven which measures approximately 18”L x 12”W x 11.5”H. 1.2 Objective The follo…
