PU7M5012X-YMicrowave Oven

page 1 INSTRUCTION MANUAL AND COOKING GUIDE MICROWAVE OVEN MODEL: M5012X-Y TABLE OF CONTENTS SAFETY INSTALLATION COOKING GUIDE MAINTENANCE z Precautions to Avoid Possible Exposure to Excessive Microwave Energy z Important Safety Instructions z Proper and Safe Use of Your Oven z Grounding Instructions z Materials you can use in microwave oven z Materials to be avoided in microwave oven z Countertop Installation z Countertop Installation z Microwave Cooking Techniques z Troubleshooting z Cleaning and Care z Specifications page 2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b)Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c)Do not operate the oven if it is damaged .It is particularly important that the oven door close properly and that there is no damage to the : (1)door(bent),(2)hinges and latches (broken or loosened),(3)door seals and sealing surfaces. (d)The oven should not be adjusted or repaired by anyone except properly qualified service personnel. IMPORTANT SAFETY INSTRUCTIONS WA R N I N G – To reduce the risk of burns, electric shock , injury to persons ,or exposure to excessive microwave energy when using your appliance ,following: 1. Read all instruction before using the appliance. 2. Read and follow the specific “ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”. 3. As with most cooking appliances, close supervision is the oven cavity. If a fire should start: z Keep the oven door closed z Turn the oven off z Disconnect the power cord or shut off power at the fuse or circuit breaker panel. To reduce the risk of fire in the oven cavity, Keep in mind the following rules at all times : a. Do not overcook food . Carefully attend the appliance if paper ,plastic ,or other combustible materials are placed inside the oven to facilitate cooking . b. Do not use the oven cavity for storage purposes .Do not store combustible items such as bread, cookies, paper products ,cooking utensils, etc. inside the oven . c. Remove wire twist-ties and metal handles from paper or plastic containers, or bags before placing them in the oven. 4. This oven must be grounded, Connect only to properly grounded outlet. See page 3 “ GROUNDING INSTRUCTIONS ”. Same as items. 5. Install or locate this oven only in accordance with the installation instruction provided on page 6. 6. Some products such as whole eggs, water with oil or fat, sealed containers and closed glass jars may explode and therefore should not be heated in this oven. 7. Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapor in this applianceThis oven is not specifically designed for industrial or laboratory use. 8. As with any appliance, close supervision is necessary when used by children. 9. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 10. This appliance should be serviced only by qualified service technicians Contact the nearest SANTO authorized service facility for examination, repair or adjustment. 11. Do not cover or block any vents on the oven. 12. Do not store or use this appliance outdoors. 13. Do not use this oven near water, near a kitchen sink, in a wet basement or near a swimming pool. 14. Do not immerse cord or plug in water. 15. Keep cord away from heated surfaces. 16. Do not let cord hang oven edge of table or counter. 17.When cleaning door and oven surfaces that meet when door is closed, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. (See “Cleaning instructions”). 18. SAVE THESE INSTRUCTIONS. PROPER AND SAFE USE OF YOUR OVEN z The oven must be level z The oven has several built-in safety switches to ensure that the power remains off when the door is open .Do not tamper with these switches. z Do not operate the microwave oven empty. Operating the microwave oven with no food or food that is extremely low in moisture can cause fire, charring or sparking. z Do not heat baby bottles or baby food in the microwave oven. Uneven heating may occur and could cause physical injury. z Do not heat narrow-necked containers, such as syrup bottles. z Do not attempt to deep-fry in microwave oven. z Do not do home canning in this microwave oven as it is impossible to be sure all contents of the jar have reached boiling temperature. z Do not use this microwave oven for commercial purposes. This microwave oven is made for household use only. page 4 To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself, stir liquids and beverages, stir liquid before placing the container in the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the container. GROUNDING INSTRUCTIONS DANGER Electric Shock Hazard . Touching some of the internal components can cause serious personal injury or death .Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding plug can result in electric shock .Do not plug into an outlet until appliance is properly installed and grounded. Three-pronged (grounding) plug Properly polarized and grounded outlet UTENSILS . CAUTION Personal injury Hazard tightly-closed utensils could explode. Closed containers are opened and plastic pouches pierced before cooking. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric current by providing an escape wire for the electric shock by providing an escape wire for the electric current .This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outle…

Text truncated - open the document above for the full version.

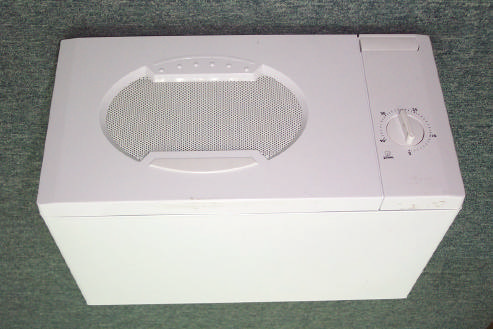

EUT External Photographs Front View Back View 1

5 – FCC PRODUCT LABELING AND WARNING STATEMENT 5.1 Proposed FCC Label Format FCC ID: PU7M5012X-Y Specifications: Text is white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. 5.2 Proposed Label Location on EUT Rear View of EUT Proposed FCC ID Location 5.3 FCC Warning Statement This device complies with Part 18 of FCC rules. Information on the following matters shall be provided to the user in the instruction manual or on the packaging if an instruction manual is not provided for any type of any ISM equipment: a. The interference potential of the device or system b. Maintenance of the system c. Simple measures that can be taken by the user to correct interference. FCC ID: PU7M5012X-Y

EUT Internal Photographs Open View PCB 1 Front PCB 1 Back

Note: The test report is specially limited to the use of the above client company and the product model. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC ID PER PART 18 EMI MEASUREMENT AND TEST REPORT For Shunde MD Microwave Oven Manufactory Co., Ltd. Penglai Road, Beijiao, Shunde, Guangdong, P.R. China FCC ID: PU7M5012X-Y October 3, 2002 This Report Concerns: Original Report Equipment Type: Microwave Oven – Consumer ISM Equipment Test Engineer:Philo Zhong Report Number:R0209189 Test Date:August 15, 2002 Reviewed By:Jerry Wang Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7M5012X-Y Report # R0209189Rpt FCC ID Per Part 18 Test ReportPage 2 of 17 TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................................3 1.4 TEST FACILITY.........................................................................................................................................................................3 1.5 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................................4 1.6 EQUIPMENT UNDER TEST (EUT)...........................................................................................................................................4 2 – OPERATING CONDITION/TEST CONFIGURATION..............................................................................................5 2.1 JUSTIFICATION.........................................................................................................................................................................5 2.2 SCHEMATICS / BLOCK DIAGRAM..........................................................................................................................................5 2.3 EQUIPMENT MODIFICATIONS.................................................................................................................................................5 2.4 CONFIGURATION OF TEST SYSTEM.......................................................................................................................................6 2.5 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................6 3 – RADIATION HAZARD MEASUREMENT.....................................................................................................................7 3.1 RADIATION HAZARD MEASUREMENT..................................................................................................................................7 3.2 INPUT POWER...........................................................................................................................................................................7 3.3 LOAD FOR MICROWAVE OVENS.............................................................................................................................................7 3.4 RF OUTPUT POWER MEASUREMENT....................................................................................................................................8 3.5 OPERATING FREQUENCY MEASUREMENT...........................................................................................................................9 4 - RADIATED EMISSION DATA..........................................................................................................................................15 4.1 MEASUREMENT UNCERTAINTY...........................................................................................................................................15 4.2 EUT SETUP.............................................................................................................................................................................15 4.3 SPECTRUM ANALYZER SETUP.............................................................................................................................................15 4.4 TEST PROCEDURE..................................................................................................................................................................16 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION......................................................................................................16 4.6 SUMMARY OF TEST RESULTS...............................................................................................................................................16 4.7 RADIATED EMISSIONS TEST RESULT DATA......................................................................................................................17 Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7M5012X-Y Report # R0209189Rpt FCC ID Per Part 18 Test ReportPage 3 of 17 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Shunde MD Microwave Oven Manufactory Co., Ltd.’s model, M5012X-Y or the “EUT” as referred to in this report is a microwave oven which measures approximately 18”L x 12”W x 11.5”H. 1.2 Objective The following t…

Text truncated - open the document above for the full version.

6 - Setup Photographs 6.1 Radiated Setup Photograph – Front View 6.2 Radiated Setup Photograph – Rear View
