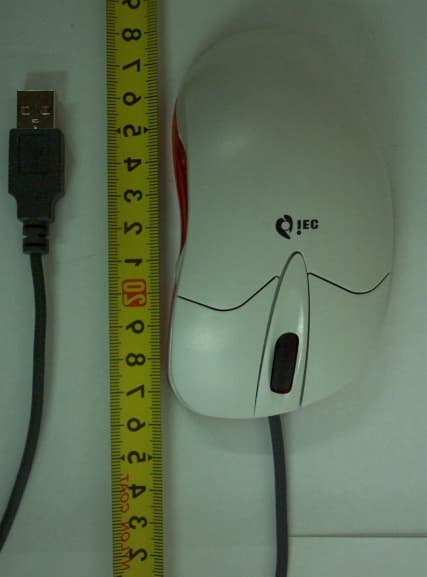

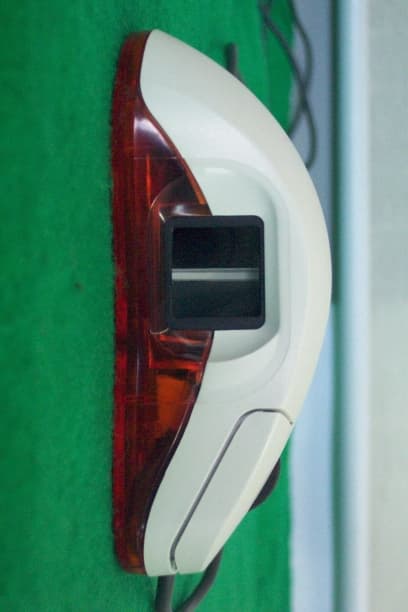

PUVOF2P3UBFingerprint Identification Mouse

User's Guide FCCInformation This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generates, uses, and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio Communications. However, there is no guarantee thatinterference will not occur in a particular Installation. If this equipment does cause unacceptable interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. lReorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. lConnect the equipment into an outlet on a circuit different from that to which the Receiver is connected. lConsult the dealer or an experienced Radio/TV technician for help. Caution : Any changes or modifications in construction of this device which are not expressly approved bytheparty responsible for compliance could void the user’s authority to operate the equipment. 2 Introduction to Ramses II Ramsen II is an innovative PC security product developed by Immanuel Electronics Co., Ltd. for providingsecurityand a means of authentication to its users. Ramses II fingerprint identification capability will enable you to implement a convenient and solid security system. Your fingerprint isthe most convenient and safest key. You no longer have to worry about losing your password. Also, no more worries about others knowing your password. You don't have to know anything about complex encryption algorithms. Ramses II will protect your system with your fingerprint as the key to security. Ramses II the logon procedure, provides screen saver security and protects your files and folders. Ramses II features fingerprint authentication logon, screen saver security and file/folder protection. These features protect your system not only when it is turned on and off, but also when you momentarily leave your system. Furthermore, it enables you to select the identification scheme (fingerprint/password) and provides various administrator functions. Ramses II is an outstanding software product Ramses II received the2000 New Software Grand Prize and the Chairman's Award at SOFT EXOP 2000. It has been widely recognized as an innovative and reliable software product. 3 Applications -Personal authentication and identification for electronic financial transactions, e-mails and electronic document exchanges -Personal system security for protecting system data -System access restriction and data protection -Security and authentication measures for Internet and e-commerce applications System Requirements -OS:Microsoft Windows98, Microsoft Windows98SE, Microsoft WindowsME -CPU:Pentium 133MHzor greater -HDD:Free diskspace of 20MB or more -Memory:32 MBor more -Device:Ramses II Fingerprint Scanner/Mouse -Required Program:Microsoft Internet Explorer 5.0or later 4 Chapter 1. Program Installation.......................................................................5 Chapter 2. Uninstall Program........................................................................17 Chapter 3. Introduction to Features..............................................................22 1. Ramses IICenter.........................................................................................22 (1)How to Run Ramses II Center..........................................................................23 (2)User and Group Management..........................................................................27 (3)System Configuration.......................................................................................56 (4)Log Management.............................................................................................63 (5)Emergency Rescue Disk..................................................................................64 2. My SecureDocs...........................................................................................72 (1)How to run My SecureDocs..............................................................................73 (2)Viewing icons in My SecureDocs......................................................................74 (3)Arranging icons in My SecureDocs...................................................................74 (4)Creating a new folder.......................................................................................74 (5)Viewing folder properties..................................................................................75 (6)Folder/File Encryption......................................................................................76 (7)Folder/File Decryption......................................................................................80 3.Screen Saver...............................................................................................85 Chapter 4. Q&A...............................................................................................87 5 Chapter 1. Program Installation Insert Ramses II CD in your CD-ROM drive and run setup.exe to install Ramses II SelectStart>Runfrom the taskbar. Input the file path in theOpentext box or clickBrowse...and specify the path. 6 From theBrowsewindow, select "setup.exe" and clickOpen. The file path will be indicated in theRunwindow. ClickOK. The initialscreen for programinstallationwill be displayed. ClickNext. 7 When theSoftware License Agreementwindow is displayed, read the agreement carefully. If you agreewiththe terms,selectAgreeand clickNext. 8 Input your name, company and the serial number. ClickNext. ※Your serial number is indicated in the Software User Certificate provided by Immanuel Electronics Co., Ltd. Files will be …

Text truncated - open the document above for the full version.










































 !






!"
:#










































!"  :#










































!" :#
8





























































  2   3 252 3 permanently affixed 2  <  3    <3 2  2   2 !



!"
  #

      !"" #$"
%& ' "( &)*"""$ !(+"!("(, -. ("&$& ("$(/(, -"&"" (. ("$( / ( &(+ ("$( "" . &&("('




Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 22 of 26 l Inside View of EUT Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 23 of 26 l Front View of Main Board Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 24 of 26 l Rear View of Main Board

Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 1 of 26 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Manufacturer: Immanuel Electronics Co., Ltd. Dates of Issue : June 4, 2002 156-5, Ippuk-dong, Kwonsun-Ku, Suwon Test Report No. : NK2CE383 Kyunggi-do Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. Jeong-hee Kim EMC site, Korea FCC ID Brand Name Contact Person FCC Rule Part(s): Part 15 & 2 Classification : FCC Class B Device EUT Type: Fingerprint Identification Mouse The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. K. Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer PUVOF2P3UB RamsesII Immanuel Electronics Co., Ltd. 156-5, Ippuk-dong, Kwonsun-Ku, Suwon, Kyunggi-do, Korea. Mr. Jeong-hee Kim Telephone No. : +82 31 292 0770 Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 2 of 26 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) GENERAL TEST CONDITION DESCRIPTION OF TEST (Conducted Emissions) DESCRIPTION OF TEST (Radiated Emissions) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSION SAMPLE CALCULATIONS ACCURACY of MEASUREMENT TEST EQUIPMENT RECOMMENDATION/CONCLUSION APPENDIX A - LABELLING REQUIREMENTS APPENDIX B - CIRCUIT DIAGRAM APPENDIX C - PHOTOGRAPHS of TEST SET-UP APPENDIX D - EUT PHOTOGRAPHS APPENDIX E - USER’S MANUAL APPENDIX F - SCHEMATIC DIAGRAM 3 4 5 6 7 8 9 10 12 13 14 15 16 17 18 20 25 26 Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 3 of 26 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party* : Contact Person : Manufacturer : Immanuel Electronics Co., Ltd. Mr. Jeong-hee Kim Immanuel Electronics Co., Ltd. 156-5, Ippuk-dong, Kwonsun-Ku, Suwon, Kyunggi-do Korea Tel : +82 31 292 0770/Fax : +82 31 294 0641 l FCC ID: PUVOF2P3UB l Model: OF2P3UB l Brand Name: RamsesII l EUT Type: Fingerprint Identification Mouse l Classification: l Rule Part(s): l Test Procedure(s): l Dates of Test: l Place of Tests: l Test Report No.: FCC Class B FCC Part 15 & Part 2 ANSI C63.4 (1992) May 22, 2002 to May 28, 2002 Nemko Korea Co., Ltd. EMC Site NK2CE383 * NOTE: Please refer to the duties and responsibilities of the Responsible Party attached. Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 4 of 26 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from Immanuel Electronics Co., Ltd. FCC ID : PUVOF2P3UB, Fingerprint Identification Mouse. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation LTD. EMC Test Site is located in a mountain area at 50 kilometers (30 miles) southeast and Seoul International Airport (Kimpo Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of 2.948 according to ANSI C63.4 on October 19, 1992. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Kimpo Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 5 of 26 TEST CONDITIONS & EUT INFORMATION Operating During Test The EUT was connected to PC and the “H” characters was scrolled on the screen. And the test was performed at normal operating position of EUT. Support Equipment Notebook PC LG, Model: CM2080 1.2m unshielded AC power cable S/N: 5YDF974KC49 Keyboard Samsung, Model: SDL3520 1.8m shield Din cable S/N: N/A Mouse(EUT) Immanuel, FCC ID: PUVOF2P3UB 1.6m shield Din cable S/N: N/A Printer HP, Model: C4562K 1.8m unshielded AC power cord 1.5m Shield D-sub cable S/N: SG74T1C206 EUT Information Clock: 24.0MHz (OSC1), 12.0MHz (OSC2) Chipset: AN2135SC (U4), HB7122B (U101) Rating: 5V DC, 150mA Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 6 of 26 DESCRIPTION OF TESTS Conducted Emissions The Line conducted emission test facility is located inside a 4 X 7 X 2.5 meter shielded enclosure. It is manufactured by EM engineering. The shielding effectiveness of the shielded room is in accordance with MIL-STD-285 or NSA 65-6. A 1mX 1.5M wooden table 0.8m height is placed 0.4m away from the vertical wall and 1.5m away from the side of wall of the shielded ro…

Text truncated - open the document above for the full version.

Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 18 of 26 APPENDIX C – TEST PHOTOGRAPHS The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. l Conducted Test Picture(Front) l Conducted Test Picture(Rear) Test Report No.: NK2CE383 FCC Certification Immanuel Electronics Co., Ltd. FCC ID:PUVOF2P3UB Page 19 of 26 l Radiated Test Picture(Front) l Radiated Test Picture(Rear)
