PUWJSHT-2K14-RCRF Control Transmitter

RF Control TransmitterRF Control Transmitter User Manual YKF355-005 Remote control key introduction Appearance Key introduction on TV side Note1:The Rew key transmits 2 different IR commands de p endin g on the pg duration of the key press. If the REW key is pressed:- For less than 1.0s (short key p ress ), u p on ke y release , the RC p),p y , transmits the Rew command; - For longer than 1.0s (long key press), the RC transmits the Previous command. Durin g the first 1.0s of g key-press, no code is transmitted. At 1.1s of the key be ing pressed, the RC starts to transmit the Previous command until the ke y is released. y Note 2:The FFWD key transmits 2 different IR commands depending on the duration of the key pressof the key press . If the FFWD key is pressed:- For less than 1.0s (short key press), upon key release, the RC transmits the FFWD command; FFWD command; - For longer than 1.0s (long key press), the RC transmits the Next command. During the first 1.0s of key-press, no code is transmitted At 1 1s of the key beingis transmitted . At 1 . 1s of the key being pressed, the RC star ts to transmit the Next command until the key is released. Key introduction on TV side (1) (2) (3) Voice The remote control also have voice function: () f ? microphone ( 1 ) How to launch the voice f unction ? You may press "Voice" to start the voice. (2) How to shut down the voice function? ()Y k ( tth i k ) ( a ) Y ou may press any k ey ( excep t th e vo i ce k ey ) to stop the voice function; (b) Shake the remote can also stop the voice function. start button (3) When you using the voice function ,please make sure that the TV side shouid be facing up. (4) Th di t b t th i h d (4) Th e di s t ance b e t ween th e m i crop h one an d your mouth should be 20-50cm. (5) Press the voice key once ,can only use the ftif bt11bt th ik f unc ti on f or a b ou t 11 s, b u t you may press th e vo i ce k ey again(within the 11s) to get another 11s for voice function. (6) Wh i i f ti th i t ill (6) Wh en you are us i ng vo i ce f unc ti on, th e po i n t er w ill be useless. This device complies Part 15 of the FCC RF Rules. Operation is subject to the following two —Reorient or relocate the receiving antenna. —Increase the s eparation between the Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to — Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must not be co-located against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to or operating in conjunction with any other antenna or transmitter. Caution! instructions , may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: operate the equipment . the following measures:

JiangSu HuiTong Group Co.,Ltd Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 10/18/2013 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: PUWJSHT-2K14- RC including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature [Yin Yan] [Manager] [JiangSu HuiTong Group Co., Ltd]

RF_160, Issue 03 Declaration of Authorization We Name: JiangSu HuiTong Group Co., Ltd Address: 24#,2 block TaoHuawu new district, ZhenJiang City, JiangSu, P.R.C City: ZhenJiang Country: China Declare that: Name Representative of agent: Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s),including 731 form: Product description: RF Control Transmitter Type designation: YKF355-005; YKF354 series; YKF355 series Trademark: Philips on our behalf. Date: 2013-10-18 City: ZhenJiang Name: Yin Yan Function: Manager Signature: -----------------------------------------

JiangSu HuiTong Group Co.,Ltd Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 10/18/2013 Request for Confidentiality Company name: JiangSu HuiTong Group Co., Ltd FCC ID: PUWJSHT-2K14-RC FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, JiangSu HuiTong Group Co., Ltd hereby requests confidentiality of following attachments: (1) Schematic diagrams, (2) Detailed block diagrams, (3) Detailed operational descriptions, These documents contain detailed system and equipment description and related information about the product which JiangSu HuiTong Group Co., Ltd considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, JiangSu HuiTong Group Co., Ltd considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Yin Yan] [Manager] JiangSu HuiTong Group Co., Ltd 24#,2 block TaoHuawu new district,ZhenJiang City,JiangSu,P.R.C,ZhenJiang,China

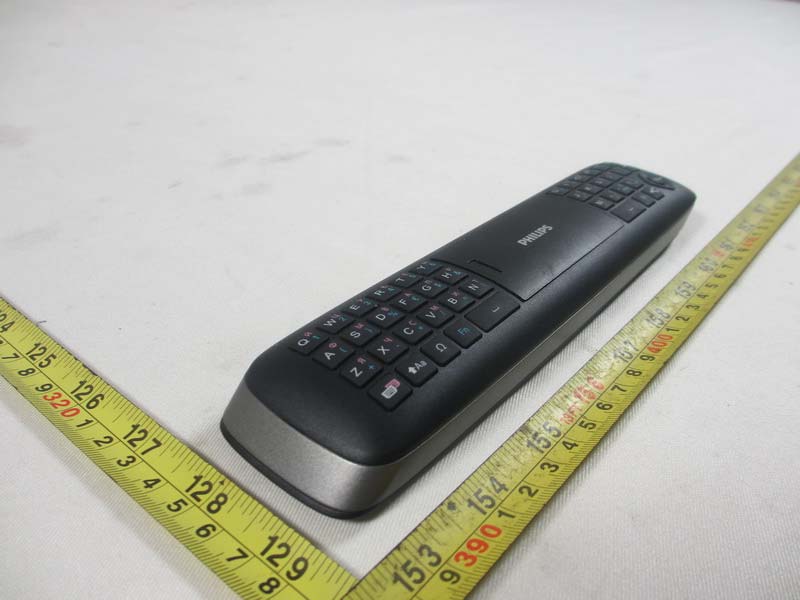

Neutron Engineering Inc. Project No.: 1310C041 Page 2 of 6

label location

Neutron Engineering Inc. Project No.: 1310C041 Page 3 of 6 Neutron Engineering Inc. Project No.: 1310C041 Page 4 of 6 Neutron Engineering Inc. Project No.: 1310C041 Page 5 of 6 Neutron Engineering Inc. Project No.: 1310C041 Page 6 of 6

Provided by Eurofins Product Service GmbH v.0.2 JiangSu HuiTong Group Co., Ltd Declaration concerning Antenna Specification It is hereby declared that the product Model No.: YKF355-005; YKF354 series; YKF355 series FCC ID: PUWJSHT-2K14-RC fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: SDBTPTR3015 Type of antenna: Printed Gain of the antenna: 1.99dBi Frequency range: 2425~2475MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Dongguan Siliten Electronics CO.,LTD Address: Sijia Yewu Industrial estate, Shijie Town City:Dongguan ZIP / Postal code: N/A Country: China Place: Dongguan Date:2013-11-27 Signature:

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: PUWJSHT-2K14-RC Project No. : 1310C041 Equipment : RF Control Transmitter Model : YKF355-005;YKF354 series; YKF355 series Applicant : Jiangsu Huitong Group Co., Ltd Address : 24#,2 block TaoHuawu new district,ZhenJiang City, ,JiangSu,P.R.C , ZhenJiang ,China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. GENERAL CONCULUSION: Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 SDBTPTR3 015 Printed Antenna N/A 1.99 Maximum measured transmitter power: Output Power (dBm) Out Power (mW) Limit (mW) -1.94 0.64 10 According to FCC KDB447498, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum power specification of this device is-1.94dBm (0.64mW), less than10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 1 of 60 FCC Radio Test Report FCC ID: PUWJSHT-2K14-RC This report concerns (check one): Original Grant Class II Change Issued Date : Nov. 08, 2013 Project No. : 1310C041 Equipment : RF Control Transmitter Model Name : YKF355-005;YKF354 series; YKF355 series Applicant : Jiangsu Huitong Group Co., Ltd. Address : No.24,Block 2,Taohuawu New District, Zhenjiang, Jiangsu, P.R.C Tested by:Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 16, 2013 Date of Test: Oct. 16, 2013~ Nov. 07, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 2 of 60 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 3 of 60 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (BELOW 30MHZ) 24 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 32 5 . BANDWIDTH TEST 44 5.1 APPLIED PROCEDURES / LIMIT 44 5.1.1 MEASUREMENT INSTRUMENTS LIST 44 5.1.2 TEST PROCEDURE 44 5.1.3 DEVIATION FROM STANDARD 44 5.1.4 TEST SETUP 44 5.1.5 EUT OPERATION CONDITIONS 44 5.1.6 TEST RESULTS 45 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 4 of 60 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 47 6.1 APPLIED PROCEDURES / LIMIT 47 6.1.1 MEASUREMENT INSTRUMENTS LIST 47 6.1.2 TEST PROCEDURE 47 6.1.3 DEVIATION FROM STANDARD 47 6.1.4 TEST SETUP 47 6.1.5 EUT OPERATION CONDITIONS 47 6.1.6 TEST RESULTS 48 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 49 7.1 APPLIED PROCEDURES / LIMIT 49 7.1.1 MEASUREMENT INSTRUMENTS LIST 49 7.1.2 TEST PROCEDURE 49 7.1.3 DEVIATION FROM STANDARD 49 7.1.4 TEST SETUP 49 7.1.5 EUT OPERATION CONDITIONS 49 7.1.6 TEST RESULTS 50 8 . POWER SPECTRAL DENSITY TEST 55 8.1 APPLIED PROCEDURES / LIMIT 55 8.1.1 MEASUREMENT INSTRUMENTS LIST 55 8.1.2 TEST PROCEDURE 55 8.1.3 DEVIATION FROM STANDARD 55 8.1.4 TEST SETUP 55 8.1.5 EUT OPERATION CONDITIONS 55 8.1.6 TEST RESULTS 56 9 . EUT TEST PHOTO 58 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 5 of 60 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1310C041 Original Issue. Nov. 08, 2013 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 6 of 60 1. CERTIFICATION Equipment : RF Control Transmitter Brand Name : Philips Model Name : YKF355-005; YKF354 series; YKF355 series Applicant : Jiangsu Huitong Group Co., Ltd. Manufacturer : Jiangsu Huitong Group Co., Ltd. Address : No.24,Block 2,Taohuawu New District, Zhenjiang, Jiangsu, P.R.C Factory : Jiangsu Huitong Group Co., Ltd. Address : No.24,Block 2,Taohuawu New District, Zhenjiang, Jiangsu, P.R.C Date of Test : Oct. 16, 2013~ Nov. 07, 2013 Test Sample : Engineering Sample Standard(s) : FCC Part15(2012), Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1310C041) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 7 of 60 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark 15.2…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 58 of 60 9. EUT TEST PHOTO Radiated Measurement Photos 9KHz~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 59 of 60 Radiated Measurement Photos 300MHz~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C041 Page 60 of 60 Radiated Measurement Photos Above 1000MHz
