PUWJSHT-SB-2K13RF4CE Sensor Module

Record of modification Version Date DESCRIPTION Remarks 0.0 2012.06.05Draft 0.1 2012.07.10Add also the spacer+double sided adhesive 0.2 2012.07.30Add mechanical and specification for spacer + adhesive 0.3 2012.08.06 Update the adhesive from “one” to “two” for Page 10 0.4 2012.08.08 Add HuiTong’s type number YKJ2081-R01CKD 0.5 2012.08.15 Update spacer drawing Add HuiTong’s type number YKJ2081-R01SKD Add EMC standards (CE ANATEL CNC FCC ) YKJ2081-R012ˋ14 Version:V0.5 ফ ᥻ HUITONG 1． 适用范围 Scope 本技术说明适用于2013 TPV F240液晶电视RF4CE控制板。 This document defines the functional requirement and technical performance specifications for 2K13 RF4CE Module across all the projects. For Platform The 2K13 across Module has the following functions: • RF4CE 1 11 SSB micon ADC input Application Circuit RF4CE antenna 18 2． 外观形状 Appearance and structure 根据设计图纸。According to designing drawing 3． 使用材料 Components and materials 根据设计要求。According to designing Specification The module complies with ROHS and Philips Banned Substances. Must obey RoHS and PVC&BFR Free. Plastic material fulfills UL-V0 or real V1 classification. Refer to XTP-0063/04 for the BG CD flammability policy. 4． 连接器接口 Connector Pin Description 拟制 审核 批准 标记 数量 更改单号 签名 日期 Connector 1C21 8pin Mo Description PIN 1 +3.3V PIN 2 NG PIN 3 IR-IRQ-RXD-RF4CE PIN 4 GND PIN 5 RXD-RF4CE PIN 6 GND PIN 7 TXD-RF4CE PIN 8 RESETn YKJ2081-R013ˋ14 Version:V0.5 ফ ᥻ HUITONG 5．电气特性 Electrical performances 项目Item 条件Condition 规格Specification 数量 Qty Operating voltage 工作电压 Normal operating 该设备正常工作 DC 3.3V±5% +3V3 DC supply Ripple and Voltage drop/rise sustainability The module should be sustainable to a power supply ripple of (0~330 mVp- p) , frequency range of 0Hz ~ 250KHz. All fu nctions w ork normally, no fu nctional di sruption noticable Pollution ripple from LE to +3V3 DC supply line in Operation mode ≤50mVp-p 5-1 Ripple (+3.3V) 'Pollution ripple from LE to +3V3 DC supply line in Standby mode ≤50mVp-p 5 5-2 Operating current 消耗电流 Constant voltage DC 3.3V 恒定电压 直流3.3V 3.3V : max 50mA 5 5-3 quiescent current 静态电流 3.3V DC typ <3.2mA 5 Co-existance with Wifi and Wireless Router PER< 10% @ 70dB pathloss Tested with Wifi and Wireless Router in a shield room RF4CE Control distance* ≥ 14 meter (tbc) Tested with reference RF4CE remote Controller, the TV shall be well functioning without noticeable delay for at least 14 meters away from TV regardless RC firing 5-4 RF4CE Test with sensor board and RF4CE RC (measured on 2425MHZ ch15, 2450MHz ch20, 2475MHz ch25): Monitor received packets on the sensor board from RC at 10 meter distance: Max 70dB pathloss (= free-air pathloss, 60dB + combined antenna losses in RC+sensor board <10dB) with max 10%PER 5 5-5 Resistance Test on PCB UN-D1235 线路板绝缘电阻 Megaohmmeter, 1KV DC, 50 - 100mm apart Resistance must exceeded 50M ohms ≥ 50MΩ 5 拟制 审核 批准 标记 数量 更改单号 签名 日期 YKJ2081-R014ˋ14 Version:V0.5 ফ ᥻ HUITONG 5-6 Power cycling On/Off test 通断 300,000 cycles On/Off with 1 sec per cycle. Supply voltage of module set at nominal. 额定电压下,300000次通\断,1秒1 次 No electrical and functionality failures. 无电性能损坏 5 5-7 MTBF (Mean Time Between Failure) 寿命 Rating voltage DC5.0V/3.3V 额定电压 直流5.0V /3.3V 100ppm = 10 000 000hr 5 5-8 Cold Test at - 10degC IEC68-2- 1, UAN- D636 低温测试 Set the cold chamber to -10°C and place the product in the chamber for 15hrs. Then, switch on the product under -10°C for 1hr with min, max and nominal supply voltages, i.e, 4.75V/3.14V、5.0V/3.3V and 5.25V/3.46V. -10°C存储15小时后，在-10°C用三种电压 4.75V/3.14V,5.0V/3.3V,5.25V/3.46V接通1小时 No electrical and functionality failures. 无电性能损坏 5 5-9 Thermal cyclic 热循环试验 Thermal cyclic between -20°C and +85°C with 5°C/min transition and 30 minutes dwell time (stopped after 8 cycles) Monitoring output voltage from LE in operating mode. Remark: operational tested No false triggering or malfunction, to be tested on Module level 无错误的触发及电性能损坏 5 5-10 Electric Discharge Test to IEC61000-4-2 静电测试 Air discharge: ±(4 to 15)KV in steps of 1KV; 25 ±5 degrees, < 50%RH, 2KV to 8KV in steps of 1KV, 10x discharge +ve & -ve. Interval 1 sec min. between discharges. Both "ON" & "Standby" mode. No electrical arcing. No functional default or parts damaged. 无飞弧放电现象 无任何功能或零部件的损坏 5 5-11 EM immunity and radiation EM 抗干扰和辐 射 According to Emission-EN55013, Immunity-EN55020, Mains Harmonic-EN61000-3-2/3, EMF-EN62311, Radiated P-EN300328 1.7.1, EMC-EN301489-1/17 CE (including Russia). ANATEL(Brazil) CNC (Argentina) FCC (Uruguay and Paraguay) No functional default and noninterference with other equipment. In order to guarantee EMI system level compliance, the reference value for modules is to comply with 6dB margin (QP). 无任何功能的损坏，不干扰其他设 备 5 5-12 Safety 安全性 According to IEC/EN60065 and Burs or sharp edges must be rem oved in order to av oid injuries during handling of the products. Plastic material fulfills UL- V0 or real V1 clas sification. Refer to XTP-0063/04 for the BG CD flammability policy. Fulfill international standard 符合标准 5 拟制 审核 批准 标记 数量 更改单号 签名 日期 YKJ2081-R015ˋ14 Version:V0.5 ফ ᥻ HUITONG 6．机械性能 Mechanical Performance test 项目Item 条件Condition 规格Specification 数量 Qty 6-1 Thermal Cyclic + Vibration test 热振动 1. T1 = +85°C, T2 = -20°C Temp. change rate: ± 3°C per minute 25 cycles, period time: 50 min ± 10 min 2. Follow by Chassis Vibration test (non operational, fix to table) Frequency: 10 - 55 - 10 Hz No. of cycles: 6 Amplitude: 0.35mm (0-P) Direction: X, Y, Z Test duration: 30 min per direction 3. Repeat pt. (1) and (2). Total: 2 cycles Remark: non-operational tested No functional failure or mechanical damages on the products is allowed 产品无功能和机械性能的损坏 5 6-2 Shock Test 冲击 Module Unpack Test Pulse shape: half sine Pulse duration: 11 msec No. of shocks: 3 per direction No. of direction: 6 Peak acceleration: 80g, 11 msec Remark: non-operational tested No functional failure or mechanical damages on the products is allowed 产品无功能和机械性能的损坏 5 6-3 10g Bump Test 连续冲击 Non operational, fix to table 10g, 16ms, 1000 times, No. of direction: 1 1 - 3 bump / sec Remark: non-…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: JiangSu HuiTong Group Co., Ltd Address: 24#,2 block TaoHuawu new district, ZhenJiang City, JiangSu, P.R.C City: ZhenJiang Country: China Declare that: Name Representative of agent: Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s): Product description: RF4CE Sensor Module Type designation: YKJ2081-R01; YKJ2081 Series Trademark: Philips on our behalf. Date: 2012-09-13 City: ZhenJiang Name: Yin Yan Function: Manager Signature: -----------------------------------------

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: JiangSu HuiTong Group Co., Ltd Address: 24#,2 block TaoHuawu new district, ZhenJiang City, JiangSu, P.R.C City: ZhenJiang Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: PUWJSHT-SB-2K13 Reference number: Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2012-09-13 Name and signature of applicant: Yin Yan Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1

Model Declaration Letter We, the undersigning company Company Name: JiangSu HuiTong Group Co., Ltd Address: 24#,2 block TaoHuawu new district, ZhenJiang City, JiangSu, P.R.C Hereby confirm that the following products: Product description: RF4CE Sensor Module Type designation: YKJ2081-R01; YKJ2081 Series Trademark: Philips That All versions of the Model YKJ2081-R01 and YKJ2081 Series are electrically equal and only appearance and model name are different. Company Name: JiangSu HuiTong Group Co., Ltd Address: 24#,2 block TaoHuawu new district, ZhenJiang City, JiangSu, P.R.C Telephone: +86 0511 88802079 Fax No.: +86 0511 88816153 E-mail: [email protected] Signature: ________________________ Name: Yin Yan

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: PUWJSHT-SB-2K13 Company Name: JiangSu HuiTong Group Co., Ltd Address: 24#,2 block TaoHuawu new district, ZhenJiang City, JiangSu, P.R.C Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. No. Normally, the modular transmitter is in the state of receiving, when sending its signal strength will not exceed 4dbm; the average of atenna gaining is negative, it won’t increase signal strength of atenna. Meanwhile the modular, assembled inner TV set, needn’t install its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. YES, Modular and RC follow the zigbee rf4ce protocls, RC sending data rate won’t exceed the limit of communication protocols. 3. The modular transmitter must have its own power supply regulation. No The power is supplierd by SSB baord in TV set. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. YES, it has chip antenna 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. YES, please refer to the test setup photos 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: PUWJSHT-SB-2K13” or “Contains FCC ID: PUWJSHT-SB-2K13.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. YES, please refer to the exhibition label sample for this module. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. YES, please refer to the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are YES. You need to address this compliance to FFC specific rules, section, if required, in your application documents. RF_734_00, Issue 1 required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): Yin Yan Date: 2012-9-14 Signature: ___________________________

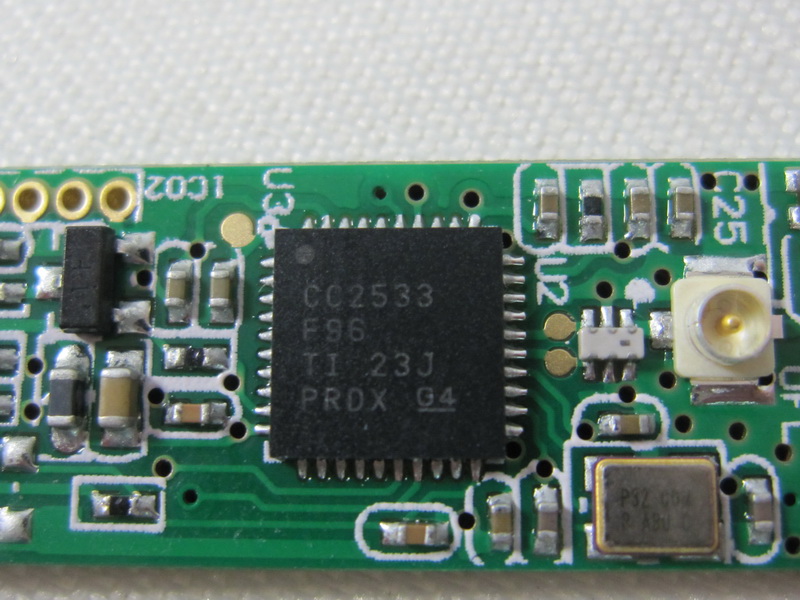

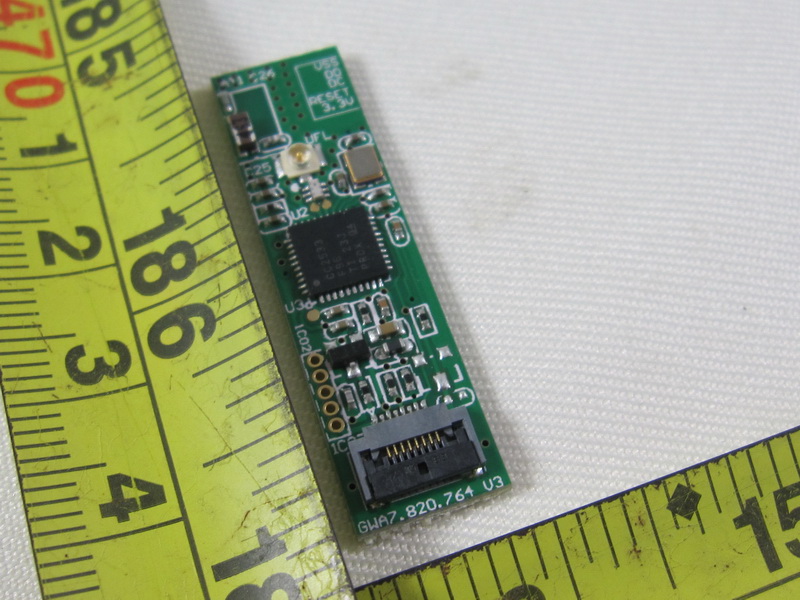

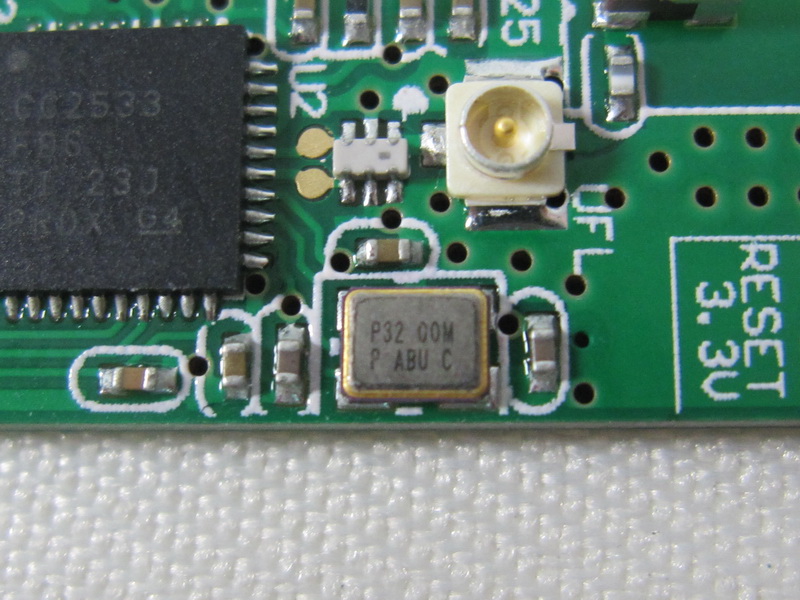

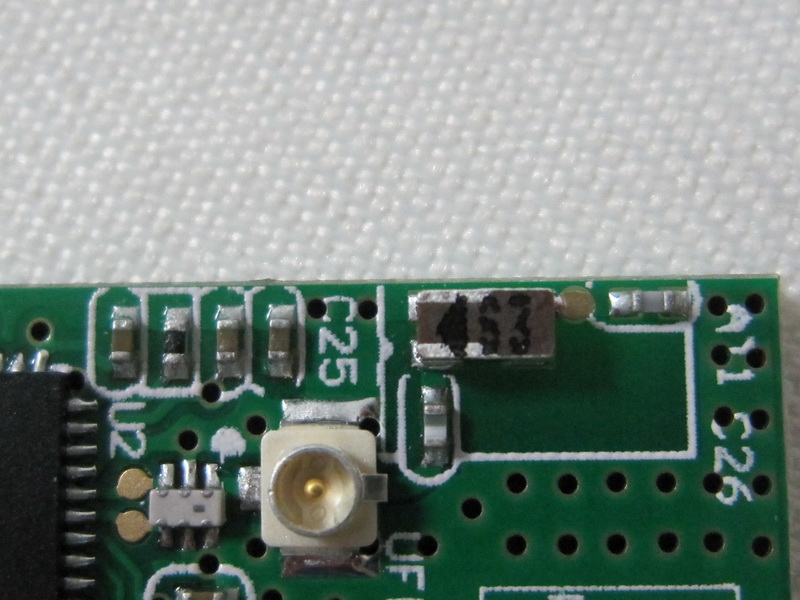

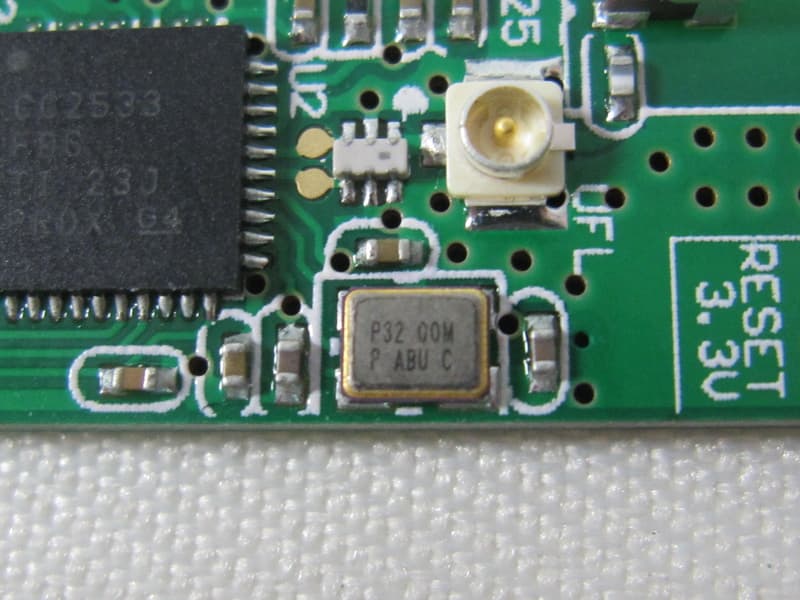

Neutron Engineering Inc. Project No.: 1208C212 Page 1 of 4 ATTACHMENT PHOTOGRAPHS OF EUT Neutron Engineering Inc. Project No.: 1208C212 Page 2 of 4 1208C212 1208C212 Neutron Engineering Inc. Project No.: 1208C212 Page 3 of 4 1208C212 1208C212 Neutron Engineering Inc. Project No.: 1208C212 Page 4 of 4 1208C212

Neutron Engineering Inc. Project No.: 1208C212 Page 1 of 4 ATTACHMENT PHOTOGRAPHS OF EUT Neutron Engineering Inc. Project No.: 1208C212 Page 2 of 4 1208C212 1208C212 Neutron Engineering Inc. Project No.: 1208C212 Page 3 of 4 1208C212 1208C212 Neutron Engineering Inc. Project No.: 1208C212 Page 4 of 4 1208C212

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: PUWJSHT-SB-2K13 Project No. : 1208C212 Equipment : RF4CE Sensor Module Model : YKJ2081-R01; YKJ2081 Series Applicant : Jiangsu Huitong Group Co., Ltd. Address : No.24,Block 2,Taohuawu New District, Zhenjiang, Jiangsu, P.R.C According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand name Model Name Antenna TypeConnector Gain (dBi) 1 SDBTPTR3 015 Chip AntennaN/A 1.99 TEST RESULTS EUT： RF4CE Sensor Module Model Name ： YKJ2081-R01 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX MODE /CH01, CH02, CH03 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.99 1.5812 1.76 1.4997 0.000472 1 Complies 1.99 1.5812 3.16 2.0701 0.000652 1 Complies 1.99 1.5812 5.07 3.2137 0.001011 1 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1208C212 Page 1 of 52 FCC Radio Test Report FCC ID: PUWJSHT-SB-2K13 This report concerns (check one) : Original Grant Class II Change Issued Date : Sep. 07, 2012 Project No. : 1208C212 Equipment : RF4CE Sensor Module Model Name : YKJ2081-R01; YKJ2081 Series Applicant : Jiangsu Huitong Group Co., Ltd. Address : No.24,Block 2,Taohuawu New District, Zhenjiang, Jiangsu, P.R.C Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Aug. 24, 2012 Date of Test: Aug. 24, 2012 ~ Sep. 06, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1208C212 Page 2 of 52 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1208C212 Page 3 of 52 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 23 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 25 5 . BANDWIDTH TEST 37 5.1 APPLIED PROCEDURES / LIMIT 37 5.1.1 MEASUREMENT INSTRUMENTS LIST 37 5.1.2 TEST PROCEDURE 37 5.1.3 DEVIATION FROM STANDARD 37 5.1.4 TEST SETUP 37 5.1.5 EUT OPERATION CONDITIONS 37 5.1.6 TEST RESULTS 38 6 . MAXIMUM OUTPUT POWER TEST 40 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1208C212 Page 4 of 52 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 40 6.1.1 MEASUREMENT INSTRUMENTS LIST 40 6.1.2 TEST PROCEDURE 40 6.1.3 DEVIATION FROM STANDARD 40 6.1.4 TEST SETUP 40 6.1.5 EUT OPERATION CONDITIONS 40 6.1.6 TEST RESULTS 41 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 42 7.1 APPLIED PROCEDURES / LIMIT 42 7.1.1 MEASUREMENT INSTRUMENTS LIST 42 7.1.2 TEST PROCEDURE 42 7.1.3 DEVIATION FROM STANDARD 42 7.1.4 TEST SETUP 42 7.1.5 EUT OPERATION CONDITIONS 42 7.1.6 TEST RESULTS 43 8 . POWER SPECTRAL DENSITY TEST 48 8.1 APPLIED PROCEDURES / LIMIT 48 8.1.1 MEASUREMENT INSTRUMENTS LIST 48 8.1.2 TEST PROCEDURE 48 8.1.3 DEVIATION FROM STANDARD 48 8.1.4 TEST SETUP 48 8.1.5 EUT OPERATION CONDITIONS 48 8.1.6 TEST RESULTS 49 9 . EUT TEST PHOTO 51 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1208C212 Page 5 of 52 1. CERTIFICATION Equipment : RF4CE Sensor Module Brand Name : Philips Model Name : YKJ2081-R01; YKJ2081 Series Applicant : Jiangsu Huitong Group Co., Ltd. Date of Test : Aug. 24, 2012 ~ Sep. 06, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1208C212) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1208C212 Page 6 of 52 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radiated Spurious Emission PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this test report (2) The test follows FCC KDB Publication No,558074(Measurement Guidelines of DTS) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1208C212 Page 7 …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1208C212 Page 51 of 52 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1208C212 Page 52 of 52 Radiated Measurement Photos
