360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 33 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 A PPENDIX F: M ANUAL 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 34 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 SAFETY- RF EXPOSURE COMPLIANCE This device has been designed using a low power transmitter. It complies with the Federal Communications Commission (FCC) RF exposure limits for General Population/Uncontrolled exposure environment. In addition, it complies with the following Standards and Guidelines: • FCC 96-326 (1996), Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. • FCC OET Bulletin 65 Edition 01-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave. Warning: Use ONLY the supplied antenna and accessories. Unauthorized accessories may violate the FCC rules and regulations. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 35 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 36 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 37 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1

Operation and Instructions Manual for the Radio Modules 70TXRX-M1 former labeling of the modules new labeling from September 2001 on The modules are licenced in Europe 1 ), USA and Canada 1 ) Licences may not be available for all of the 16 EU-countries - XXX - 70TX-M1 SAFETY- RF EXPOSURE COMPLIANCE This device has been designed using a low power transmitter. It complies with the Federal Communications Commission (FCC) RF exposure limits for General Population/Uncontrolled exposure environment. In addition, it complies with the following Standards and Guidelines: • FCC 96-326 (1996), Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. • FCC OET Bulletin 65 Edition 01-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave. • Use ONLY the supplied antenna and accessories. Unauthorized accessories may violate the FCC rules and regulations. • The module must be installed or integrated by providing a minimum separation distance of 20 cm between the antenna and the human body at all time. Label Requirement: • A label must be affixed to the outside of the end product into which the authorized module/product is incorporated, with a statement similar to the following: “This device contains TX ID: XXXXXXXXXXX 1. Purpose and application of the Radio Modules 70TXRX-M1 The 70TXRX-M1 Radio Modules, comprising of the Transmitter 70TX-M1 and the Receiver 70RX-M1 are FM-narrow bandwith type radio modules. They are single channel, crystal controlled devices on an assigned frequency in the range from 420 – 510 MHz, in 12.5 or 25 KHz spacing. The modules are supplied by HM-Funktechnik GmbH (HM-Radio USA) as an OEM product and are to be installed in customer designed peripherals, such as - radio remote control devices for machinery in industrial sites - burglar alarm system, data in general and voice, only in alarm conditions - data transmission in telemetry systems - data transmission in wireless hand held terminal systems - wireless data transmission in general 2. Dimensions and connections to peripheral devices Transmitter 70TX- M1 2 ) 275 520 820 200 (7) (13.2) (20.9) (5.1) 1400 215(5.5) (36) Dimensions: 320 (8.2) are in mil, values in brackets 460 (11.7) are the corresponding mm numbers Tolerance +/- 0.2 mm 280 (7) 920 (23.4) 460 (11.7) 2 ) Information shown on this label 320 (8.2) is not identical with the label on the module Module hight: 400 (10) 1020 (26) 1220 (31) 125 (3.2) 1450 (37) Modulation Input Modulation Supply Volt. Antenna FCC ID XXX - 70TX-M1 Canada YYY Transmitter Frequ. range USA-Canada 420 – 510 MHz Frequ.: 433.925 MHz Ser. Nr. 134001 Frequ. range Europe: 433.05 – 434.79 MHz Funktechnik GmbH D-66620 Primstal Level: TTL level, or 2,5 V DC + 2.5 V sinωt for + / - 2.5 KHz frequency deviation Frequency 0 - 4 KHz, maximum Input impedance > 4.7 KΩ Dimensions: Receiver 70RX-M1 3 ) are in mil, values in brackets are the corresponding mm values 550 (14) 835 1090 1645 ( 41.8) 1950 (21.2) (27.6) (49.4) 205 (5.2) 1400 (36) 350 (9) 490 (12.5) 280 (7) 980 (25) 490 (12.5) 350 (9) 1950 (49.4) 125 (3.2) 2100 (53.2) 2350 (59.6) Module hight: 500 (12.7) Tolerance: +/- 0.2 mm 3 ) information shown on this label is not identical with the label on the module 3. Technical data Transmitter 70TX-M1 Antenna Mute Audio-out Supply Volt. - Funktechnik GmbH , D-66620 Primstal FCC ID: PUX – 70RX-M1 Canada YYY Receiver Frequency range USA and Canada 420 – 510 MHz Frequency range Europe 433.05 – 434.79 MHz Frequency 433.925 MHz Ser. Nr. 134001 Supply Voltage minimum 4.8V maximum 10 V Absolut maximum rating 12 V DC Supply current 30 mA Modulation input see 2 RF – output power 10 dBm +/- 1.5 dB conducted Frequency accuracy + / - 1.5 KHz Temperature stability + / - 2.5 KHz - 20°C - + 70°C Receiver 70RX-M1 Supply Voltage minimum 4.8V maximum 10 V Absolut maximum rating 12 V DC Supply current 25 mA RX-bandwith 3 KHz +/- 7.5 KHz (1. IF Filter) 20 KHz (2. IF Filter) more narrow filters upon request Audio out Ao + 0.5 Vpp at 2.5 KHz nominal deviation Ao depends on the frequency offset between TX and RX and may vary between 1 and 3 V DC. Output impedance typically 2 KΩ AFC range + / - 3 KHz Sensitivity - 121 dBm for 12 dB SINAD CCITT weighted MUTE signal 0 V with no RF and + 4.5 V at a RF input of typ. – 112 dBm +/- 5 dB RSSI available upon request instead of MUTE, 0.5 V – 2.5 V / –120 -60 dBm Maximum RF input level 0 dBm 4. Restrictions - Do not supply a higher modulation input level to the TX modulation input as specified in 2 - Do not us the 70TXRX-M1 radio modules to transmit audio or voice - Do not build illegal spy devices using the 70TXRX-M1 radio modules - Do not operate the modules at lower supply voltages as specified For any further question, comments or advices, please contact HM-Funktechnik at [email protected]

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 September 13, 2001 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description • Bill of Materials (Parts List) Best Regards, Melissa Carter [email protected] Rhein Tech Laboratories, Inc.

Re: FCC ID PUX-70TX-M1 Applicant: HM-Funktechnik GmbH Correspondence Reference Number: 21138 731 Confirmation Number: EA102387 1) Upload a plot of the audio frequency response. This transmitter transmits data only. The manual has been revised for this mistake. 2) Upload a plot of the modulation limiting. This transmitter transmits data only. The manual has been revised for this mistake. 3) The minimum MPE separation distance for a mobile device is 20 cm. Upload the page of the User’s Manual that has this information. The manual has been revised.

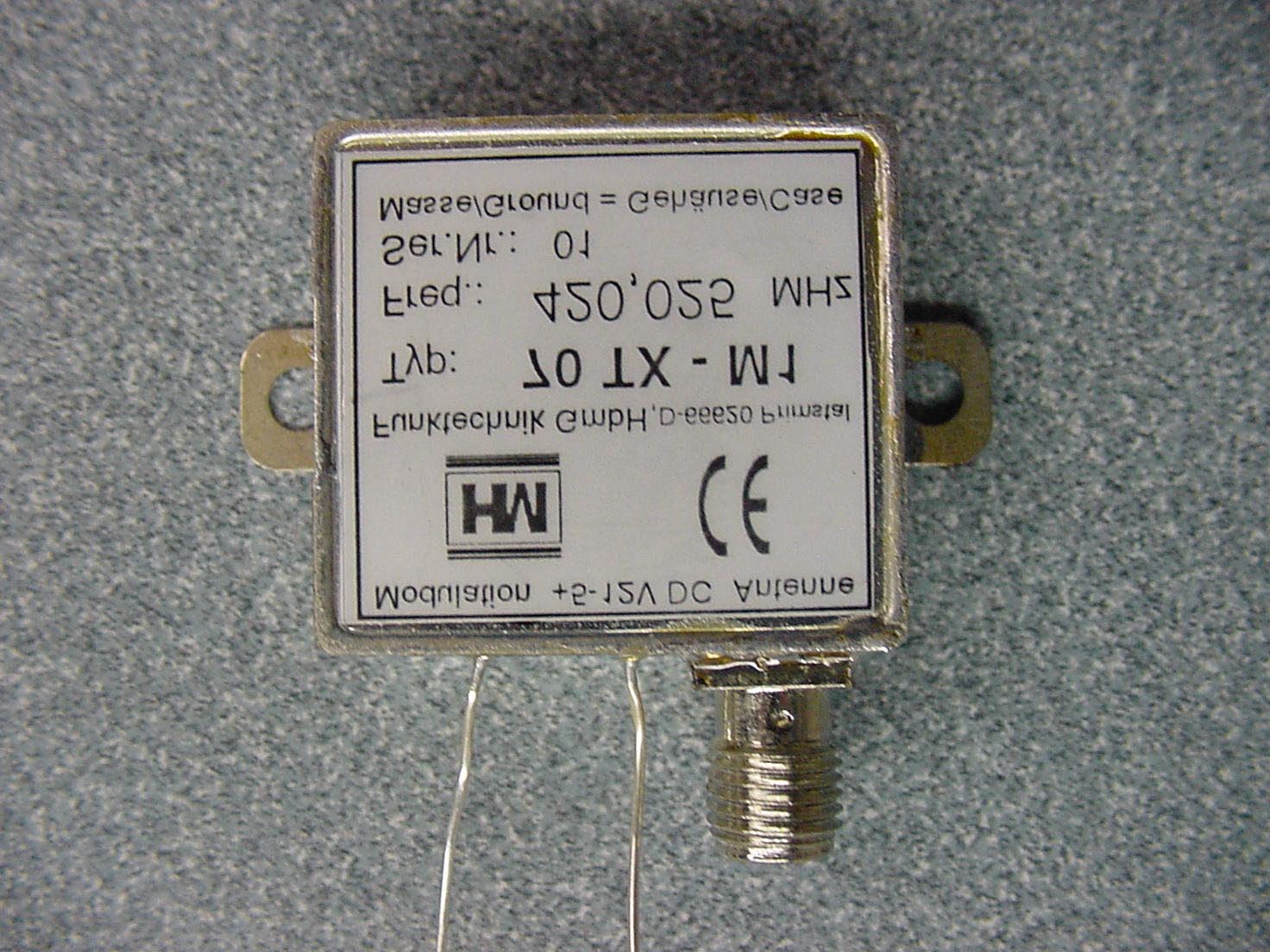

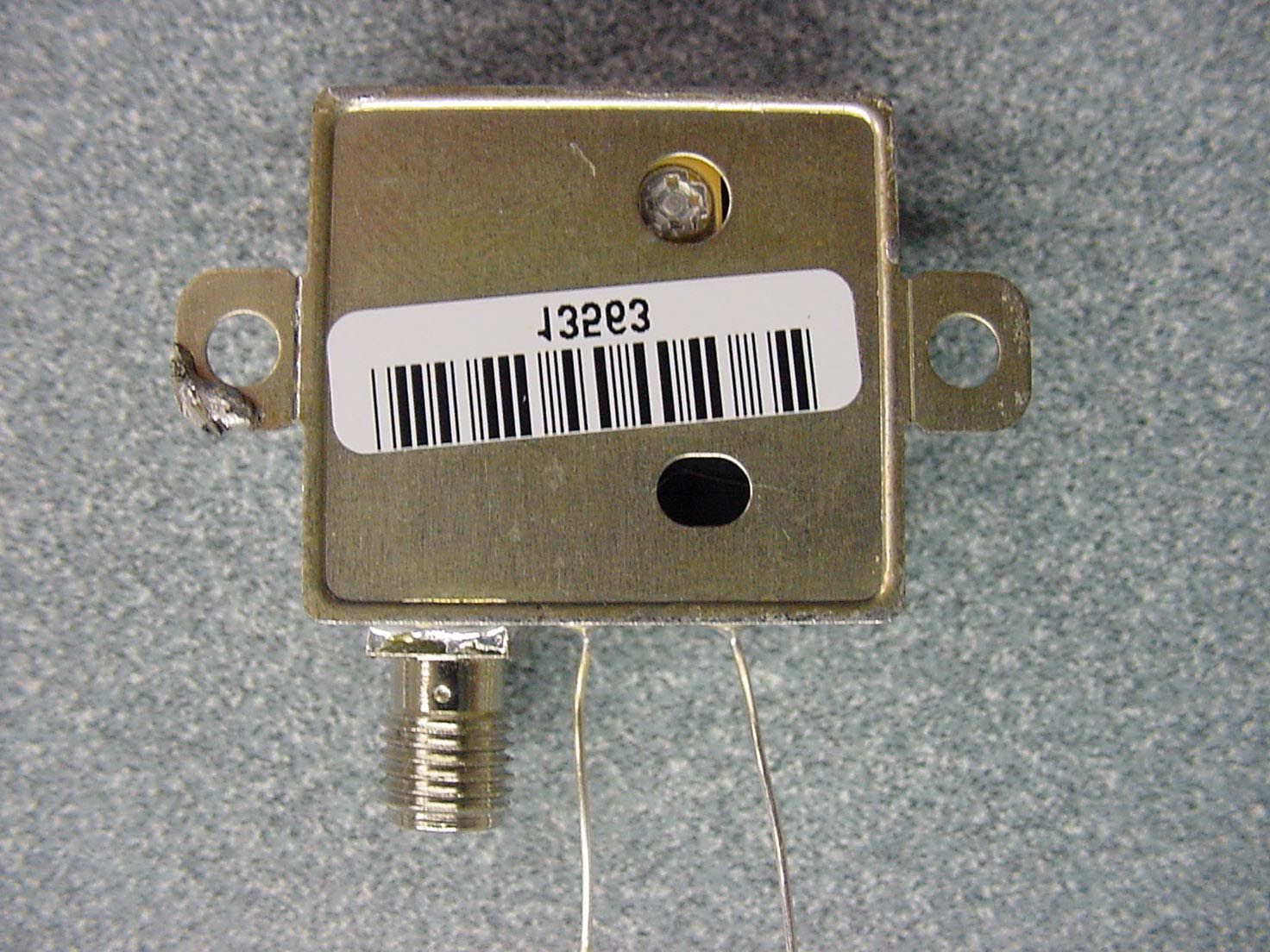

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 41 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 A PPENDIX H: E XTERNAL P HOTOGRAPHS P HOTOGRAPH 5: F RONT V IEW OF T RANSMITTER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 42 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 6: T OP V IEW OF T RANSMITTER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 43 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 7: L EFT S IDE V IEW OF T RANSMITTER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 44 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 8: R IGHT S IDE V IEW OF T RANSMITTER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 45 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 9: B OTTOM V IEW OF T RANSMITTER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 46 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 10: R EAR V IEW OF T RANSMITTER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 47 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 11: T RANSMITTER W ITH W IRE A NTENNA 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 48 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 12: W HIP A NTENNA

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 27 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 A PPENDIX B: L ABEL I NFORMATION

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 59 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 A PPENDIX J: I NTERNAL P HOTOGRAPHS P HOTOGRAPH 23: F RONT OF T RANSMITTER PCB IN CHASSIS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 60 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 24: F RONT OF T RANSMITTER PCB 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 61 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 25: B ACK OF T RANSMITTER PCB IN CHASSIS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 62 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 26: B ACK OF T RANSMITTER PCB 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 63 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 27: B ACK OF R ECEIVER PCB IN CHASSIS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 64 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 28: B ACK OF R ECEIVER PCB 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 65 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 29: F RONT OF R ECEIVER PCB IN CHASSIS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 66 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 30: F RONT OF R ECEIVER PCB

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 25 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 14 FCC RULES AND REGULATIONS PART 1.1307, 1.1310, 2.1091 AND 2.1093: RF EXPOSURE COMPLIANCE 14.1 G ENERAL I NFORMATION : • FCCID: PUX-70TX-M1 • Environment: General Population/Uncontrolled Exposure • Device category: Mobile 14.2 O PERATING CONFIGURATIONS AND TEST CONDITIONS : 14.2.1 A NTENNA TYPES : Antenna Type Gain (dBi) N/A Omni 0 14.2.2 O PERATING C ONDITIONS : This transmitter has been designed as an OEM module for use by various OEM integrators. The device must operate with the quarterwave whip antenna tested for this filing for satisfying the RF exposure requirements. 14.2.3 T EST SIGNAL , TIME - AVERAGING , MAX . MEASURED OUTPUT : Mode: FM Frequency Range Rule Part Output Power (W) Conducted Freq. Tolerance Emission Designator 420-510 90 0.013 16K0F1D 14.3 MPE C ALCULATION : The maximum distance, from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G, and separation distance in meters: d GP mVE ×× = 30 )/( P OWER DENSITY : 3770 )/( 2 2 E cmmWP d = Frequency A 420 MHz The limit for general population/uncontrolled exposure environment above 1500MHz is 0.28 2 /cmmW. SEPARATION DISTANCE: Antenna Gain (dBi) Separation Distance A 0 Power B (Watt) (in) (cm) 0.013 1 2 Notes: A = Distances are calculated for the largest (worst-case) separation distance B = Measured output power conducted – ERP was measured at 0.007 Watts C ONCLUSION : This transmitter complies with the FCC RF exposure requirements by providing a safe separation distance between the antenna (including any radiating structure) and any persons.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT Funktechnik GmbH Zum Handenberg 3 Primstal, D-6620 Germany MODEL: 70 TX – M1/70 RX – M1 FCC ID: PUX-70TX-M1 August 3, 2001 S TANDARDS R EFERENCED FOR THIS R EPORT P ART 2: 1999 F REQUENCY A LLOCATIONS AND R ADIO T REATY M ATTERS ; G ENERAL R ULES AND R EGULATIONS P ART 15: 1999 §15.109: R ADIATED E MISSIONS L IMITS P ART 22: 1998 P UBLIC M OBILES S ERVICES P ART 74: 1998 L OW P OWER A UXILIARY S TATION P ART 90: 1998 P RIVATE L AND M OBILE R ADIO S ERVICES P ART 95 (A): 1998 G ENERAL M OBILE R ADIO S ERVICES ANSI C63.4-1992 S TANDARD F ORMAT M EASUREMENT /T ECHNICAL R EPORT P ERSONAL C OMPUTER AND P ERIPHERALS ANSI/TIA/EIA603- 1992 L AND M OBILE FM OR PM C OMMUNICATIONS E QUIPMENT M EASUREMENT AND P ERFORMANCE S TANDARDS ANSI/TIA/EIA 603-1-1998 A DDENDUM TO ANSI/TIA/EIA 603-1992 RSS-119; Issue 6: 2000 LAND M OBILE AND F IXED R ADIO T RANSMITTERS AND R ECEIVERS , 27.41 TO 960 MH Z RSS-102; Issue 1: 1999 E VALUATION P ROCEDURE FOR M OBILE AND P ORTABLE R ADIO T RANSMITTERS WITH RESPECT TO HEALTH C ANADA ’ S S AFETY C ODE 6 FOR E XPOSURE OF H UMANS TO R ADIO F REQUENCY F IELDS Frequency Range Output Power (W) Freq. Tolerance Emission Designator 420-510 0.013 16K0F1D REPORT PREPARED BY: Test Engineer: Daniel Baltzell Administrative Writer: Melissa Fleming Document Number: 2001218 / QRTL01- 227 / QRTL01-228 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 2 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 T ABLE OF C ONTENTS 1 GENERAL INFORMATION ...........................................................................................................................................................................5 1.1 TEST FACILITY ................................................................................................................................................................................................................5 1.2 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................................................................5 2 CONFORMANCE STATEMENT ...................................................................................................................................................................6 3 TESTED SYSTEM DETAILS ........................................................................................................................................................................7 4 FIELD STRENGTH CALCULATION .............................................................................................................................................................8 5 CONDUCTED EMISSIONS ..........................................................................................................................................................................9 5.1 CONDUCTED MEASUREMENT ......................................................................................................................................................................................9 6 RADIATED EMISSIONS ...............................................................................................................................................................................9 6.1 RADIATED MEASUREMENT...........................................................................................................................................................................................9 6.2 TEST DATA: FCC PART 15 §15.109 (A): RADIATED EMISSIONS (CLASS B LIMITS)..............................................................................................10 7 FCC PART 2 §2.1046 (A): RF POWER OUTPUT: CONDUCTED .............................................................................................................11 7.1 TEST PROCEDURE .......................................................................................................................................................................................................11 7.2 TEST DATA ....................................................................................................................................................................................................................11 8 FCC PART 2 §2.1046 (A) RF POWER OUTPUT: RADIATED - ERP ........................................................................................................12 8.1 TEST PROCEDURE .......................................................................................................................................................................................................12 8.2 TEST DATA ....................................................................................................................................................................................................................12 9 FCC PART 2 §2.1051 AND PART 15 §15.111: SPURIOUS EMISSIONS AT ANTENNA TERMINALS ...................................................13 9.1 TEST PROCEDURE .......................................................................................................................................................................................................13 9.2 TEST DATA ....................................................................................................................................................................................................................13 10 FCC PART 2 §2.1053 (A): FIELD STRENGTH OF SPURIOUS RADIATION ....................................................................................17 10.1 TEST PROCE…

Text truncated - open the document above for the full version.

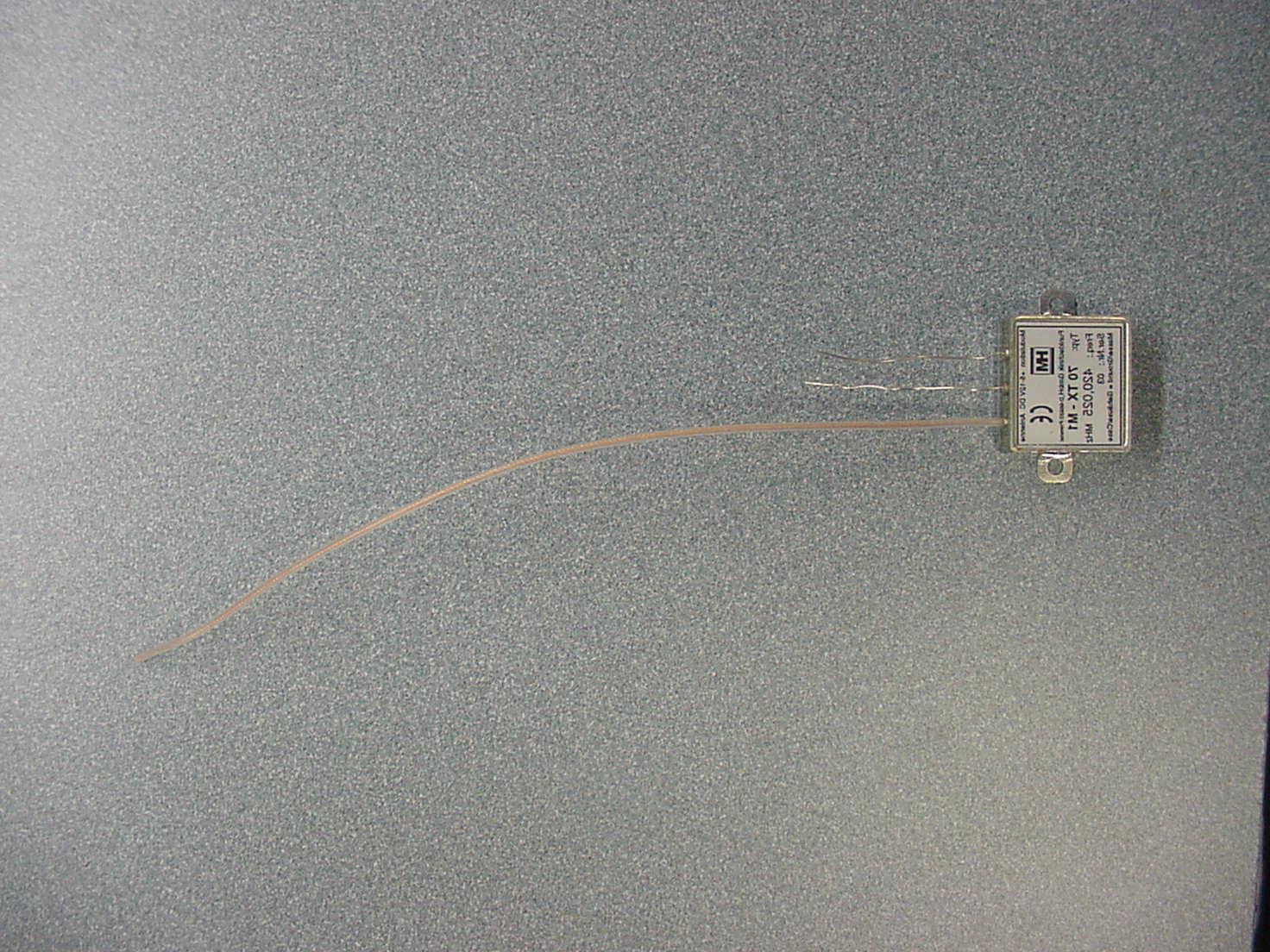

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 37 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 A PPENDIX G: T EST C ONFIGURATION P HOTOGRAPHS P HOTOGRAPH 1: R ADIATED E MISSIONS F RONT V IEW (70 TX-M1) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 38 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 2: R ADIATED E MISSIONS R EAR V IEW (70 TX-M1) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 39 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 3: R ADIATED E MISSIONS F RONT V IEW (70 RX-M1) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 40 2001218 / QRTL01-227 / QRTL01-228 HM-Funktechnik FCC ID: PUX-70TX-M1 P HOTOGRAPH 4: R ADIATED E MISSIONS R EAR V IEW (70 RX-M1)
