Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 36 of 49 APPENDIX H: MANUAL Please see the following pages. Operation and Instruction Manual for the Radio Module 70TX-S - PUX - 70TX-S SAFETY- RF EXPOSURE COMPLIANCE This device has been designed using a low power transmitter. It complies with the Federal Communications Commission (FCC) RF exposure limits for General Population/Uncontrolled exposure environment. In addition, it complies with the following Standards and Guidelines: • FCC 96-326 (1996), Guidelines for Evaluating the Environmental Effects of Radio- Frequency Radiation. • FCC OET Bulletin 65 Edition 01-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave. • Use ONLY the supplied antenna and accessories. Unauthorized accessories may violate the FCC rules and regulations. • The module must be installed or integrated by providing a minimum separation distance of 20 cm between the antenna and the human body at all time. Label Requirement: • A label must be affixed to the outside of the end product into which the authorized module/product is incorporated, with a statement similar to the following: “This device contains Transmitter module FCC ID: PUX-70TX-S. 1.Purpose and application of the Radio Module 70TX-S: The 70TX-S radio module is a FM-narrow bandwith type radio module. The transmitter allows the use of up to 256 channels within a bandwith of about 5MHz in the range from 421 to 510 MHz. The spacing is 25KHz. The module is supplied by HM-Funktechnik GmbH (HM-Radio USA) as an OEM product and is to be installed in customer designed peripherals, such as -radio remote control devices for machinery in industrial sites -burglar alarm system, data in general and voice, only in alarm conditions -data transmission in telemetry systems -data transmission in wireless hand held terminal systems -wireless data transmission in general - digitalvoice resp. synthesized voice for FRS 2. Dimensions and connections to peripheral devices: 805 220 (20.4) (5.6) 215(5.5) 325 (8.25) 465 (11.75) 275 (7) 925 (23.5) 465 (11.75) 325 (8.25) 1025 (26) 1220 (31)125 (3.2) 1455 (37) The module high is 400 mil (9.9mm). All dimensions are in mil, values in brackets are the corresponding mm numbers. Tolerance +/- 0.2 mm 2 ) Information shown on this label is not identical with the label on the module Funktechnik GmbH, D-66620 Primstal FCC ID PUX - 70TX-S Canada YYY Transmitter Frequency range USA 421 – 510 MHz Canada 420 – 430 MHz, 450 - 470 MHz 256 channels, spacing 25KHz Frequency: 433.0625 – 434.775MHz Ser. Nr. 134001 Made in Germany D0 to D7 changes the frequency of the transmitter. If the pins D0 to D7 are all open the transmitter works with the lowest programmed frequency. The frequency adjustment is digitally coded. Grounding of D0 rises the frequency about the channel spacing 25KHz. D1 rises about double D0, D2 rises about double D1 and so on. So D7 rises the frequency about 1600 times of D0 (2 7 ), that means 3.2MHz with 25KHz spacing. You can only use the preprogrammed frequencies. No other frequency is possible. The standard version uses 68 channels in the frequency range from 433.0625 to 434.775MHz with a 25KHz spacing. If you programm a channel higher than 137 the frequency will stay the same than on 137. The complete frequency list is available as PDF on our homepage or by email. Please contact [email protected]. VddSupply Voltage 3.5-10V DC Mod.Modulation Input SBStandby Pin: Standby if open Transmitting if grounded GRDGround D7MSB of frequency control . . D0LSB of frequency control 3.Technical data: Supply Voltage3.5V to 10 V DC Absolut maximum rating 12 V DC Supply current31 mA (± 3mA) Modulation input level1.65 V DC + 1.65 V sinωt for ± 2.5KHz frequency deviation Modulation frequency0 - 5 KHz Input impedance> 4.7 KΩ RF – output power10 dBm ± 2 dB conducted Frequency accuracy± 1.5 KHz Temperature stability ± 5 KHz from -20°C to +70°C 4.Restrictions: -Do not supply a higher modulation input level or a higher frequent audio signal to the TX modulation input as specified in 3 -Do not us the 70TX-S radio module to transmit audio or voice, expect in alarm and emergency situations -Do not build illegal spy devices using the 70TX-S radio module -Do not operate the module at lower or higher supply voltages as specified For any further question, comments or advices, please contact HM-Funktechnik at [email protected]

Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 28 of 49 APPENDIX B: AGENCY AUTHORIZATION Please see the following page.

Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 29 of 49 APPENDIX C: CONFIDENTIALITY REQUEST Please see the following page.

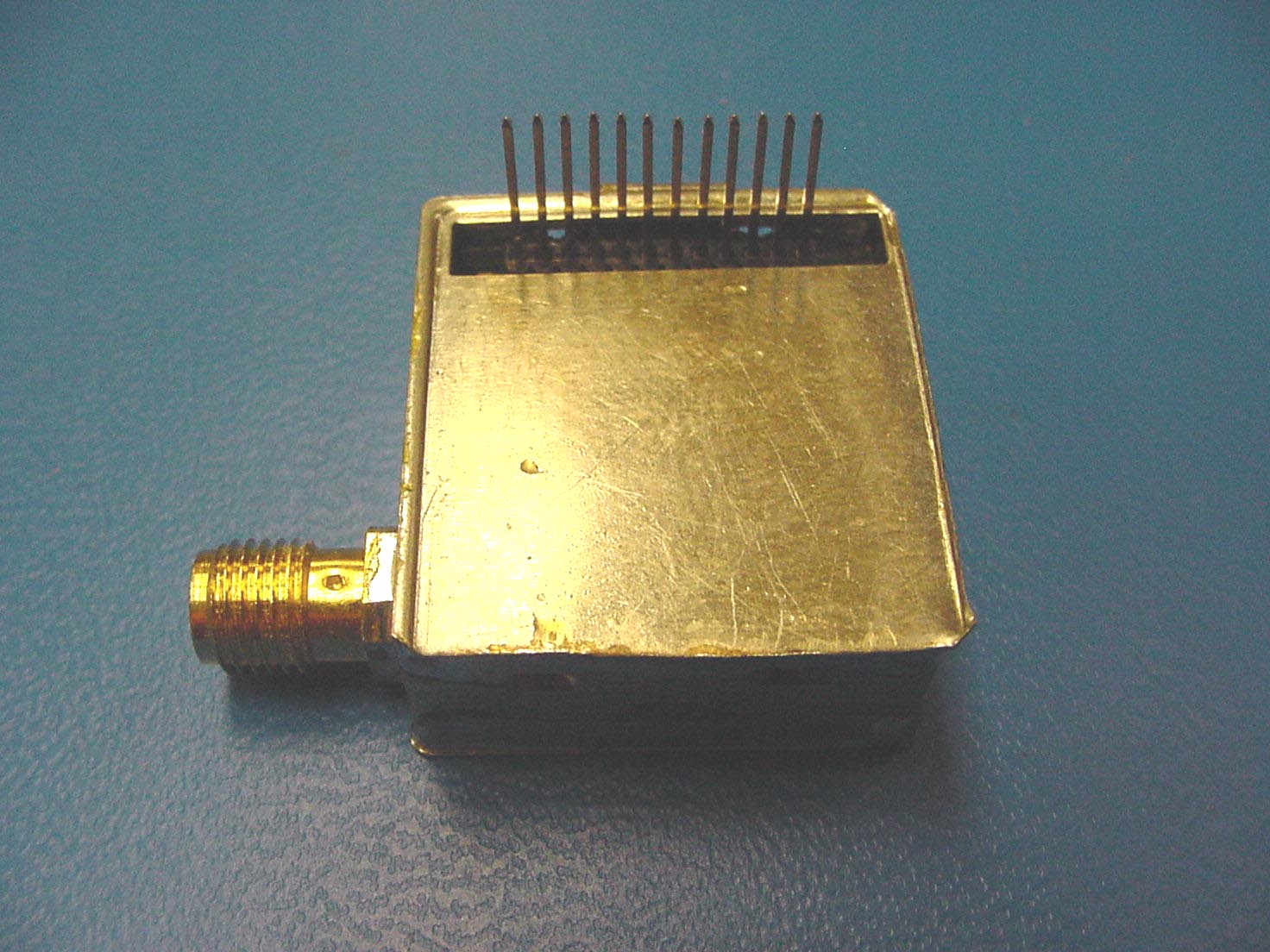

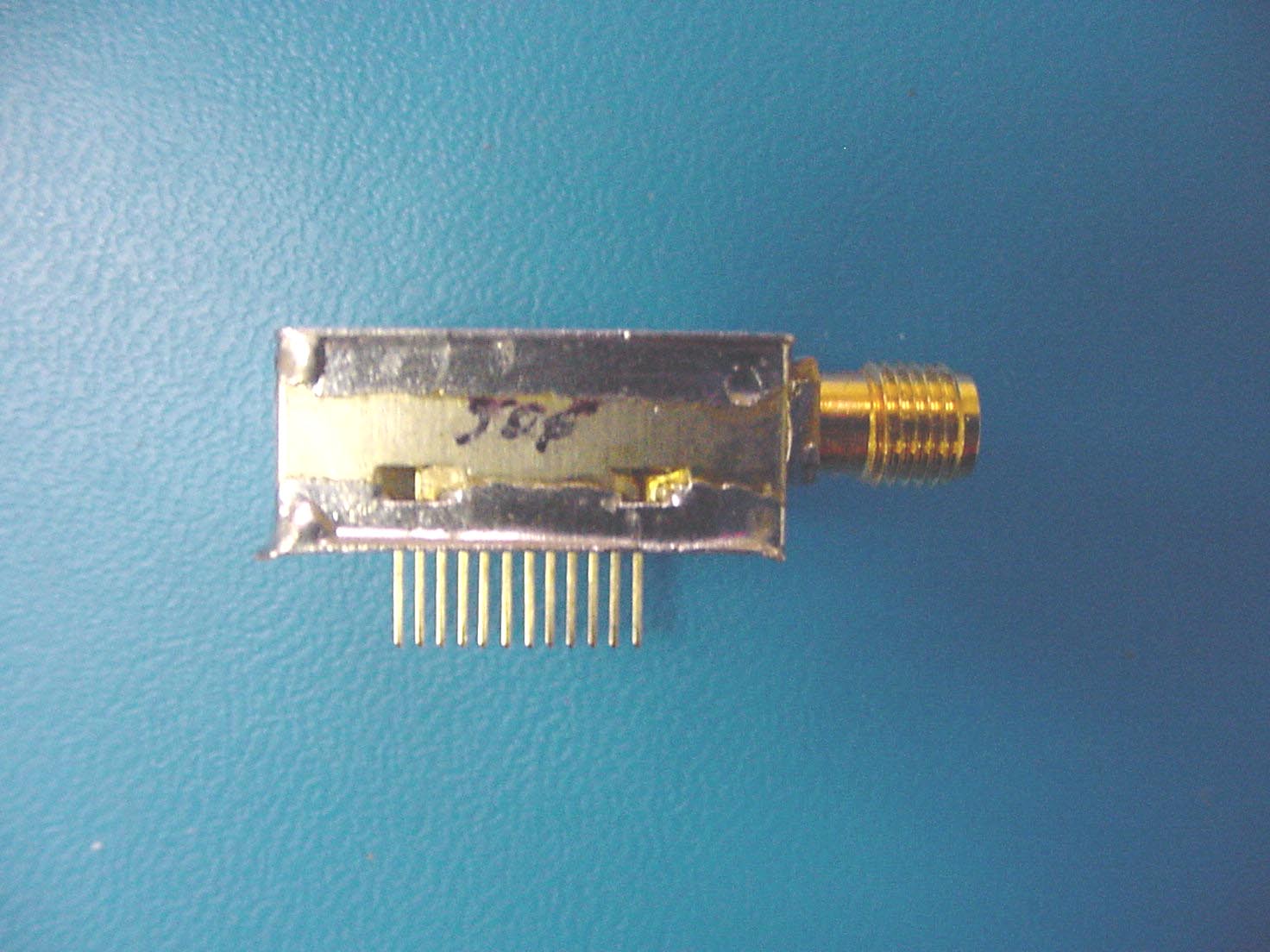

Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 39 of 49 APPENDIX J: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 4: EUT FRONT VIEW – MODULE 1 Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 40 of 49 PHOTOGRAPH 5: EUT FRONT VIEW – MODULE 2 Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 41 of 49 PHOTOGRAPH 6: EUT FRONT VIEW – MODULE 3 Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 42 of 49 PHOTOGRAPH 7: EUT REAR VIEW Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 43 of 49 PHOTOGRAPH 8: EUT CONNECTOR Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 44 of 49 PHOTOGRAPH 9: EUT LEFT VIEW Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 45 of 49 PHOTOGRAPH 10: EUT RIGHT VIEW Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 46 of 49 PHOTOGRAPH 11: EUT ON TEST BED PCB Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 47 of 49 PHOTOGRAPH 12: MODULE WITH COVERS

Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 31 of 49 APPENDIX E: LABEL INFORMATION Please refer to the following page for a photograph of the label placement. DIAGRAM 1: FCC ID + LABEL LOCATION FCC ID: PUX-70TX-S 421.0000 – 510.0000MHz channel spacing 25 KHz Ser. Nr.: 300000 Made in Germany Funktechnik GmbH, D66620 Primstal Pil Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 32 of 49 PHOTOGRAPH 1: FCC ID LABEL LOCATION FCC ID LABEL HERE

Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 48 of 49 APPENDIX K: INTERNAL PHOTOGRAPHS PHOTOGRAPH 13: EUT PCB TOP VIEW Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 49 of 49 PHOTOGRAPH 14: EUT PCB BOTTOM VIEW

Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 27 of 49 APPENDIX A: FCC PART 1.1307, 1.1310, 2.1091, 2.1093: RF EXPOSURE From FCC 1.1310 Table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1 mW/cm 2 . The Electric field generated for a 1 mW/cm 2 exposure (S) is calculated as follows: )4/()( 2 dGPS×××=π where: S = Power density P = Transmitter conducted power in watts G = Numeric gain d = distance to radiation center Fundamental Operating Frequency: (421-510 MHz); the worst case RF exposure limit at 421 MHz is used to determine compliance. Maximum Rated Output Power ERP: .0.0085 Watts (8.5 mW) S = (8.5)/ (4 x Pi X 20 2 ) = 0.8 mW/cm 2 Under normal operating conditions, the antenna is designed to maintain a separation distance of 20 cm from all persons. The EUT is mobile and fixed. Calculated Power Density: Radiated ERP Power (milli-Watt) = 8.5 Separation Distance = 20 cm FCC Power density Limit Calculated Power density at 20 cm distance 0.002mW/cm 2 0.28 mW/cm 2 GENERAL INFORMATION: • FCCID: PUX-70TX-S • Environment: General Population/Uncontrolled Exposure • Device category: Mobile ANTENNA TYPES: Antenna Type Gain (dBi) 17mm wire length Whip 0 OPERATING CONDITIONS: This transmitter has been designed as an OEM mobile transmitter. The device must operate with the quarter wave whip antenna tested for this filing for satisfying the RF exposure requirements. C ONCLUSION: This transmitter complies with the FCC RF exposure requirements by providing a safe separation distance between the antenna (including any radiating structure) and any persons

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway Suite 1400 Herndon, VA 20170 Phone: 703-689-0368 Fax: 703-689-2056 T T Y Y P P E E C C E E R R T T I I F F I I C C A A T T I I O O N N R R E E P P O O R R T T HM-Funktechnik GmbH Zum Handenberg 3 Primstal, D-6620 Germany MODEL: 70TX-S FCC ID: PUX-70TX-S July 10, 2003 STANDARDS REFERENCED FOR THIS REPORT PART 2: 2001 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 2001 RADIO FREQUENCY DEVICES - §15.109: RADIATED EMISSIONS LIMITS PART 22: 2001 PUBLIC MOBILE SERVICES PART 74: 2001 E XPERIMENTAL RADIO AUXILIARY, SPECIAL BROADCAST AND OTHER PROGRAM DISTRIBUTIONAL SERVICES PART 90: 2001 PRIVATE LAND MOBILE RADIO SERVICES PART 95: 2001 PERSONAL RADIO SERVICES ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA603- 1992 L AND MOBILE FM OR PM COMMUNICATIONS EQUIPMENT M EASUREMENT AND PERFORMANCE STANDARDS ANSI/TIA/EIA 603-1-1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 ANSI/TIA/EIA –102.CAAA; 1999 D IGITAL C4FM/CQPSK TRANSCEIVER MEASUREMENT METHODS RSS-119; Issue 6; 2000 LAND MOBILE AND FIXED RADIO TRANSMITTERS AND RECEIVERS 27.41 TO 960.0 MHZ Frequency Range Output Power (W) Conducted Frequency Tolerance (ppm) Emission Designator 421-510 MHz 0.0120 -4.436 16K0F1D REPORT PREPARED BY TEST ENGINEER: DESMOND FRASER Document Number: 2003075/ QRTL03-776 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 2 of 49 T ABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................................................................... 5 1.1 TEST FACILITY...................................................................................................................................................................... 5 1.2 RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................................................. 5 2 CONFORMANCE STATEMENT ................................................................................................................................................... 6 3 TESTED SYSTEM DETAILS......................................................................................................................................................... 7 4 FCC RULES AND REGULATIONS PART 2 §2.1046 (A): RF POWER OUTPUT: CONDUCTED .............................................. 9 4.1 TEST PROCEDURE ............................................................................................................................................................... 9 4.2 TEST DATA ............................................................................................................................................................................ 9 5 FCC RULES AND REGULATIONS PART 2 §2.1051: SPURIOUS EMISSIONS AT ANTENNA TERMINALS......................... 10 5.1 TEST PROCEDURE............................................................................................................................................................. 10 6 FCC RULES AND REGULATIONS PART 2 §2.1053 (A): FIELD STRENGTH OF SPURIOUS RADIATION........................... 12 6.1 TEST PROCEDURE ............................................................................................................................................................. 12 6.2 TEST DATA .......................................................................................................................................................................... 12 6.3 CFR 47 PART 90.210 REQUIREMENTS ............................................................................................................................. 12 7 FCC RULES AND REGULATIONS PART 2 §2.1053 (A): RADIATED ERP.............................................................................. 15 7.1 TEST PROCEDURE ............................................................................................................................................................. 15 7.2 TEST DATA .......................................................................................................................................................................... 15 8 FCC RULES AND REGULATIONS PART 2 §2.1049 (C) (1): OCCUPIED BANDWIDTH .........................................................16 8.1 TEST PROCEDURE ............................................................................................................................................................. 16 8.2 TEST DATA .......................................................................................................................................................................... 16 8.3 TEST EQUIPMENT USED FOR TESTING .......................................................................................................................... 17 9 FCC RULES AND REGULATIONS PART 2 §2.202: NECESSARY BANDWIDTH AND EMISSION BANDWIDTH................ 18 10 FCC RULES AND REGULATION PART 2 §2.1055: FREQUENCY STABILITY ................................................................19 10.1 TEST PROCEDURE ............................................................................................................................................................. 19 10.2 TEST DATA .......................................................................................................................................................................... 19 10.3 FREQUENCY STABILITY/TEMPERATURE VARIATION ....................................................................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 37 of 49 APPENDIX I: TEST CONFIGURATION PHOTOGRAPHS PHOTOGRAPH 2: RADIATED EMISSIONS FRONT VIEW Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 38 of 49 PHOTOGRAPH 3: RADIATED EMISSIONS REAR VIEW
