PV3CGWMBGLSS Gateway

LS10237-000NF-E | REV. A | 31/01/2020 Honeywell Connected Life Safety Services GLSS Gateway Installation and User’s Manual 2 Table of Contents Section 1: General Information.........................................................................................................................................4 1.1: About This Manual.......................................................................................................................................................................4 1.2: Information Sources....................................................................................................................................................................4 1.3: Documentation Feedback........................................................................................................................................................5 1.4: Abbreviations Used in This Document................................................................................................................................5 1.5: FCC STATEMENT...........................................................................................................................................................................6 1.6: Warnings and Cautions..............................................................................................................................................................6 1.7: Disclaimer.........................................................................................................................................................................................6 Section 2: Overview..............................................................................................................................................................7 2.1: Operations........................................................................................................................................................................................7 2.2: Honeywell Connected Life Safety Services.......................................................................................................................7 2.3: The Gateway Board’s Layout....................................................................................................................................................7 2.3.1: Connecting Interfaces....................................................................................................................................................8 2.3.2: LED Indicators....................................................................................................................................................................9 2.3.3: Switches on the Gateway Board..............................................................................................................................11 Section 3: Installation.......................................................................................................................................................12 1.1: Wall Mounting the Dedicated Gateway............................................................................................................................12 3.2: Gateway Board Connections.................................................................................................................................................14 3.2.1: Connecting to a Fire Alarm Panel...........................................................................................................................15 Supported Panels.................................................................................................................................................................15 Vigilon Panels: Connection Options............................................................................................................................15 Notifier Panels: Connection Options...........................................................................................................................15 To Make a USB Connection.............................................................................................................................................16 To Make a NUP /RS232 Connection..........................................................................................................................16 The panel supplies the 24V DC power to the gateway board through the NUP connection............ 16 To Make a UART/TTL Connection................................................................................................................................16 Section 4: Configurations................................................................................................................................................18 4.1: Panel Configurations...............................................................................................................................................................18 4.1.1: The Date Settings...........................................................................................................................................................18 4.2: Gateway Configurations.........................................................................................................................................................18 4.2.1: To Configure via the Wireless Connection..........................................................................................................18 4.3: Verifying the Gateway Connections...................................................................................................................................20 4.4: Testing the Commissioning...................................................................................................................................................20 3 Table of Contents Section 5: Post-Installation Activities.........................................................…

Text truncated - open the document above for the full version.

1 Fire Systems Group Honeywell International 12 Clintonville Road Northford, CT 06472 203-484-7161 203-484-7118 Fax Date: 13-Feb-2020 Federal Communications Commission Authorization and Evaluation division Subject: Confidentiality Request for GLSS Gateway FCC ID: PV3CGWMB Pursuant to 47 CRF 0.457(d) and 0.459, Honeywell International Inc., requests that a part of the subject application be held confidential Type of Confidentiality requested Exhibit Type File name Long term confidentiality Schematic & Block diagram cm_bm28_20190923_spin4a.pdf Long term confidentiality Operational Description Theory of Operation.doc The above materials contain proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Jonathan Potter Global Regulatory Leader – Honeywell Building Technologies Honeywell International, Inc 12 Clintonville Road Northford, CT 06472

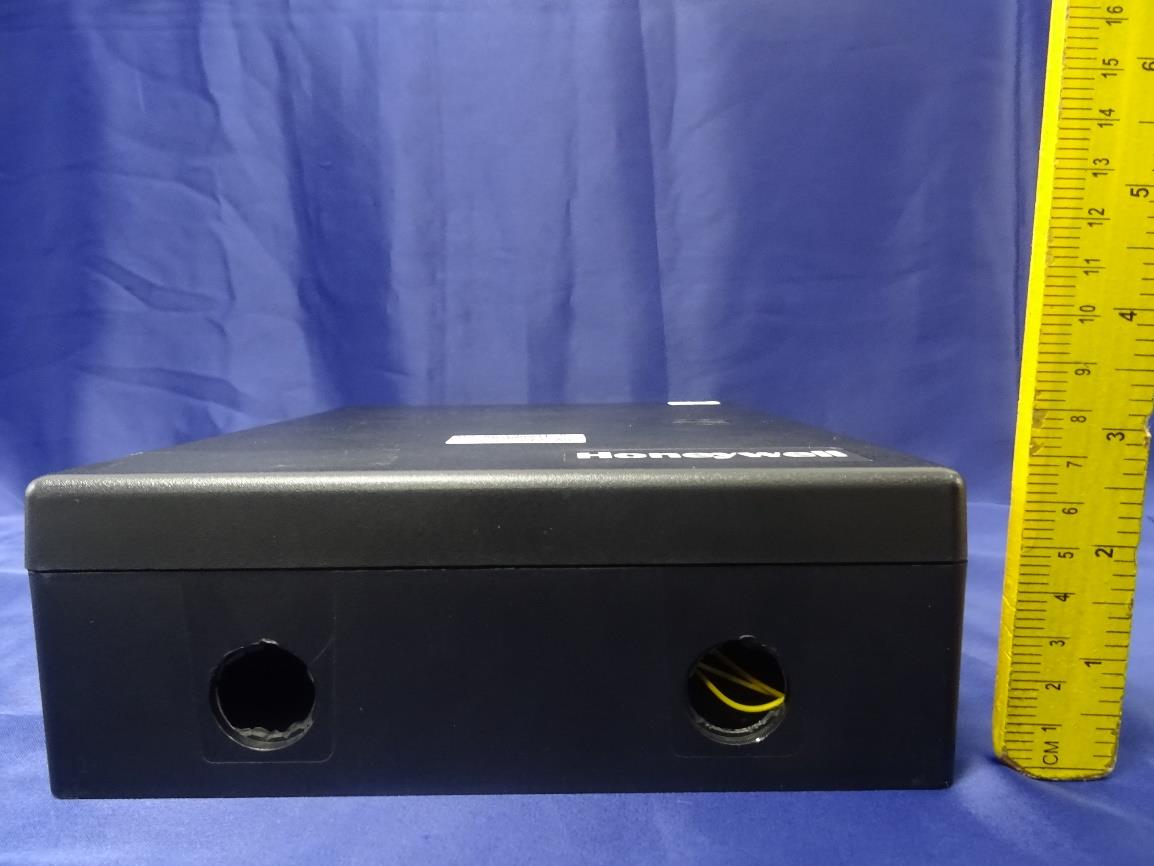

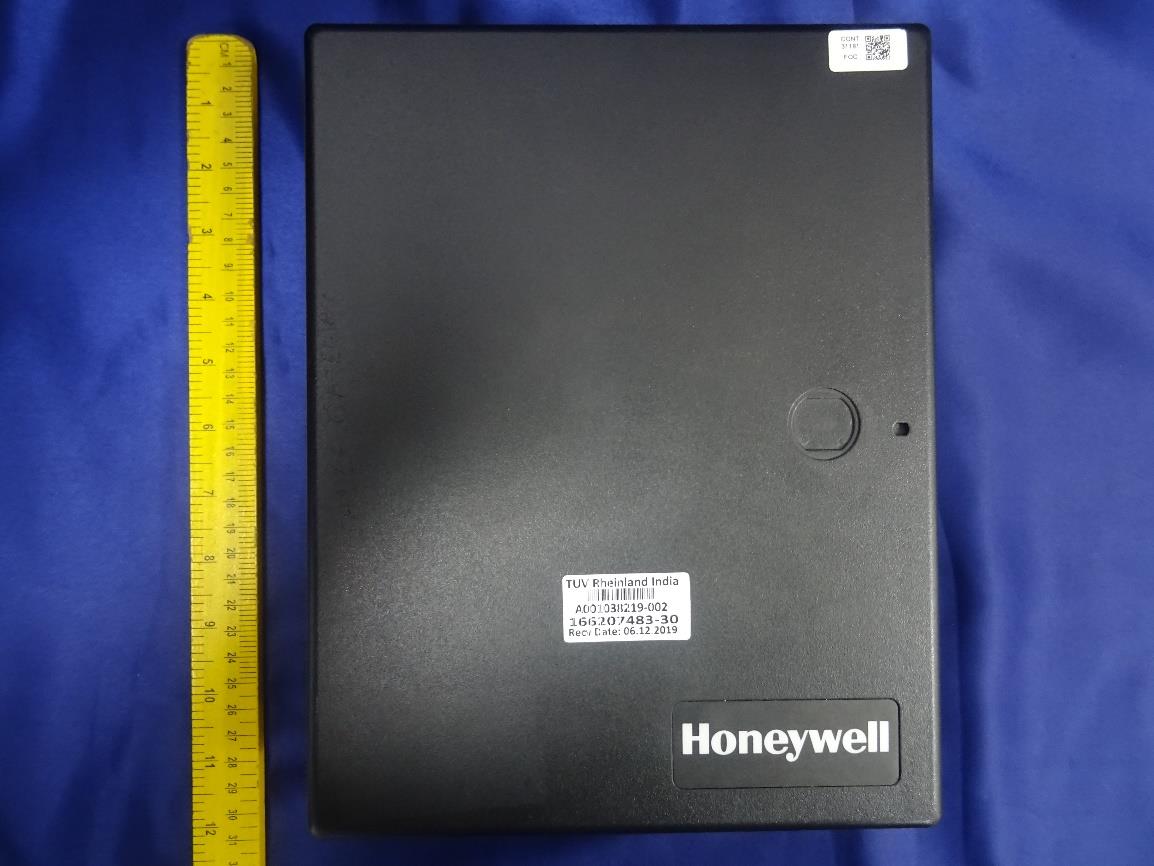

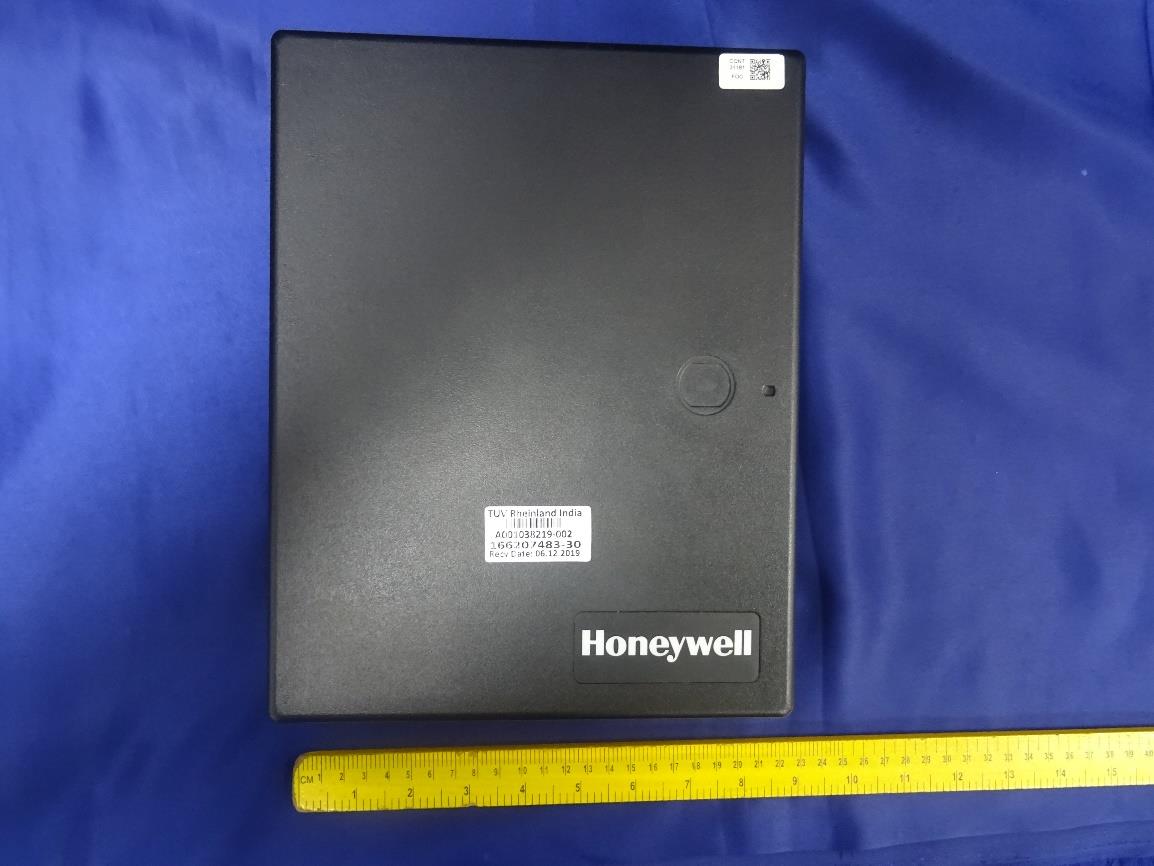

Produkte Products www.tuv.com EUT External Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 1 von 3 Page 1 of 3 EUT Top View EUT Rear View Produkte Products www.tuv.com EUT External Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 2 von 3 Page 2 of 3 EUT Dimensional view EUT Dimensional view Produkte Products www.tuv.com EUT External Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 3 von 3 Page 3 of 3 EUT Dimensional view EUT Enclosure Opened

50151847-001:B — page 1 of 2 Approvals Name Date Drawn By: Technical Pubs: Quality Assurance: Marketing: Documentation: Agency Listings: R.E.M.: Tolerances +/- 0.030" Unless otherwise specified, [A .S .A ] standards are followed and all dimensions are in inches. 12 Clintonville Road, Northford, CT 06472 Brand Compliance Officer (signature, date): n/a, no logo used NOTES: 1)Camera-ready artwork on page 2 of 2. Do not print page 1 SHOOT AT 100%. Cut at crop marks/dimensions illustrated. 2)PAPER USED MUST TEAR APART IF REMOVED FROM PRODUCT. Title:LBL,DOOR,FIRE MANAGER GW Document Number: 50151847-001 Revision: B Initial Release Number:19-0684 Current ECN:150699 Scale: 1:1 Ananda Ganesh, V. MATERIAL: Fasson Spec. # 08486. NO SUBSTITUTIONS! FINISH: Background: White. Linework and Lettering: Black. Used On: GLSS Gateway Filename:50151847-001_B.ai n/a Document History: Rev.Description ECNDateApproved noitcudorp rof desaeleRA 19-068431/11/19 Added the FCC details n/a 3) Label may include - date code, MAC address, and any other required identification. 31/1/20 4) Must comply to the durability and permanence test for markings from UL/EN 62368-1. B 15069931/01/20 50151847-001:B — page 2 of 2 SHOOT AT 100% 5.00" 5.00” CONNECTION MANAGER HON-CGW-MBB RADIO FREQUENCY FROM TRANSMITTING DEVICES MAY IMPAIR INTENDED OPERATION OF THE CONTROL UNIT. MAINTAIN A MINIMUM OF 30 CM BETWEEN TRANSMITTING DEVICES AND CONTROL UNIT. ADVERTISSEMENT!: LES RADIO FRÉQUENCES ÉMISES PAR LES DISPOSITIFS DE TRANSMISSION PEUVENT NUIRE AU FONCTIONNEMENT PRÉVU DU POSTE DE CONTRÔLE. MAINTENIR UNE DISTANCE D’AU MOINS 30 CM ENTRE LES DISPOSITIFS DE TRANSMISSION ET LE POSTE DE CONTRÔLE. 140 Waterside Rd Leicester LE5 1TN, UK +44 (0) 203 4091779 12 Clintonville Rd Northford, CT 06472 (203) 484-7161 GLSS Gateway - Quick Start Guide Document number: 0151848-001, Rev. C GLSS Gateway - Installation and User’s Manual Document number: LS10237-000NF-E, Rev. A FCC ID: PV3CGWMB FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including, an interference that may cause undesired operation. Support documentation can be found at: http:fire.honeywell.com 50151847-001:BECN: 150699

Produkte Products www.tuv.com EUT Internal Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 1 von 2 Page 1 of 2 PCB FRONT VIEW PCB Rear VIEW Produkte Products www.tuv.com EUT Internal Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 2 von 2 Page 2 of 2 EUT RF Module Close up

Produkte Products www.tuv.com RF Exposure ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 1 von 2 Page 1 of 2 1 RF Exposure Report 1.1 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 1.2 RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) showed in Table 1. Table 1: Limits for Maximum Permissible Exposure (MPE) as per FCC Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F or ƒ = Frequency in MHz Produkte Products www.tuv.com RF Exposure ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 2 von 2 Page 2 of 2 1.2.1 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. 1.2.2 EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. 1.2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Note: ± 2 dB tune up value is considered for MPE calculation. Protocol: WLAN (2.4GHz and 5GHz), Bluetooth, BLE. Test Results Manufacturer has declared the tune-up value as ±2 dBm is considered in MPE calculation. Antenna: Printed F Antenna Antenna gain (G) : 3dBi for 2.4 GHz 6.5dBi for 5 GHz Protocol Data Rate Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) BLE 1Mbps 2402 5.5068 0.0021 1 BT 3Mbps 2402 10.8660 0.0043 1 WLAN (2.4GHz) 6Mbps 2412 33.3901 0.0132 1 WLAN (5GHz) MCS0 5180 30.0773 0.0249 1 Note: The product does not support simultaneous transmission. Conducted output power measured with respect to each protocol with single transmission chain.

Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000086F Seite 2 von 61 Page 2 of 61 TEST SUMMARY Test Item FCC Clause Result Maximum Conducted Output Power 15.247 (b) (3) Pass 20 dB Bandwidth 15.247 (a) (1) Pass Carrier Frequency Separation 15.247 (a) (1) Pass Number of Hopping channels 15.247 (a) (1)(III) Pass Time of Occupancy (Dwell Time) 15.247 (a) (1)(III) Pass Emissions in non – restricted band 15.247 (d) Pass Radiated spurious emissions and emissions in Restricted bands of operation 15.247 (d) / (15.209 & 15.205) Pass Conducted emission on A.C power lines 15.207 Pass Product Category: Electronics Testing Test Discipline: EMC Test Facility Note: Measurements were performed as per procedure mentioned in ANSI C63.10-2013. Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000086F Seite 3 von 61 Page 3 of 61 Table of Contents 1 GENERAL REMARKS ........................................................................................................................................... 4 1.1 Complimentary Materials .............................................................................................................................. 4 2 TEST SITES .......................................................................................................................................................... 5 2.1 Testing Facilities............................................................................................................................................ 5 2.2 List of Test and Measurement Instruments ................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ................................................................................................................. 7 3.1 Product Function and Intended Use.............................................................................................................. 7 3.2 Ratings and System Details declared by client* ........................................................................................... 7 3.3 Measurement Uncertainty: ............................................................................................................................ 8 4 TEST SET-UP AND OPERATION MODE ............................................................................................................. 9 4.1 Principle of Configuration Selection .............................................................................................................. 9 4.2 Test Operation and Test Software ................................................................................................................ 9 4.3 Test modes – data rates and modulations .................................................................................................... 9 4.4 Special Accessories and Auxiliary Equipment .............................................................................................. 9 4.5 Countermeasures to achieve EMC Compliance ........................................................................................... 9 4.6 List of frequencies ......................................................................................................................................... 9 5 TEST METHODOLOGY ...................................................................................................................................... 11 5.1 Radiated Emission Test .............................................................................................................................. 11 5.1.1 Test Setup Configuration ........................................................................................................................ 11 6 TEST RESULTS FOR BT .................................................................................................................................... 13 6.1 Maximum Peak Conducted Output Power .................................................................................................. 13 6.2 20 dB Bandwidth ......................................................................................................................................... 19 6.3 Number of Hopping Channels ..................................................................................................................... 25 6.4 Carrier Frequency Separation ..................................................................................................................... 26 6.5 Time of Occupancy (Dwell Time) ................................................................................................................ 27 6.6 Band- edge Compliance and Conducted Spurious Emissions ................................................................... 30 6.7 Restricted bands of Emissions & Restricted Bands of Operation ............................................................... 35 7 Conducted Spurious Emission Test on AC Power Line ...................................................................................... 56 8 LIST OF TABLES ................................................................................................................................................. 61 Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000086F Seite 4 von 61 Page 4 of 61 1 GENERAL REMARKS 1.1 Complimentary Materials All attachments are integral part of this test report. This applies especially to the following appendix: 1: Test Setup Photo 2: EUT External Photo 3: EUT Internal Photo 4: FCC Label and Label Location 5: Block Diagram 6: Specification of EUT 7: Schematic Diagrams 8: Bill of Material 9: User Manual 10: Maximum Permissible Exposure Information Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568819300000086F Seite 5 von 61 Page 5 of 61 2 TEST SITES 2.1 Testing Facilities TÜV Rheinland (India) Private Limi…

Text truncated - open the document above for the full version.

Produkte Products www.tuv.com Test Setup Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 1 von 6 Page 1 of 6 Frequency range:9kHz-30MHz Polarization: Parallel Frequency range:9kHz-30MHz Polarization: Perpendicular Produkte Products www.tuv.com Test Setup Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 2 von 6 Page 2 of 6 Frequency range:30MHz-200MHz Polarization: Vertical Frequency range:30MHz-200MHz Polarization: Horizontal Produkte Products www.tuv.com Test Setup Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 3 von 6 Page 3 of 6 Frequency range:200MHz-1GHz Polarization: Vertical Frequency range:200MHz-1GHz Polarization: Horizontal Produkte Products www.tuv.com Test Setup Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 4 von 6 Page 4 of 6 Frequency range:1GHz – 18GHz Polarization: Vertical Frequency range:1GHz – 18GHz Polarization: Horizontal Produkte Products www.tuv.com Test Setup Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 5 von 6 Page 5 of 6 Frequency range:18-40GHz Polarization: Vertical Frequency range:18-40GHz Polarization: Horizontal Produkte Products www.tuv.com Test Setup Photos ReferenceTest Report No: ULR-TC568819300000085F/86F/87F Seite 6 von 6 Page 6 of 6 EUT Close-up
