PV4WS-2000Fixed WLL Telephone (CDMA)

WS2000/WS4000 Operating Manual 1 Introduction of WS-2000/4000 (1) Simple & refined design for the use in the office and a house. (2) Basically designed for the desktop, this can be installed in any place thanks to the wall mount bracket. (3) Clear and high voice quality (8Kbps / 13 Kbps QCELP, 8Kbps EVRC) (4) A user can easily adjust the volume of the handset with the volume control, and set the volume at the optimal level. (5) With a built-in back-up battery, you will stay on the call without a power failure. (6) LCD visually indicates the status of the terminal. (7) Outgoing Lock function can control who can access and use the terminal. (8) Simple and quick transmission of the stored number in the phone book with One-Touch and Two-Touch Dial. (9) The Hotline Call function allows the most frequently used number to be connected when a user picks up the handset. (10) This terminal provides the user-friendly multi-functional service like Alarm, DND, Alert Beep per 1 minute, Storing a memo during the conversation and so on. (11) Various warning tone and sound indicate the low battery and the incorrect use of the terminal. (12) Various supplementary services such as Three-way calling, Call waiting, Call transfer and Call forwarding are supported by being interfaced with the system (System dependent) (13) Packet, Circuit and PC fax communication are provided with a connection to a PC. (14) The Voice Privacy function prevents the illegal wiretapping. (15) The Authentication Key function prevents the owner’s phone number from being cloned by others. (16) Calling Line Identification function (CLIP) is provided. (System dependent) (17) A simple and convenient menu ensures the easy installation of the terminal. WS2000/WS4000 Operating Manual 2 (18) Thanks to a Full Duplex Speaker Phone, a user can converse with Echo-Free. (19) Being a system dependent, this terminal transmits DTMF for ARS connection. (20) This terminal supports High Speed Packet Data by using MSM 5000 family chip. WS2000/WS4000 Operating Manual 3 1. Installation Thank you for purchasing this product. Please check whether the product package contains the following items. If there are items missing, please contact the store where the unit was purchased. Phone Power Supply(SMPS) Antenna Manual Power Cord WS2000/WS4000 Operating Manual 4 1.1 Installation Procedure ? Connect the DC jack to the back panel of the phone as shown in the figure below. ? Connect the plug of the SMPS to a power outlet and to SMPS for the phone. ? Turn power on by moving the switch button to the right as shown in the following figure. The power-up sound indicates the phone is initialized. WS2000/WS4000 Operating Manual 5 ? Adjust the antenna direction until the maximum Antenna power sign is displayed on the LCD screen. (Each bar indicates the received signal strength. More bars indicate higher signal strength and a better service condition.) ? See 2.1 Power-Up / Power-Down 1.2 Installing the Wall Bracket (Optional) Before finalizing the precise location of the phone, please perform the signal strength test to ensure the best operating condition location for the assembled unit. ? For installing the unit into a concrete wall, make 3mm holes with a drill at the marked location and attach the Installation Panel. When installing mounting screws, do not screw them in all the way. Leave a 2mm space between the screw head and the installed panel. ? On the bottom of the phone, please find the wall mounting slots(A1 ~A4). Install A1 and A2 onto the top screws. Push the wall mounting slots A3 and A4 onto the bottom screws until the phone is securely seated. A1 A4A3 B2 B1 WS2000/WS4000 Operating Manual 6 1.3 Phone Description (Figure 1.2 – 1) WS2000/WS4000 Operating Manual 7 Antenna RF ConnectorPower SwitchDC Power JackSerial Port (Figure 1.2–2) WS2000/WS4000 Operating Manual 8 1.4 Safety Instructions Basic safety precautions should always be followed to reduce the risk when using this unit. · Read and follow all instructions marked on the product. · To reduce the risk of electric shock, do not disassemble this unit. When the unit is subsequently used, incorrect reassembly can cause electric shock. When service is required, take the unit to an authorized service center. · Do not hold or make contact with the antenna while making a call. · Do not overload the wall outlets and the extension cord. · Do not use this product near the water and never spill any liquid on the unit. This may result in the risk of fire or electric shock. · Do not place this product on an unstable location (cart, stand or table). If this product should fall from an unstable location, the result may be risk of serious damage. · Do not cover the slots and openings on the unit. They are provided for ventilation and protection against overheating. Do not place this product near the heater or radiator where proper ventilation is not provided. · This product should only be operated from the type of power source marked on the product. If you are not sure of the type of power available, consult your dealer or local power company. · Never push objects of any kind into this product, since this may result in a serious voltage short and may result in the risk of fire or electric shock. · During thunderstorms, avoid using this product. There may be a remote risk of an electric shock from lighting. · Unplug this product from the wall outlets and obtain service from an authorized service center under the following conditions: - When the power supply plug is damaged or frayed. - If liquid has been spilled into this product. - If this product has been exposed to water or rain. - If this product does not work properly when the operating instructions are followed. - If this product has been dropped or damaged. WS2000/WS4000 Operating Manual 9 - If this product exhibits a distinct change in performance. 2. Before Using Your Phone 2.1 Power-Up / Power-Down 2.1.1 General Power-Up ? Manufacturer’s logo will be displayed f…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR03-1203 FCC ID: PV4WS-2000 DATE: December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-1203 FCC ID: PV4WS-2000 DATE: December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-1203 FCC ID: PV4WS-2000 DATE: December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

SUBJECT: Westech Korea Inc. FCC ID: PV4WS-2000 Part 22 / 2 / 15 Certification Gentlemen: Submitted herewith, on behalf of Westech Korea Inc. is an application for Part 22 / 2 / 15 Certification of the following Fixed WLL Telephone (CDMA): Trade Name/Model(s): Westech Korea / WS-2000 EUT Type: Fixed WLL Telephone (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.327W ERP CDMA (25.140dBm) Maximum SAR: 1.23W/kg CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by : Ki-Soo Kim Manager of Product Compliance Team cc: Mr. Anthony Kang – Project Manager Westech Korea Inc. December 12, 2003 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005-8642- 21

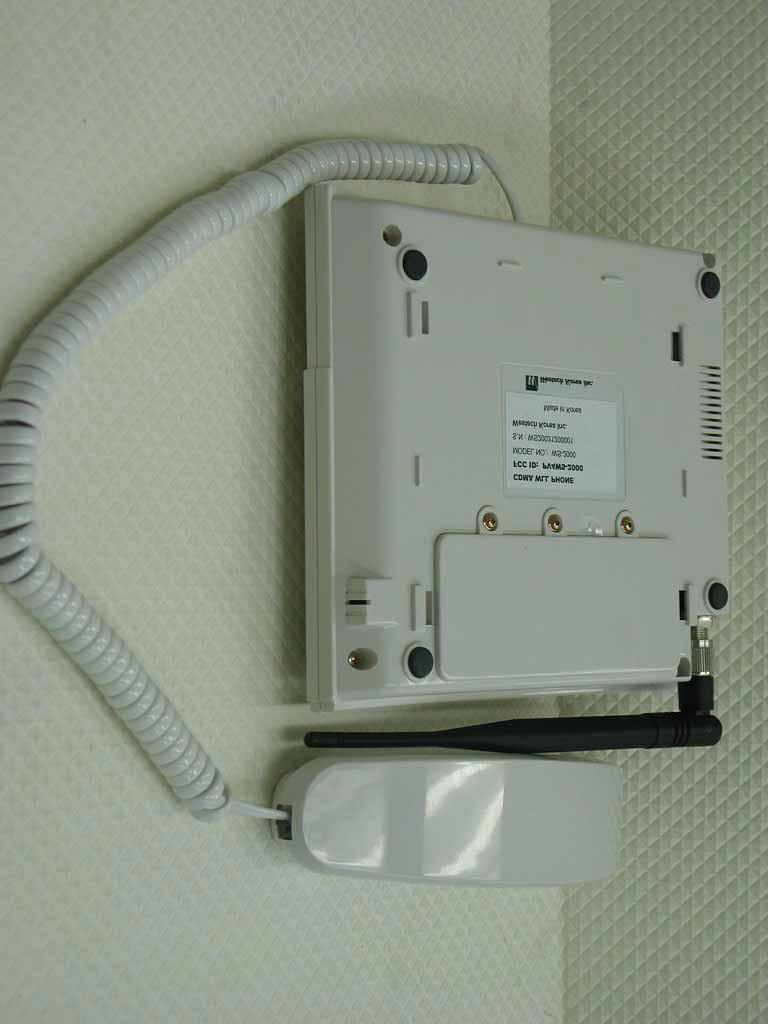

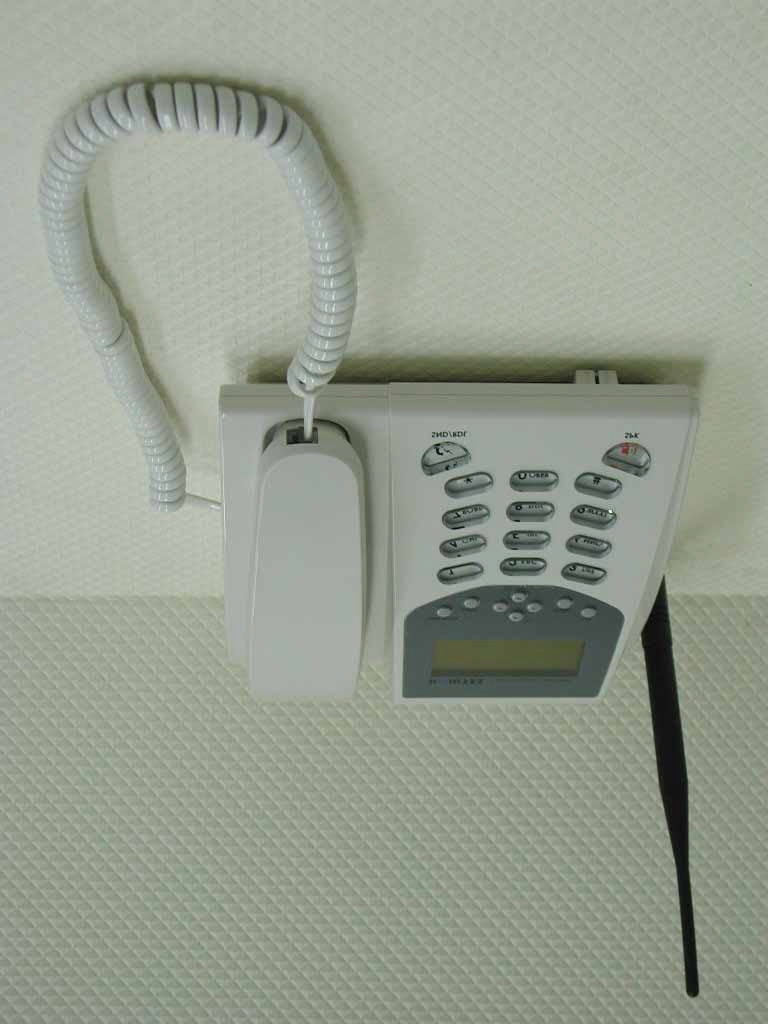

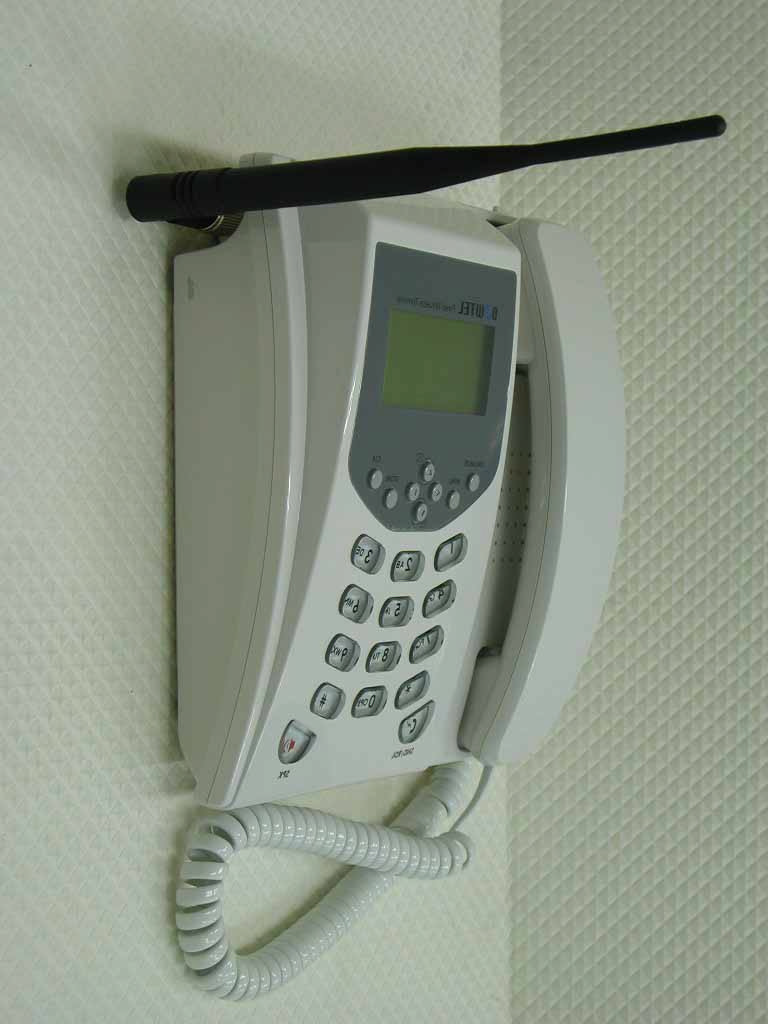

Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO

Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr INTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr INTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr INTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr INTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr INTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr INTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr INTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr INTERNAL PHOTO Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr INTERNAL PHOTO

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: Fixed WLL Telephone (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.316W CDMA (25.0dBm) : Conducted Power Max. RF Output Power: 0.327W CDMA (25.14dBm) : ERP Trade Name/Model(s): Westech Korea / WS-2000 FCC Classification: Licensed Non-Broadcast station Transmitter - TNB Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 1.23W/kg CDMA Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID: APPLICANT: PV4WS-2000 Westech Korea Inc. Date of Issue: December 12, 2003 Test Report No.: HCT-SAR03-1203 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005-8642- 21 Westech Korea INC. 548-9, Gajwa3-Dong, Seo-Ku, Incheon, 404-817 Korea Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr of19 Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6 7-8 9-10 11 12 13 14 15 16 17 18 19 Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr of19 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Fixed WLL Telephone (CDMA) • Trade Name: WESTECH KOREA • Model(s): WS-2000 • FCC ID: PV4WS-2000 • Serial Number(s): AXW20031200003 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Licensed Non-Broadcast station Transmitter - TNB • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): CDMA • Αntenna Type: Fixed • Max RF. Output Power: 0.327W ERP CDMA (25.14dBm) • Date(s) of Tests: December 11, 2003 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR03-1203 Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Company Name: WESTECH KOREA INC. Address: 6305 LUSK BLVD. SAN DIEGO, CA 92121 Attention: Anthony Kang/Project Manager Tel. / Fax: 82-32-580-8982 / 82-32-580-8982 E-Mail: [email protected] Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr of19 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environment…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Validation Data (835MHz Brain) Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Dielectric Parameter (835MHz Brain) Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Dielectric Parameter (835MHz Body)

Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Test Setup Photo Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Test Setup Photo Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Test Setup Photo [Distance of 25 mm from the EUT] Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Test Setup Photo Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Test Setup Photo (Validation)

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE FCC Part 22 Certification EUT Type: Fixed WLL Telephone (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.327W ERP CDMA (25.140dBm) Trade Name/Model(s): Westech Korea / WS-2000 FCC Classification: Licensed Non-Broadcast station Transmitter - TNB Application Type: Certification FCC Rule Part(s): §22(H), §2 Maximum SAR: 1.23W/kg CDMA Body SAR Antenna Specifications: Manufacturer: Shina Telecom Co., Ltd. Model: SA-800B (Length= 208.3±1.5mm) Emission Designator(s): 1M27F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in 2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Westech Korea Inc. 548-9, Gajwa3-Dong, Seo-ku, Incheon, 404-817 Korea Date of Issue: December 12, 2003 Test Report No.: HCT-SAR03-1203 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005-8642- 21 FCC ID: APPLICANT: PV4WS-2000 Westech Korea Inc. Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr / 24 Table of Contents ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE -------------------------------------------------------------------------- 2.1 INTRODUCTION ------------------------------------------------------------- 3.1 INSERTS PER §2.1033(d)-------------------------------------------------- 4.1 DESCRIPTION OF TESTS------------------------------------------------- 5.1 EFFECTIVE RADIATED POWER OUTPUT -------------------------- 6.1 RADIATED MEASUREMENTS------------------------------------------- 7.1 FREQUENCY STABILITY ------------------------------------------------- 8.1 PLOTS OF EMISSIONS---------------------------------------------------- 9.1 LIST OF TEST EQUIPMENT -------------------------------------------- 10.1 SAMPLE CALCULATIONS ---------------------------------------------- 11.1 CONCLUSION---------------------------------------------------------------- ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM (S) ATTACHMENT J: CIRCUIT DIAGRAMS & DESCRIPTION ATTACHMENT K: PARTS LIST ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION ATTACHMENT S: DIPOLE CALIBRATION ATTACHMENT T: EMI MEASUREMENT REPORT 3 4 5 6-15 16 17-19 20 21 22 23 24 Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr / 24 MEASUREMENT REPORT 1.1 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information • FCC ID: PV4WS-2000 • Quantity: Quantity production is planned • EUT Type: Fixed WLL Telephone (CDMA) • Trade Name: Westech Korea • Model(s): WS-2000 • Serial Number(s): WS20031200001 • Emission Designator(s): 1M27F9W • Tx Frequency: 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Licensed Non-Broadcast station Transmitter - TNB • FCC Rule Part(s): §22(H), §2 • Modulation(s): CDMA • Αntenna Type: Fixed • Max RF. Output Power: 0.327W ERP CDMA (25.140dBm) • Date(s) of Tests: December 8, 2003 – December 11, 2003 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR03-1203 Company Name: Westech Korea Inc. Address: 548-9, Gajwa3-Dong, Seo-ku, Incheon, 404-817 Korea Attention: Mr. Anthony Kang – Project Manager Tel. / Fax : 82-32-580-8982 / 82-32-580-8969 E-Mail : [email protected] Report No.: HCT-SAR03-1203 FCC ID : PV4WS-2000 DATE : December 12, 2003 HYUNDAI CALIBRAT…

Text truncated - open the document above for the full version.
