PV5MSD09021989STUNT ROLLING CAR

NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with limits for a Class B digital-device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1, Reorient or relocate the receiving antenna. 2, Increase the separation between the equipment and receiver. 3, Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4, Consult the dealer or an experienced radio / TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INSTRUCTION MANUALS As with all electrical products, precautions should be observed during handling and use to reduce the risk of electric shock. The charger be periodically examined for conditions that may result in the risk of fire, electric shock, or injury to persons and that, in an event such conditions, the charger should not be used until properly repaired. 1. Our product, item no MSD0902 Super Rolling Car, contains“ CAR BODY”,“TRANSMITTER” 2. Put a 9.0v alkaline battery into the transmitter and 4 X1.5V AA batteries into the car body 3. Pull out the antenna, and turn on the power switch, then you can use the controllers to move the car. 4. Single movement: if you press the left switch of the controller to “GO”, the car goes forward; and to “ BACK ”,the car moves in reverse. if you press the switch at the right to “STEERING” and move it to to the left or to the right ,the car turns left or right. 5. Advanced movement: A. If you press the left switch to “ GO ” and, at the same time ,the right switch to “ ROLL ”, the car goes forward, accelerating, rolling, or turning left or right. B. If you press the left switch to “ BACK ”,and the right switch to “ ROLL ”the car reverses, accelerating, rolling, or turning left or right. 6. The charger can be used for more than 20 minutes after 4 or 6 hours charging. to take the battery out, press the red button. ATTENTION. 1. The car can be dismantled. make sure children do not put the parts in their mouth. 2. For proper functioning and longer service life of the car. you should use the battery pack produced only by our company. 3. Charge the battery till it is cool. take the batteries out when it is not in use. 4. Should the battery pack rust, do not open or charge it. 5. Do not place the battery near fire or heat. 6. Keep the plastic parts bags away from children. 7. Cast the packing in the waste bin when it is removed from the unit. 8. The battery pack included should be charged before use. BATTERY SAFETY INSTRUCTIONS Ensure the battery compartments are secure. Only use the batteries recommended. Ensure correct fit of batteries, observing the polarity. Replace a full set of batteries at one time. Store unused batteries in their packaging and keep away from metal objects that may cause a short circuit. Remove dead batteries from equipment. Remove batteries from appliances that will not be used again for a long time. Supervise children with batteries at all times. Remember to keep small button cell and AAA batteries away from small children as they can easily be swallowed. Seek medical attention if batteries are swallowed. Do not mix old and new batteries. Do not mix different types of batteries. Never dispose of batteries in a fire. Do not attempt to recharge ordinary batteries. WARNING! Not suitable for children under 3 years due to small components which may cause a choking hazard. PLEASE KEEP THE PACKAGING FOR FUTURE USE WARNINGS Please retain information for future reference. Made in China Adult supervision required at all times. Colour and contents may vary from those illustrated. All packaging materials such as tape, plastic bags, plastic sheets, wire ties and tags are not part of the toy and should be discarded for childrens’ safety. Use on a flat surface only. Do not play in car parks or on roads or crowded places. Do not try to catch the car while it is running. Avoid getting the car wet and do not play while it is raining or snowing. Keep away from high temperatures. Keep objects such as fingers, hair and material away from the wheels. You may experience some interference with similar frequencies, avoid using this product near items that cause interference. Do not aim the car at people or animals. The crossed out wheelie bin symbol on this item indicates that this appliance needs to be disposed of in an environmentally friendly way when it becomes of no further use or has worn out. Contact your local authority for details of where to take this item for re-cycling.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2010-7-21Sheet of File:E:\\..\FCC_T27_BLOCK.SCHDrawn By: ENCODE TRANSMISSION 27.145MHz BLOCK DIAGRAM OF TRANSMISSION SIGNAL MODULATION The remote control diagram PT8A977IC: X1 27.145MHz Q2 X1 Q1 R7 C5 L2 L1 C2 9V Battery 3.9V Regulator R6D1C7R8 OSCILLATOR L3 C6 R4 LIUJIE MEISIDA ELECTRONIC TOYS CO.,LTD.

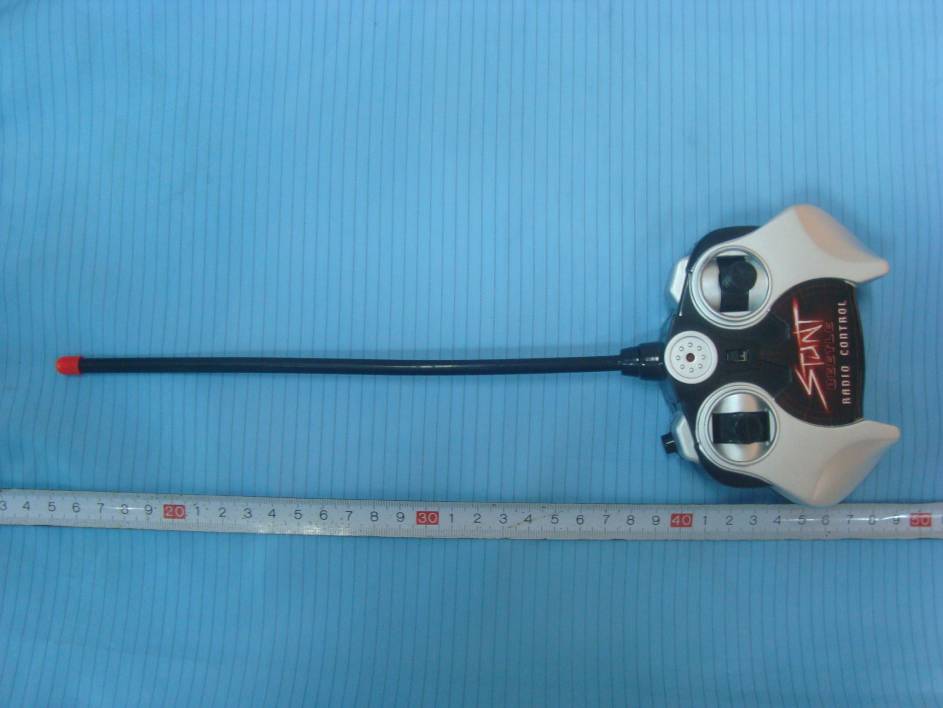

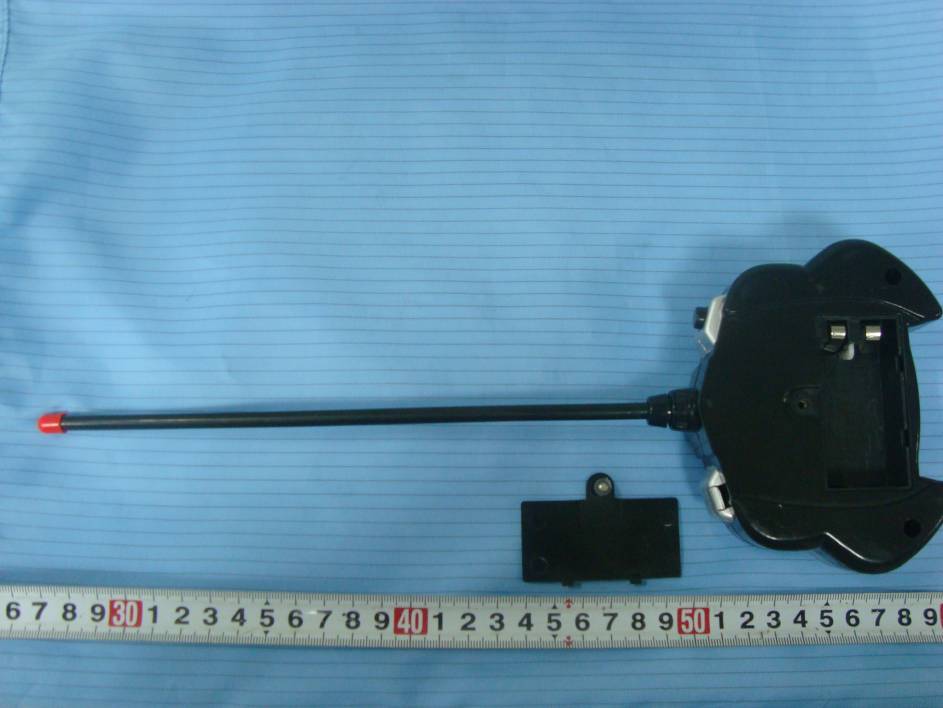

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Remove Battery View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View Antenna EUT – Main Board Bottom View EUT – Antenna View

Circuit Description BTY0902 Transmitter The IC PT8A977 is powered by 9V battery，the power is stabilized and Filtered by Q1 and C7.Oscillator circuit is composed of Q2, C6 and crystal 27.146 MHz etc. When button is pressed, the encode signal is feed from the pin8 of IC PT8A977 ，encode signal and carrier 27.145MHz will be modulated by Q1,and sent out via L1.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2010-7-12Sheet of File:E:\ 刘捷\..\Y0902T27_FCC.schDrawn By: 17 8 14 IC PT8A977BPE X1 27.145MHz C7 104 C5 47 C4 68 C6 47 L3 2.7uH L2 L1 Q2 1815Y Q1 1815Y R8 200K R6 330 R4 330K R2 33K R3 100 R5 2.2K R7 22K LED? LED D1 3.9V K1 S S - 1 2 F4 2 G5 BT 9.0V ANT R1 100 C1* 181 C2 47 C3 103 LiuJie Y0902T-27 TX board schematic circuit diagram MEISIDA ELECTRONIC TOYS CO.,LTD. 2.7uH 6.8uH 27.145MHz

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For MEISIDA ELECTRONIC TOYS CO., LTD. ANPING INDUSTRY PARK (ANHAI), FUJIAN, CHINA FCC ID: PV5MSD09021989 Report Type: Original Report Product Type: STUNT ROLLING CAR Test Engineer: Felix Li Report Number: RSZ10062101 Report Date: 2010-07-09 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 MEISIDA ELECTRONIC TOYS CO., LTD. FCC ID: PV5MSD09021989 Report #: RSZ10062101 Page 2 of 13 FCC Part 15.227 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 FCC §15.205, §15.209, §15.227(A) & §15.227(B) – FIELD STRENGTH .................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA................................................................................................................................................................10 MEISIDA ELECTRONIC TOYS CO., LTD. FCC ID: PV5MSD09021989 Report #: RSZ10062101 Page 3 of 13 FCC Part 15.227 Test Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The MEISIDA ELECTRONIC TOYS CO., LTD.’s product, model number: MSD0902 (FCC ID: PV5MSD09021989) or the "EUT" as referred to in this report is a STUNT ROLLING CAR, which measures approximately 8.0cm L x 11.5cm W x 5.0cm H, rated input voltage: DC 9V Battery. * All measurement and test data in this report was gathered from production sample serial number: 1006031 (Assigned by BACL, Shenzhen). The EUT was received on 2010-06-21. Objective This Type approval report is prepared on behalf of MEISIDA ELECTRONIC TOYS CO., LTD. in accordance with Part 2, Subpart J, and Part 15, Subparts A, B and C of the Federal Communication Commissions rules. The objective is to dete…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions – Front View (Below 30 MHz) Radiated Emissions - Rear view (Below 30 MHz) Radiated Emissions – Front View (30 MHz-1 GHz) Radiated Emissions – Rear View (30MHz-1GHz)
