PVB-EMJA019LGET TOGETHER DUO

Operating Instruction Model: EM-JA019 Rev 0 Bluetooth Bookshelf Speakers Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions–The safety and operating instructions should be retained for future reference. 3. Heed all warnings–All warnings on the appliance and in the operating instructions should be adhered to. 4. Follow all instructions – All operating and use instructions should be followed. 5. Do not use this apparatus near water – The appliance should not be used near water or moisture –for example, in a wet basement or near a swimming pool, and the like. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus. 10. Only use attachments/accessories specified by the manufacturer. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 12. Unplug the apparatus during lighting storms or when unused for long periods of time. 13. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14. -This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. -Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. -The exclamation point within and equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. 15. The mains plug is used as disconnect device, the disconnect device shall remain readily operable. 16. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus. 17. The use of the equipment in moderate climate. 18. The ventilation should not be impeded by covering the ventilation openings with items such as, newspapers, tablecloths, curtains, etc. 19. No naked flame sources, such as lighted candles, should be placed on the apparatus. 20. The symbol with indicate AC voltage. 21. The symbol with indicate DC voltage. 22. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. 23. WARNING: The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. 24. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. 25. Attention should be drawn to the environmental aspects of battery disposal. 26. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by [licensee name] is under license. Other trademarks and trade names are those of their respective owners. Before Use： The equipment consists of two speakers. One is the right speaker, which is powered by a built-in rechargeable lithium battery; If the battery is depleted, the lithium battery can be charged via a USB cable. This speaker is slave device. The other is the left speaker, which is powered by a power adapter. Connect the mains adaptor to DC IN 15.0V 0.8A socket on the back of the radio. Then insert the mains plug into the wall outlet whose voltage matches the voltage stated on the rate plate of the device. This speaker is master device. The two speakers can be used separately. And also use the TWS function to network together. Drawing Line: Speaker left (master device) Speaker right （slave device） EM-JA019L EM-JA019R 1. VOL-/ fast backward 2. VOL+/ fast forward 3. TWS/ Play/pause button 4. On /off/ function switch (Bluetooth /AUX IN /LINE IN) 5. Function indicator (Blue—Bluetooth; RED—AUX IN; PURPLE—LINE IN) 6. Power light 7. DC IN jack 8. AUX IN 9. Line-in 1. VOL-/ fast backward 2. VOL+/ fast forward 3. Play/pause 4. On /off/ function switch (Bluetooth /AUX IN /LINE IN) 5. Function indicator (Blue—Bluetooth; RED—AUX IN; PURPLE—LINE IN) 6. Charge lamp (Charging, indicator light is always on; The full charge indicator went out) 7. USB charge jack 8. AUX IN 9. Line-in Powering On the master speaker Use the supplied mains adaptor to connect to the DC IN socket at the back of the unit and insert the plug into your household outlet. The red power indicator lights up, voice prompt “POWER ON”, device power on. Note: Check the rating plate on the AC/DC adapter with your mains p…

Text truncated - open the document above for the full version.

The House of Marley.LLC Date: 01/20/2021 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: PVB-EMJA019L To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch and Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with The House of Marley.LLC. This authorization is valid until further written notice from the applicant. Name (Printed): Josh Poulsen Title: Director of Product Development Signature: On behalf of Company: The House of Marley.LLC

SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Declaration Applicant Legal Business Name The House of Marley.LLC Address 3000 Pontiac TrailCommerce Township, 48390, Michigan, United States Grantee Code PVB FCC ID PVB-EMJA019L Authorized Contact Name Josh Poulsen Contact Email [email protected] Contact Phone (248) 863-3001 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1 ) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 01/20/2021 Print Name: Josh Poulsen Title: Director of Product Development *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database Applicant Declaration Rev:0.0

The House of Marley.LLC To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: The House of Marley.LLC 3000 Pontiac Trail Commerce Township, Michigan, 48390, United States Regarding: Confidentiality Request regarding application for FCC ID: PVB-EMJA019L LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Name (Printed): Josh Poulsen Title: Director of Product Development Signature: On behalf of Company: The House of Marley.LLC

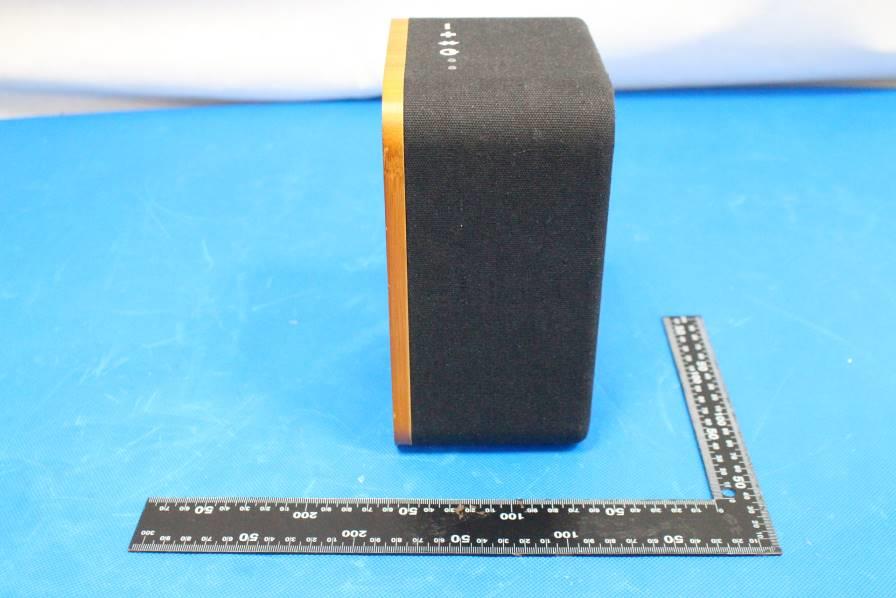

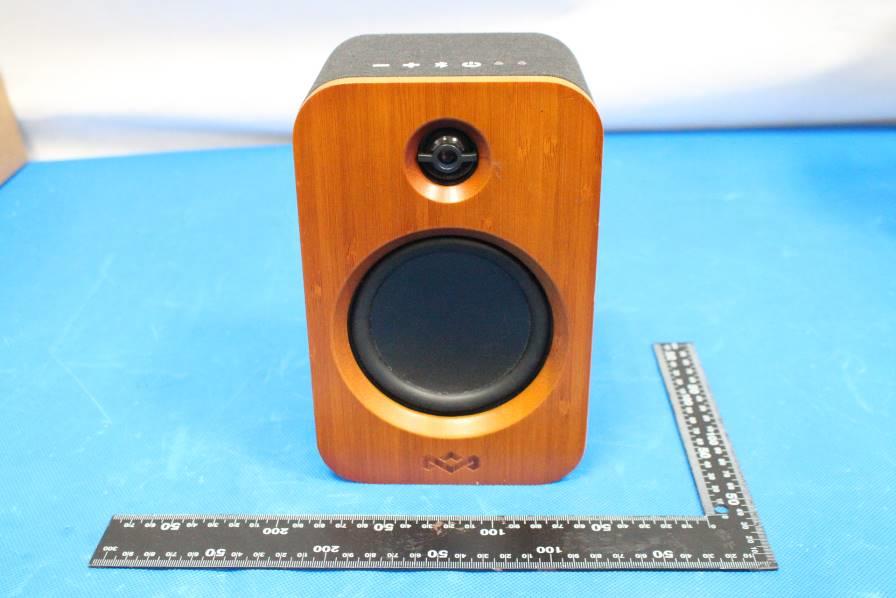

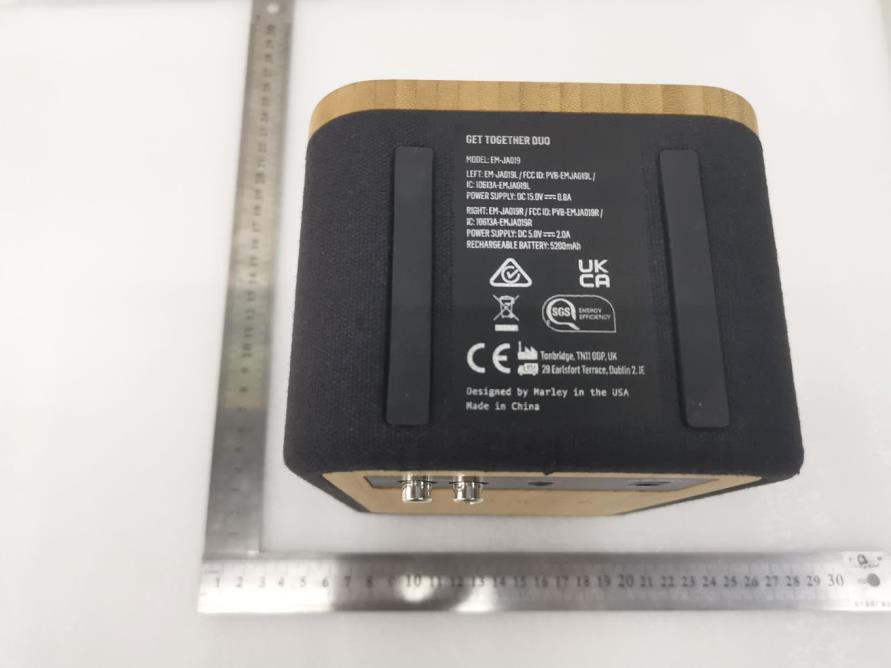

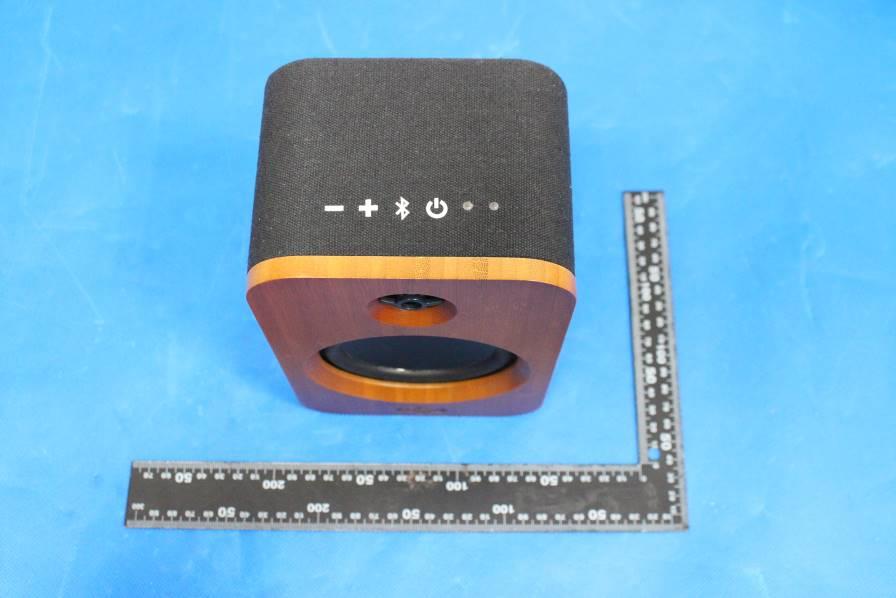

External Photo

Internal Photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523904 Page: 1 of 10 FCC ID: PVB-EMJA019L Kobe Jian EMC Laboratory Manager RF EXPOSURE EVALUATION REPORT Application No.: GZEM2009015239CR Applicant: The House of Marley.LLC (Company Code: PVB) Address of Applicant: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Manufacturer: The House of Marley.LLC (Company Code: PVB) Address of Manufacturer: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Factory: Guangdong Leetac Electronics Technology Co., Ltd. Address of Factory: No.15 Danli Road, South District, Zhongshan, Guangdong, China. Equipment Under Test (EUT): FCC ID: PVB-EMJA019L EUT Name: GET TOGETHER DUO Model No.: EM-JA019L Trade Mark: Standard(s): 47 CFR Part 1.1307, Part 1.1310 Date of Receipt: 2020-09-22 Date of Evaluation: 2020-10-13 to 2020-11-26 Date of Issue: 2020-12-02 Evaluation Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523904 Page: 2 of 10 Revision Record Version Chapter Date Modifier Remark 01 2020-12-02 Original Authorized for issue by: Evaluated By 2020-10-13 to 2020-11-26 Kevin_Zhang /Project Engineer Date Checked By 2020-12-02 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523904 Page: 3 of 10 2 Evaluation Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, Part 1.1310 CFR 47 Part 1.1310 CFR 47 Part 1.1310 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523904 Page: 4 of 10 3 Contents Page 1 Cover Page .............................................................................................................................................. 1 2 Evaluation Summary .............................................................................................................................. 3 3 Contents ................................................................................................................................................. 4 4 General Information ............................................................................................................................... 5 4.1 Details of E.U.T................................................................................................................................ 5 4.2 Description of Support Units............................................................................................................. 5 4.3 Test Location ................................................................................................................................... 5 4.4 Test Facility ..................................................................................................................................... 6 4.5 Deviation from Standards ................................................................................................................. 7 4.6 Abnormalities from Standard Conditions .......................................................................................... 7 5 Radio Spectrum Technical Requirement .............................................................................................. 8 5.1 RF Exposure.................................................................................................................................... 8 5.1.1 Test Requirement: ....................................................................................................................... 8 5.1.2 Conclusion .................................................................................................................................. 9 6 Photographs ......................................................................................................................................... 10 6.1 EUT Constructional Details ............................................................................................................ 10 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523904 Page: 5 of 10 4 General Information 4.1 Details of E.U.T. Power Supply: DC 15 V powered by AC/DC adapter as below Model: ASSA107W-150080 INPUT: AC 100-240 V, 50/60Hz, 0.45A OUTPUT: DC 15 V, 0.8 A Cable: DC input ports AUX IN ports LINE IN ports with unshielded cables (1.3 m) For AC/DC adapter: AC plug DC output cables (unshielded, 1.2 m) Antenna Gain: 0 dBi declared by applicant Antenna Type: PCB antenna Channel Spacing: 1MHz Modulation Type: GFSK, π/4DQPSK, 8DPSK Number of Channels: 79 Operation Frequency: 2402MHz to 2480MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) Hardware: 100-9BA100-01R Software: SV01 S/N: GZ_SP_20201156068 Test Software BT_Tool.exe V1.0.5 Power Setting 3 dBm can not be changed by user 4.2 Description of Support Units The EUT has been tested as an independent unit. 4.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523904 Page: 6 of 10 4.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations:  NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government.  ACMA SGS-CSTC Standards Technica…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 1 of 96 FCC ID: PVB-EMJA019L Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2009015239CR Applicant: The House of Marley.LLC (Company Code: PVB) Address of Applicant: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Manufacturer: The House of Marley.LLC (Company Code: PVB) Address of Manufacturer: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Factory: Guangdong Leetac Electronics Technology Co., Ltd. Address of Factory: No.15 Danli Road, South District, Zhongshan, Guangdong, China. Equipment Under Test (EUT): FCC ID: PVB-EMJA019L EUT Name: GET TOGETHER DUO Model No.: EM-JA019L Trade Mark: Standard(s): 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-09-22 Date of Test: 2020-10-13 to 2020-11-26 Date of Issue: 2020-12-02 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 2 of 96 Revision Record Version Chapter Date Modifier Remark 01 2020-12-02 Original Authorized for issue by: Tested By 2020-10-13 to 2020-11-26 Kevin_Zhang /Project Engineer Date Checked By 2020-12-02 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 3 of 96 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 4 of 96 3 Contents Page 1 Cover Page .............................................................................................................................................. 1 2 Test Summary ........................................................................................................................................ 3 3 Contents ................................................................................................................................................. 4 4 General Information ............................................................................................................................... 6 4.1 Details of E.U.T................................................................................................................................ 6 4.2 Description of Support Units............................................................................................................. 6 4.3 Measurement Uncertainty ................................................................................................................ 7 4.4 Test Location ................................................................................................................................... 7 4.5 Test Facility ..................................................................................................................................... 8 4.6 Deviation from Standards ................................................................................................................. 9 4.7 Abnormalities from Standard Conditions .......................................................................................... 9 4.8 Duty cycle of the EUT ...................................................................................................................... 9 5 Equipment List ..................................................................................................................................... 10 6 Radio Spectrum Technical Requirement ............................................................................................ 14 6.1 Antenna Requirement .................................................................................................................... 14 6.1.1 Test Requirement: ..................................................................................................................... 14 6.1.2 Conclusion ................................................................................................................................ 14 6.2 Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence ...…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 61 of 96 DH5_Ant1_Hop SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 62 of 96 2DH1_Ant1_Hop SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 63 of 96 2DH3_Ant1_Hop SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 64 of 96 2DH5_Ant1_Hop SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 65 of 96 3DH1_Ant1_Hop SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 66 of 96 3DH3_Ant1_Hop SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 67 of 96 3DH5_Ant1_Hop SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 68 of 96 8.6 Appendix E: Number of hopping channels 8.6.1 Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 >=15 PASS 2DH5 Ant1 Hop 79 >=15 PASS 3DH5 Ant1 Hop 79 >=15 PASS 8.6.2 Test Graphs DH5_Ant1_Hop SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 69 of 96 2DH5_Ant1_Hop 3DH5_Ant1_Hop SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 70 of 96 8.7 Appendix F: Band edge measurements 8.7.1 Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 0.10 -53.11 <=-19.9 PASS High 2480 -2.80 -57.15 <=-22.8 PASS Low Hop_2402 -0.22 -57.07 <=-20.22 PASS High Hop_2480 -2.91 -57.59 <=-22.91 PASS 2DH5 Ant1 Low 2402 -0.19 -52.71 <=-20.19 PASS High 2480 -2.99 -58.04 <=-22.99 PASS Low Hop_2402 -1.69 -51.64 <=-21.69 PASS High Hop_2480 -4.19 -57.51 <=-24.19 PASS 3DH5 Ant1 Low 2402 0.04 -53.29 <=-19.96 PASS High 2480 -2.84 -57.8 <=-22.84 PASS Low Hop_2402 -2.79 -57.7 <=-22.79 PASS High Hop_2480 -4.35 -57.6 <=-24.35 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 71 of 96 8.7.2 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 72 of 96 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 73 of 96 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 74 of 96 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 75 of 96 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 76 of 96 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 77 of 96 8.8 Appendix G: Conducted Spurious Emission 8.8.1 Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.21 -0.21 --- PASS 30~1000 30~1000 -69.107 <=-20.207 PASS 1000~26500 1000~26500 -41.402 <=-20.207 PASS 2441 Reference -1.58 -1.58 --- PASS 30~1000 30~1000 -67.831 <=-21.576 PASS 1000~26500 1000~26500 -43.732 <=-21.576 PASS 2480 Reference -2.83 -2.83 --- PASS 30~1000 30~1000 -69.088 <=-22.83 PASS 1000~26500 1000~26500 -46.118 <=-22.83 PASS 2DH5 Ant1 2402 Reference -0.11 -0.11 --- PASS 30~1000 30~1000 -68.32 <=-20.111 PASS 1000~26500 1000~26500 -43.097 <=-20.111 PASS 2441 Reference -2.30 -2.30 --- PASS 30~1000 30~1000 -67.49 <=-22.304 PASS 1000~26500 1000~26500 -44.268 <=-22.304 PASS 2480 Reference -3.09 -3.09 --- PASS 30~1000 30~1000 -68.066 <=-23.087 PASS 1000~26500 1000~26500 -47.131 <=-23.087 PASS 3DH5 Ant1 2402 Reference 0.03 0.03 --- PASS 30~1000 30~1000 -69.541 <=-19.969 PASS 1000~26500 1000~26500 -44.235 <=-19.969 PASS 2441 Reference -1.74 -1.74 --- PASS 30~1000 30~1000 -68.378 <=-21.738 PASS 1000~26500 1000~26500 -45.929 <=-21.738 PASS 2480 Reference -3.13 -3.13 --- PASS 30~1000 30~1000 -68.304 <=-23.129 PASS 1000~26500 1000~26500 -47.45 <=-23.129 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 78 of 96 8.8.2 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 79 of 96 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_0~Reference SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 80 of 96 DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 81 of 96 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 82 of 96 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 83 of 96 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 84 of 96 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 85 of 96 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_0~Reference SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 86 of 96 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200901523902 Page: 87 of 96 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 SGS-CSTC Standards Technical Services Co., …

Text truncated - open the document above for the full version.

Test Setup Photo 1.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup 1.2 RF Conducted Test Setup 1.3 Radiated Emissions which fall in the restricted bands & Radiated Spurious Emissions Test Setup
