PVB-EMJE113Smile Jamaica Wireless 2

Quick Start Guide Smile Jamaica Wireless 2 / Bluetooth® Earbuds 빠른 시작 가이드 Smile Jamaica Wireless 2 / 블루투스 ® 이어 버드 QUICK START GUIDE SMILE JAMAICA WIRELESS 2 ATTENTION, PLEASE READ QUICK START GUIDE BEFORE USE ATTENTION, PRIÈRE DE LIRE LE GUIDE DE DÉMARRAGE RAPIDE AVANT UTILISATION ATENCIÓN, LEA LA GUÍA DE INICIO RÁPIDO ANTES DE USARLO VOR DEM GEBRAUCH BITTE DIE SCHNELLSTARTANLEITUNG LESEN ATTENZIONE, LEGGERE LA GUIDA DI AVVIAMENTO RAPIDO PRIMA DEL USO OPGELET, VOOR HET GEBRUIK DE SNELSTARTGIDS LEZEN 提示：使用前請閱讀快捷使用說明 사용 전에 빠른 시작 가이드를 읽어 주십시오. ご使用前にクイックスタートガイドを必ずお読みください。 2x 2x 2 sec 2초 2 sec 2초 = 100% 3 sec 4 sec ON OFF RED ROJO ROUGE ROT ROSSO RØD PIROS CZERWONY КРАСНЫЙ ROOD PUNAINEN RÖD ΚΌΚΚΙΝΟΣ VERMELHO KIRMIZI 红 赤 빨간색 WHITE BLANCO BLANCHE WEISS BIANCA HVID FEHÉR BIAŁY БЕЛЫЙ WIT VALKOINEN VIT ΛΕΥΚΟ BRANCO BEYAZ 白色 白い 흰색 2 sec 2초 이어폰USB-A ~ USB-C 충전 케이블 QSG(간단사용설명서) 보증서 환영 카드 2가지 사이즈의 이어팁 – (대형, 소형) 스티커 = 100% 3초 4초 RED ROJO ROUGE ROT ROSSO RØD PIROS CZERWONY КРАСНЫЙ ROOD PUNAINEN RÖD ΚΌΚΚΙΝΟΣ VERMELHO KIRMIZI 红 赤 빨간색 WHITE BLANCO BLANCHE WEISS BIANCA HVID FEHÉR BIAŁY БЕЛЫЙ WIT VALKOINEN VIT ΛΕΥΚΟ BRANCO BEYAZ 白色 白い 흰색 켜짐 꺼짐 2 sec 1 4 23 SELECT “Smile Jamaica Wireless 2” 1 4 3 2초 “Smile Jamaica Wireless 2”을 선택합니다 Bluetooth ® 켜짐 연결됨 2 Full instruction and warranty details can be found at https://www.thehouseofmarley.com/ customer-support/instruction-books Para obtener libro de instrucciones, det- alles de garantía y excepciones, visite https://www.thehouseofmarley.com/ customer-support/instruction-books Pour les informations complètes et les exceptions, rendezvous sur https://www.thehouseofmarley.com/ customer-support/instruction-books Weitere Informationen und Ausnahmen erhalten Sie hier https://www.thehouseofmarley.com/ customer-support/instruction-books Per maggiori informazioni visitare il sito https://www.thehouseofmarley.com/ customer-support/instruction-books Komplette anvisninger og oplysninger om garanti kan findes på https://www.thehouseofmarley.com/ customer-support/instruction-books Teljes útmutató és garancianyilatkozat: https://www.thehouseofmarley.com/ customer-support/instruction-books Pełna instrukcja i warunki gwarancji są dostępne na stronie: https://www.thehouseofmarley.com/ customer-support/instruction-books Úplné pokyny a detaily záruky nájdete na https://www.thehouseofmarley.com/ customer-support/instruction-books Правила и условия гарантии полностью изложены по адресу https://www.thehouseofmarley.com/ customer-support/instruction-books De volledige handleiding en garantiege- gevens kunnen hier worden gevonden: https://www.thehouseofmarley.com/ customer-support/instruction-books Fullstendige instruksjoner og garantidetal- jer kan finnes på https://www.thehouseofmarley.com/ customer-support/instruction-books Täydelliset ohjeet ja takuu löytyvät osoitteesta https://www.thehouseofmarley.com/ customer-support/instruction-books Fullständiga instruktioner och garantiinfor- mation finns på https://www.thehouseofmarley.com/ customer-support/instruction-books Μπορείτε να βρείτε πλήρεις οδηγίες και λεπτομέρειες για την εγγύηση στη διεύθυνση https://www.thehouseofmarley.com/ customer-support/instruction-books Instruções completas e informações da garantia podem encontrar-se em https://www.thehouseofmarley.com/ customer-support/instruction-books Talimat ve garanti detaylarının tamamına adresinden erişilebilir https://www.thehouseofmarley.com/ customer-support/instruction-books https://www.thehouseofmarley.com/ customer-support/instruction-books https://www.thehouseofmarley.com/ customer-support/instruction-books https://www.thehouseofmarley.com/ customer-support/instruction-books https://www.thehouseofmarley.com/ customer-support/instruction-books https://www.thehouseofmarley.com/ customer-support/instruction-books COMPLIANCE INFO Conformité / Conformidad / Beachtung / Conformità / Na- levingsinformatie / 合規信息 / 규정 준수 정보 / コンプライアンス情報 Le présent appareil est conforme aux CNR d’ Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil nedoit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe b est conforme à la norme nmb - 003 du canada. ISEDC RF EXPOSURE STATEMENT: The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. LE PRÉSENT APPAREIL EST CONFORME Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir. les informations correspondantes. BATTERY REPLACEMENT STATEMENT IN EUROPE Your Smile Jamaica Wireless 2 includes a rechargeable battery designed to last the lifetime of the product. In the unlikely event that you should require a replacement battery please contact Customer Services who will supply details of the warranty and out-of-warranty replacement battery service. BATTERY DIRECTIVE This symbol indicates that batteries must not be disposed of in the domestic waste as they contain substances which can be damaging to the environment and health. Please dispose of batteries in designated collection points. WEEE EXPLANATION This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. Hereby, FKA Brands Ltd, declares that this radio equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of Conformity can be obtained from www…

Text truncated - open the document above for the full version.

QA-FR-170-B The House of Marley.LLC Address: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Email: [email protected] Tel: 0012488633001 Fax: 0012488633001 FCC Authorization 2020/02/10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We (The House of Marley.LLC), the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862 . This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Josh Poulsen Director of Product Development

The House of Marley.LLC Address: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Email: [email protected] Tel: 0012488633001 Fax: 0012488633001 FCC Confidential Authorization 2020/02/10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: PVB-EMJE113 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (The House of Marley.LLC) hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Josh Poulsen Director of Product Development

The House of Marley.LLC Address: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Email: [email protected] Tel: 0012488633001 Fax: 0012488633001 Date: 2020/0 2/10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The RF chip, model BK3266, which installed in our product (Product Name: Smile Jamaica Wireless 2; Model: EM-JE113; FCC ID: PVB-EMJE113) supports BDR(GFSK), EDR(π/4-DQPSK, 8DPSK), BLE functions. For use in America, this chip will not support/enable the BLE function. The BLE function have been shielded by the manufacturer using the software. Sincerely Yours, Josh Poulsen Director of Product Development

The House of Marley.LLC Address: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Email: [email protected] Tel: 0012488633001 Fax: 0012488633001 FCC ID Cover Letter We, The House of Marley.LLC, hereby submit justification for placing the cover FCC ID (PVB-EMJE113) not on the product body, but on the label attached the cable of product. We did multi-national certificates for this product and want to print the entire information together, but the product body cannot provide enough physical space to print the entire label, so FCC ID places on the label attached the cable of product. We declare the label is folded and tightly attached on the cable of the product. And the label material is water proof and tough enough for tearing, if the user did not intentionally remove it (like cut it off or tear off with strength), it can be permanently fixed on the product. Conclusion: Based on the above description, we conclude that product body cannot provide enough physical space to print the entire label. We therefore request to place FCC ID on the label attached the cable of product. The label information as below: The general location of label are as below : Best regards, Josh Poulsen Director of Product Development

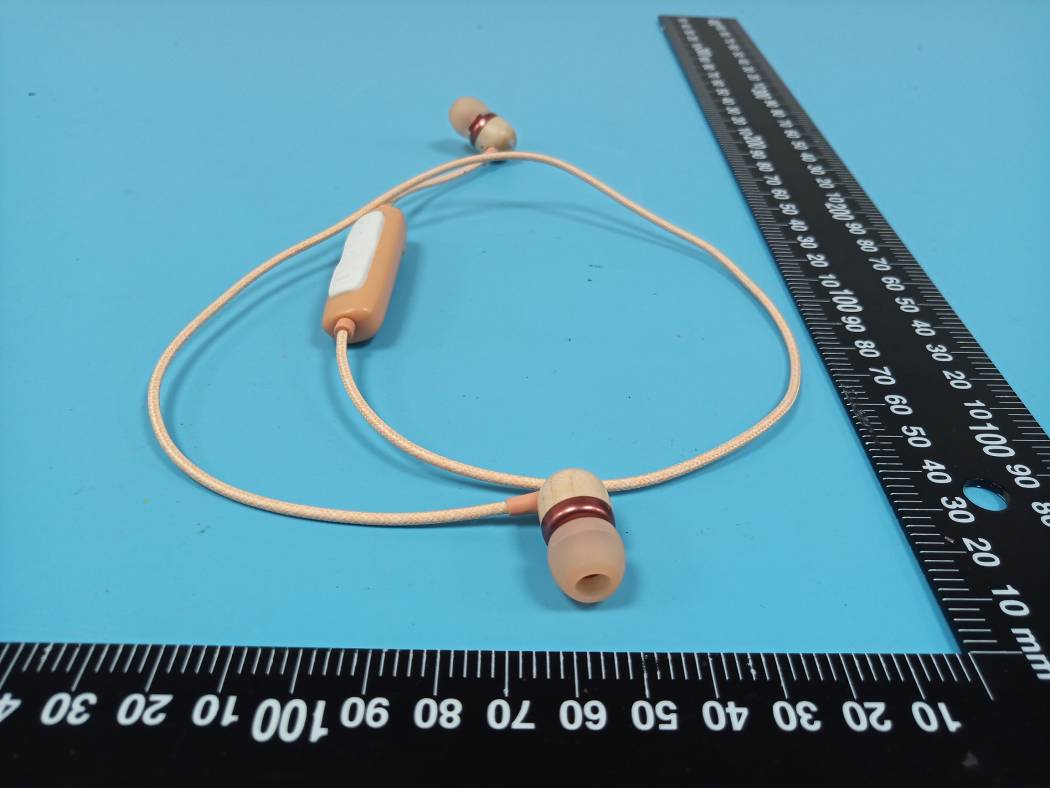

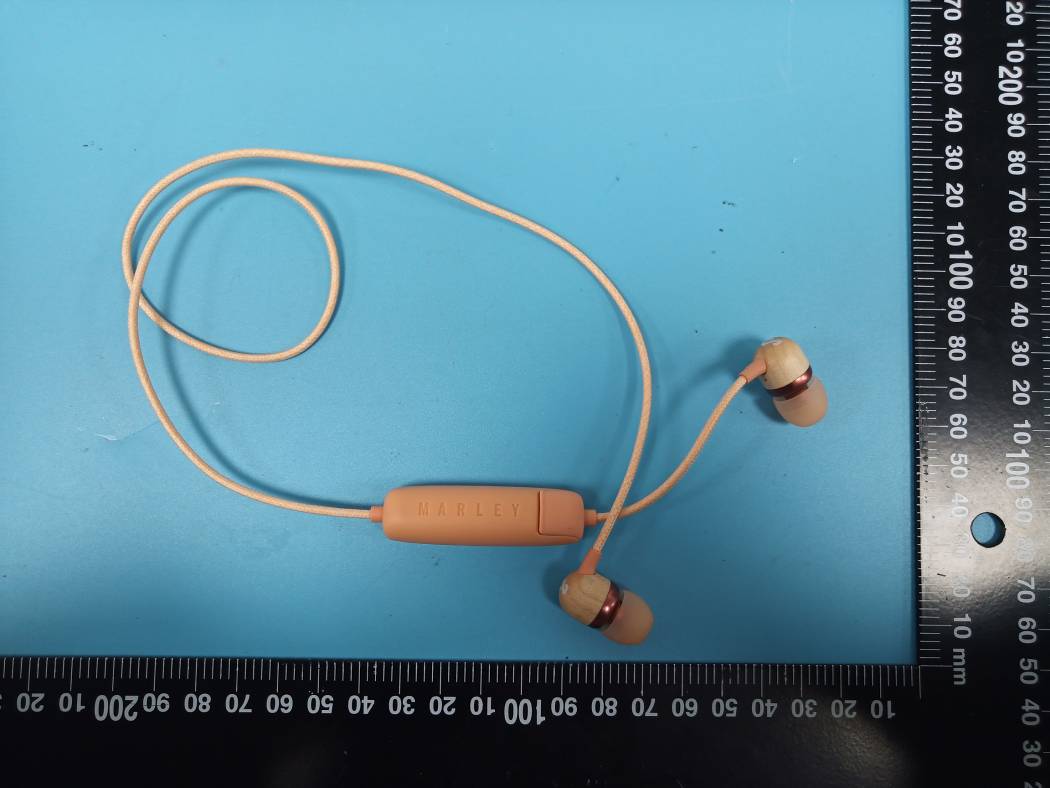

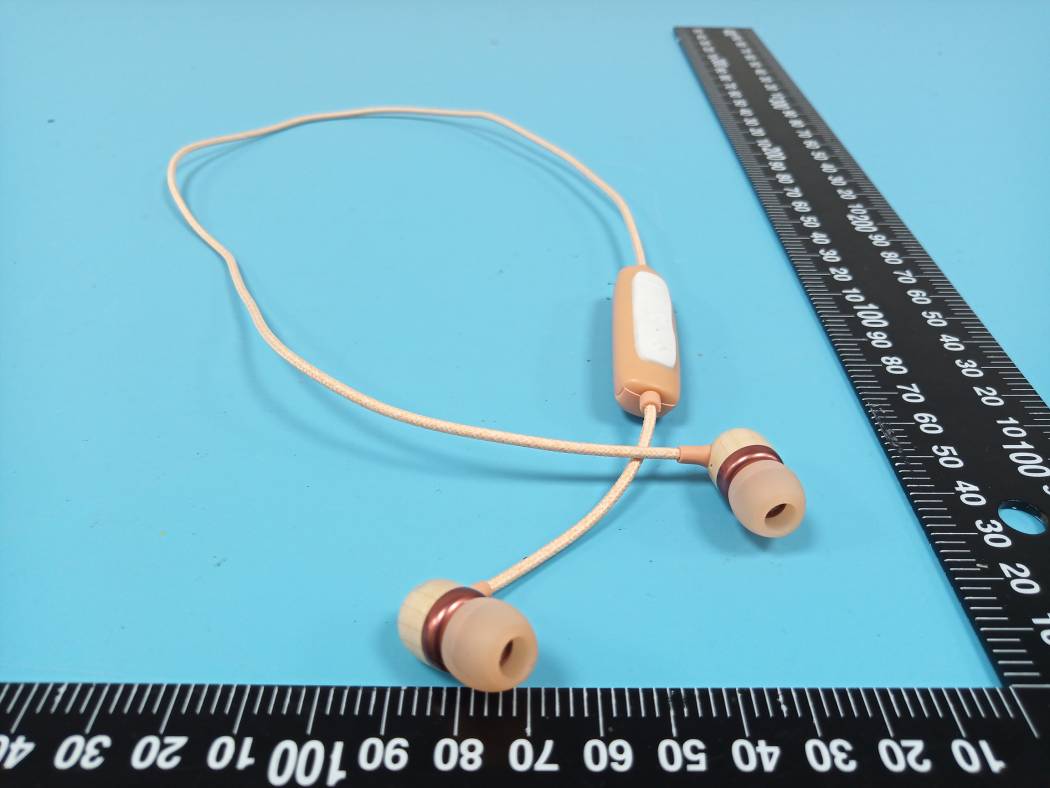

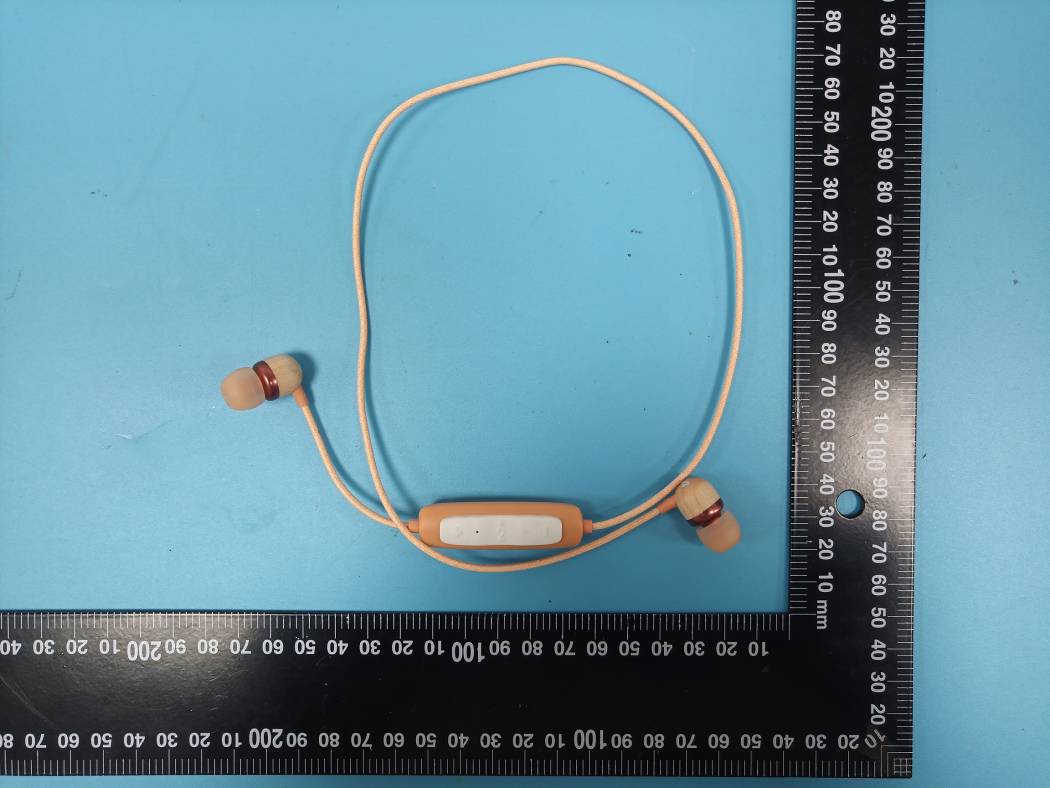

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS BT Antenna

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For The House of Marley.LLC 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States FCC ID: PVB-EMJE113 Report Type: Original Report Product Type: Smile Jamaica Wireless 2 Re port Number: RSZ191203801-00 Re port Date: 2019-12-30 Reviewed B y: Kieron Luo RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ191203801-00 FCC Part 15.247 Page 2 of 29 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE ...................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 13 …

Text truncated - open the document above for the full version.

AppendixA: 20dBEmission Bandwidth Test Result TestMode AntennaChannel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH1 Ant1 2402 1.035 2401.478 2402.513 --- PASS 2441 1.035 2440.478 2441.513 --- PASS 2480 1.038 2479.475 2480.513 --- PASS 2DH1 Ant1 2402 1.359 2401.340 2402.699 --- PASS 2441 1.359 2440.343 2441.702 --- PASS 2480 1.359 2479.343 2480.702 --- PASS 3DH1 Ant1 2402 1.353 2401.337 2402.690 --- PASS 2441 1.353 2440.337 2441.690 --- PASS 2480 1.353 2479.337 2480.690 --- PASS Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 AppendixC: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 0.35 <=20.97 PASS 2441 -0.18 <=20.97 PASS 2480 -0.76 <=20.97 PASS 2DH1 Ant1 2402 2.46 <=20.97 PASS 2441 1.68 <=20.97 PASS 2480 1.13 <=20.97 PASS 3DH1 Ant1 2402 2.88 <=20.97 PASS 2441 1.99 <=20.97 PASS 2480 1.5 <=20.97 PASS Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 AppendixD: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 1 >=0.690 PASS 2DH1 Ant1 Hop 1.003 >=0.906 PASS 3DH1 Ant1 Hop 1 >=0.902 PASS Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop AppendixE: Time of occupancy Test Result TestMode AntennaChannel BurstWidth [ms] TotalHops [Num] Result[s]Limit[s] Verdict DH1 Ant1 Hop 0.37 320 0.12 <=0.4 PASS DH3 Ant1 Hop 1.64 160 0.262 <=0.4 PASS DH5 Ant1 Hop 2.91 110 0.32 <=0.4 PASS 2DH1 Ant1 Hop 0.37 320 0.12 <=0.4 PASS 2DH3 Ant1 Hop 1.64 160 0.262 <=0.4 PASS 2DH5 Ant1 Hop 2.91 110 0.32 <=0.4 PASS 3DH1 Ant1 Hop 0.38 320 0.12 <=0.4 PASS 3DH3 Ant1 Hop 1.64 160 0.263 <=0.4 PASS 3DH5 Ant1 Hop 2.91 110 0.32 <=0.4 PASS Note 1：A period time=0.4*79=31.6(S), Total of Dwell=Pluse Time*Hopping Number Note 2: Hopping Number=Hopping Number in 3.16s*10 Note 3: Hoping Number in 3.16s=Total of highest signals in 3.16s(Secong high signals were other channel) Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop 2DH1_Ant1_Hop 2DH3_Ant1_Hop 2DH5_Ant1_Hop 3DH1_Ant1_Hop 3DH3_Ant1_Hop 3DH5_Ant1_Hop AppendixF: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop AppendixG:Band edge measurements Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
