PVB-EMJE121Rebel

Quick Start GuideQuick Start GuideQuick Start GuideQuick Start GuideQuick Start GuideQuick Start Guide Rebel / Bluetooth® Earbuds QUICK START GUIDE REBEL ATTENTION : PLEASE READ QUICK START GUIDE BEFORE USE ATTENTION : PRIÈRE DE LIRE LE GUIDE DE DÉMARRAGE RAPIDE AVANT UTILISATION A TENCIÓN : LEA LA GUÍA DE INICIO RÁPIDO ANTES DE USARLO BEACHTUNG : VOR DEM GEBRAUCH BITTE DIE SCHNELLSTARTANLEITUNG LESEN ATTENZIONE : LEGGERE LA GUIDA DI AVVIAMENTO RAPIDO PRIMA DEL USO OPGELET : V OOR HET GEBRUIK DE SNELSTARTGIDS LEZEN 注 意： ご 使 用 前 にクイックスタートガ イドを 必 ず お 読 みください 。 提示：使用前請閱讀快捷使用說明 주의 : 사용 전에 빠른 시작 가이드를 읽어 주십시오. 1. Initial Set Up: • Open Case. • Place earbud in case and close lid. • Leave earbuds in closed case for 15 minutes before first pair. • Open lid and remove earbuds to pair. 2. Battery Life: Tap case to check battery level. LEDs on case will indicate status. 3. Powering On and Pairing: Remove earbuds from the charging case and they will automatically go into pairing mode. Select “Rebel” from your device’s Bluetooth® menu. 4. Force pair to New Device: • Open case lid, press and hold case button for 4 seconds. 5. Reset Earbuds to Factory Settings: • Open lid while earbuds are in case, press and hold case button for 8 seconds. • Earbuds will quickly flash red indicating factory reset. Close lid. To pair to device follow step 1. ---------------------------- 1. Préparation initiale: • Ouvrez l’étui. • Retirez le film de protection de chaque écouteur • Placez les écouteurs dans l’étui et fermez le couvercle • Laissez les écouteurs dans l’étui fermé pendant 15 minutes avant d’effectuer le premier appairage • Ouvrez le couvercle et retirez les écouteurs pour effectuer l’appairage 2. Durée de vie de la batterie: Tapez sur l’étui pour voir l’état des voyants indiquant la charge de la batterie. 3. Mise sous tension et appairage: Retirez les écouteurs de l’étui de charge. Ils passent automatiquement en mode d’appairage. Dans le menu Bluetooth®, sélectionnez « Rebel » 4. Pour désappairer les écouteurs de l’appareil: Appuyez quatre fois sur le bouton pour désappairer les écouteurs de l’appareil. Les écouteurs seront désappairés et prêts à être appairés à un autre appareil. 5. Réinitialisez les paramètres Bluetooth®: • Éteignez les écouteurs en appuyant sur le bouton de l’écouteur droit et de l’écouteur gauche pendant quatre secondes. • Appuyez ensuite sur le bouton de l’écouteur gauche ou de l’écouteur droit pendant huit secondes. ---------------------------- 1. Configuración inicial: •Abra el estuche. • Retire el plástico protector de cada audífono • Coloque el audífonos en el estuche y cierre la tapa • Deje los audífonos en el estuche cerrado durante 15 minutos antes del primer acople • Abra la tapa y saque los audífonos para acoplarlos 2. Vida de la batería: Toque el estuche y vea el estado de LED de la batería para revisarla. 3. Encendido y coplamiento: Saque los audífonos del estuche de carga. Éstos se pondrán automáticamente en modo de acoplamiento; en el menú Bluetooth®, seleccione “Rebel” 4. Para desacoplarse del dispositivo: Para desacoplar los audífonos de un dispositivo, oprima el botón 4 veces. Los audífonos se desacoplarán y después estarán listos para acoplarse con otro dispositivo. 5. Reinicio de la configuración Bluetooth®: • Apague los audífonos manteniendo presionado el botón en los audífonos izquierdo y derecho durante 4 segundos. • Después, mantenga presionado el botón del audífono izquierdo o derecho durante 8 segundos. ---------------------------- 1. Predisposizione iniziale: • Aprire la scatola. • Rimuovere la pellicola protettiva da ciascun auricolare • Collocare l’auricolare nella scatola e chiudere il coperchio • Lasciare gli auricolari nella scatola chiusa per 15 minuti prima del collegamento iniziale • Aprire il coperchio ed estrarre gli auricolari per il collegamento 2. Durata della batteria: Toccare la scatola per vedere lo stato LED per la batteria. 3. Accensione e accoppiamento: Rimuovere gli auricolari dalla scatola di carica, passeranno automaticamente in modalità accoppiamento, dal menu Bluetooth®, selezionare “Rebel” 4. Per disassociare gli auricolari dal dispositivo: Per disassociare gli auricolari da un dispositivo premere il pulsante 4 volte. Gli auricolari si disassociano e sono pronti ad accoppiarsi con un altro dispositivo. 5. Ripristino delle impostazioni Bluetooth®: • Spegnere gli auricolari mantenendo premuto il pulsante a sinistra o a destra dell’auricolare per 4 secondi. • Quindi premere il pulsante a sinistra o a destra dell’auricolare per 8 secondi. ---------------------------- 1. Erste Einrichtung: •Den Behälter öffnen •Von jedem Ohrhörer den Schutzfilm abziehen •Den Ohrhörer in den Behälter legen und den Deckel schließen •Vor dem ersten Pairing die Ohrhörer für 15 Minuten im geschlossen Behälter liegen lassen •Den Deckel öffnen und die Ohrhörer zum Pairing herausnehmen 2. Batterielebensdauer: Zum Überprüfen des LED- Status der Batterie auf den Behälter klopfen. 3. Einschalten und Pairing: Nehmen Sie Ohrhörer aus dem Ladebehälter. Sie werden beim Herausnehmen aus dem Behälter automatisch in den Pairing- Modus versetzt. Im Bluetooth®- Menü „Rebel“ auswählen. 4. Abtrennen vom Gerät: Zum Trennen der Ohrhörer von einem Gerät die Taste viermal drücken. Die Ohrhörer werden abgetrennt und können dann mit einem anderen Gerät gekoppelt werden. 5. Bluetooth®-Einstellungen zurücksetzen: • Die Ohrhörer durch 4 Sekunden langes Drücken der Taste am linken oder rechten Ohrhörer ausschalten. • Dann die Taste am linken oder rechten Ohrhörer 8 Sekunden lang drücken. ---------------------------- 1. Initiële instelling: •Open het etui. •Verwijder de beschermende folie van elk oordopje •Plaats het oordopje in de oplader en sluit het deksel •Voor het eerste koppelen laat de oordopjes gedurende 15 minuten in een gesloten oplader zitten •Open het deksel en verwijder de oordopjes om ze te koppelen 2. Levensduur van de batterij: Om de LED status van de batterij te zien tik op h…

Text truncated - open the document above for the full version.

The House of Marley.LLC Date: 5/8/2021 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: PVB-EMJE121 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch and Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with The House of Marley.LLC. This authorization is valid until further written notice from the applicant. Name (Printed): Josh Poulsen Title: Director of Product Development Signature: On behalf of Company: The House of Marley.LLC

SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Declaration Applicant Legal Business Name The House of Marley.LLC Address 3000 Pontiac TrailCommerce Township, 48390, Michigan, United States Grantee Code PVB FCC ID PVB-EMJE121 Authorized Contact Name Josh Poulsen Contact Email [email protected] Contact Phone (248) 863-3001 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:5/8/2021 Print Name: Josh Poulsen Title: Director of Product Development *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database Applicant Declaration Rev:0.0

The House of Marley.LLC To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: The House of Marley.LLC 3000 Pontiac Trail Commerce Township, Michigan, 48390, United States Regarding: Confidentiality Request regarding application for FCC ID: PVB-EMJE121 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Name (Printed): Josh Poulsen Title: Director of Product Development Signature: On behalf of Company: The House of Marley.LLC

The House of Marley.LLC Cover Letter‐Wireless Charger Approval FCC ID:PVB-EMJE121 Date: 5/8/2021 Gentlemen: There’s a Rebel, that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below, Rebel, with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2 requirements. Company: The House of Marley.LLC Product Name: Rebel Model Number: EM-JE121 FCC ID: PVB-EMJE121 KDB 680106 D01 Section 5.b) Requirements: Product Technical Specification： Result: (1) Power transfer frequency is less than 1 MHz. 114.760-145.765 kHz Complied (2) Output power from each primary coil is less than or equal to 15 watts. 5Watts Complied (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Only single primary coils Complied (4) Client device is placed directly in contact with the transmitter. The WPT client device is placed in direct contact with the WPT source. Complied (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Mobile exposure condition Complied (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Refer to test report GZCR210402010204 Complied Sincerely, Name (Printed): Josh Poulsen Title: Director of Product Development Signature: On behalf of Company: The House of Marley.LLC

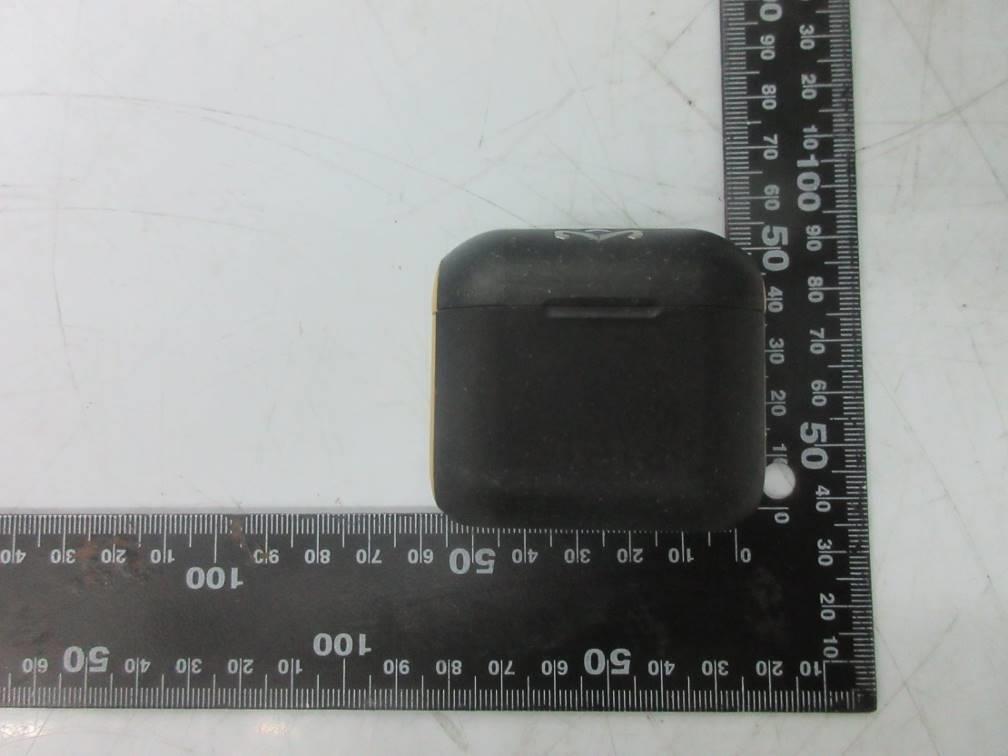

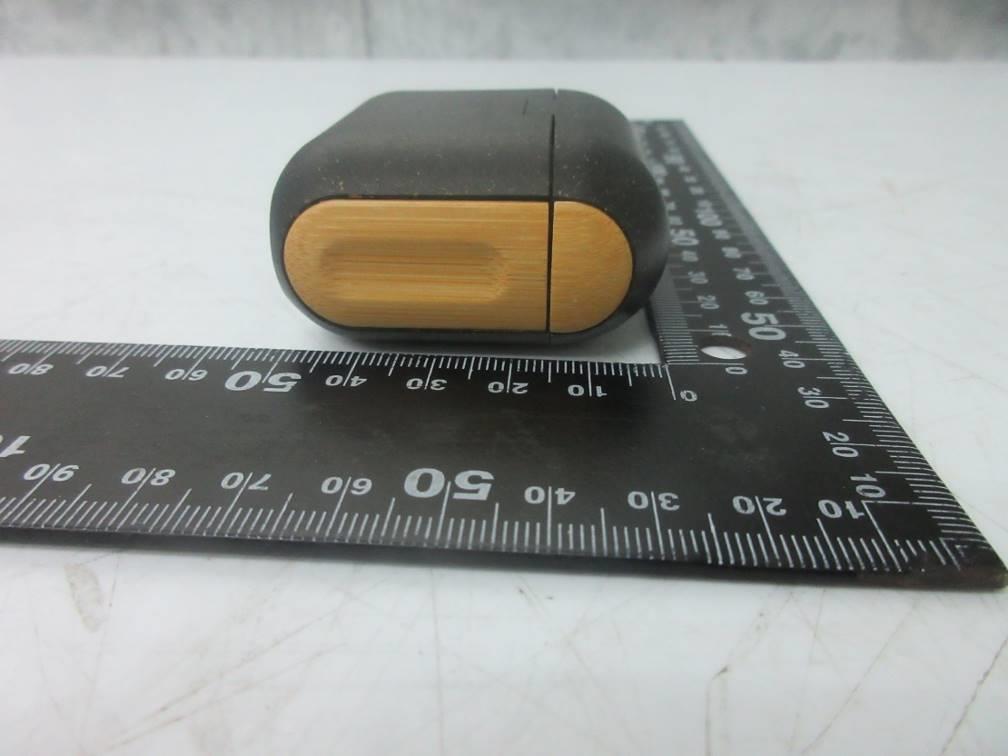

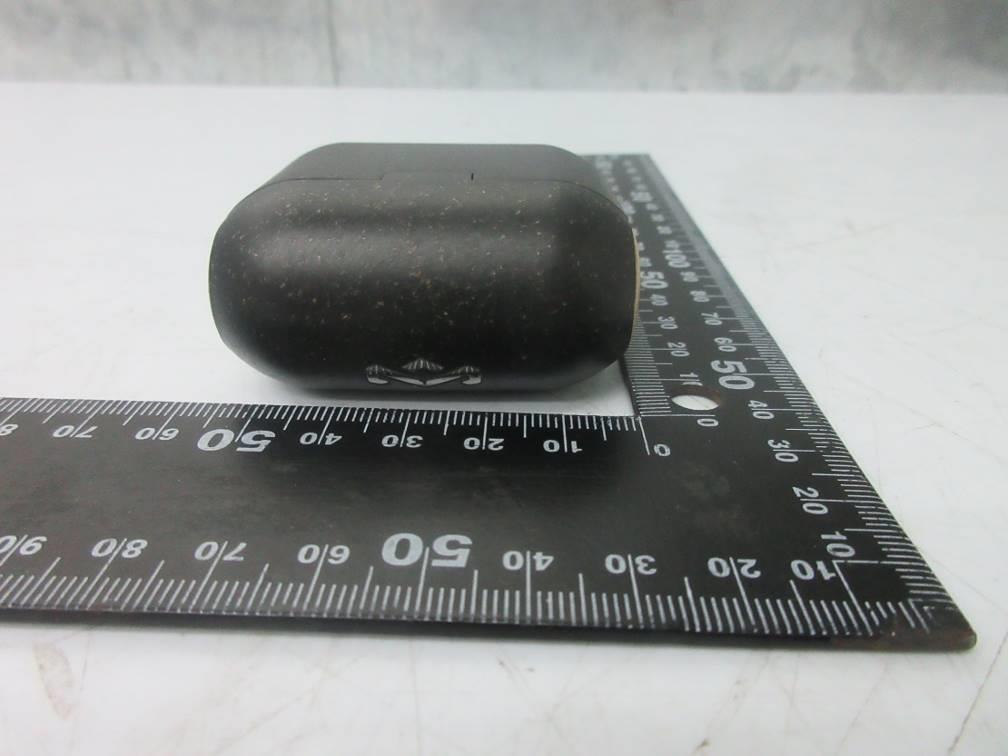

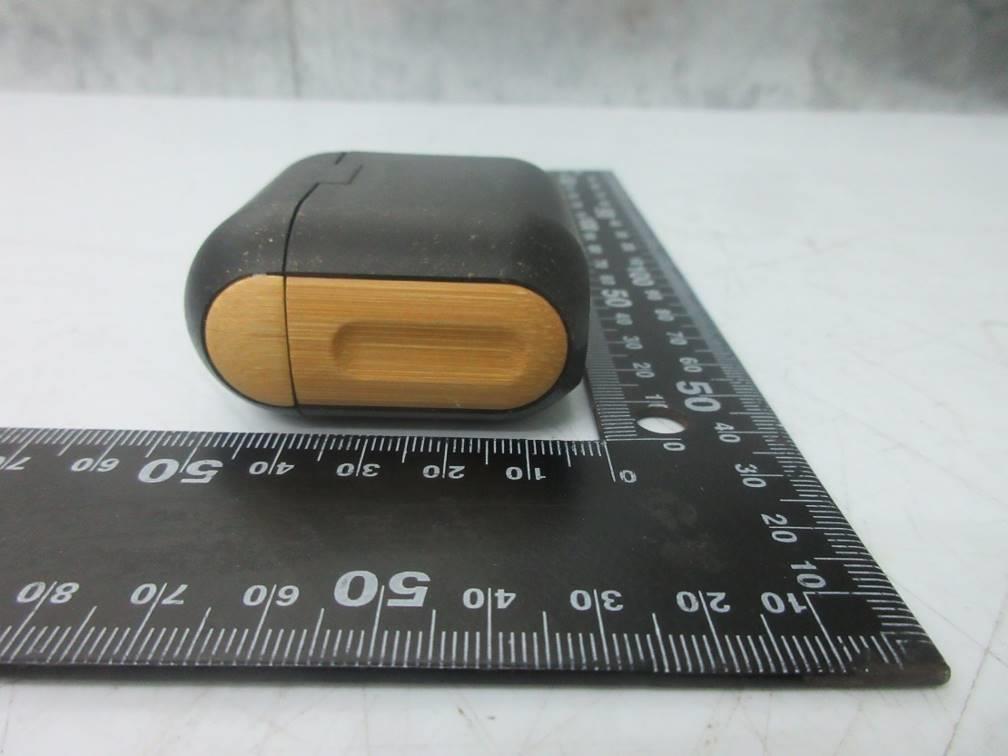

External Photo

Internal Photo WPC antenna

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210402010204 Page: 1 of 31 FCC ID: PVB-EMJE121 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZCR2104020102AT Applicant: The House of Marley.LLC Address of Applicant: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Manufacturer: The House of Marley.LLC Address of Manufacturer: 3000 Pontiac Trail, Commerce Township, Michigan 48390 United States Factory: 1. Dongguan Kailai Electronic Co., Ltd. 2. YING TONG (VIETNAM) ELECTRONIC TECHNOLOGY COMPANY LIMITED Address of Factory: 1. Building 2, No.6, Baisha Road, Changping, Dongguan City, Guangdong Province, China 2. Plot No. CN02-1-2, Lot No. CN02, Binh Xuyen II Industrial Park, Ba Hien Commune, Binh Xuyen District, Vinh Phuc Province, Vietnam Equipment Under Test (EUT): EUT Name: Rebel Model No.: EM-JE121 Trade Mark: MARLEY Standard(s) : 47 CFR Part 15, Subpart C 47 CFR Part 1.1310 47 CFR Part 1.1307 KDB 680106 D01 Date of Receipt: 2021-04-12 Date of Test: 2021-04-19 to 2021-05-12 Date of Issue: 2021-05-14 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210402010204 Page: 2 of 31 Revision Record Version Chapter Date Modifier Remark 01 2021-05-14 Original Authorized for issue by: Tested By Kevin Zhang/Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210402010204 Page: 3 of 31 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Mains Power Port (150kHz-30MHz) 47 CFR Part 15, Subpart C 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Restricted band 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 Pass 20dB Bandwidth 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.9.2 47 CFR Part 15, Subpart C 15.215 Pass Radiated Emissions (9kHz-30MHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.4 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Emissions (30MHz-1GHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass RF Exposure 47 CFR PART 1, Subpart I, Section 1.1310 KDB 680106 D01 CFR 47 Part 1.1310 Pass Note: E.U.T./EUT means Equipment Under Test. N/A: Not applicable. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210402010204 Page: 4 of 31 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Test Summary ..................................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 6 4.1 Details of E.U.T. ........................................................................................................................... 6 4.2 Description of Support Units ......................................................................................................... 6 4.3 Measurement Uncertainty ............................................................................................................ 6 4.4 Test Location ............................................................................................................................... 7 4.5 Test Facility .................................................................................................................................. 7 4.6 Deviation from Standards ............................................................................................................. 8 4.7 Abnormalities from Standard Conditions ....................................................................................... 8 5 Equipment List ................................................................................................................................... 9 6 Radio Spectrum Technical Requirement ..........................................................................................11 6.1 Antenna Requirement .................................................................................................................11 6.1.1 Test Requirement: ..................................................................................................................11 6.1.2 Conclusion ..............................................................................................................................11 7 Radio Spectrum Matter Test Results ................................................................................................12 7.1 Conducted Emissions at AC Mains Power Port (150kHz-30MHz) ................................................12 7.1.1 E.U.T. Operation .....................................................................................................................12 7.1.2 Test Mode Description ............................................................................................................12 7.1.3 Test Setup Diagram ................................................................................................................12 7.1.4 Measurement Procedure and Data .............................................................…

Text truncated - open the document above for the full version.

Test Setup Photo Conducted Emissions at AC Mains Power Port (150kHz-30MHz) RF Conducted Test Radiated Emissions (9kHz-30MHz) Radiated Emissions (30MHz-1GHz) RF Exposure Evaluation
