PVBGETTOGETHERPortable Bluetooth Audio System

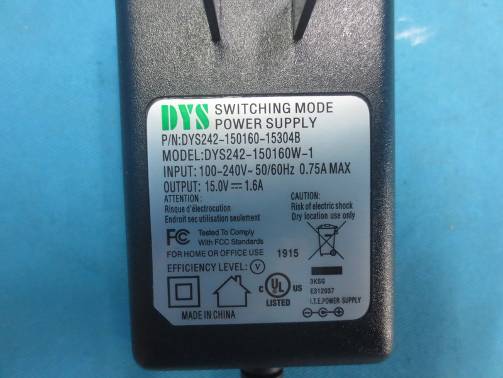

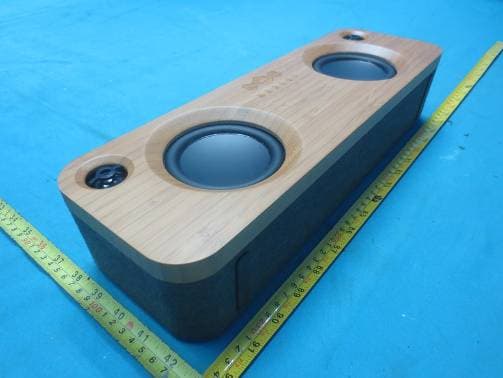

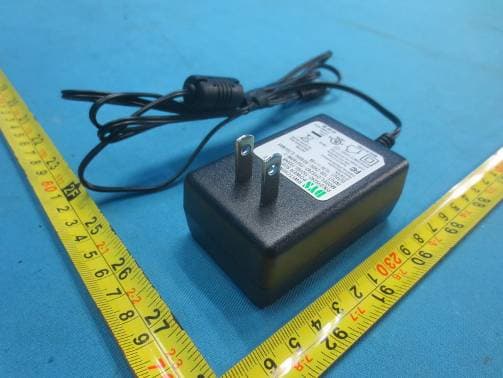

1 Get Together Portable Bluetooth ® Audio System 2 Get Together Portable Bluetooth ® Audio System Greetings and Welcome to the House of Marley We are honored you have selected Get Together to become part of your music experience. Get Together is a portable stereo sound system which works with Bluetooth ® devices connected wirelessly and hundreds of other devices via the auxiliary input. The system uses two high-output, long- throw 3.5” (89mm) woofers in a ported enclosure, two 1” (25mm) tweeters and a powerful amplifier. The system uses custom-milled bamboo front and rear sections and is wrapped in REWIND™ fabric composed of reclaimed hemp, organic cotton, and recycled plastic bottles (RPET). Everything You Need to Jam The Get Together comes with the following items: Sound System AC Power Supply (100-240 VAC) Powering Your Get Together Get Together includes a built-in rechargeable battery that is charged by the included power supply. The LED by the power port will glow RED when the system is charging and turn off once the battery is full. Using a Wall Outlet 1. Insert the AC power supply cord into the Get Together. 2. Insert wall plug into an appropriate wall outlet. Connecting Your Music Device(s) Pairing Mode (Flashing Blue LED) Get Together automatically goes into reconnect mode for 5 seconds as soon as you turn it on (flashing BLUE led). It then switches to auxiliary mode (RED led). You can pair a new device to Get Together by holding the for 3 seconds. Note: Holding the for 3 seconds will kick off the device currently connected to Get Together and go into Pairing Mode. Connected Mode (Solid Blue LED) Use your Bluetooth-enabled device to pair to Get Together. Get Together does not require a pairing password. Once paired, the LED will glow solid blue. Note: Get Together will automatically pair with the last device connected to it when turned ON (when possible). (1) (2) EN 3 EN Connecting other devices The auxiliary input on the back of Get Together allows you to connect other audio devices to the system. Easy To Use When the system is powered and a device is connected, you are ready to enjoy your Get Together. 1. Press the power button to turn Get Together on. Press the power button again to turn Get Together off. 2. Increase or decrease the volume on Get Together by pressing or holding the – and + buttons until the desired volume is reached. You can also adjust the system volume using the controls on your music source. 3. Quickly press the while music is playing to pause and resume playback directly from Get Together. Charging Your Device A convenient USB port is available on the back of Get Together to charge your devices while it is on. Use the cable that came with your device to charge. NOTE: Not all devices are compatible with the USB port. If your device does not charge, use the power adapter that came with it. Battery Replacement Your Get Together includes a rechargeable battery designed to last the lifetime of the product. In the unlikely event that you should require a replacement battery please contact Customer Services who will supply details of the warranty and out-of-warranty replacement battery service. WEEE EXPLANATION This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. BATTERY DIRECTIVE This symbol indicates that batteries must not be disposed of in the domestic waste as they contain substances which can be damaging to the environment and health. Please dispose of batteries in designated collection points. - Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user- serviceable parts inside. Refer servicing to qualified personnel. - The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. (1)(2)(3) 4 Important Safety Information 1. Follow and keep these instructions. 2. Heed all warnings. 3. Do not use this apparatus near water. 4. Clean only with a dry cloth. 5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 7. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the point where they exit from the apparatus. 8. Only use attachments/accessories specified by the manufacturer. 9. Unplug this apparatus during lightning storms or when unused for long periods of time. 10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 11. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 12. The apparatus should not be exposed to dripping or splashing and objects filled with liquids, such as vases, should not be placed on apparatus. 13. The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. 14. WARNING: The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable. 15. No naked flame sources, such as lighted candles, should be placed on the apparatus. 16. Max. operation temperature is 45°C. FCC Statement This e…

Text truncated - open the document above for the full version.

Project No.: 1507C123 Page 2 of 13 Project No.: 1507C123 Page 3 of 13 Project No.: 1507C123 Page 12 of 13 Project No.: 1507C123 Page 13 of 13

67.0 TYM T9100000338600 V1

Project No.: 1507C123 Page 4 of 13 Project No.: 1507C123 Page 5 of 13 Project No.: 1507C123 Page 6 of 13 Project No.: 1507C123 Page 7 of 13 Project No.: 1507C123 Page 8 of 13 Project No.: 1507C123 Page 9 of 13 Project No.: 1507C123 Page 10 of 13 Project No.: 1507C123 Page 11 of 13

FCC RF EXPOSURE REPORT FCC ID: PVBGETTOGETHER Project No. : 1507C123 Equipment : Portable Bluetooth Audio System Model : EM-JA006 Applicant : The House of Marley, LLC Address : 3000 Pontiac Trail Commerce Township MI-48390, USA According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 T able for Filed Antenna Ant. Brand Model NameAntenna Type Connector Gain(dBi) 1 N/A N/A PIFA N/A 2.27 GENERAL CONCULUSION: Maxi mum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) 3.332.2 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclus ion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 2.2mW, less than 10mW at 5mm distanc e. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FICP-2-1507C123 Page 1 of 65 FCC&IC Radio Test Report FCC ID: PVBGETTOGETHER IC: 10613A-GETT This report concerns (check one): Original Grant Class II Change Project No. : 1507C123 Equipment : Portable Bluetooth Audio System Model : EM-JA006 Applicant : The House of Marley, LLC Address : 3000 Pontiac Trail Commerce Township MI-48390, USA Date of Receipt : Jul. 13, 2015 Date of Test : Jul. 13, 2015 ~ Jul. 24, 2015 Issued Date : Jul. 27, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FICP-2-1507C123 Page 2 of 65 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement b y NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FICP-2-1507C123 Page 3 of 65 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 TEST PROCEDURE 13 4.1.3 DEVIATION FROM TEST STANDARD 13 4.1.4 TEST SETUP 14 4.1.5 EUT OPERATING CONDITIONS 14 4.1.6 EUT TEST CONDITIONS 14 4.1.7 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1 RADIATED EMISSION LIMITS 15 4.2.2 TEST PROCEDURE 16 4.2.3 DEVIATION FROM TEST STANDARD 16 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 18 4.2.8 TEST RESULTS (30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES / LIMIT 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 Report No.: BTL-FICP-2-1507C123 Page 4 of 65 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT OPERATION CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 30 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 33 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 35 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 42 ATTACHMENT E - BANDWIDTH 55 ATTACHMENT F - MAXIMUM OUTPUT POWER TEST 58 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 59 ATTACHMENT H - POWER SPECTRAL DENSITY TEST 63 Report No.: BTL-FICP-2-1507C123 Page 5 of 65 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FICP-2-1507C123 Original Issue. Jul. 27, 2015 Report No.: BTL-FICP-2-1507C123 Page 6 of 65 1. CERTIFICATION Equipment : Portable Bluetooth Audio System Brand Name : Marley Model : EM-JA006 Applicant : The House of Marley, LLC Manufacturer : The House of Marley, LLC Address : 3000 Pontiac Trail Commerce Township MI-48390, USA Date of Test : Premium Loudspeakers (HuiZhou) Co. Ltd Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C :2014 (15.247) / ANSI C63.10-2013 Canada RSS-247 Issue 1, May 2015 RSS-GEN Issue 4, Nov 2014 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FICP-2-1507C123) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FICP-2-1507C123 Page 7 of 65 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2014 Canada RSS-247 Issue 1, May 2015, RSS-GEN Issue 4, …

Text truncated - open the document above for the full version.

Report No.: BTL-FICP-1-1507C123 Page 30 of 109 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FICP-1-1507C123 Page 31 of 109 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FICP-1-1507C123 Page 32 of 109 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FICP-1-1507C123 Page 33 of 109 Radiated Measurement Photos Above 1000MHz
